HH55

Name: HH55
Brand: HH Catamarans

Discontinued

1 / 10

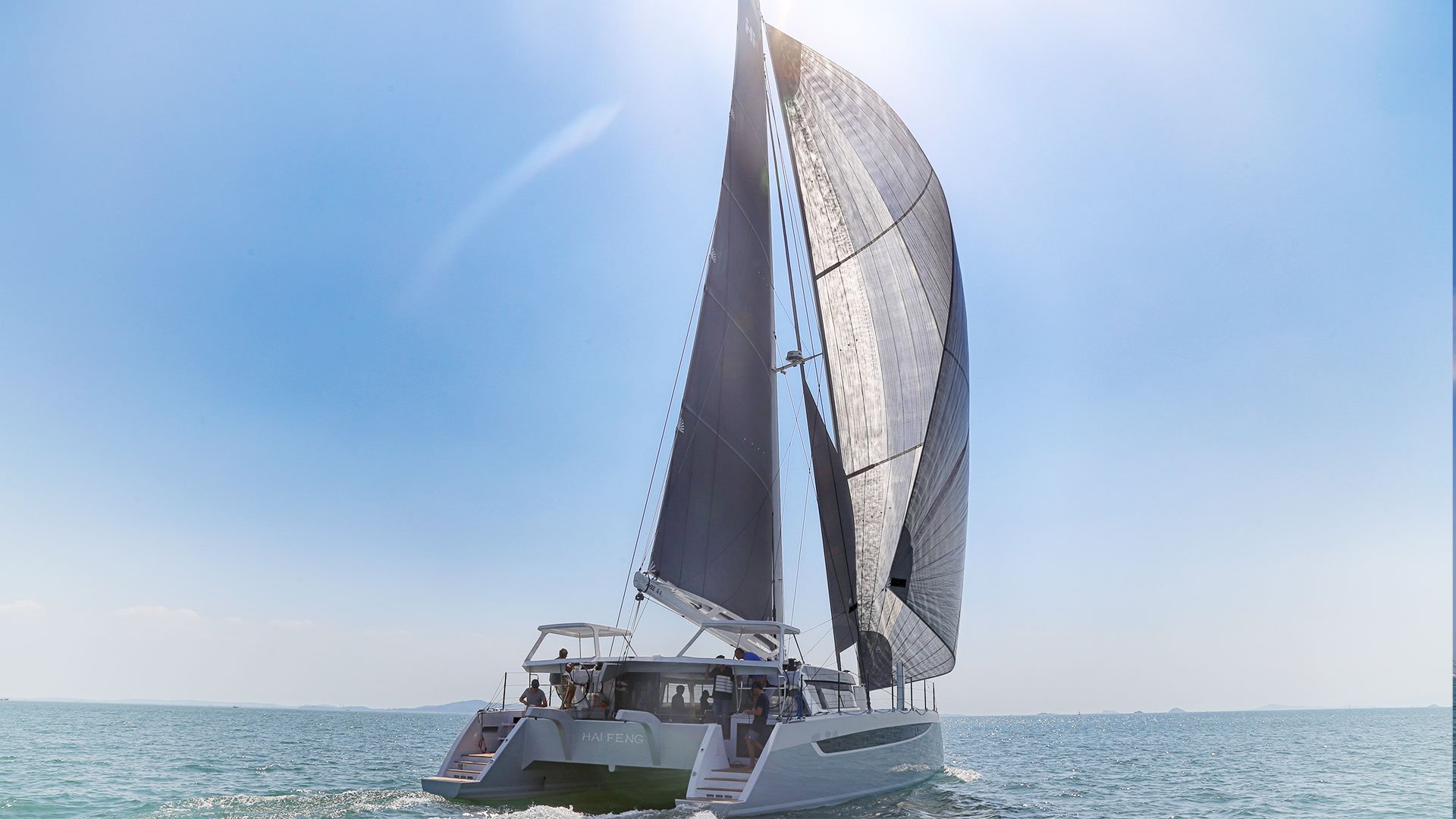

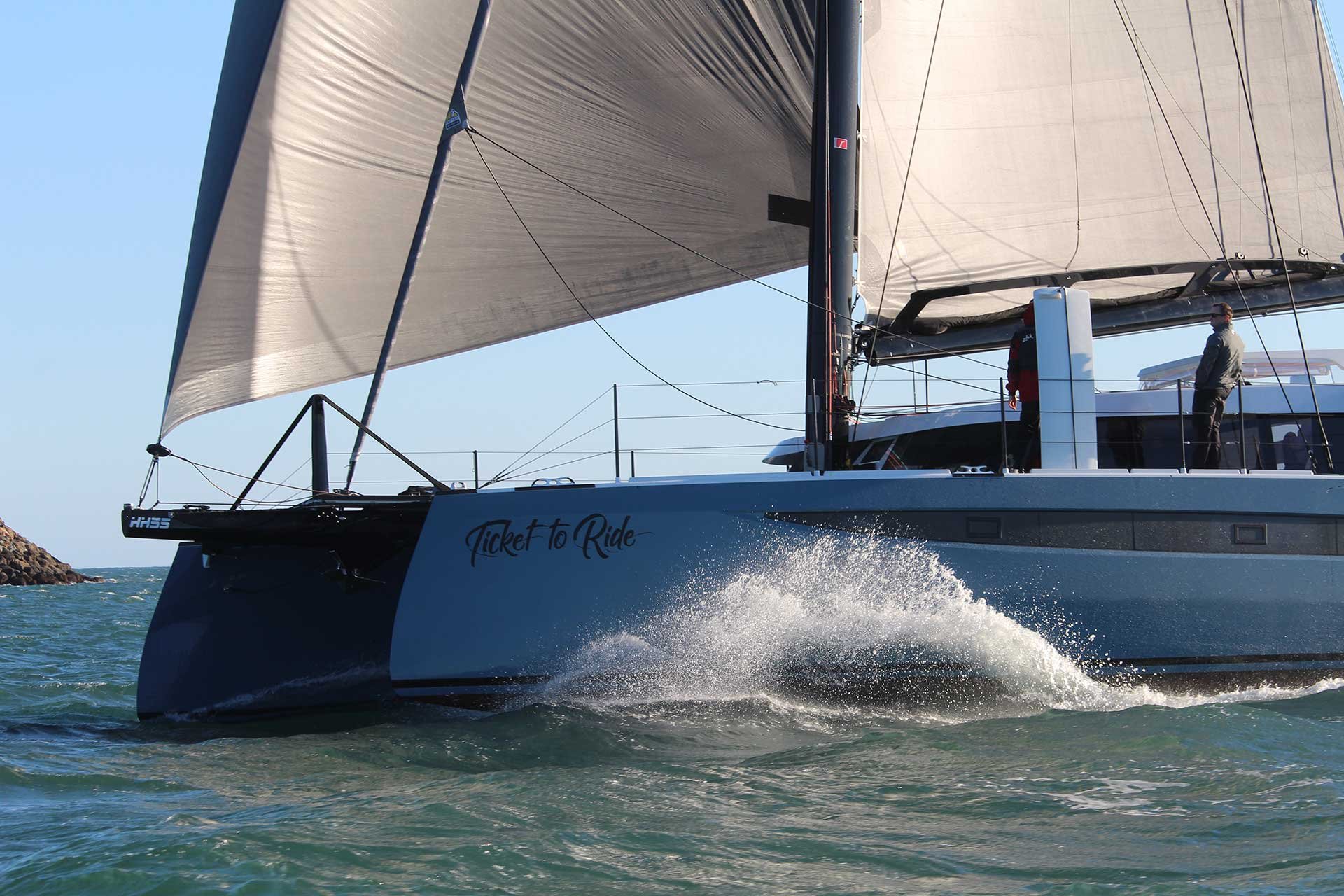

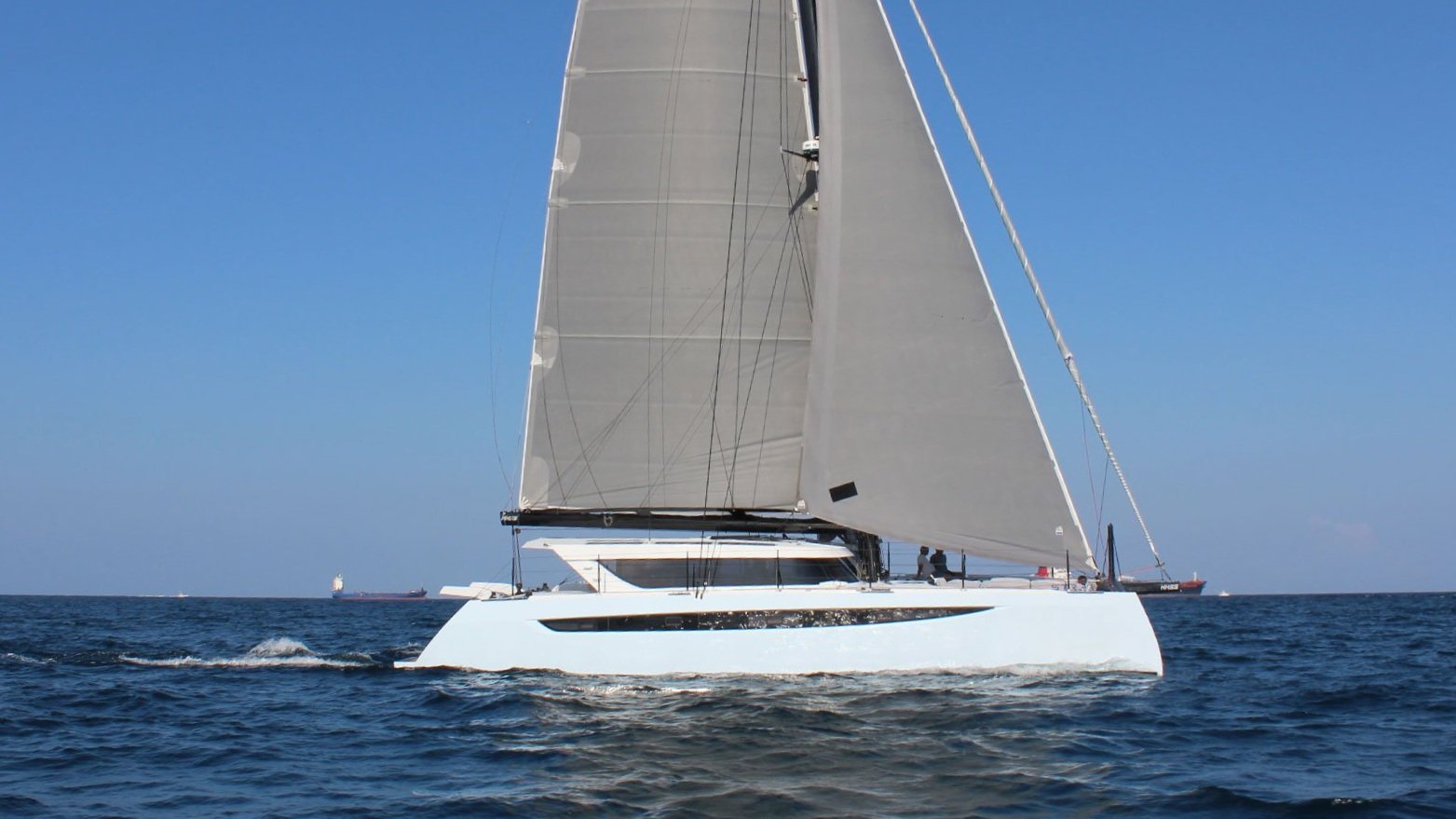

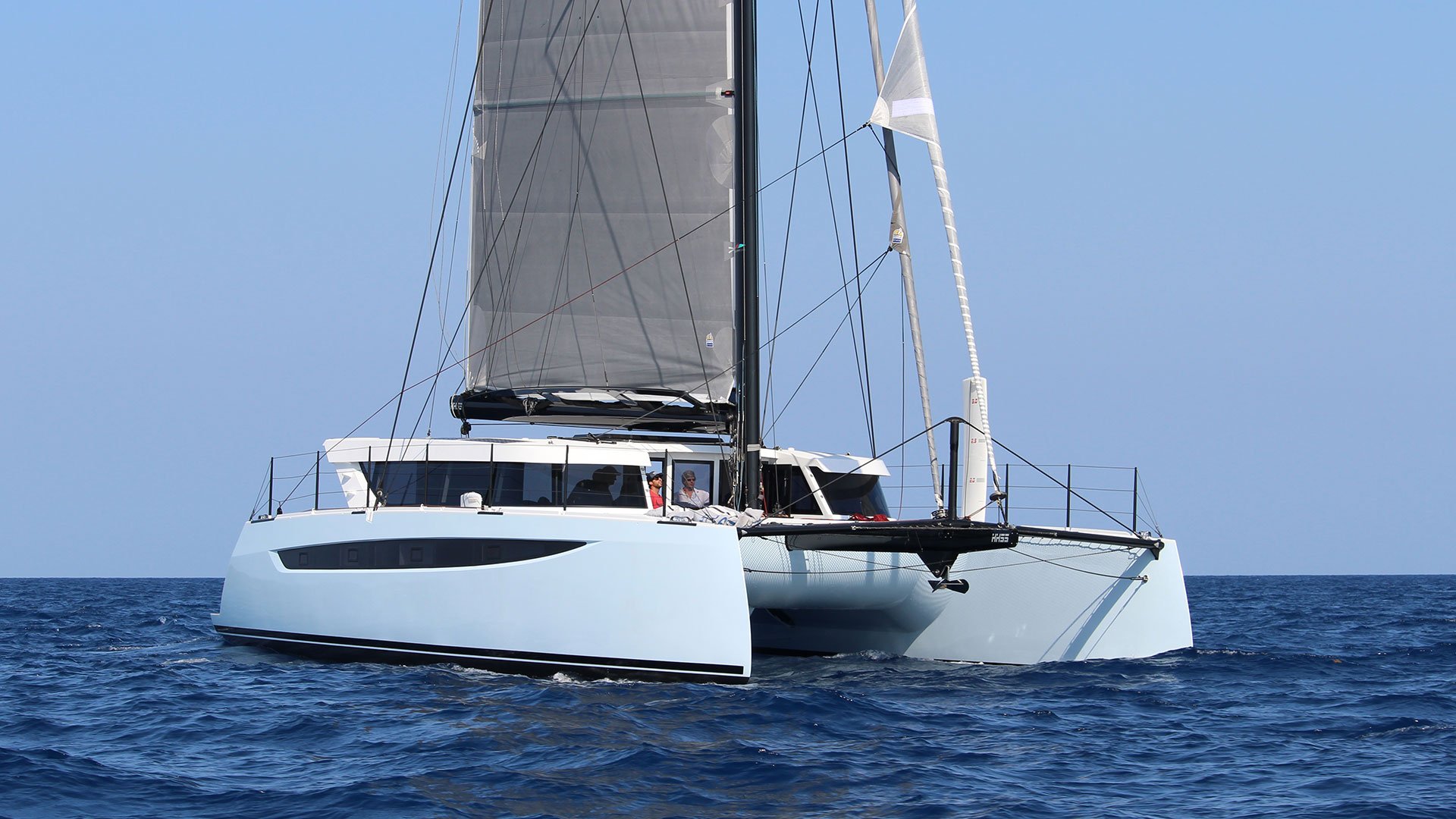

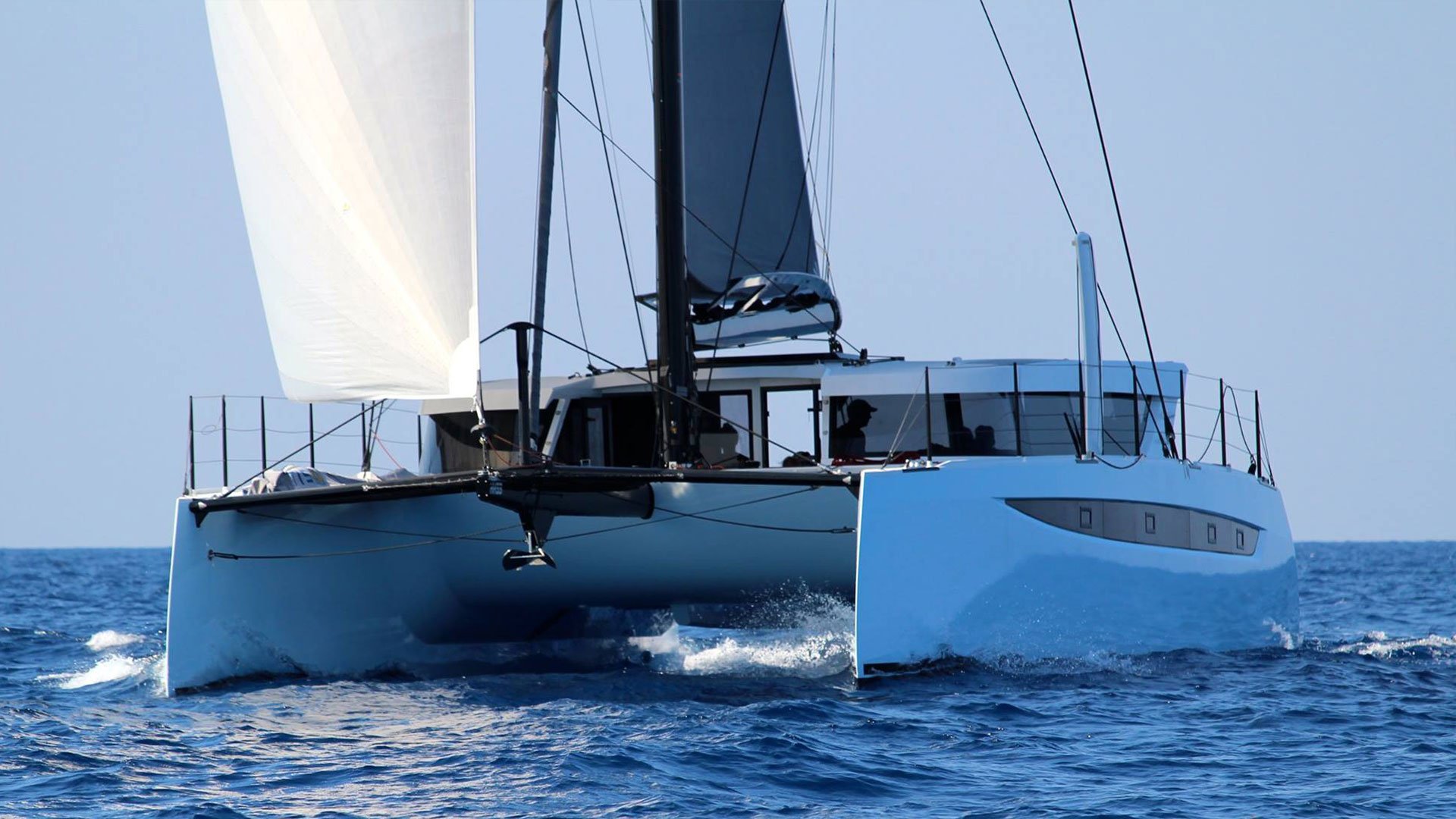

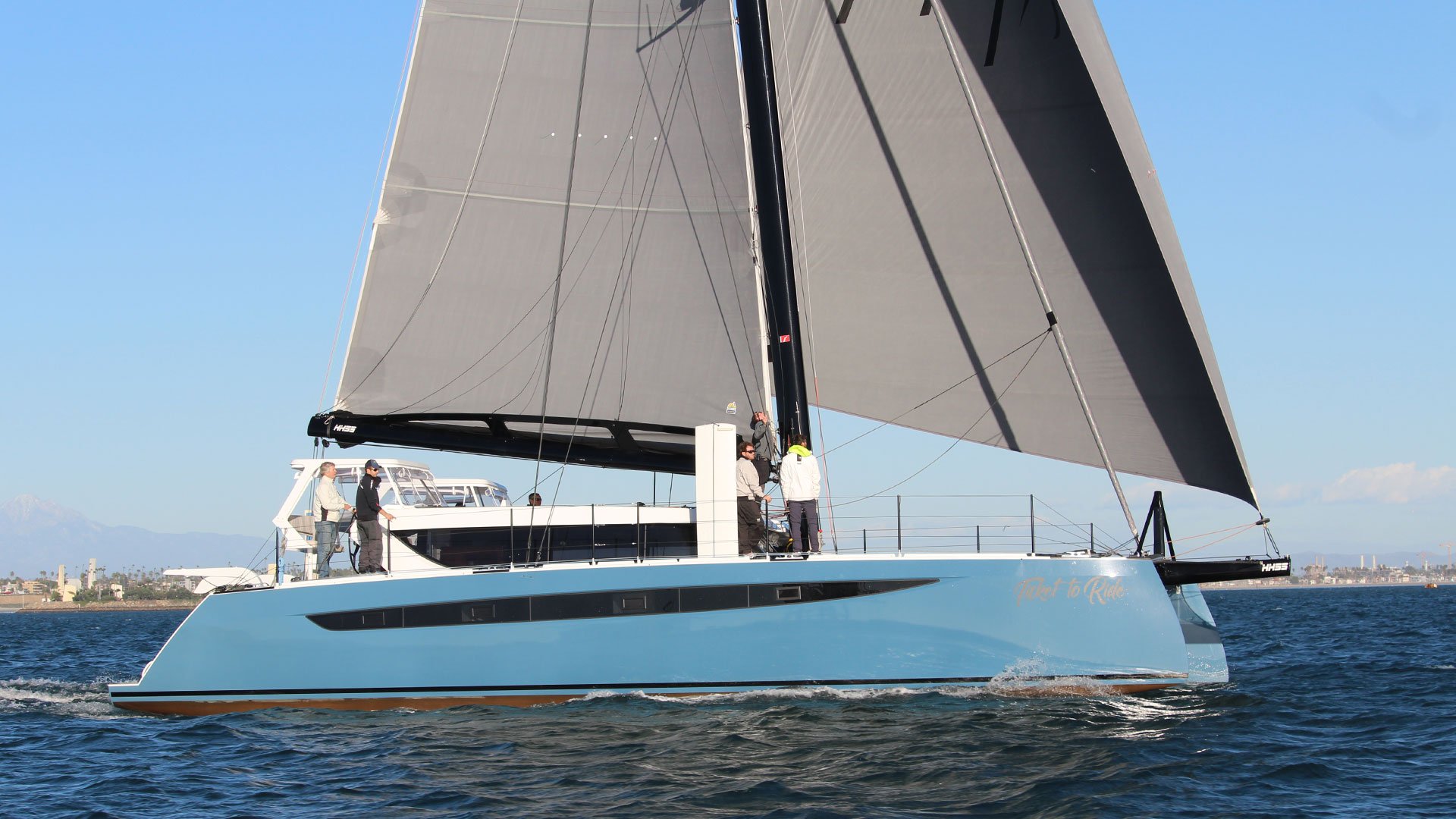

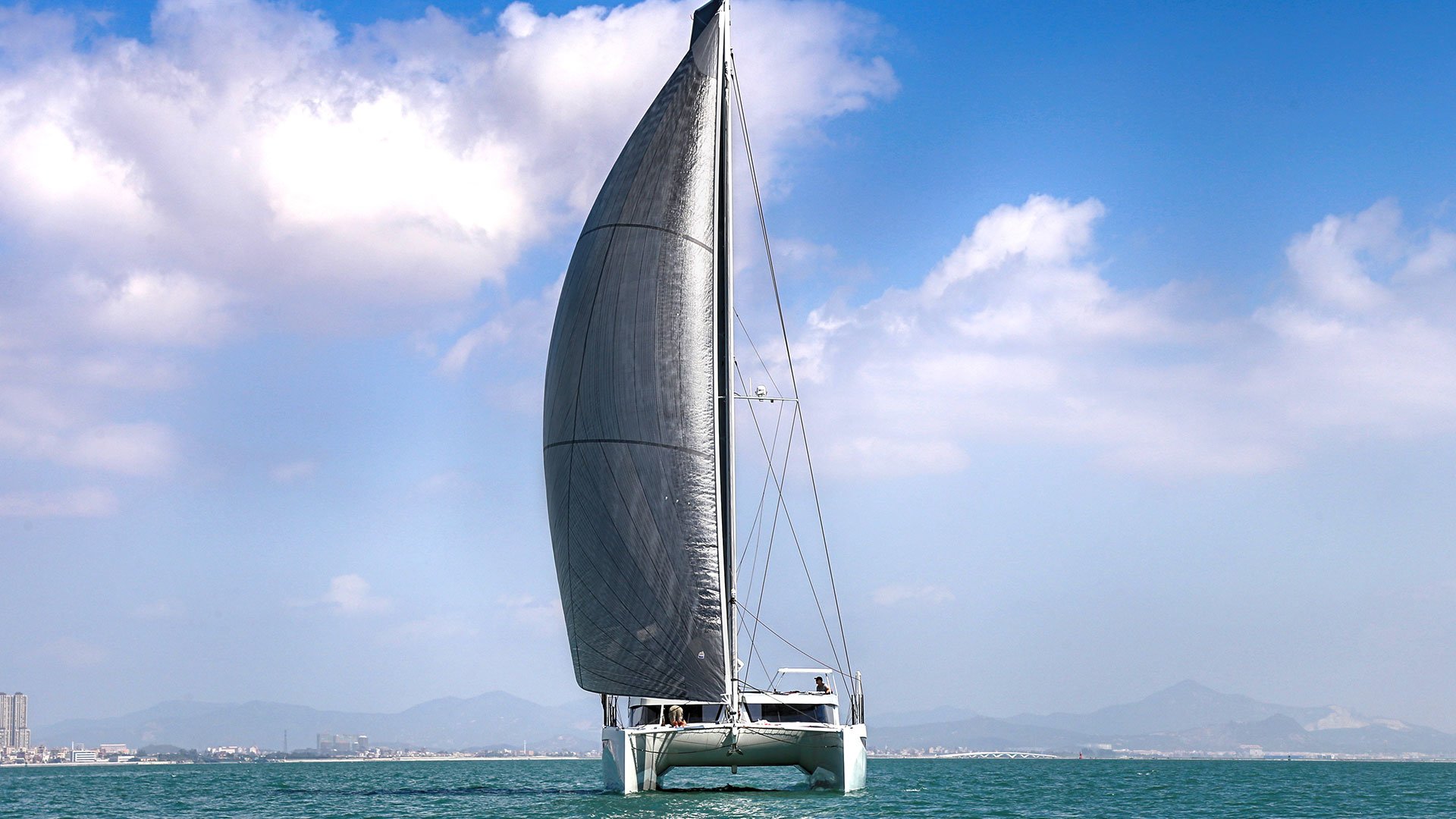

HH55-1 — HH Catamarans

Design

Designer: Morrelli & Melvin
Naval architect: Morrelli & Melvin

Summary

Sailing CatamaranSailCE A

Length overall: 54.9 ft
Beam: 26.6 ft
Draft: 4.3–10.8 ft
Air draft: 88.3 ft
Displacement: 32,408 lb
Cabins: 3–4

* A standard reference image, not the actual boat — shown to help visualise this model's published dimensions.

Best Suited For

Bluewater Cruising
From the published figures: CE Category A · LOA 16.74 m
Performance Cruising
From the published figures: performance cruiser · 4 cabins
Liveaboard
From the published figures: LOA 16.74 m · 4 cabins

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Sail area / displacement

How much sail the boat carries for its weight — its power in light air.

33.0· Racing

How it is worked out

sail area (ft²) ÷ (displacement as ft³ of seawater)^⅔

mainsail + genoa, added up

Displacement / length

How heavy the boat is for its waterline length. Lower is lighter and quicker; higher is steadier and roomier.

96· Ultralight

How it is worked out

displacement (long tons) ÷ (0.01 × waterline length in ft)³

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Speed & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Speed

Cruising speed9 kn
Top speednot published

Design Category

Certified CE design category A (Ocean): the wind and waves the EU Recreational Craft Directive says this boat is designed to take.

D
Sheltered waters
Wind
up to Beaufort 4
Waves
up to 0.3 m
C
Inshore
Wind
up to Beaufort 6
Waves
up to 2 m
B
Offshore
Wind
up to Beaufort 8
Waves
up to 4 m
AThis boat
Ocean
Wind
above Beaufort 8
Waves
above 4 m

Design limits set by the EU Recreational Craft Directive (2013/53/EU), in significant wave height. A category covers the conditions of those below it. It is the limit the boat was designed to, not a promise that it is safe in any conditions within it — that judgement stays with the skipper.

Dimensions

LOA: 54.9 ft (16.74 m)
Hull length: —
LWL: 53.2 ft (16.21 m)
Beam: 26.6 ft (8.1 m)
Draft (min): 4.3 ft (1.3 m)
Draft (max): 10.8 ft (3.3 m)
Air draft: 88.3 ft (26.9 m)
Displacement: 32,408 lb (14,700 kg)
Ballast: —
Cabins: 3–4
Heads: —
Berths: —

Sail Plan

Main sail: 1,367 ft² (127 m²)
Jib: 452 ft² (42 m²)
Genoa: 732 ft² (68 m²)
Sail area: —
Downwind sail area: —
Rig type: —

Engine and Tanks

Engine: 57 hp (Yanmar)
Engine count: 2
Engine manufacturer: Yanmar
Propulsion type: —
Fuel capacity: —
Fresh water capacity: —
Black water capacity: —

Construction

Mast material: —
Hull material: —
Deck material: —
Keel type: —
Rudder type: —
Steering wheels: —

Builder's Own Figures

Bridge Deck Clearance: 900 mm
Solent: 68 m2
Helm: Aft Helm / Forward Helm (same figures)
Fractional Reacher: 140 m2
Propulsion: 2x Yanmar 57hp diesel, optional EcoDrive Hybrid
Classification: CE Category A, Module B
Staysail: 42 m2
Displacement Max Load: 19,633 kg

Figures read fromhhcatamarans.com/hh55· Principal Particularsread 9/13/2026
