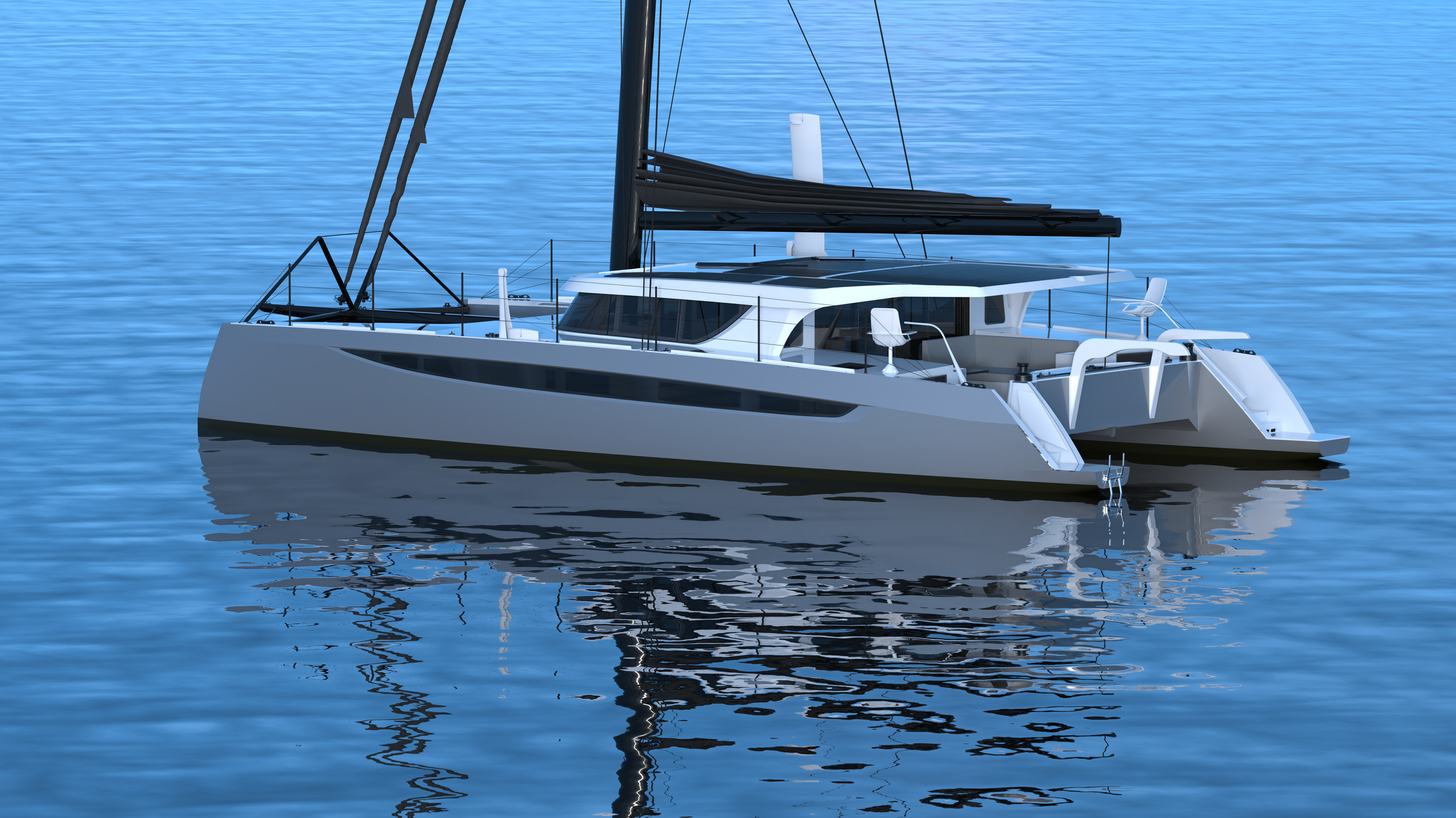

HH60

Design

Designer

Morrelli & Melvin

Naval architect

Morrelli & Melvin

Summary

Best Suited For

• Bluewater Cruising

  From the published figures: CE Category A · LOA 17.95 m

• Performance Cruising

  From the published figures: performance cruiser · 3 cabins

• Liveaboard

  From the published figures: LOA 17.95 m · 3 cabins

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Speed & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

58.9 ft (17.95 m)

Hull length

—

LWL

54 ft (16.47 m)

Beam

26.6 ft (8.1 m)

Draft (min)

5.2 ft (1.6 m)

Draft (max)

13.3 ft (4.04 m)

Air draft

94.4 ft (28.76 m)

Displacement

34,172 lb (15,500 kg)

Ballast

—

Cabins

3

Heads

—

Berths

—

Sail Plan

Main sail

1,509 ft² (140.15 m²)

Jib

463 ft² (43 m²)

Genoa

748 ft² (69.53 m²)

Sail area

—

Downwind sail area

—

Rig type

—

Engine and Tanks

Engine

57 hp (Yanmar)

Engine count

2

Engine manufacturer

Yanmar

Propulsion type

—

Fuel capacity

—

Fresh water capacity

—

Black water capacity

—

Construction

Mast material

—

Hull material

—

Deck material

—

Keel type

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Solent

69.53 m2

Bridge Deck Clearance

900 mm

Fractional Reacher

170 m2

Propulsion

2x Yanmar 57hp, optional EcoDrive Hybrid

Classification

CE Category A, Module B

Staysail

43 m2

Version

Aft Helm; Forward Helm: draft 1.3-3.3 m, light ship 15,000 kg, max load 20,100 kg

Displacement Max Load

20,600 kg

Films of this model from the builder's official YouTube channel (HH Catamarans). They are the builder's own; the figures above are the reference.

•

  HH60-06 LODESTAR In-Depth Walk-Through With HH Captain Chris Bailet

  HH Catamarans · 4/6/2026

Videos whose title names the HH60, from the channel the builder's site links; last checked 9/30/2026. Playing one loads YouTube's player, which may set cookies.

About HH Catamarans

Semi-custom

Performance cruising catamaran brand of the Hudson Yacht Group, formed in 2012 and built at its own yards in Xiamen, China and Cebu, Philippines.

The HH Catamarans Range

Every model HH Catamarans publishes, by length — where this one sits in the range.

1. HH8888 ft
2. HH6665.9 ft
3. HH60· this modelDiscontinued58.9 ft
4. HH5255.9 ft
5. HH55Discontinued54.9 ft
6. HH50Discontinued51.8 ft
7. HH4450.2 ft
8. HH4649 ft
