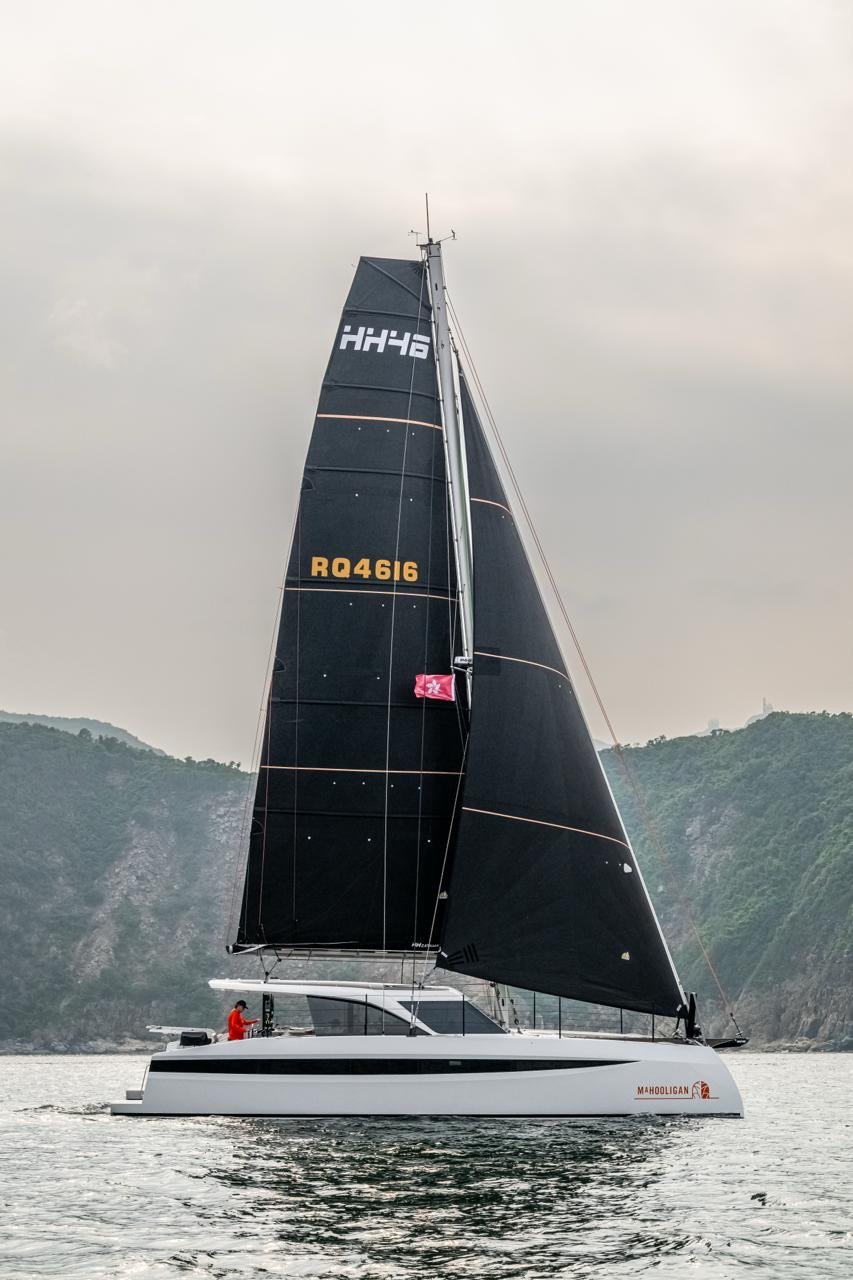

HH46

Name: HH46
Brand: HH Catamarans

In production

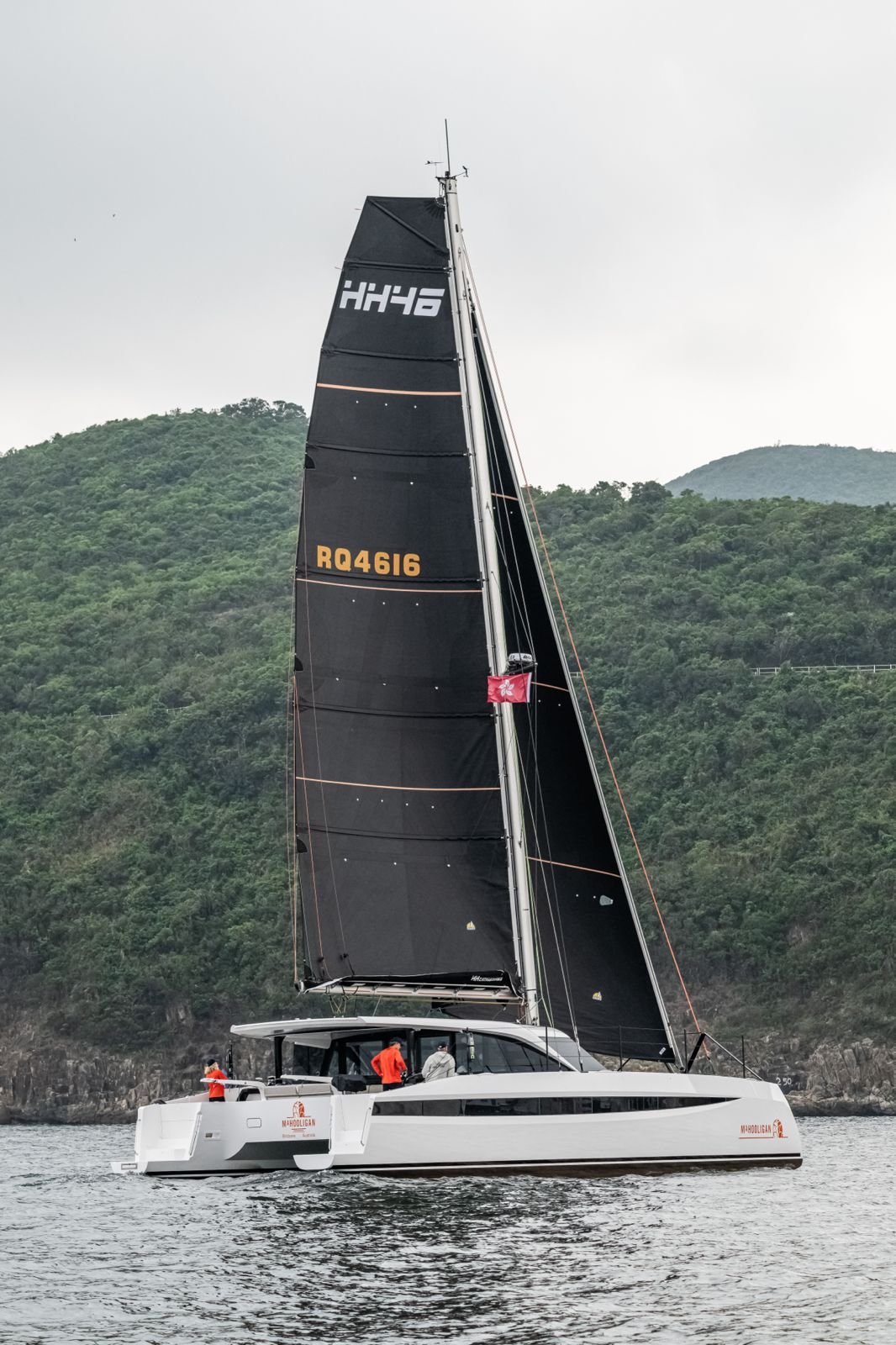

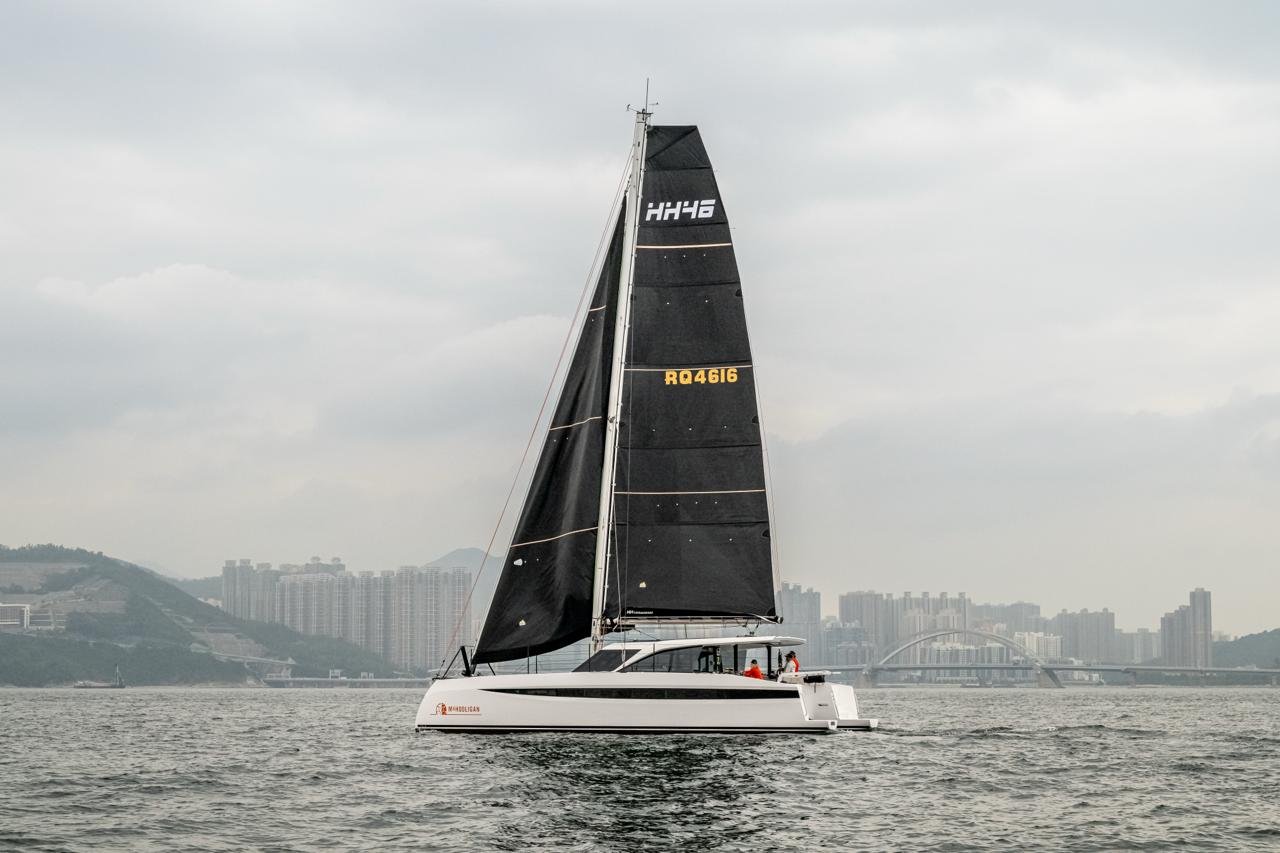

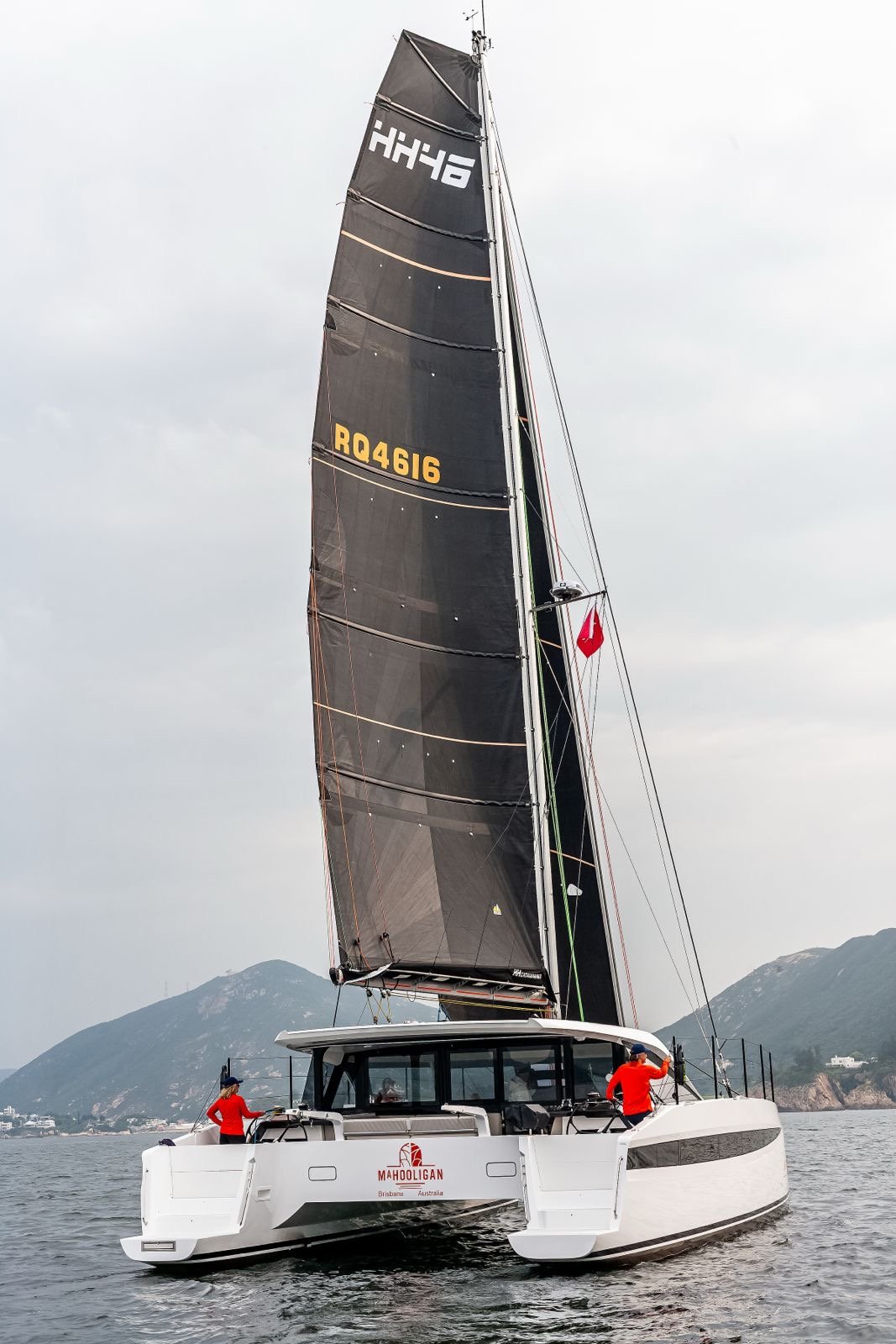

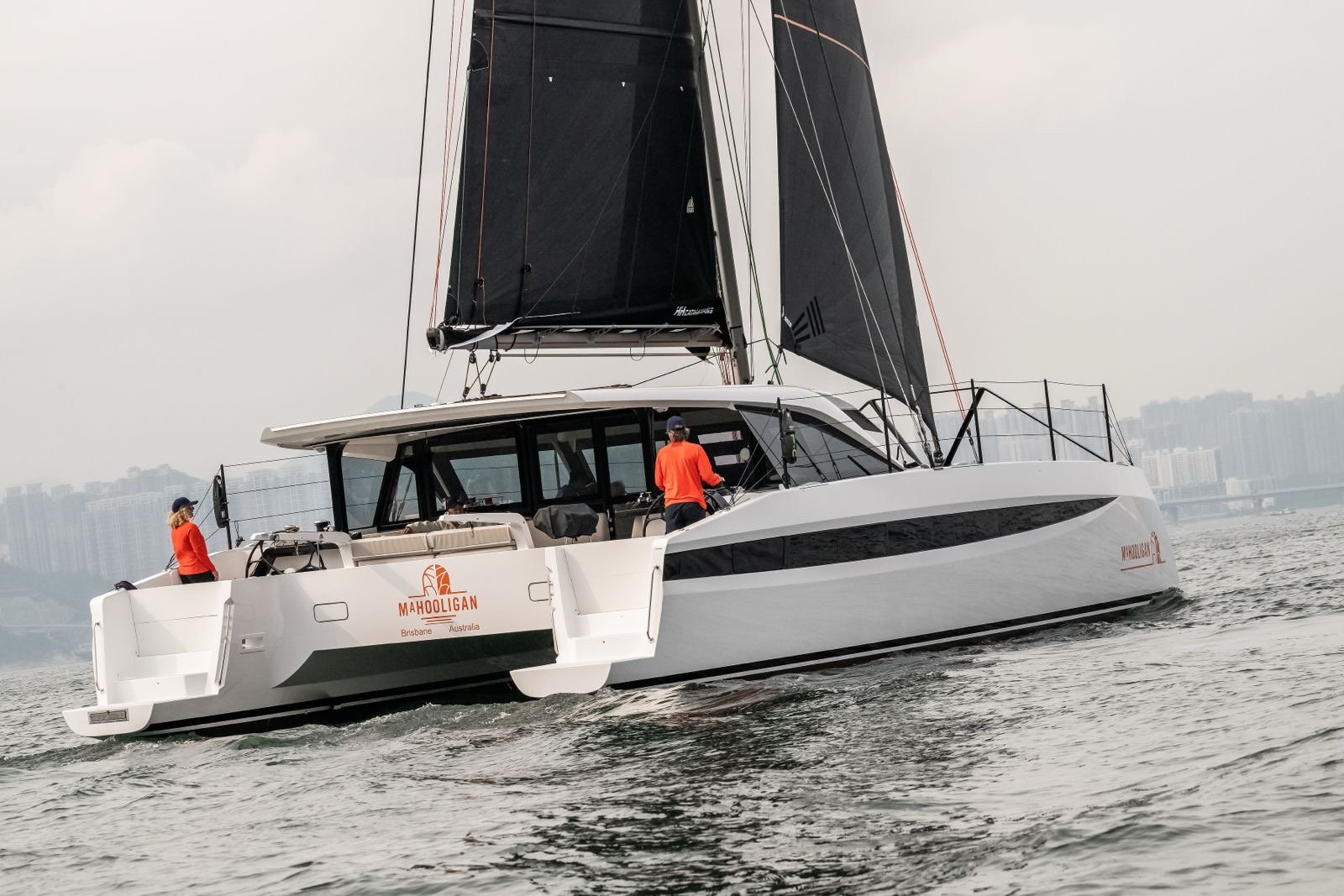

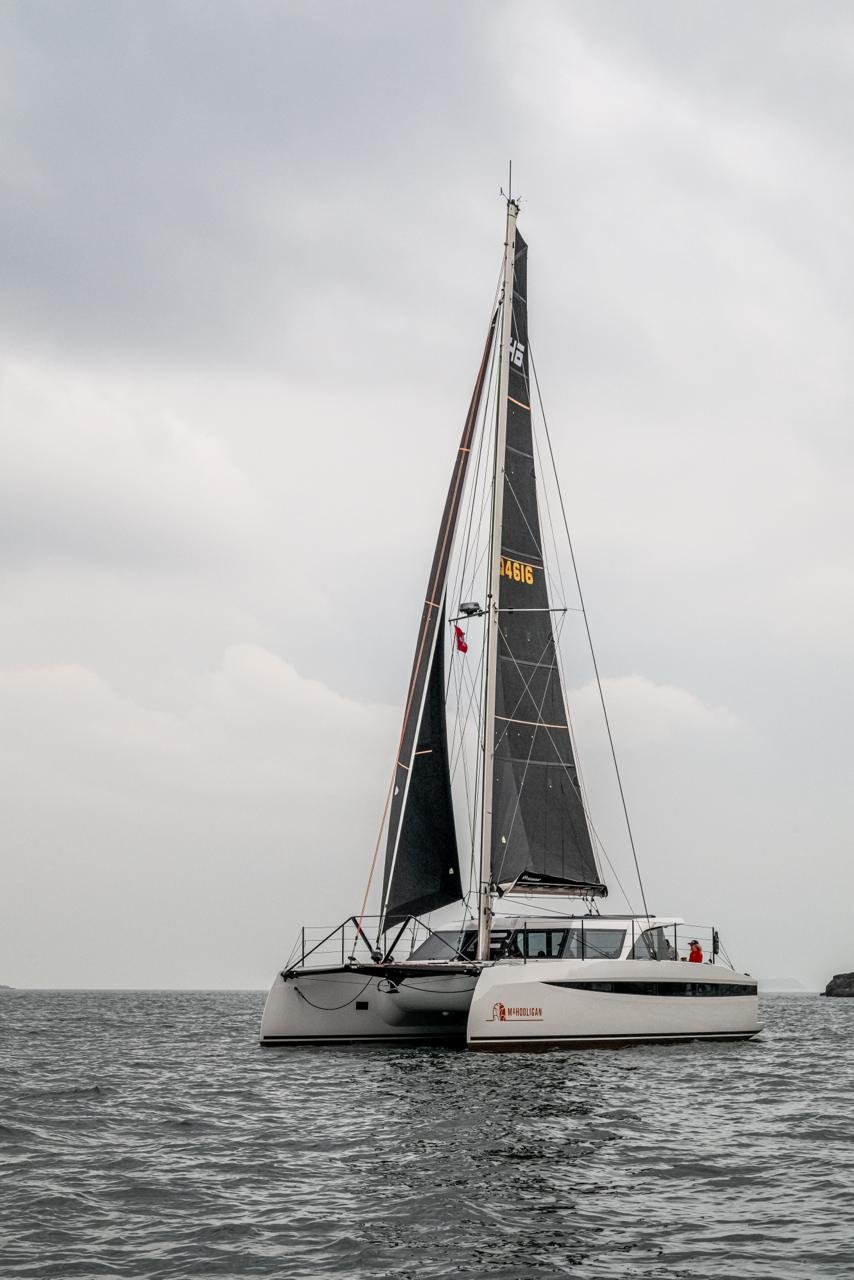

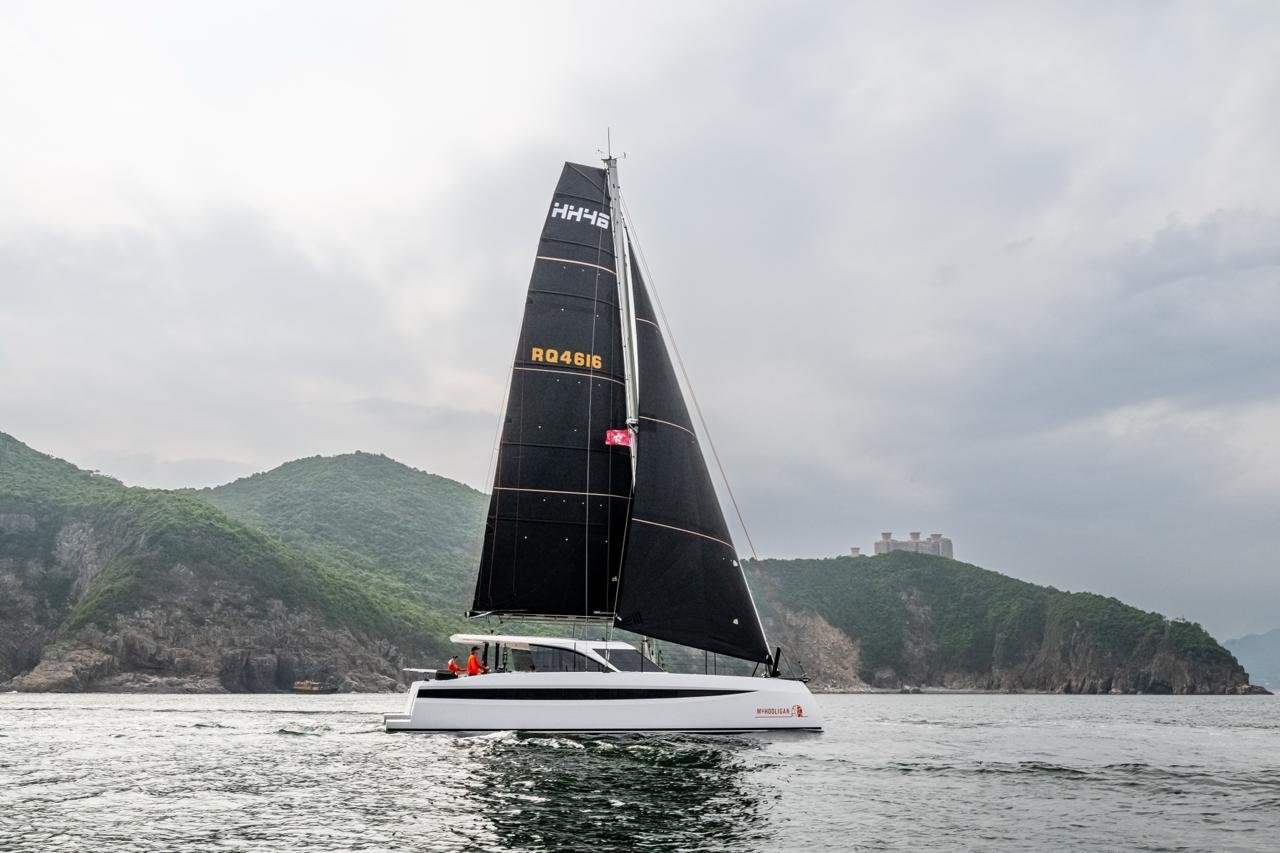

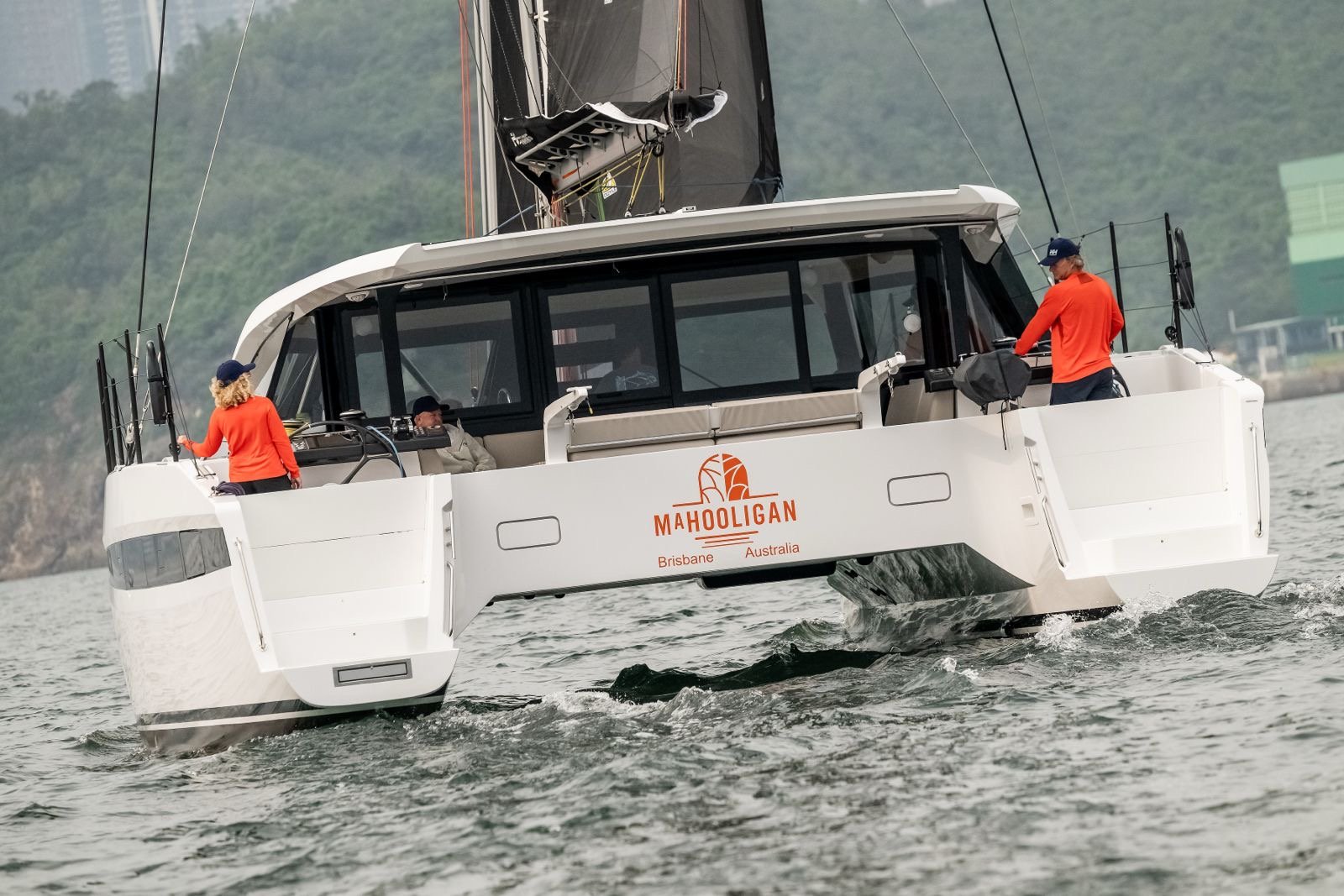

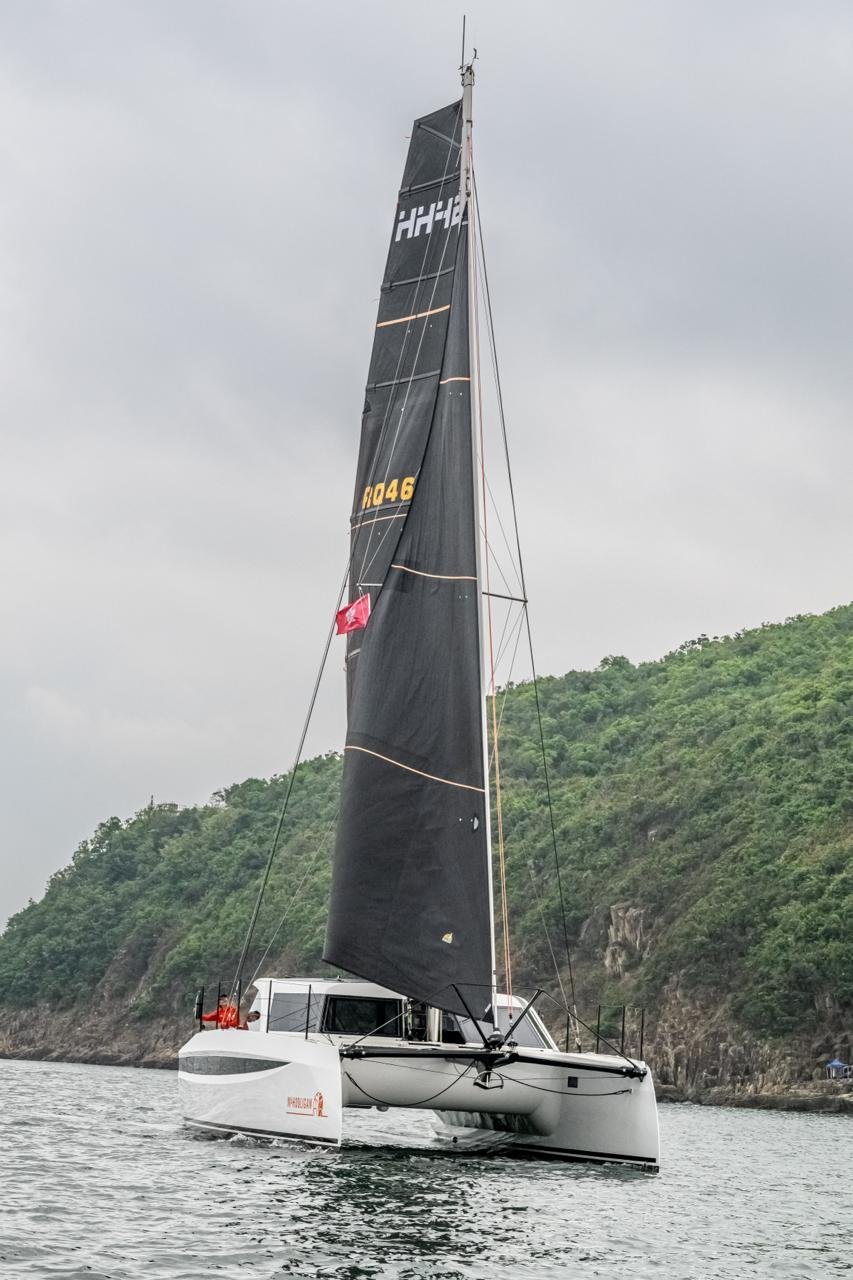

1 / 10

Lusher+Photography+%7C+HH+Catamarans+-+46+HK+43+copy — HH Catamarans

Design

Designer: Hudson Yacht & Marine Co., Ltd.
Naval architect: Hudson Yacht & Marine Co., Ltd.
Interior designer: Hudson Yacht & Marine Co., Ltd.

Summary

Sailing CatamaranSailCE A

Length overall: 49 ft
Beam: 23.5 ft
Draft: 5.1–9.8 ft
Air draft: 62.3 ft
Displacement: 23,700 lb
Cabins: 3

* A standard reference image, not the actual boat — shown to help visualise this model's published dimensions.

Best Suited For

Bluewater Cruising
From the published figures: CE Category A · LOA 14.92 m
Performance Cruising
From the published figures: performance cruiser · 3 cabins
Liveaboard
From the published figures: LOA 14.92 m · 3 cabins

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Sail area / displacement

How much sail the boat carries for its weight — its power in light air.

25.3· Racing

How it is worked out

sail area (ft²) ÷ (displacement as ft³ of seawater)^⅔

mainsail + genoa, added up

Displacement / length

How heavy the boat is for its waterline length. Lower is lighter and quicker; higher is steadier and roomier.

117· Light

How it is worked out

displacement (long tons) ÷ (0.01 × waterline length in ft)³

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Speed & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Speed

Cruising speed8.7 kn
Top speednot published

Design Category

Certified CE design category A (Ocean): the wind and waves the EU Recreational Craft Directive says this boat is designed to take.

D
Sheltered waters
Wind
up to Beaufort 4
Waves
up to 0.3 m
C
Inshore
Wind
up to Beaufort 6
Waves
up to 2 m
B
Offshore
Wind
up to Beaufort 8
Waves
up to 4 m
AThis boat
Ocean
Wind
above Beaufort 8
Waves
above 4 m

Design limits set by the EU Recreational Craft Directive (2013/53/EU), in significant wave height. A category covers the conditions of those below it. It is the limit the boat was designed to, not a promise that it is safe in any conditions within it — that judgement stays with the skipper.
