Sail area / displacement
How much sail the boat carries for its weight — its power in light air.
- 25.3· Racing
How it is worked out
sail area (ft²) ÷ (displacement as ft³ of seawater)^⅔
mainsail + genoa, added up
1 / 10

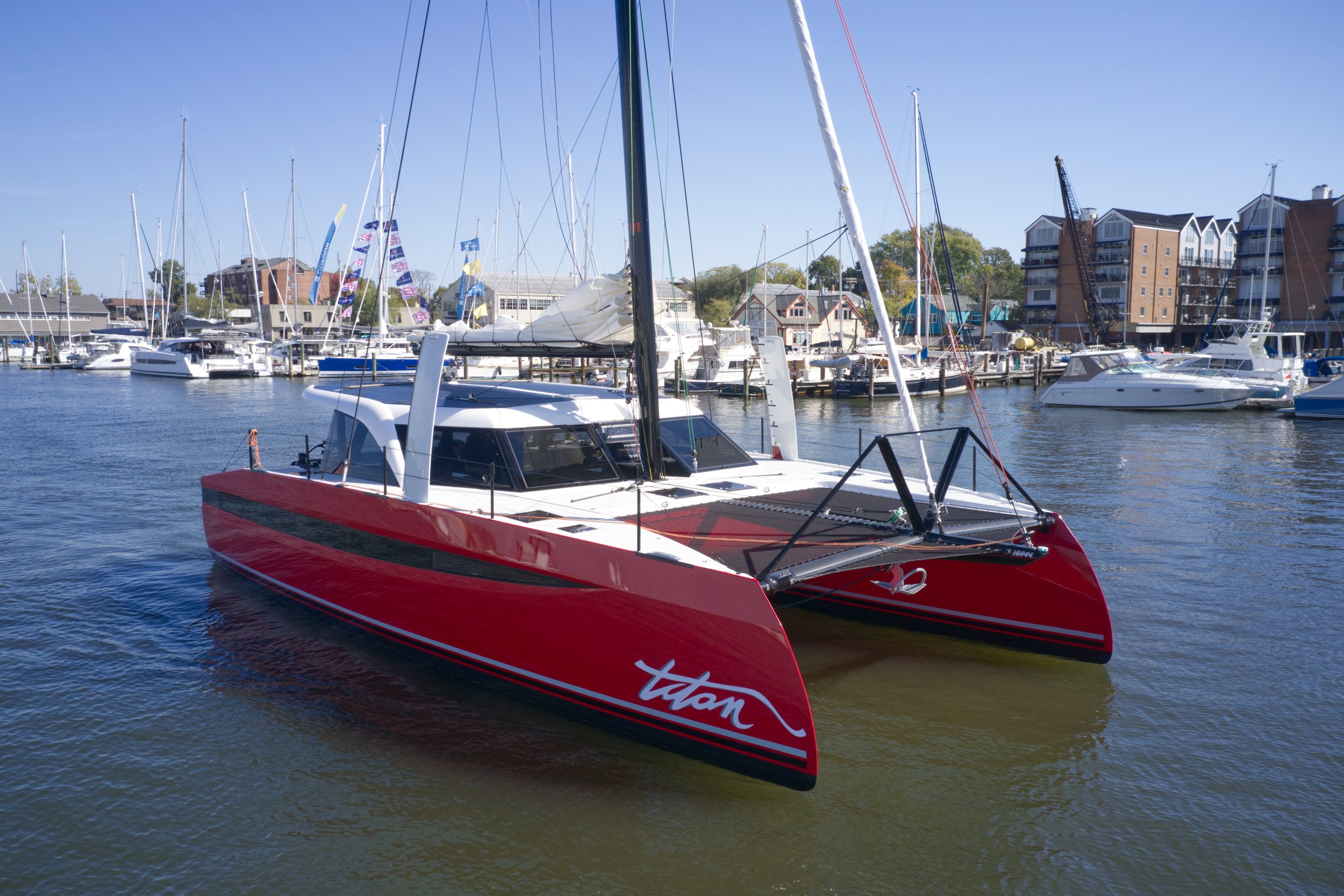

hh44_03Curiosity — HH Catamarans
Design
- Designer
- Hudson Yacht & Marine Co., Ltd.
- Naval architect
- Hudson Yacht & Marine Co., Ltd.
- Interior designer
- Hudson Yacht & Marine Co., Ltd.
Summary
- Length overall
- 50.2 ft
- Beam
- 23.5 ft
- Draft
- 5.2 ft
- Air draft
- 62.3 ft
- Displacement
- 23,700 lb
- Cabins
- 3
* A standard reference image, not the actual boat — shown to help visualise this model's published dimensions.
Best Suited For
- Bluewater Cruising
From the published figures: CE Category A · LOA 15.31 m
- Performance Cruising
From the published figures: performance cruiser · 3 cabins
- Liveaboard
From the published figures: LOA 15.31 m · 3 cabins
Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.
Sailing Ratios
Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.
Displacement / length
How heavy the boat is for its waterline length. Lower is lighter and quicker; higher is steadier and roomier.
- 125· Light
How it is worked out
displacement (long tons) ÷ (0.01 × waterline length in ft)³
Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.
Speed & Tanks
What the builder publishes about how fast, how strong and how much the boat carries.
Speed
- Cruising speed7.5 kn
- Top speednot published
Design Category
Certified CE design category A (Ocean): the wind and waves the EU Recreational Craft Directive says this boat is designed to take.
- D
Sheltered waters
- Wind
- up to Beaufort 4
- Waves
- up to 0.3 m
- C
Inshore
- Wind
- up to Beaufort 6
- Waves
- up to 2 m
- B
Offshore
- Wind
- up to Beaufort 8
- Waves
- up to 4 m
- AThis boat
Ocean
- Wind
- above Beaufort 8
- Waves
- above 4 m
Design limits set by the EU Recreational Craft Directive (2013/53/EU), in significant wave height. A category covers the conditions of those below it. It is the limit the boat was designed to, not a promise that it is safe in any conditions within it — that judgement stays with the skipper.
Dimensions
- LOA
- 50.2 ft (15.31 m)
- Hull length
- 44.1 ft (13.43 m)
- LWL
- 43.9 ft (13.37 m)
- Beam
- 23.5 ft (7.15 m)
- Draft (min)
- 5.2 ft (1.59 m)
- Draft (max)
- —
- Air draft
- 62.3 ft (19 m)
- Displacement
- 23,700 lb (10,750 kg)
- Ballast
- —
- Cabins
- 3
- Heads
- —
- Berths
- —
Sail Plan
- Main sail
- 775 ft² (72 m²)
- Jib
- 237 ft² (22 m²)
- Genoa
- 527 ft² (49 m²)
- Sail area
- —
- Downwind sail area
- 1,227 ft² (114 m²)
- Rig type
- —
Engine and Tanks
- Engine
- 30 hp (Beta)
- Engine count
- 2
- Engine manufacturer
- Beta
- Propulsion type
- —
- Fuel capacity
- —
- Fresh water capacity
- —
- Black water capacity
- —
Construction
- Mast material
- —
- Hull material
- —
- Deck material
- —
- Keel type
- —
- Rudder type
- —
- Steering wheels
- —
Builder's Own Figures
- Batteries
- AGM
- Storm Jib
- 12 m2
- Classification
- CE Category A-D, Module B
- CE Loaded Displacement
- 14500 kg
- Fractional Reacher
- 84 m2
- Length Overall (Transom Up)
- 14.02 m
- Self-tacking Staysail
- 22 m2
- Speed under Engine
- approx. 7.5 knots
- Overlapping Solent
- 49 m2
- Cruising Range at 7 knots
- 628 Nm
- Performance Analysis
- KND Sailing Performance
- Engines
- 2x Beta 30hp
- Hull Beam on waterline
- 1.49 m
- Furling Gennaker
- 114 m2
Figures read fromhhcatamarans.com/hh44· Principal Particularsread 9/13/2026
Videos
External contentFilms of this model from the builder's official YouTube channel (HH Catamarans). They are the builder's own; the figures above are the reference.
HH44-03 Sails in Cebu
HH Catamarans · 11/4/2025
Surveyor discusses HH44-03
HH Catamarans · 8/7/2025
HH presents the newest HH44 at the 2025 International Multihull Show in La Grande Motte.
HH Catamarans · 4/30/2025
Nigel Calder Weighs In On The HH44
HH Catamarans · 4/18/2025
HH Catamarans HH44 Sailing in Puerto Rico
HH Catamarans · 10/22/2024
Videos whose title names the HH44, from the channel the builder's site links; last checked 9/30/2026. Playing one loads YouTube's player, which may set cookies.
