Catana Ocean Class

Name: Catana Ocean Class
Brand: Catana Catamarans

In production

1 / 10

catana-ocean-class — Catana Group

Design

Naval architect: Catana design office

Summary

Sailing CatamaranSailCE A

Length overall: 51.7 ft
Beam: 26.2 ft
Draft: 4.6–8.3 ft
Displacement: 29,762 lb
Cabins: 3–4

* A standard reference image, not the actual boat — shown to help visualise this model's published dimensions.

Best Suited For

Bluewater Cruising
From the published figures: CE Category A · LOA 15.75 m · fresh water 800 L
Performance Cruising
From the published figures: performance cruiser · 4 cabins
Liveaboard
From the published figures: LOA 15.75 m · 4 cabins · 4 heads · fresh water 800 L

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Sail area / displacement

How much sail the boat carries for its weight — its power in light air.

25.1· Racing

How it is worked out

sail area (ft²) ÷ (displacement as ft³ of seawater)^⅔

mainsail + jib, added up

Displacement / length

How heavy the boat is for its waterline length. Lower is lighter and quicker; higher is steadier and roomier.

not published: waterline length

How it is worked out

displacement (long tons) ÷ (0.01 × waterline length in ft)³

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Fuel and water on one scale: a tank twice the height holds twice as much.

Fuel211 gal
Water211 gal

Design Category

Certified CE design category A (Ocean): the wind and waves the EU Recreational Craft Directive says this boat is designed to take.

D
Sheltered waters
Wind
up to Beaufort 4
Waves
up to 0.3 m
C
Inshore
Wind
up to Beaufort 6
Waves
up to 2 m
B
Offshore
Wind
up to Beaufort 8
Waves
up to 4 m
AThis boat
Ocean
Wind
above Beaufort 8
Waves
above 4 m

Design limits set by the EU Recreational Craft Directive (2013/53/EU), in significant wave height. A category covers the conditions of those below it. It is the limit the boat was designed to, not a promise that it is safe in any conditions within it — that judgement stays with the skipper.

Dimensions

LOA: 51.7 ft (15.75 m)
Hull length: 49.2 ft (14.99 m)
LWL: —
Beam: 26.2 ft (7.98 m)
Draft (min): 4.6 ft (1.39 m)
Draft (max): 8.3 ft (2.52 m)
Air draft: —
Displacement: 29,762 lb (13,500 kg)
Ballast: —
Cabins: 3–4
Heads: 2–4
Berths: —

Sail Plan

Main sail: 969 ft² (90 m²)
Jib: 538 ft² (50 m²)
Genoa: —
Sail area: —
Downwind sail area: —
Rig type: —

Engine and Tanks

Engine: 45 hp
Engine count: 2
Engine manufacturer: —
Propulsion type: Saildrive
Fuel capacity: 211 gal (800 L)
Fresh water capacity: 211 gal (800 L)
Black water capacity: —

Construction

Mast material: —
Hull material: —
Deck material: —
Keel type: —
Rudder type: —
Steering wheels: —

Builder's Own Figures

Overall Beam: customizable, 7.98 m
Mainsail: 90 m2 square-top (spec PDF)
Fresh water: 2 x 400 l
CE: Cat. A 8 persons / B 12 / C 20 / D 30
Solent: 50 m2 self-tacking (spec PDF)
Draft boards down: customizable, 2.52 m
Displacement: light ('poids à vide', spec PDF)
Diesel: 2 x 400 l
Engines: 2 x 45 CV saildrive

Figures read fromcatana.com/en/ocean-class/read 9/13/2026layouts 3cab/2sdb, 3cab/3sdb, 4cab/2sdb, 4cab/4sdb from the page's layout drawings

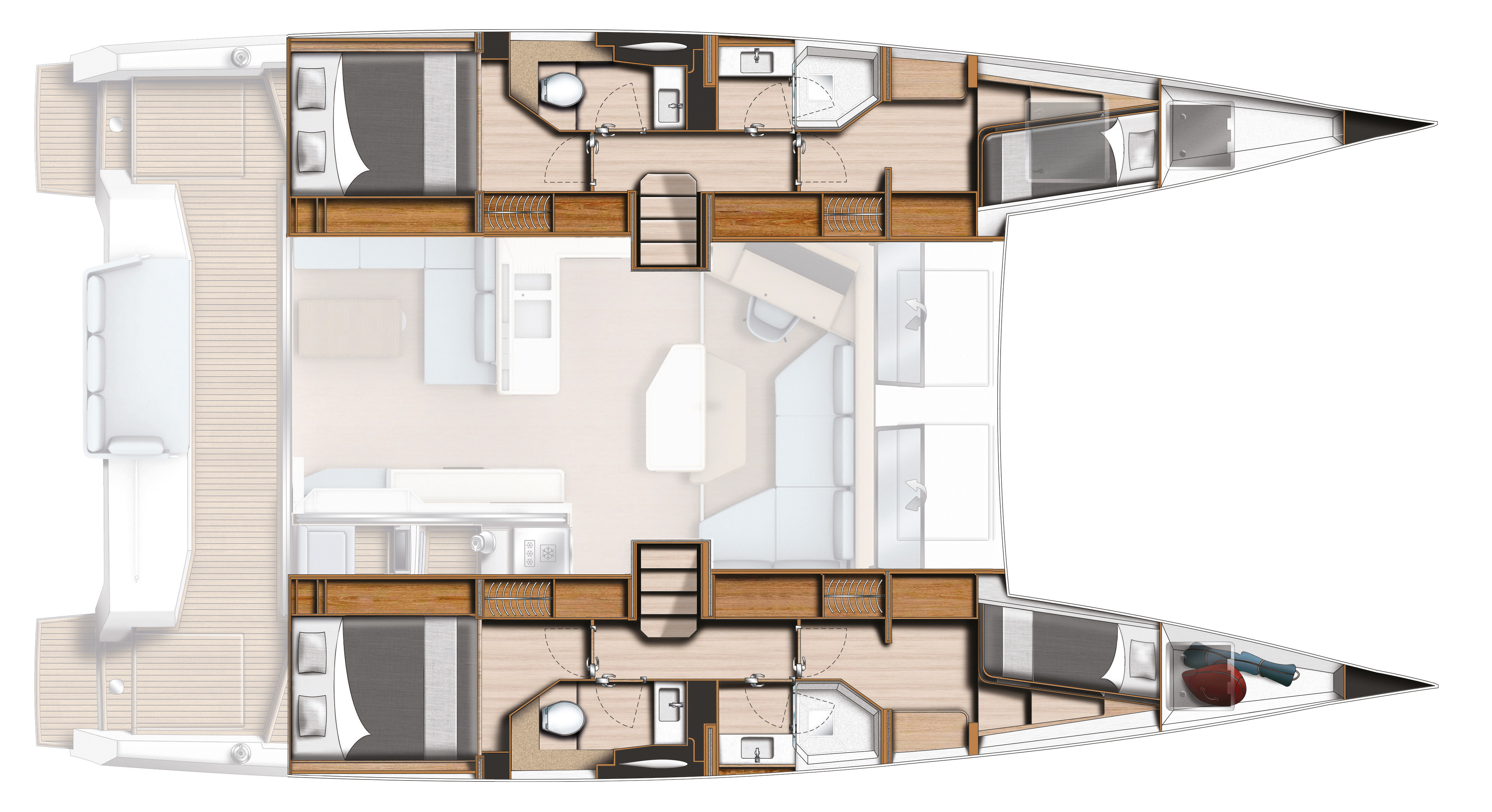

Layouts & Drawings

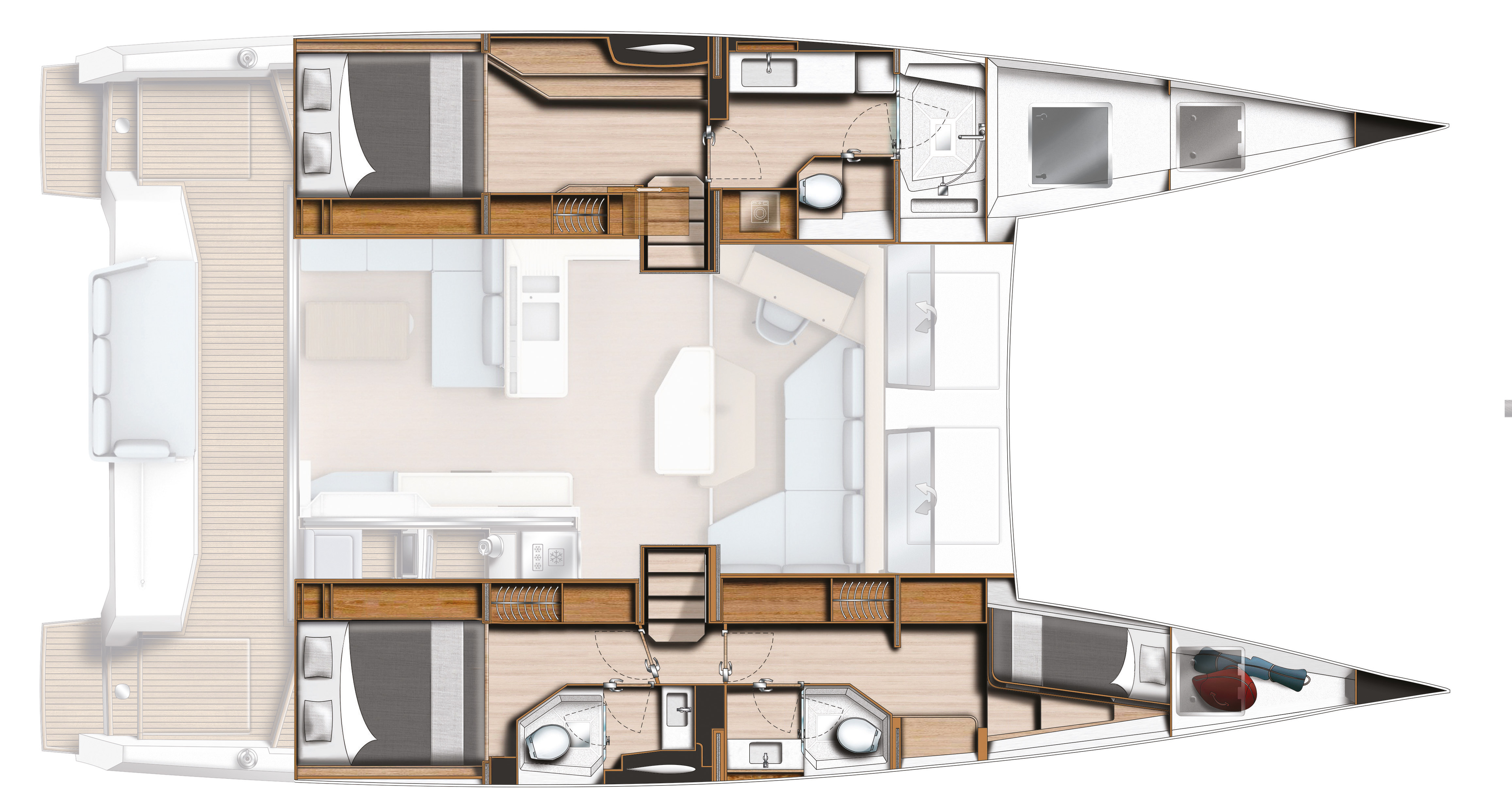

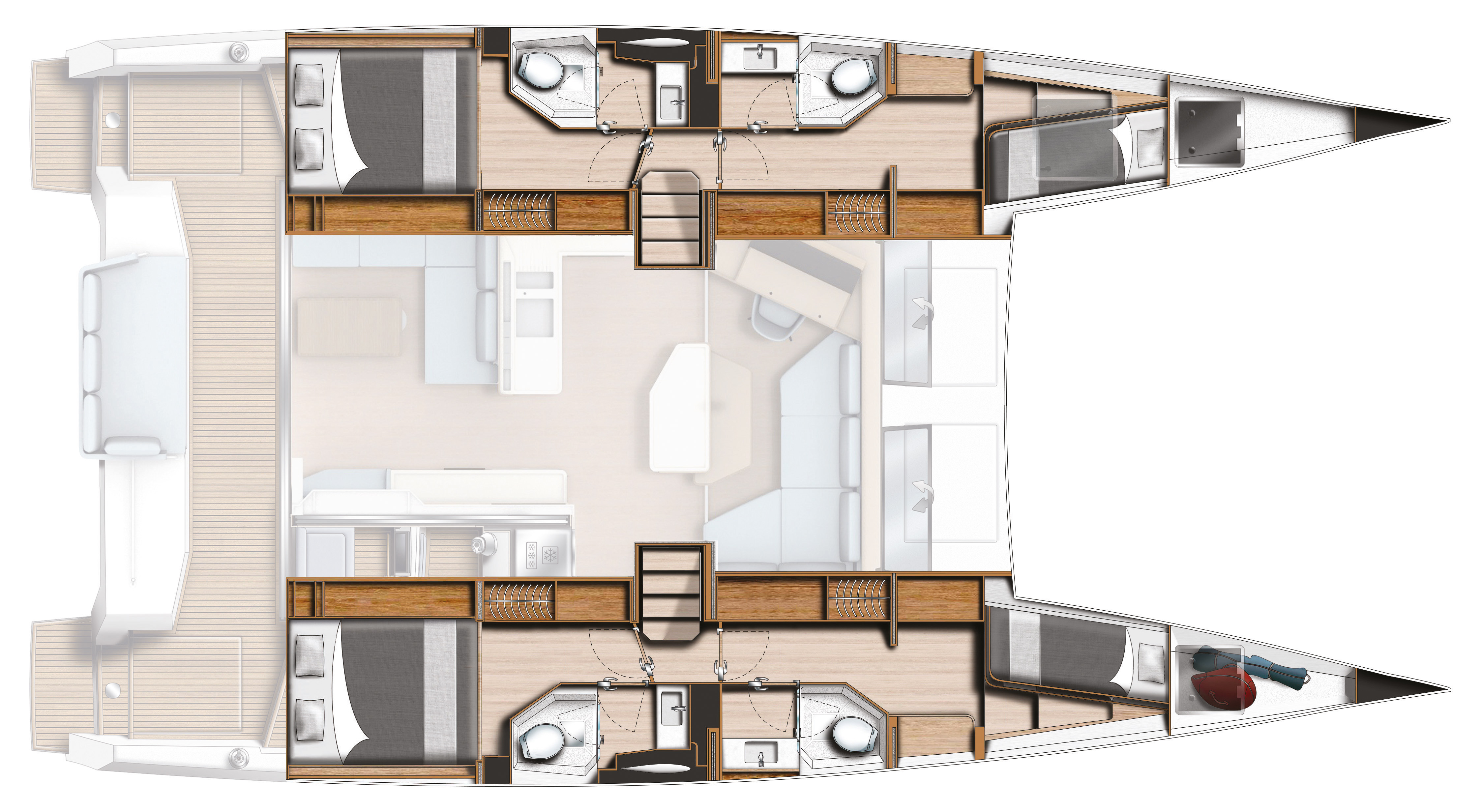

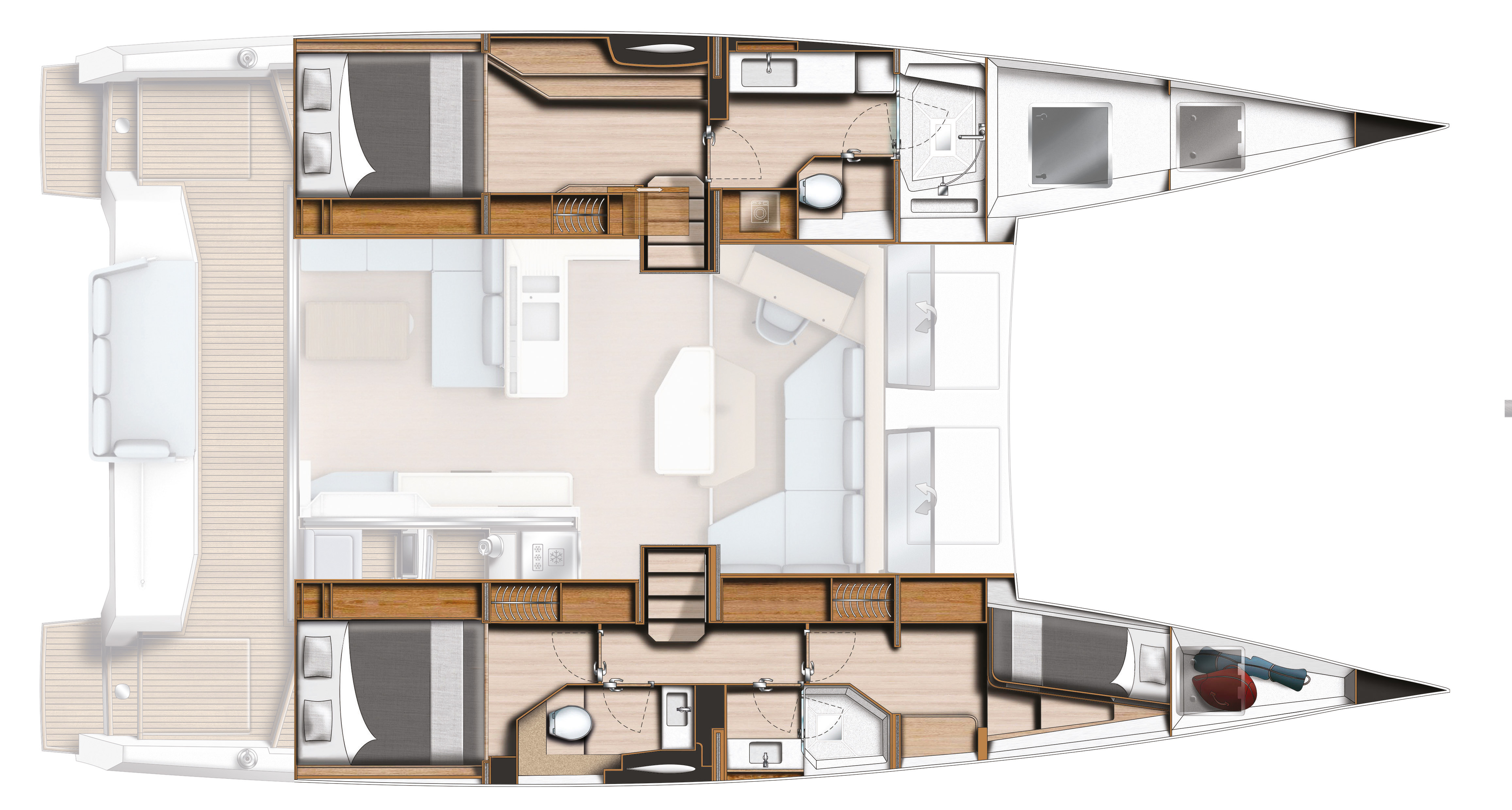

4 drawings from the builder's page: general arrangement, sail plan, profile.

CNM-3cab-2sdb-2025-New — Catana Group
CNM-3cab-3sdb-2025-New — Catana Group
CNM-4cab-2sdb-2025-New — Catana Group
CNM-4cab-4sdb-2025-New — Catana Group

Brochure

Download the official Catana Ocean Class brochure (PDF)

About Catana Catamarans

Semi-custom

French builder of offshore cruising catamarans, founded in 1984, known for 40 years of innovation in composite construction and performance design.

Since 1984 Catana has pushed the boundaries of offshore sailing from France. The yard describes its history in eras: in 1996 it set the foundations of its DNA -- performance, safety and comfort -- through bold technical choices; in 2005 it introduced advanced composite materials, asymmetrical hulls and daggerboards, the technical basis of the modern Catana; from 2012 it built larger, more seaworthy and ever more innovative models, and from 2019 refined designs, ergonomics and construction. In 2026 the Ocean Class opened a new generation of catamarans built to sail far and long, with redesigned spaces and silence on board.
