Sail area / displacement
How much sail the boat carries for its weight — its power in light air.
- not published: sail area, displacement
How it is worked out
sail area (ft²) ÷ (displacement as ft³ of seawater)^⅔
1 / 10

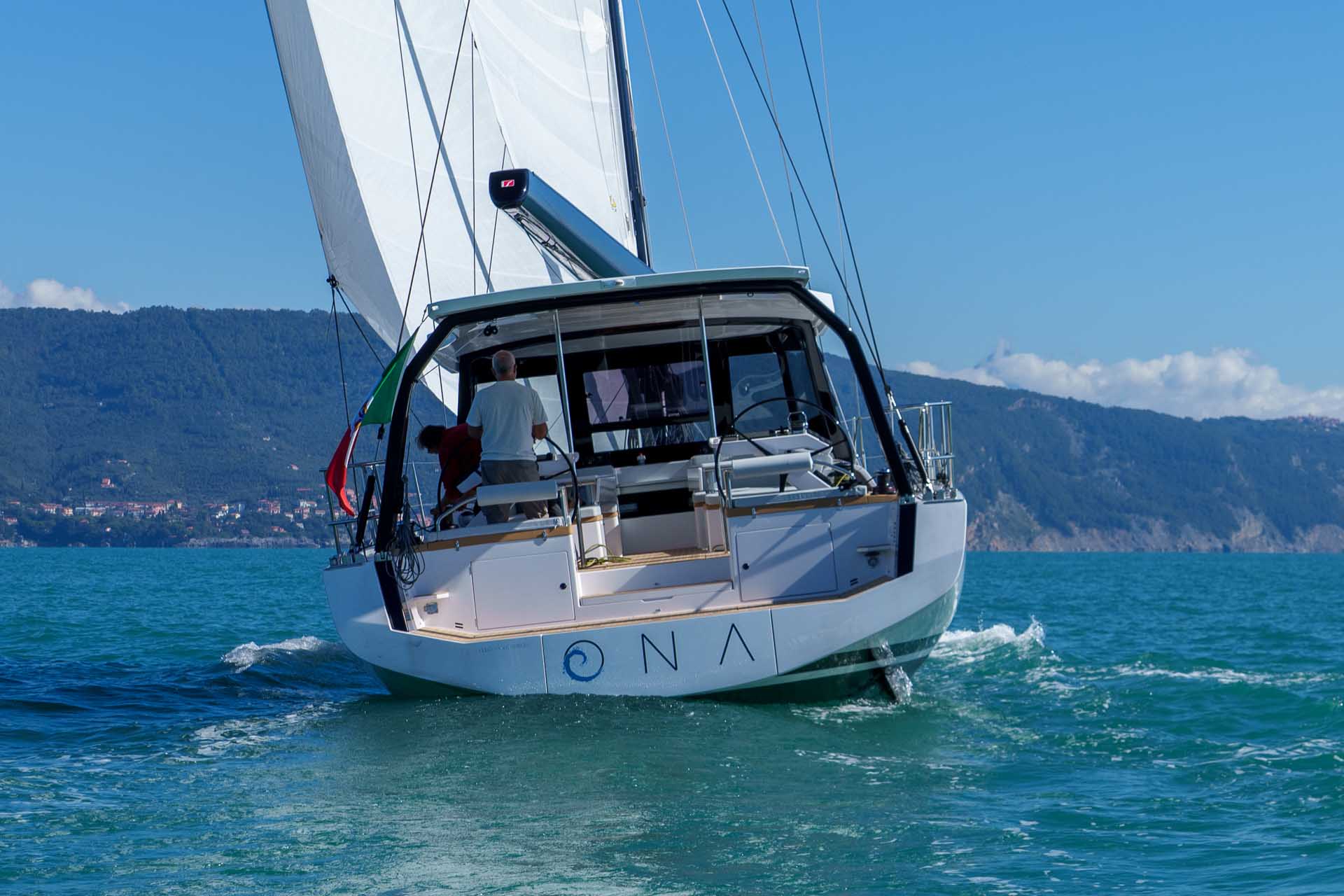

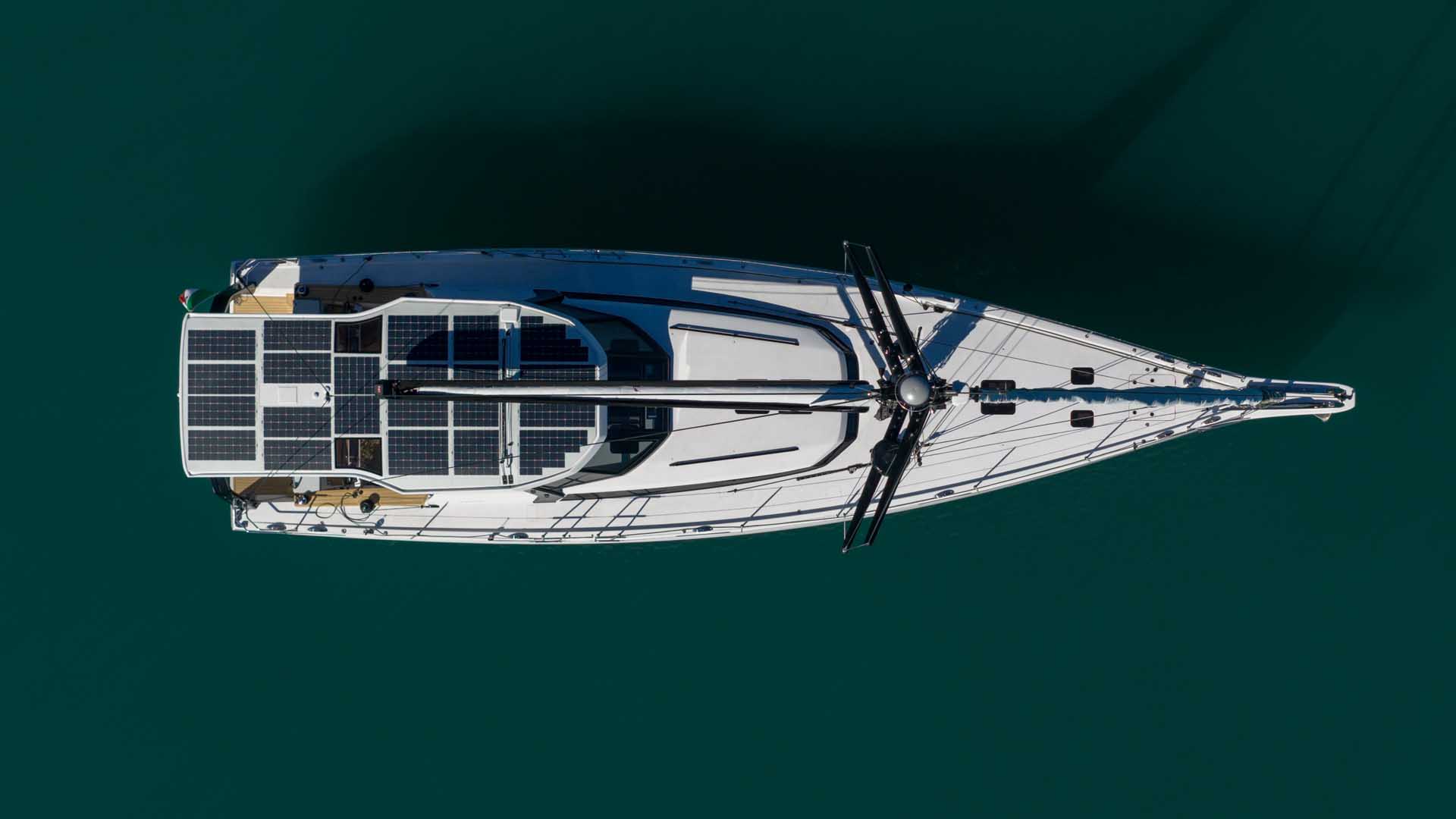

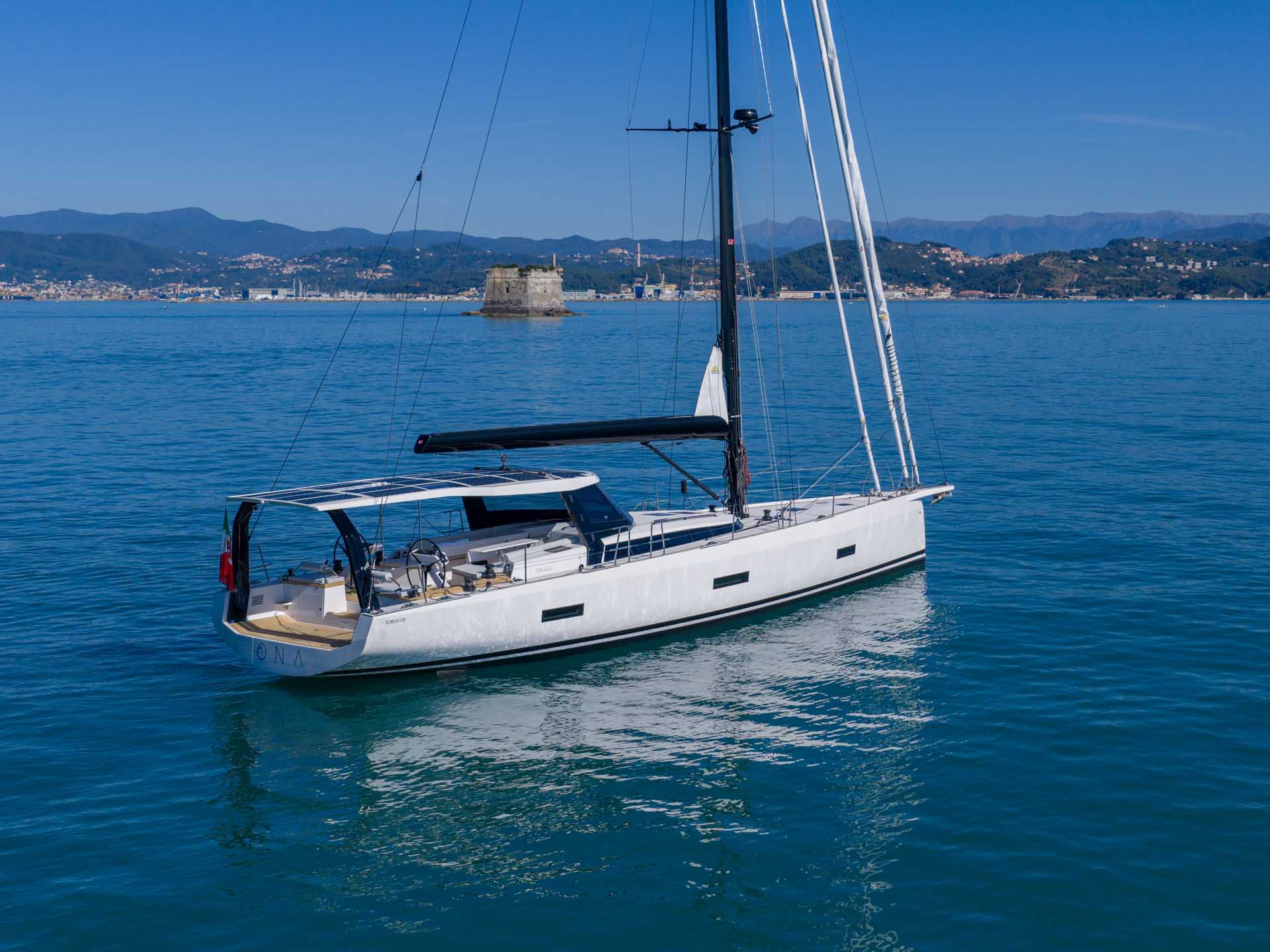

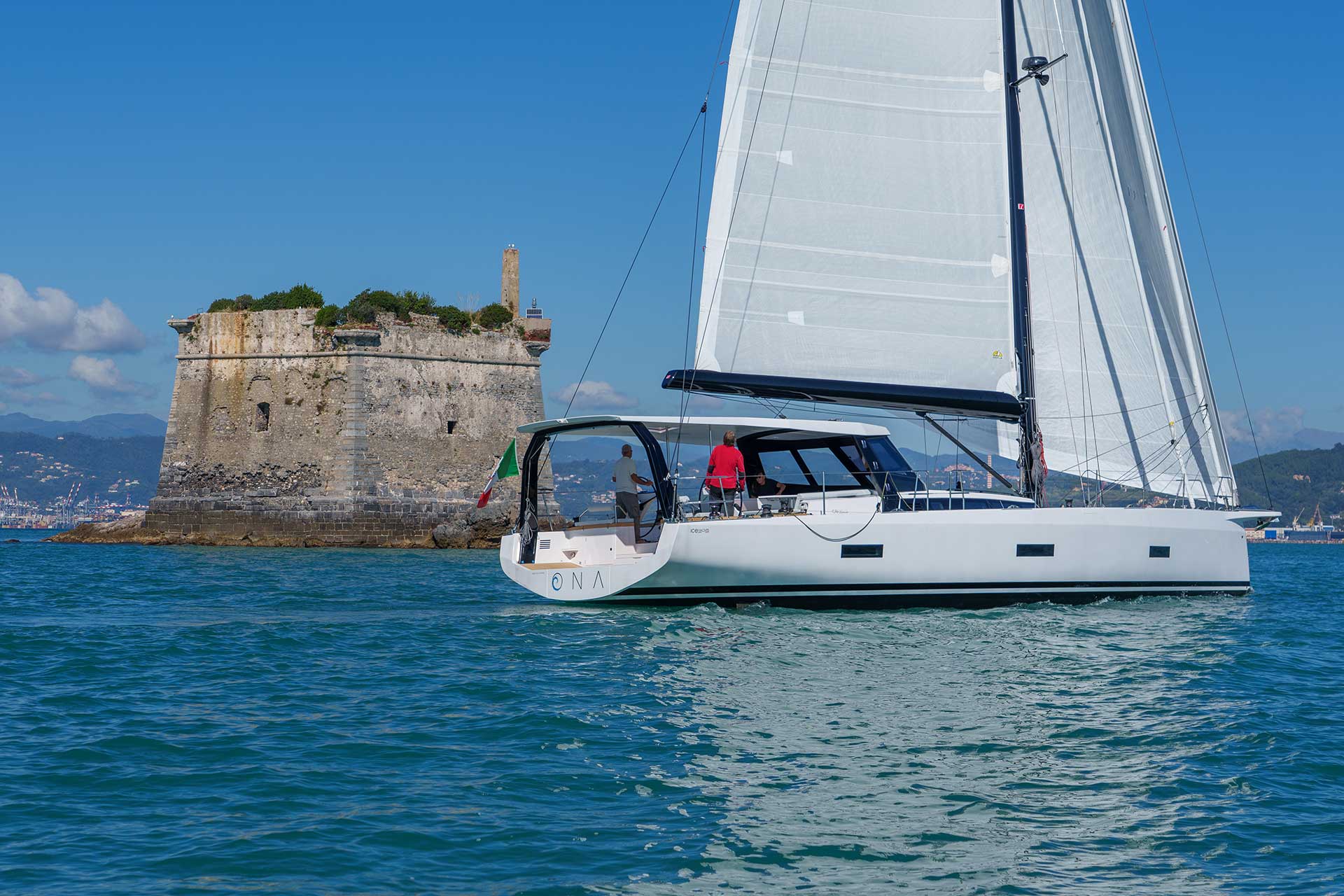

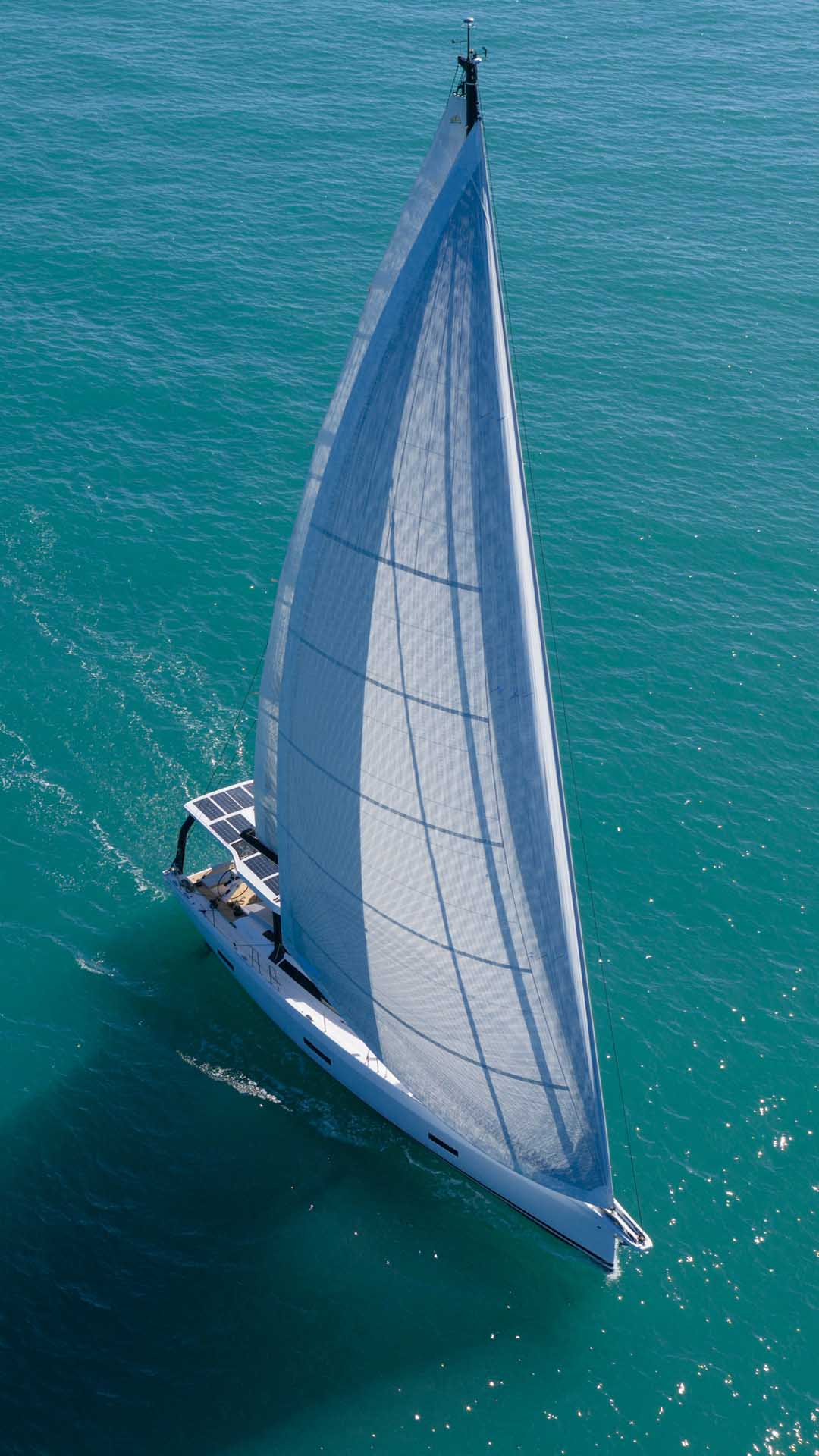

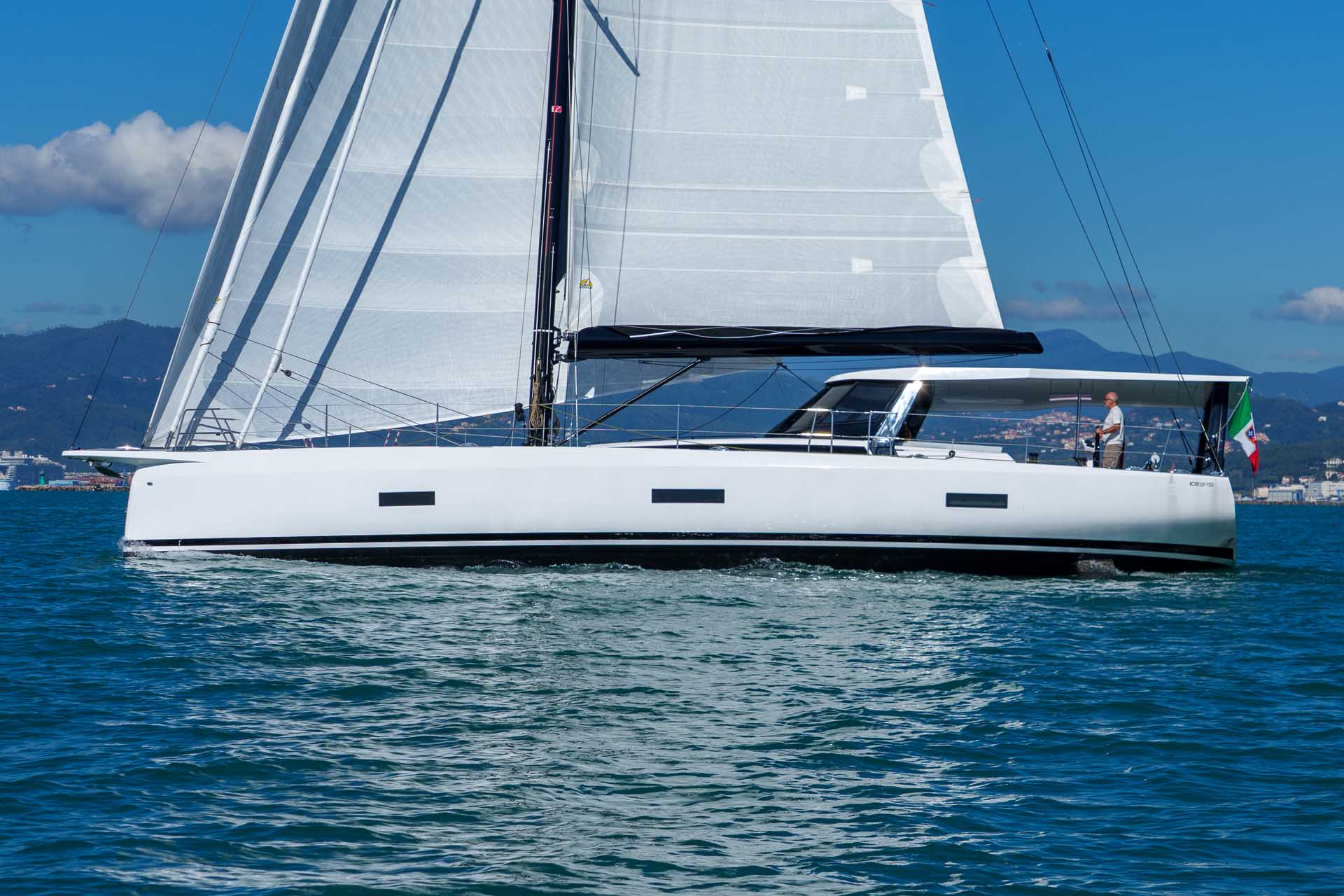

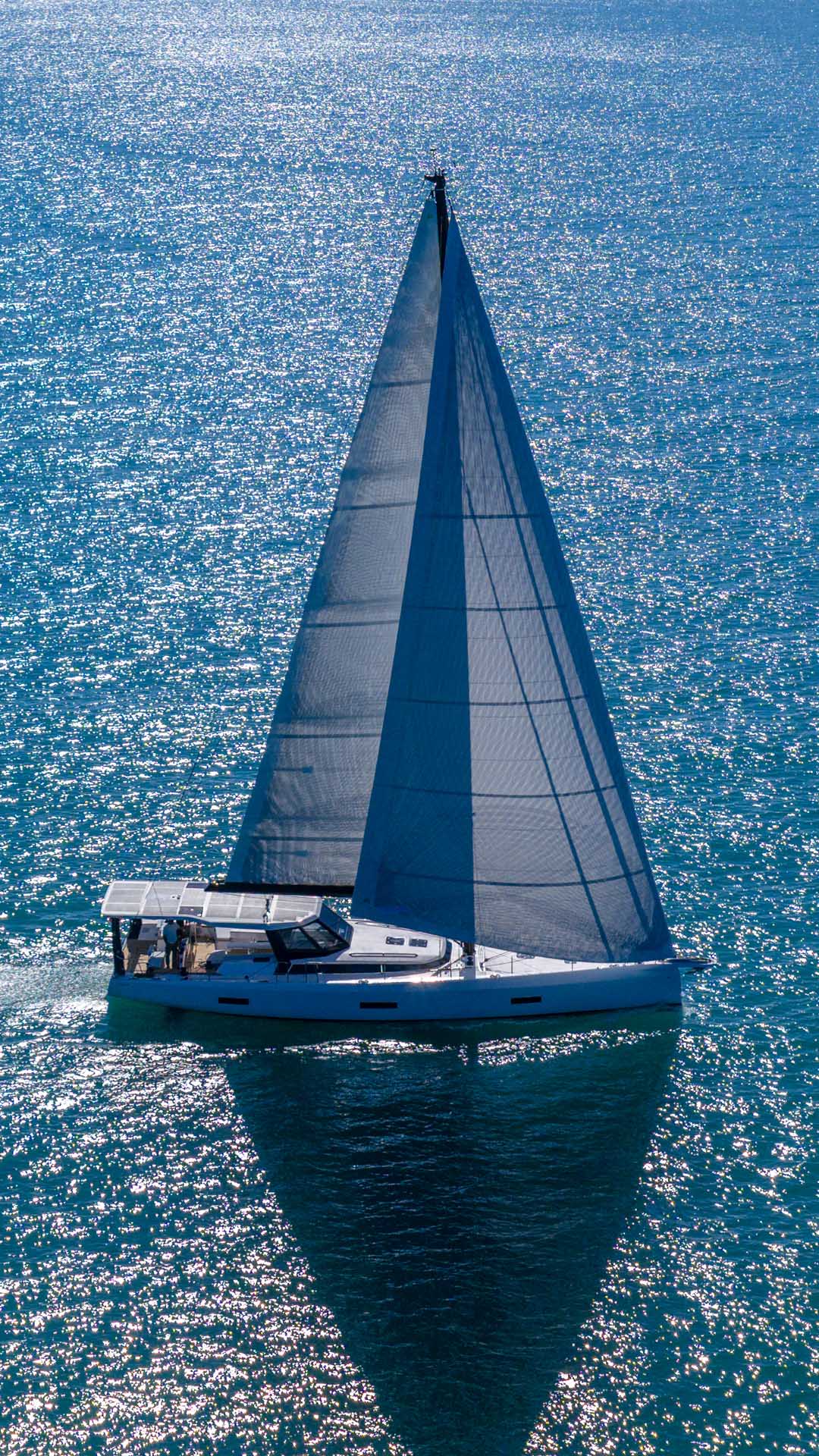

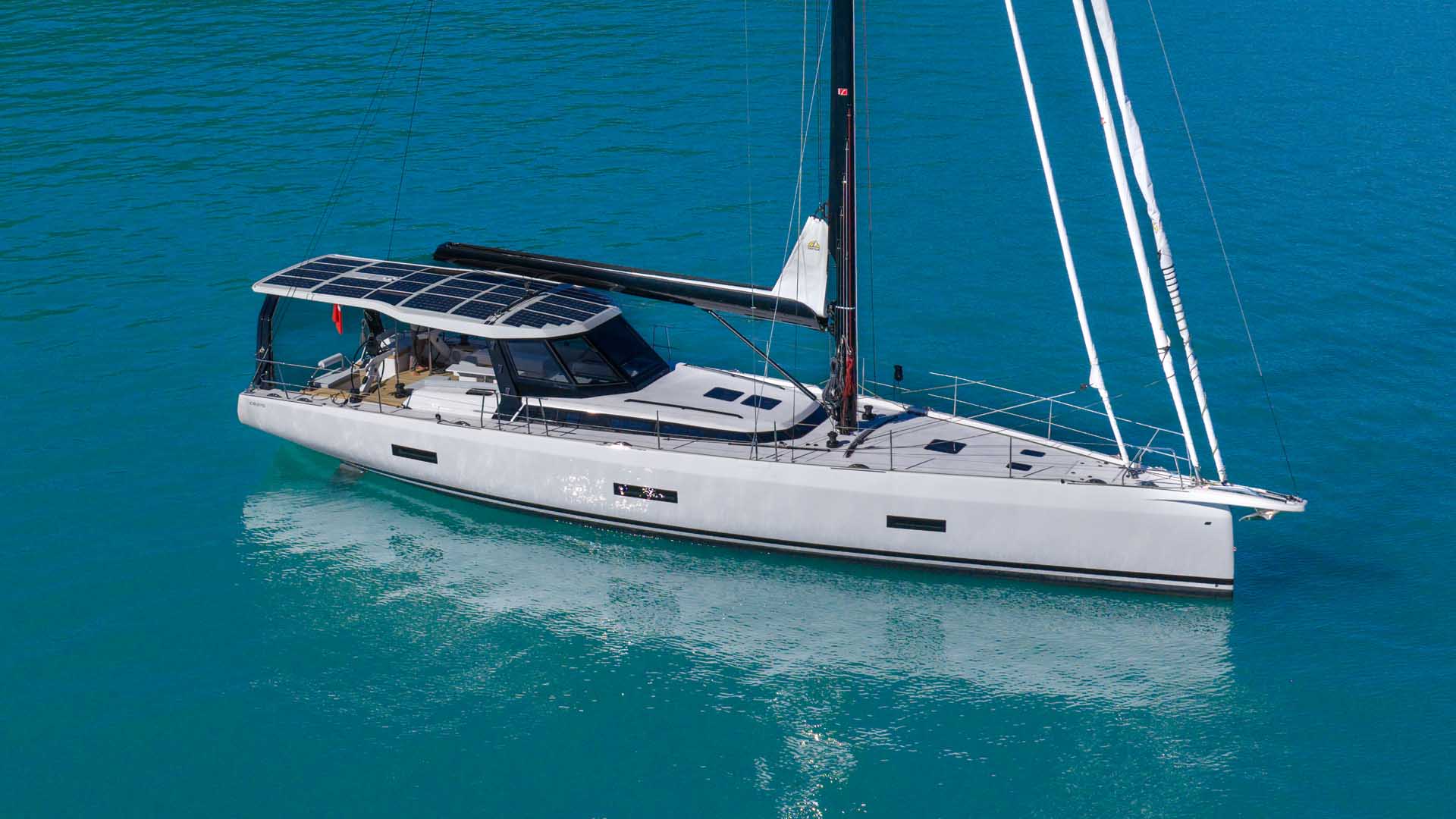

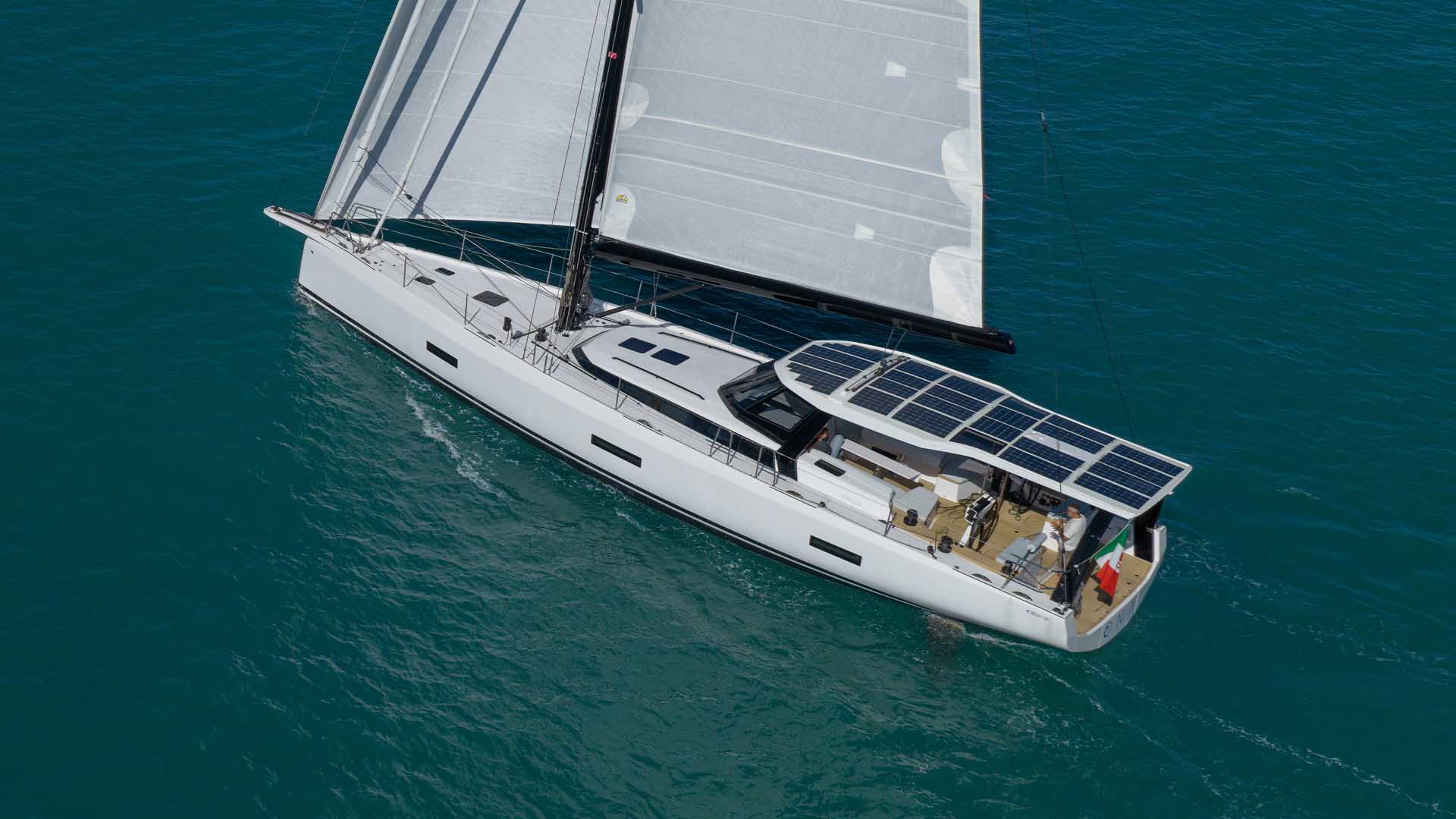

ICE_64_006 — ICE Yachts
Summary
Sailing MonohullSail
- Length overall
- 64.6 ft
- Beam
- 17 ft
- Draft
- 9.2 ft
- Air draft
- —
- Displacement
- —
* A standard reference image, not the actual boat — shown to help visualise this model's published dimensions.
Best Suited For
- Liveaboard
From the published figures: LOA 19.7 m · 3 cabins · fresh water 1300 L
Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.
Sailing Ratios
Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.
Displacement / length
How heavy the boat is for its waterline length. Lower is lighter and quicker; higher is steadier and roomier.
- not published: displacement
How it is worked out
displacement (long tons) ÷ (0.01 × waterline length in ft)³
Ballast ratio
The share of the weight carried in the keel — a rough guide to stiffness, though how deep that weight sits matters as much.
- not published: displacement
How it is worked out
ballast ÷ displacement × 100
Comfort ratio
Ted Brewer's measure of how gently a boat moves in a seaway. Higher means a slower, easier motion.
- not published: displacement
How it is worked out
displacement (lb) ÷ (0.65 × (0.7 × LWL + 0.3 × LOA) × beam^1.333), lengths in ft
Capsize screening
A guide from the inquiry after the 1979 Fastnet race: below 2 was taken as suited to ocean passages. It ignores hull shape and where the ballast sits.
- not published: displacement
How it is worked out
beam (ft) ÷ (displacement as ft³ of seawater)^⅓
Hull speed
Roughly the speed a displacement hull reaches before it has to climb its own bow wave.
- 10.0 kn
How it is worked out
1.34 × √(waterline length in ft), in knots
Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.
Tanks
What the builder publishes about how fast, how strong and how much the boat carries.
Fuel and water on one scale: a tank twice the height holds twice as much.
- Fuel317 galWater343 gal
Dimensions
- LOA
- 64.6 ft (19.7 m)
- Hull length
- —
- LWL
- 55.3 ft (16.86 m)
- Beam
- 17 ft (5.19 m)
- Draft (min)
- 9.2 ft (2.8 m)
- Draft (max)
- —
- Air draft
- —
- Displacement
- —
- Ballast
- 13,228 lb (6,000 kg)
- Cabins
- 3
- Heads
- —
- Berths
- —
Sail Plan
- Main sail
- —
- Jib
- —
- Genoa
- —
- Sail area
- —
- Downwind sail area
- —
- Rig type
- —
Engine and Tanks
- Engine
- 110 hp (Yanmar)
- Engine count
- —
- Engine manufacturer
- Yanmar
- Propulsion type
- —
- Fuel capacity
- 317 gal (1,200 L)
- Fresh water capacity
- 343 gal (1,300 L)
- Black water capacity
- 41 gal (154 L)
Construction
- Mast material
- —
- Hull material
- —
- Deck material
- —
- Keel type
- —
- Rudder type
- —
- Steering wheels
- —
Builder's Own Figures
- Grey water tank
- 116 lt
- Engine
- Yanmar Diesel 4jH 110 Hp
- Engine power basis
- hp per engine as printed (single engine; options as range)
Figures read fromiceyachts.it/ice-64-explorer/· datiread 9/18/2026
