ICE 70

Design

Naval architect

Felci Yacht Design

Summary

Best Suited For

• Performance Cruising

  From the published figures: SA/D 30.4 (upwind 259 m², displacement 25500 kg) · 3 cabins

• Liveaboard

  From the published figures: LOA 21.3 m · 3 cabins · 3 heads · fresh water 1100 L

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

69.9 ft (21.3 m)

Hull length

—

LWL

—

Beam

18.9 ft (5.76 m)

Draft (min)

9.2 ft (2.8 m)

Draft (max)

14.8 ft (4.5 m)

Air draft

—

Displacement

56,218 lb (25,500 kg)

Ballast

17,857 lb (8,100 kg)

Cabins

3

Heads

3

Berths

—

Sail Plan

Main sail

1,593 ft² (148 m²)

Jib

—

Genoa

—

Sail area

2,788 ft² (259 m²)

Downwind sail area

4,064 ft² (377.6 m²)

Rig type

—

Engine and Tanks

Engine

195 hp (Yanmar)

Engine count

—

Engine manufacturer

Yanmar

Propulsion type

V-drive

Fuel capacity

317 gal (1,200 L)

Fresh water capacity

291 gal (1,100 L)

Black water capacity

—

Construction

Mast material

—

Hull material

carbon/glass epoxy sandwich

Deck material

—

Keel type

—

Rudder type

—

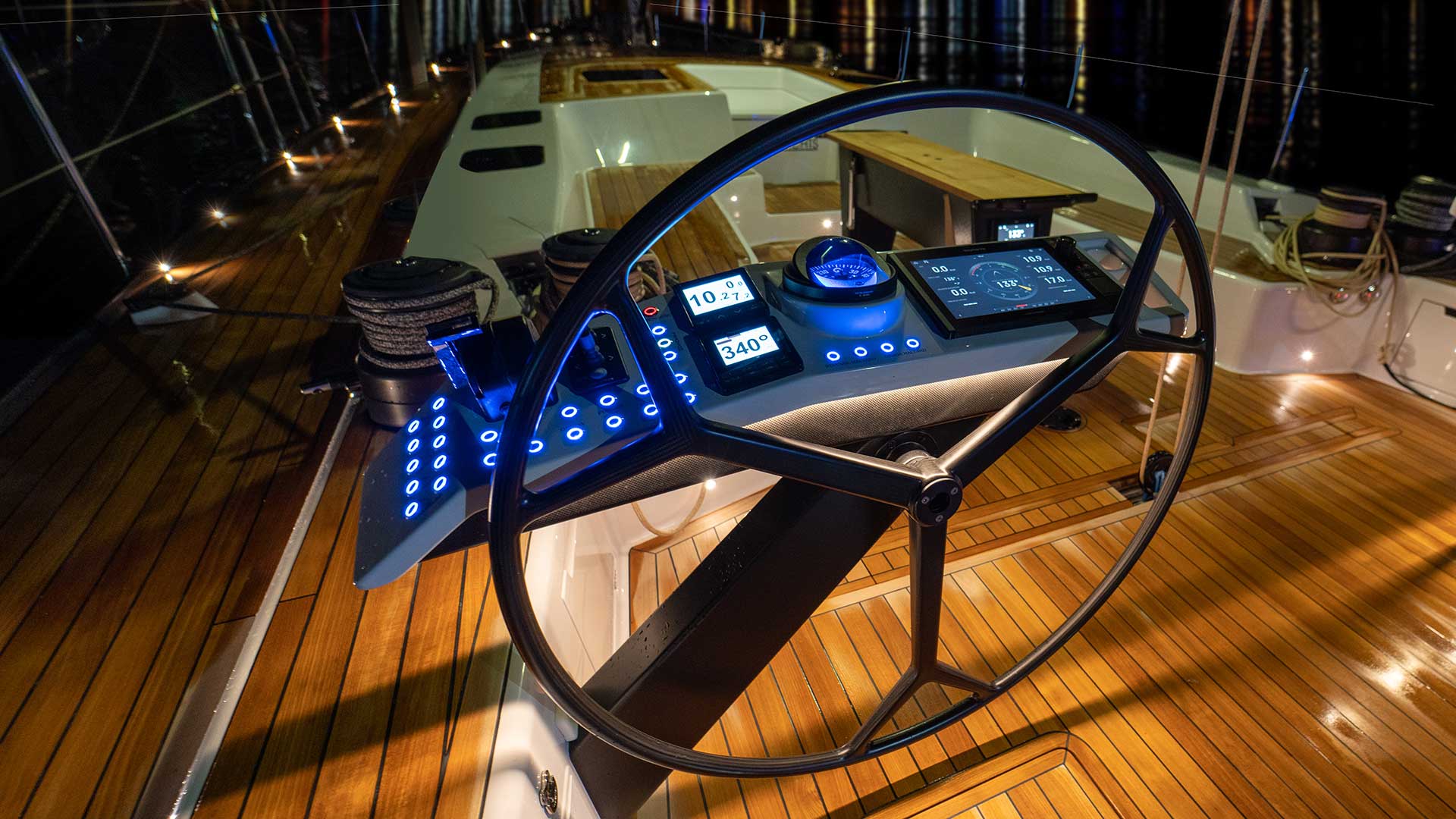

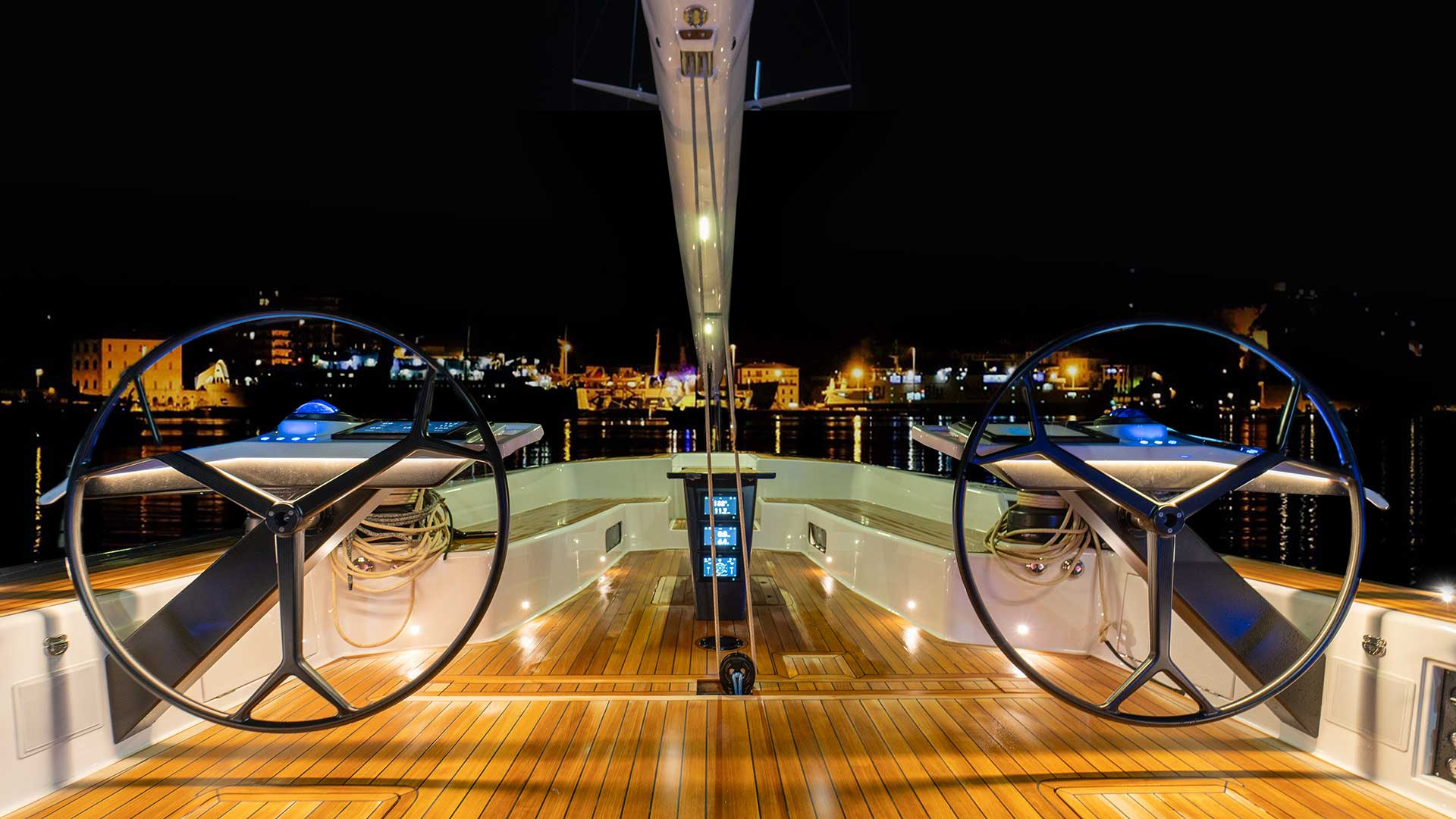

Steering wheels

—

Builder's Own Figures

Mast

Carbonio

Construction

Infusione resina epossidica, Sandwich, Vetro/Carbonio

Jib

111 m²

Engine

Yanmar 4LV 195 hp

Sail area basis

main 148 + jib 111 m² as printed

Engine power basis

hp per engine as printed (single engine; options as range)

Displacement basis

as printed (25,50 t)

Draft as printed

2,80 - 4,50 m

About ICE Yachts

Semi-custom

Italian builder of carbon-epoxy performance cruisers from Salvirola near Cremona — fourteen Felci-designed monohulls from the 15.8-metre ICE 52 to the 24-metre ICE 80, plus the ICE Cat sixty four and seventytwo catamarans by Micheletti+Partners, all infused in carbon and glass with carbon rigs.

The ICE Yachts Range

Every model ICE Yachts publishes, by length — where this one sits in the range.

1. ICE 80 Blue Water Sport78.7 ft
2. ICE 80 Sport78.7 ft
3. ICE Cat seventytwo72.2 ft
4. ICE 70· this model69.9 ft
5. ICE 70 RS69.9 ft
6. ICE 70 Suite69.9 ft
7. ICE 66 RS65.3 ft
8. ICE 64 Explorer64.6 ft
9. ICE Cat sixty four64 ft
