Mylius M72

Name: Mylius M72
Brand: Mylius Yachts

In production

1 / 6

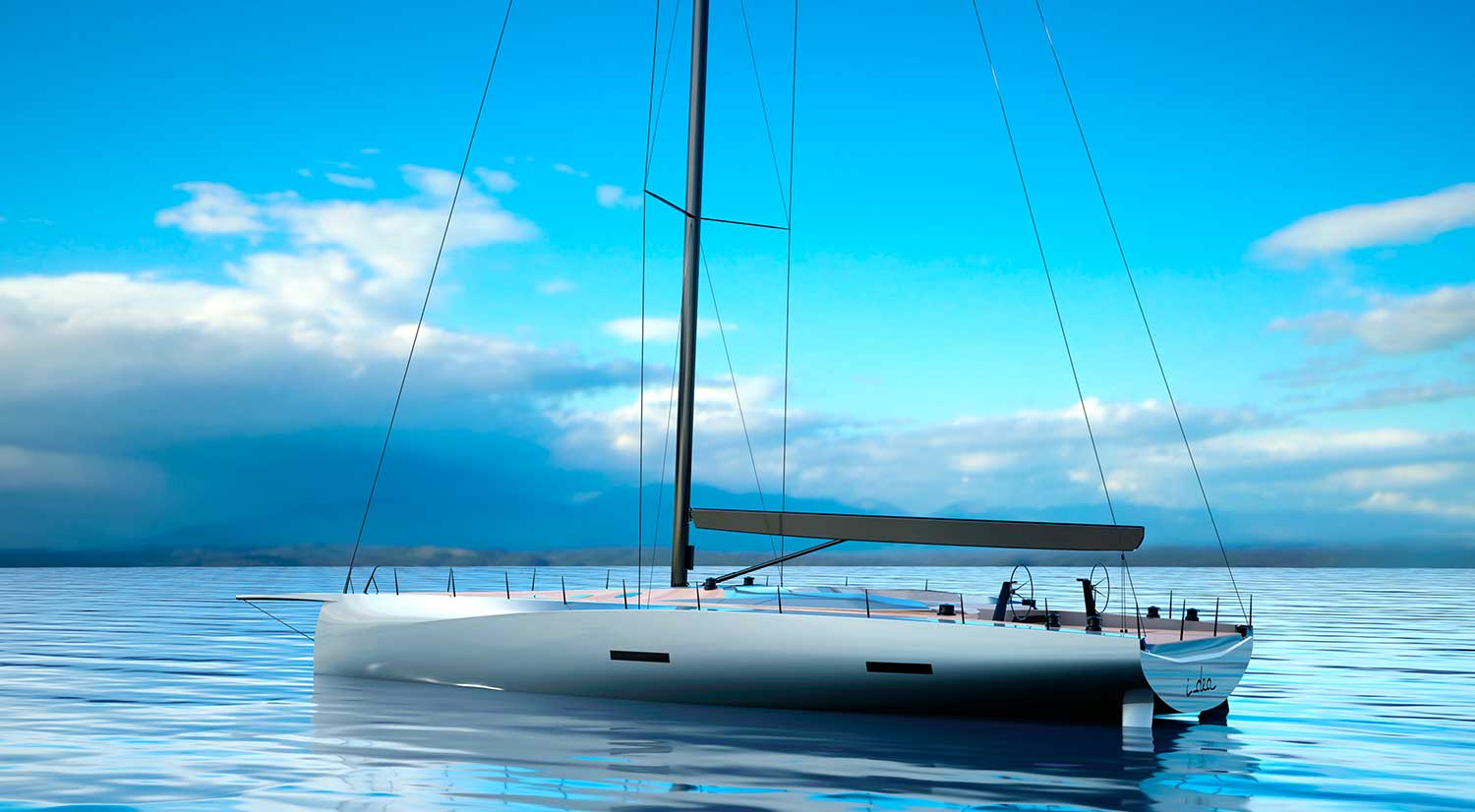

Mylius-M72-yacht-a-vela-esterno — Mylius Yachts

Design

Designer: Shaun Carkeek
Interior designer: Studio Parisotto + Formenton Architetti

Summary

Sailing MonohullSail

Length overall: 73 ft
Beam: 20.3 ft
Draft: 12.8–18.7 ft
Displacement: 51,809 lb
Sail area (upwind): 3,940 ft²
Cabins: 3

* A standard reference image, not the actual boat — shown to help visualise this model's published dimensions.

Best Suited For

Performance Cruising
From the published figures: SA/D 45.4 (upwind 366 m², displacement 23500 kg) · 3 cabins
Liveaboard
From the published figures: LOA 22.24 m · 3 cabins

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Sail area / displacement

How much sail the boat carries for its weight — its power in light air.

45.4· Racing

How it is worked out

sail area (ft²) ÷ (displacement as ft³ of seawater)^⅔

published upwind sail area

Displacement / length

How heavy the boat is for its waterline length. Lower is lighter and quicker; higher is steadier and roomier.

not published: waterline length

How it is worked out

displacement (long tons) ÷ (0.01 × waterline length in ft)³

Ballast ratio

The share of the weight carried in the keel — a rough guide to stiffness, though how deep that weight sits matters as much.

not published: ballast

How it is worked out

ballast ÷ displacement × 100

Comfort ratio

Ted Brewer's measure of how gently a boat moves in a seaway. Higher means a slower, easier motion.

not published: waterline length

How it is worked out

displacement (lb) ÷ (0.65 × (0.7 × LWL + 0.3 × LOA) × beam^1.333), lengths in ft

Capsize screening

A guide from the inquiry after the 1979 Fastnet race: below 2 was taken as suited to ocean passages. It ignores hull shape and where the ballast sits.

2.18· 2 and above

How it is worked out

beam (ft) ÷ (displacement as ft³ of seawater)^⅓

Hull speed

Roughly the speed a displacement hull reaches before it has to climb its own bow wave.

not published: waterline length

How it is worked out

1.34 × √(waterline length in ft), in knots

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Dimensions

LOA: 73 ft (22.24 m)
Hull length: —
LWL: —
Beam: 20.3 ft (6.2 m)
Draft (min): 12.8 ft (3.9 m)
Draft (max): 18.7 ft (5.7 m)
Air draft: —
Displacement: 51,809 lb (23,500 kg)
Ballast: —
Cabins: 3
Heads: —
Berths: —

Sail Plan

Main sail: —
Jib: —
Genoa: —
Sail area: 3,940 ft² (366 m²)
Downwind sail area: —
Rig type: —

Engine and Tanks

Engine: —
Engine count: —
Engine manufacturer: —
Propulsion type: —
Fuel capacity: —
Fresh water capacity: —
Black water capacity: —

Construction

Mast material: —
Hull material: —
Deck material: —
Keel type: —
Rudder type: —
Steering wheels: —

Builder's Own Figures

Code 0: 281 m²
Draft: 3,9 m / 5,7 m
A3: 480 m²
Displacement basis: as printed (Weight 23,5 T)

Figures read frommylius.it/en/mylius-m72-sailing-yacht/read 9/13/2026

Layouts & Drawings

4 drawings from the builder's page: general arrangement, sail plan, profile.

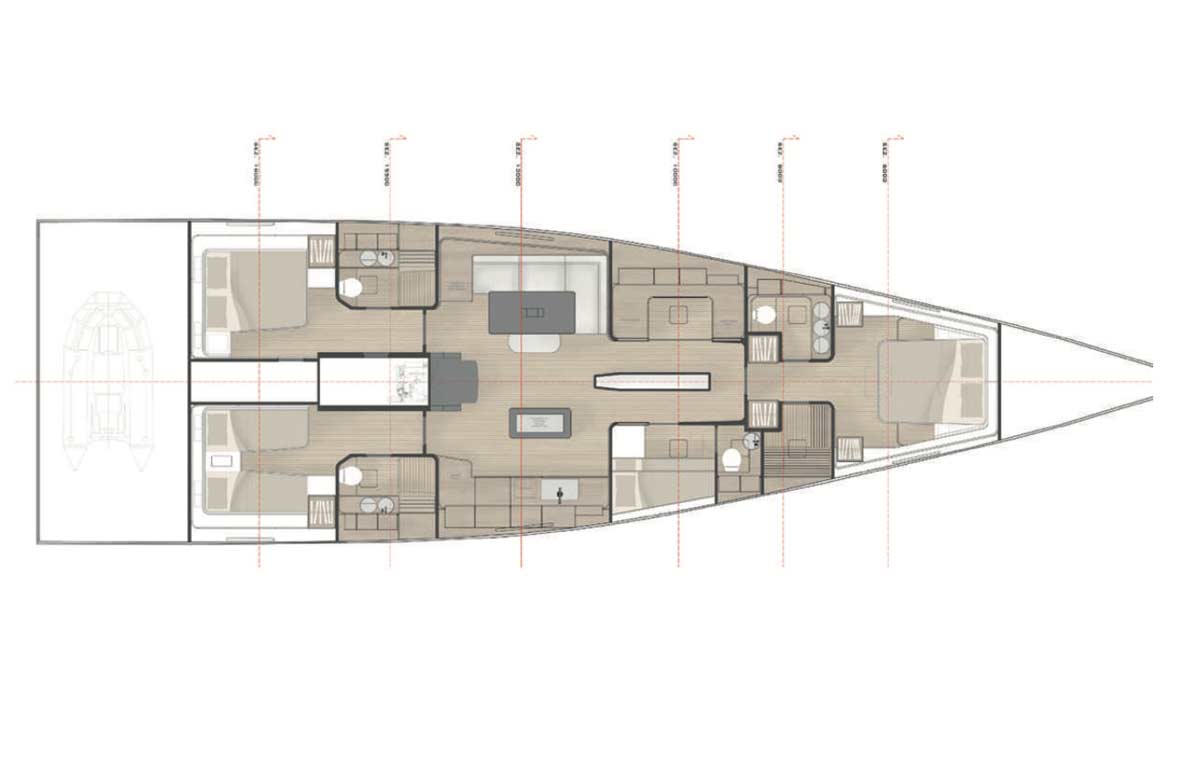

M72-configurazione-layout-A-1 — Mylius Yachts

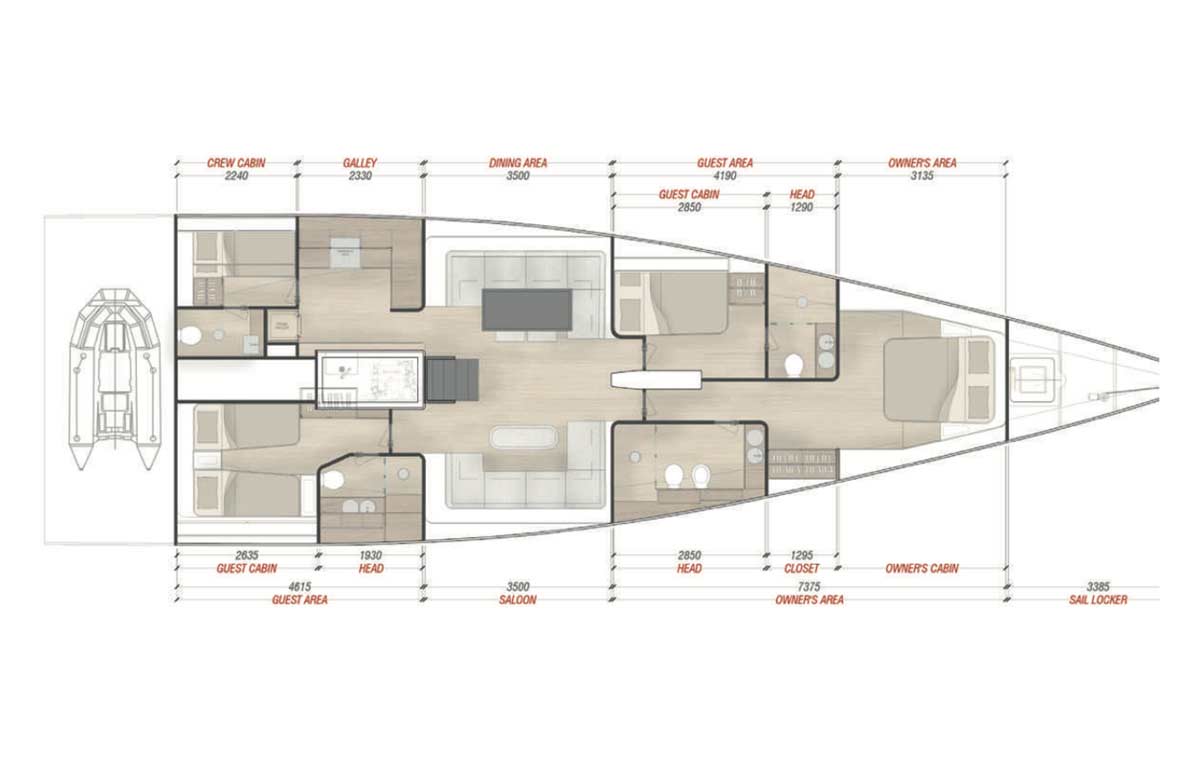

M72-configurazione-layout-B-1 — Mylius Yachts

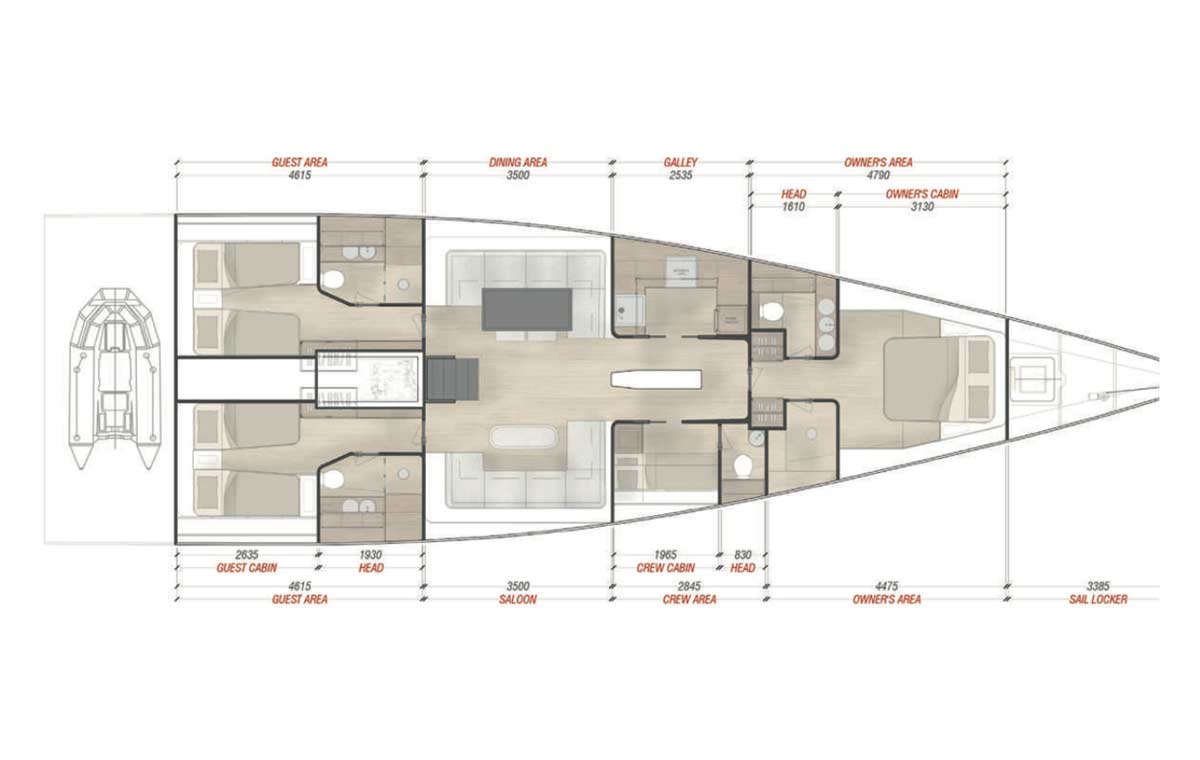

M72-configurazione-layout-C-1 — Mylius Yachts

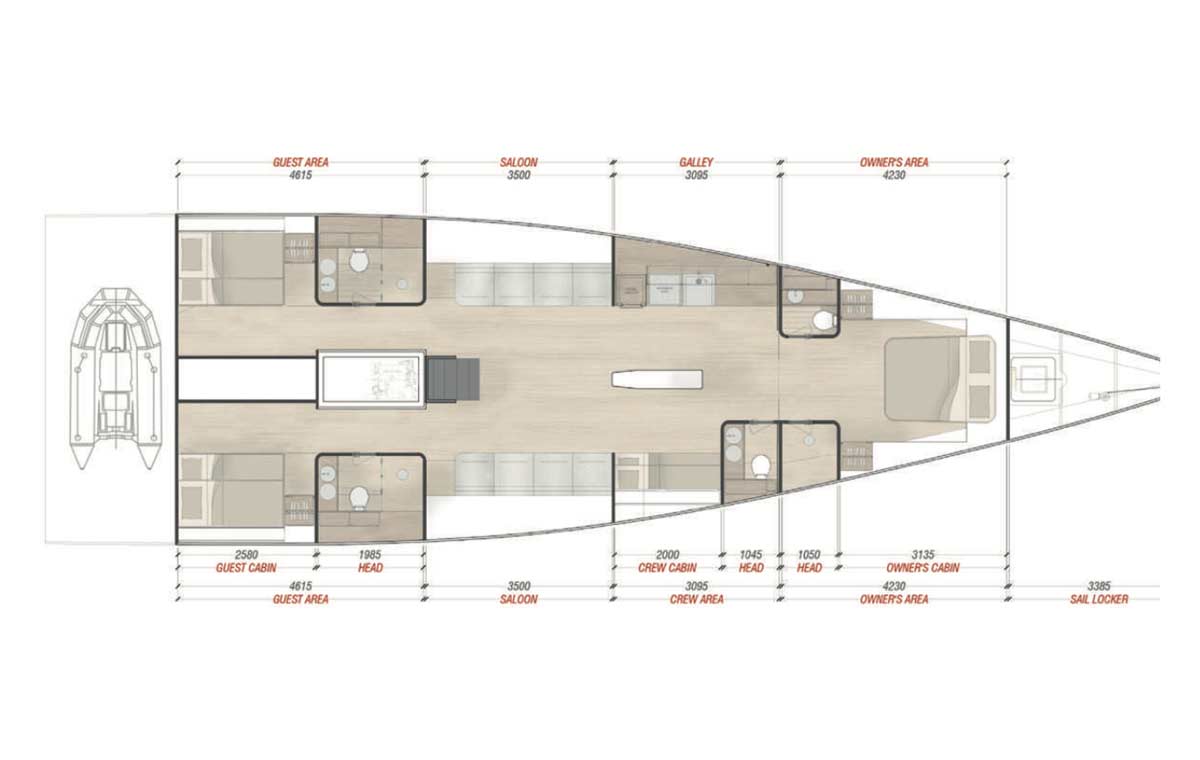

M72-configurazione-layout-D-1 — Mylius Yachts
