Mylius M80RS

Name: Mylius M80RS
Brand: Mylius Yachts

In production

1 / 6

Mylius-M80RS-Cabina-armatore-poppa — Mylius Yachts

Summary

Sailing MonohullSail

Length overall: 82.8 ft
Beam: 20.7 ft
Draft: 10.7 ft
Displacement: 72,752 lb
Sail area (upwind): 3,014 ft²
Cabins: 4–5

* A standard reference image, not the actual boat — shown to help visualise this model's published dimensions.

Best Suited For

Performance Cruising
From the published figures: SA/D 27.7 (upwind 280 m², displacement 33000 kg) · 5 cabins

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Sail area / displacement

How much sail the boat carries for its weight — its power in light air.

27.7· Racing

How it is worked out

sail area (ft²) ÷ (displacement as ft³ of seawater)^⅔

published upwind sail area

Displacement / length

How heavy the boat is for its waterline length. Lower is lighter and quicker; higher is steadier and roomier.

93· Ultralight

How it is worked out

displacement (long tons) ÷ (0.01 × waterline length in ft)³

Ballast ratio

The share of the weight carried in the keel — a rough guide to stiffness, though how deep that weight sits matters as much.

35· Moderate

How it is worked out

ballast ÷ displacement × 100

Comfort ratio

Ted Brewer's measure of how gently a boat moves in a seaway. Higher means a slower, easier motion.

26.6· Coastal

How it is worked out

displacement (lb) ÷ (0.65 × (0.7 × LWL + 0.3 × LOA) × beam^1.333), lengths in ft

Capsize screening

A guide from the inquiry after the 1979 Fastnet race: below 2 was taken as suited to ocean passages. It ignores hull shape and where the ballast sits.

1.98· Below 2

How it is worked out

beam (ft) ÷ (displacement as ft³ of seawater)^⅓

Hull speed

Roughly the speed a displacement hull reaches before it has to climb its own bow wave.

11.3 kn

How it is worked out

1.34 × √(waterline length in ft), in knots

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Dimensions

LOA: 82.8 ft (25.25 m)
Hull length: 76.8 ft (23.4 m)
LWL: 70.5 ft (21.5 m)
Beam: 20.7 ft (6.3 m)
Draft (min): 10.7 ft (3.25 m)
Draft (max): —
Air draft: —
Displacement: 72,752 lb (33,000 kg)
Ballast: 25,353 lb (11,500 kg)
Cabins: 4–5
Heads: —
Berths: —

Sail Plan

Main sail: —
Jib: —
Genoa: —
Sail area: 3,014 ft² (280 m²)
Downwind sail area: 6,652 ft² (618 m²)
Rig type: —

Engine and Tanks

Engine: —
Engine count: —
Engine manufacturer: —
Propulsion type: —
Fuel capacity: —
Fresh water capacity: —
Black water capacity: —

Construction

Mast material: —
Hull material: Carbon
Deck material: —
Keel type: —
Rudder type: —
Steering wheels: —

Builder's Own Figures

Length: overall 23.4 m; LOA with bowsprit 25.25 m
Displacement basis: light (DISP-LIGHT)

Figures read frommylius.it/en/mylius-m80rs-sailing-yacht/read 9/13/2026

Layouts & Drawings

4 drawings from the builder's page: general arrangement, sail plan, profile.

Mylius-M80RS-layout-1 — Mylius Yachts

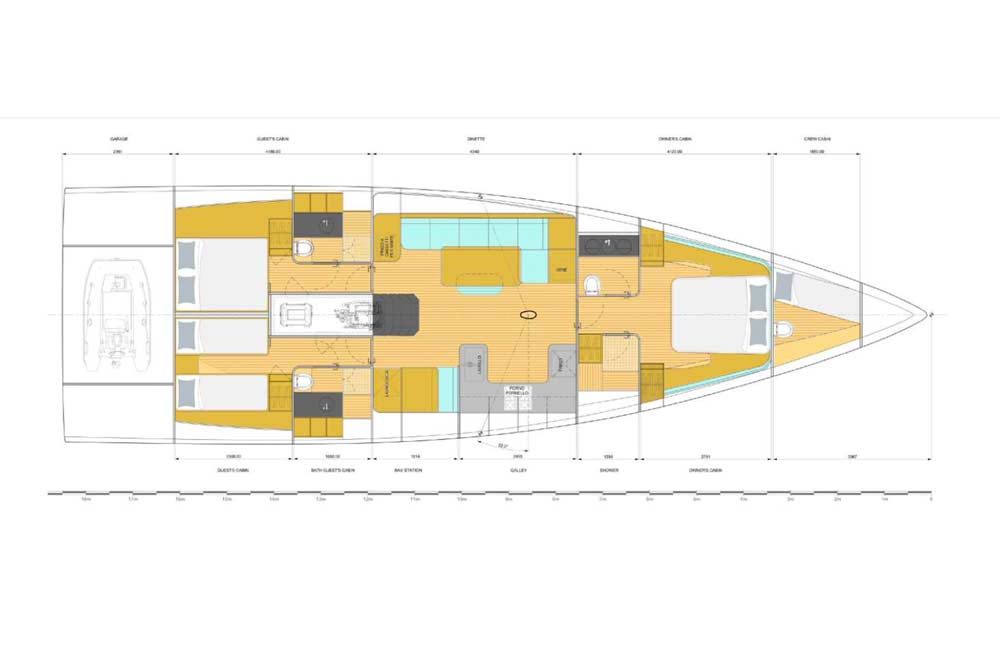

Mylius-M80RS-layout-n1 — Mylius Yachts

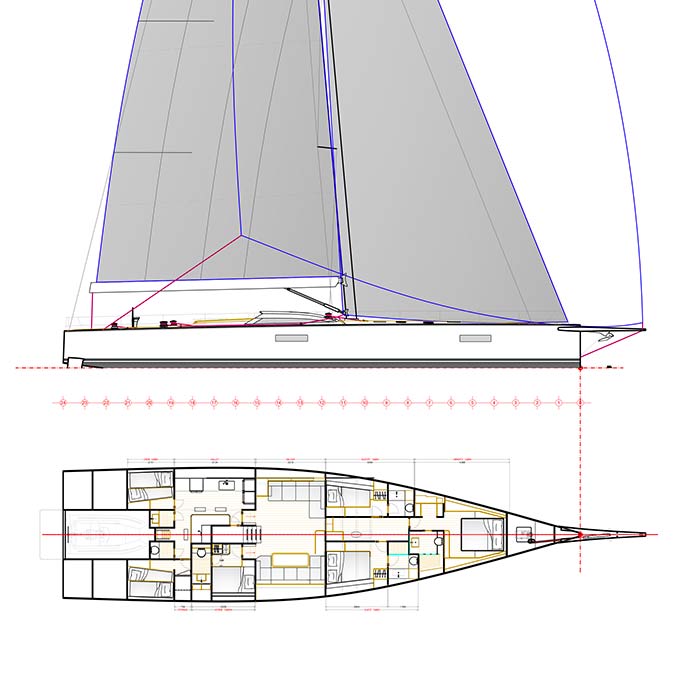

Mylius-M80RS-layout-2 — Mylius Yachts

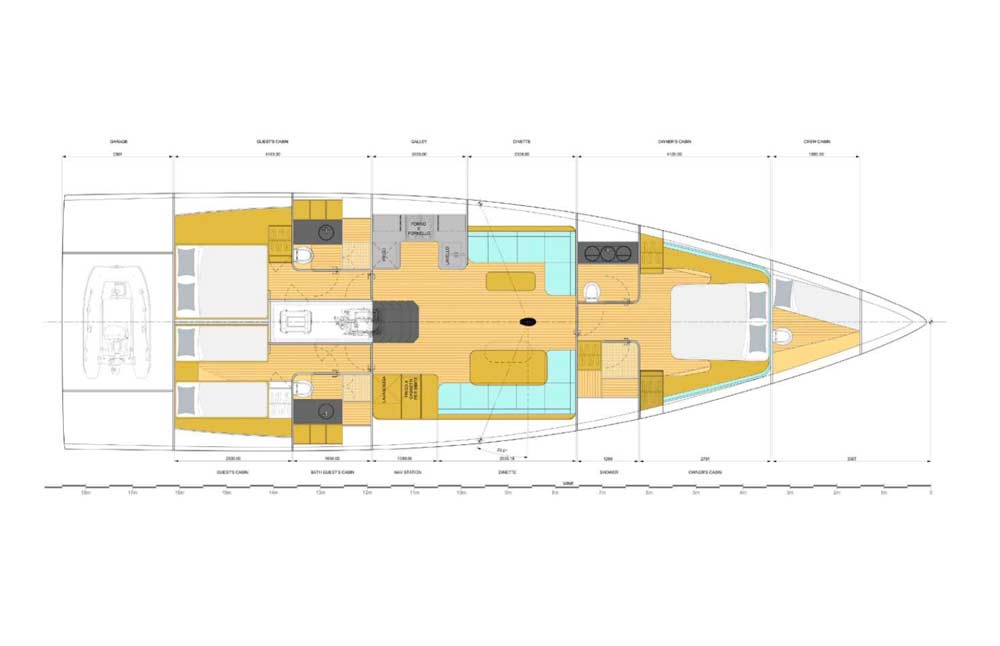

Mylius-M80RS-layout-n2 — Mylius Yachts

About Mylius Yachts

Semi-custom

Italian builder of carbon fast cruiser-racers (M60GL, M66RS, M72, M80RS) and a line of performance motor yachts (M47P, M62P, M76P), built to order at Podenzano near Piacenza.
