Mylius M60GL

Name: Mylius M60GL
Brand: Mylius Yachts

In production

1 / 10

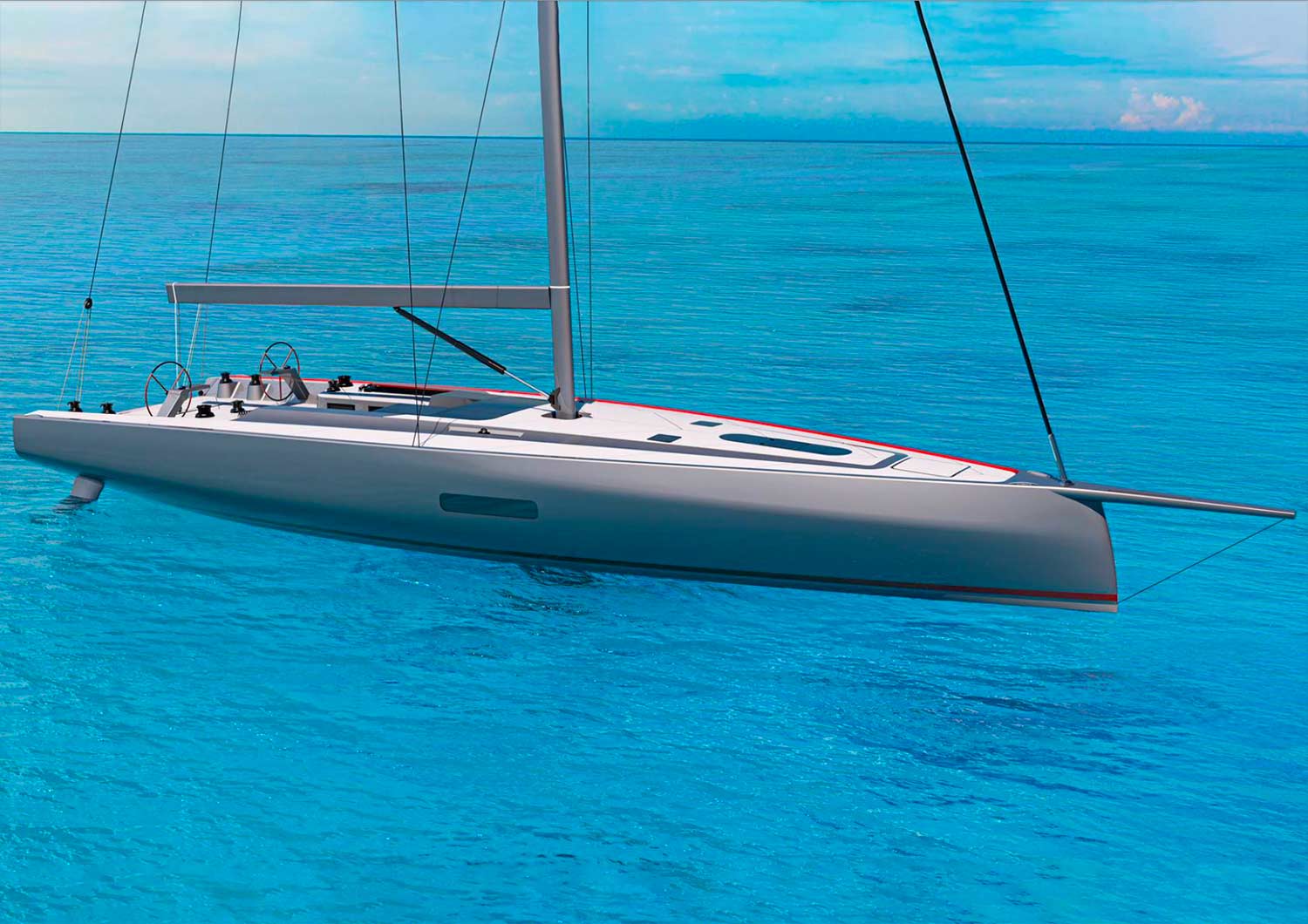

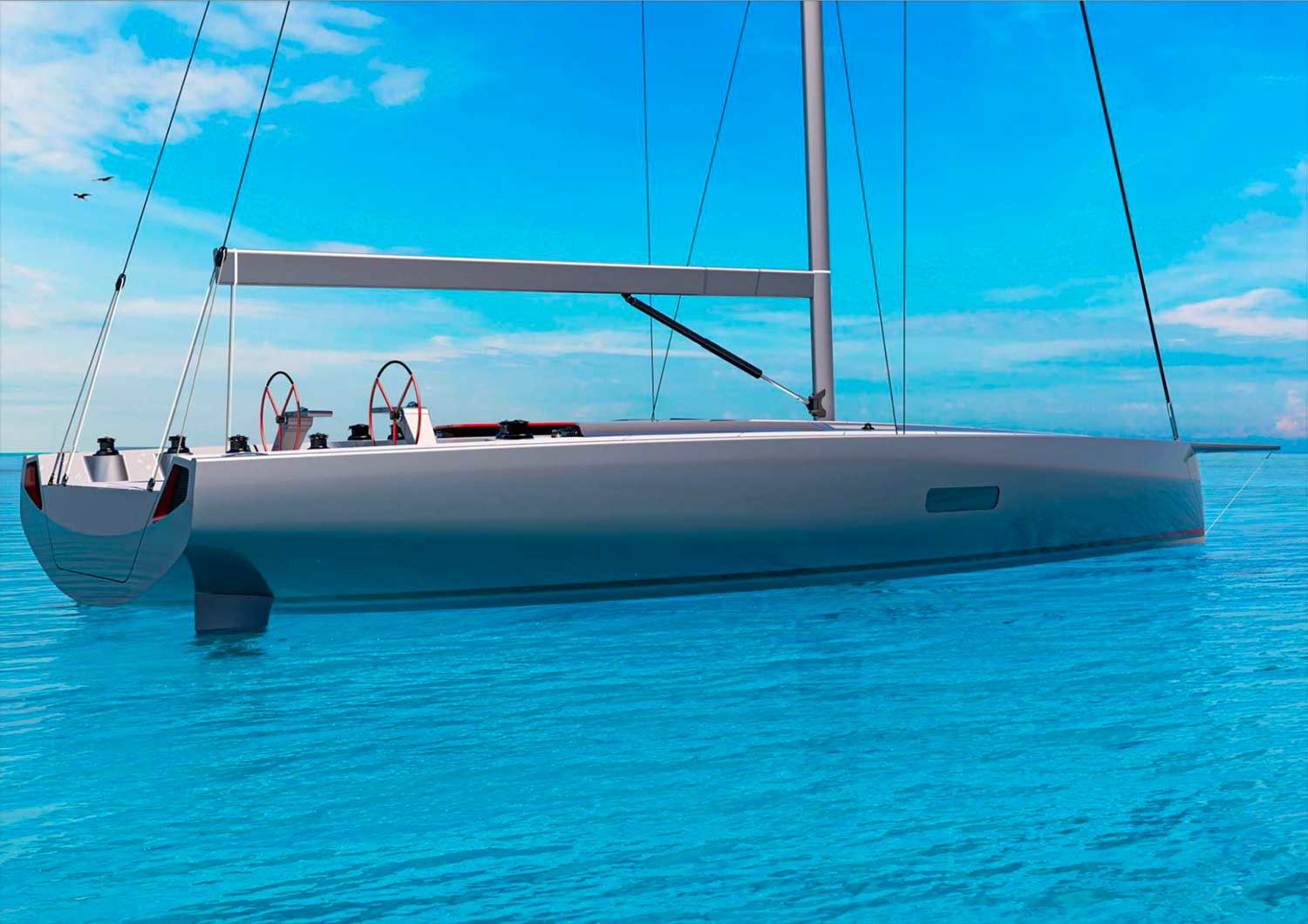

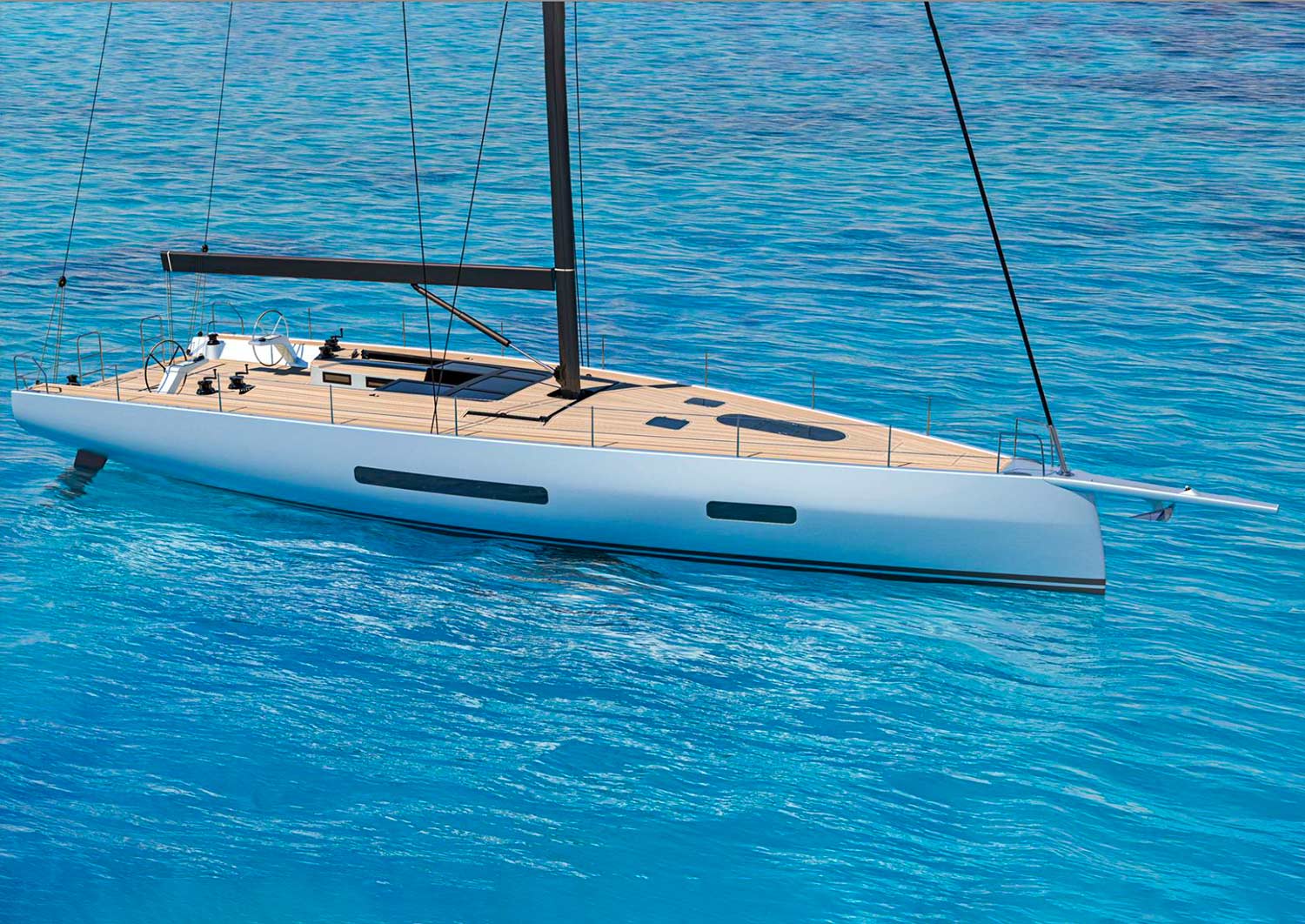

Yacht-a-vela-Mylius-M60GL-render-poppa-2 — Mylius Yachts

Design

Designer: Giovanni Ceccarelli
Interior designer: Parisotto+Formenton

Summary

Sailing MonohullSail

Length overall: 60.7 ft
Beam: 18 ft
Draft: 11.8 ft
Displacement: 35,825 lb
Sail area (upwind): 2,368 ft²
Cabins: 3

* A standard reference image, not the actual boat — shown to help visualise this model's published dimensions.

Best Suited For

Performance Cruising
From the published figures: SA/D 34.9 (upwind 220 m², displacement 16250 kg) · 3 cabins
Liveaboard
From the published figures: LOA 18.5 m · 3 cabins · fresh water 400 L

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Sail area / displacement

How much sail the boat carries for its weight — its power in light air.

34.9· Racing

How it is worked out

sail area (ft²) ÷ (displacement as ft³ of seawater)^⅔

published upwind sail area

Displacement / length

How heavy the boat is for its waterline length. Lower is lighter and quicker; higher is steadier and roomier.

not published: waterline length

How it is worked out

displacement (long tons) ÷ (0.01 × waterline length in ft)³

Ballast ratio

The share of the weight carried in the keel — a rough guide to stiffness, though how deep that weight sits matters as much.

not published: ballast

How it is worked out

ballast ÷ displacement × 100

Comfort ratio

Ted Brewer's measure of how gently a boat moves in a seaway. Higher means a slower, easier motion.

not published: waterline length

How it is worked out

displacement (lb) ÷ (0.65 × (0.7 × LWL + 0.3 × LOA) × beam^1.333), lengths in ft

Capsize screening

A guide from the inquiry after the 1979 Fastnet race: below 2 was taken as suited to ocean passages. It ignores hull shape and where the ballast sits.

2.19· 2 and above

How it is worked out

beam (ft) ÷ (displacement as ft³ of seawater)^⅓

Hull speed

Roughly the speed a displacement hull reaches before it has to climb its own bow wave.

not published: waterline length

How it is worked out

1.34 × √(waterline length in ft), in knots

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Fuel and water on one scale: a tank twice the height holds twice as much.

Fuel132 gal
Water106 gal

Dimensions

LOA: 60.7 ft (18.5 m)
Hull length: —
LWL: —
Beam: 18 ft (5.5 m)
Draft (min): 11.8 ft (3.6 m)
Draft (max): —
Air draft: —
Displacement: 35,825 lb (16,250 kg)
Ballast: —
Cabins: 3
Heads: —
Berths: —

Sail Plan

Main sail: —
Jib: —
Genoa: —
Sail area: 2,368 ft² (220 m²)
Downwind sail area: 4,521 ft² (420 m²)
Rig type: —

Engine and Tanks

Engine: —
Engine count: 1
Engine manufacturer: Yanmar
Propulsion type: —
Fuel capacity: 132 gal (500 L)
Fresh water capacity: 106 gal (400 L)
Black water capacity: —

Construction

Mast material: —
Hull material: Carbon
Deck material: —
Keel type: —
Rudder type: —
Steering wheels: —

Builder's Own Figures

Grey water: 50 lt
Sail area upwind (cruising): 205 m²
Table note: the table prints 'MAXIMUM BEAM' twice (20.47, 5.50 m); the larger figure is not a beam and was ignored
Engine: YANMAR 4JH110
Displacement basis: light (DISP-LIGHT)

Figures read frommylius.it/en/mylius-m60gl-sailing-yacht/read 9/13/2026

About Mylius Yachts

Semi-custom

Italian builder of carbon fast cruiser-racers (M60GL, M66RS, M72, M80RS) and a line of performance motor yachts (M47P, M62P, M76P), built to order at Podenzano near Piacenza.
