Sail area / displacement
How much sail the boat carries for its weight — its power in light air.
- 30.5· Racing
How it is worked out
sail area (ft²) ÷ (displacement as ft³ of seawater)^⅔
published upwind sail area
1 / 10
Ice-62_02 — ICE Yachts
Design
- Naval architect
- Felci Yacht Design
Summary
Sailing MonohullSail
- Length overall
- 59 ft
- Beam
- 17.1 ft
- Draft
- 9.4–10.8 ft
- Displacement
- 43,872 lb
- Sail area (upwind)
- 2,368 ft²
* A standard reference image, not the actual boat — shown to help visualise this model's published dimensions.
Sailing Ratios
Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.
Displacement / length
How heavy the boat is for its waterline length. Lower is lighter and quicker; higher is steadier and roomier.
- 117· Light
How it is worked out
displacement (long tons) ÷ (0.01 × waterline length in ft)³
Ballast ratio
The share of the weight carried in the keel — a rough guide to stiffness, though how deep that weight sits matters as much.
- 31· Moderate
How it is worked out
ballast ÷ displacement × 100
Comfort ratio
Ted Brewer's measure of how gently a boat moves in a seaway. Higher means a slower, easier motion.
- 27.3· Coastal
How it is worked out
displacement (lb) ÷ (0.65 × (0.7 × LWL + 0.3 × LOA) × beam^1.333), lengths in ft
Capsize screening
A guide from the inquiry after the 1979 Fastnet race: below 2 was taken as suited to ocean passages. It ignores hull shape and where the ballast sits.
- 1.93· Below 2
How it is worked out
beam (ft) ÷ (displacement as ft³ of seawater)^⅓
Hull speed
Roughly the speed a displacement hull reaches before it has to climb its own bow wave.
- 9.9 kn
How it is worked out
1.34 × √(waterline length in ft), in knots
Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.
Tanks
What the builder publishes about how fast, how strong and how much the boat carries.
Fuel and water on one scale: a tank twice the height holds twice as much.
- Fuel172 galWater264 gal
Dimensions
- LOA
- 59 ft (17.99 m)
- Hull length
- —
- LWL
- 55.1 ft (16.8 m)
- Beam
- 17.1 ft (5.2 m)
- Draft (min)
- 9.4 ft (2.85 m)
- Draft (max)
- 10.8 ft (3.3 m)
- Air draft
- —
- Displacement
- 43,872 lb (19,900 kg)
- Ballast
- 13,448 lb (6,100 kg)
- Cabins
- —
- Heads
- —
- Berths
- —
Sail Plan
- Main sail
- 1,399 ft² (130 m²)
- Jib
- —
- Genoa
- —
- Sail area
- 2,368 ft² (220 m²)
- Downwind sail area
- 3,444 ft² (320 m²)
- Rig type
- —
Engine and Tanks
- Engine
- 110–195 hp
- Engine count
- —
- Engine manufacturer
- —
- Propulsion type
- —
- Fuel capacity
- 172 gal (650 L)
- Fresh water capacity
- 264 gal (1,000 L)
- Black water capacity
- —
Construction
- Mast material
- —
- Hull material
- carbon/glass epoxy sandwich
- Deck material
- —
- Keel type
- —
- Rudder type
- —
- Steering wheels
- —
Builder's Own Figures
- Jib
- 90 m²
- Mast
- Carbonio
- Rig P/E/J
- P 24,80 m, E 7,90 m, J 6,17 m
- Engine
- 110 - 195 hp
- Construction
- Infusione resina epossidica, Sandwich, Vetro/Carbonio
- Engine power basis
- hp per engine as printed (single engine; options as range)
- Displacement basis
- as printed (19,90 t)
- Draft as printed
- 2,85 - 3,30 m
- Sail area basis
- main 130 + jib 90 m² as printed
Figures read fromiceyachts.it/ice-62-2/· datiread 9/18/2026
Layouts & Drawings

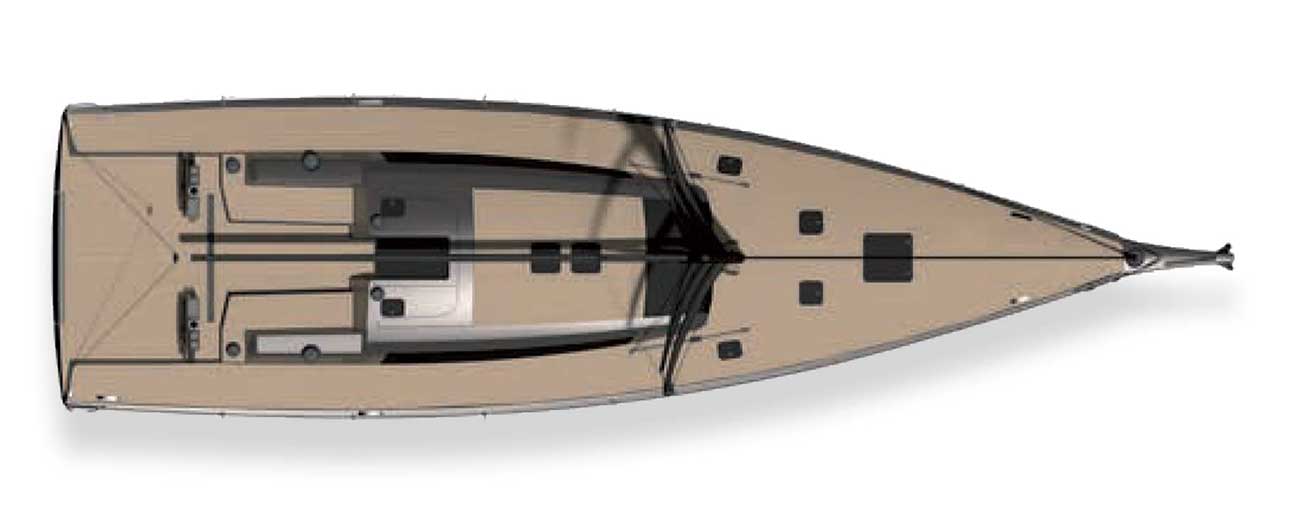

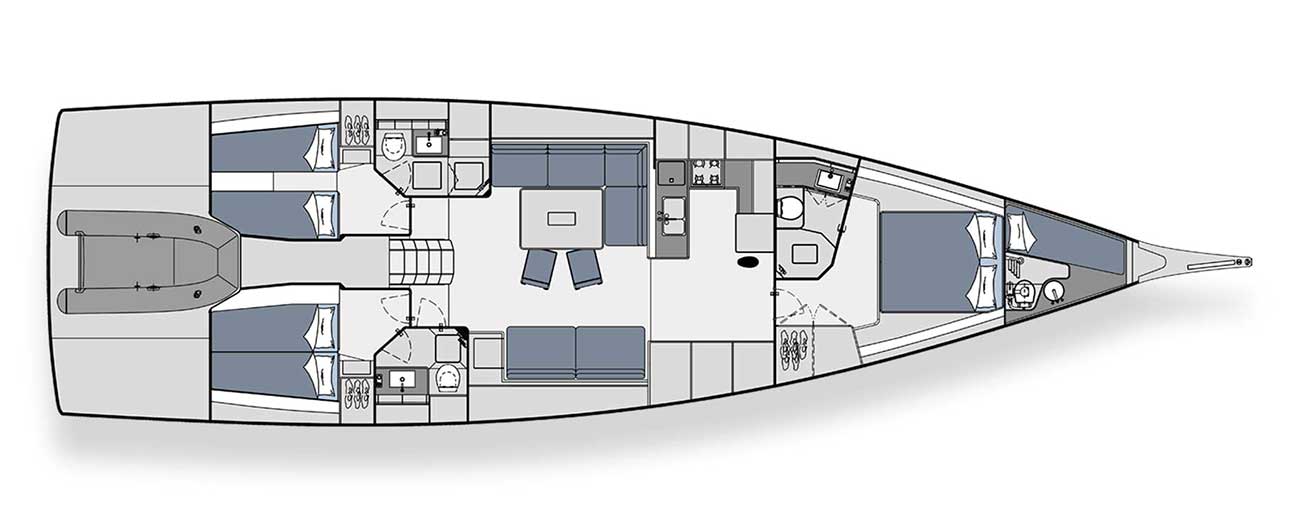

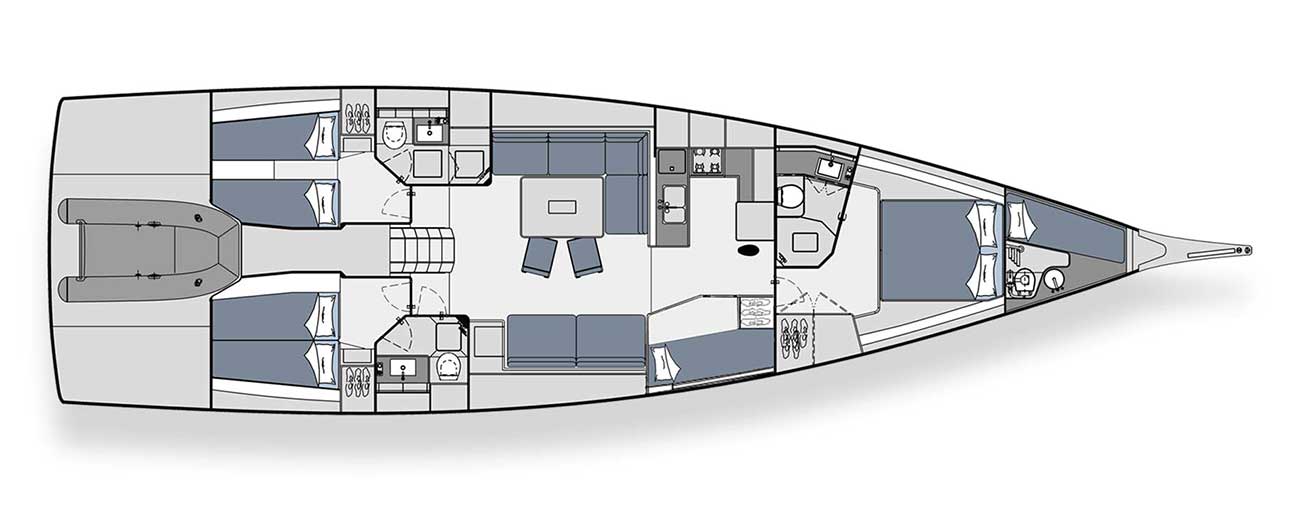

1 drawing from the builder's page: general arrangement, sail plan, profile.
