Sail area / displacement
How much sail the boat carries for its weight — its power in light air.
- 32.7· Racing
How it is worked out
sail area (ft²) ÷ (displacement as ft³ of seawater)^⅔
published upwind sail area
1 / 10
ice52-st-sailing — ICE Yachts
Design
- Naval architect
- Felci Yacht Design
Summary
Sailing MonohullSail
- Length overall
- 51.8 ft
- Beam
- 15.3 ft
- Draft
- 9.2 ft
- Displacement
- 25,794 lb
- Sail area (upwind)
- 1,787 ft²
* A standard reference image, not the actual boat — shown to help visualise this model's published dimensions.
Sailing Ratios
Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.
Displacement / length
How heavy the boat is for its waterline length. Lower is lighter and quicker; higher is steadier and roomier.
- 100· Light
How it is worked out
displacement (long tons) ÷ (0.01 × waterline length in ft)³
Ballast ratio
The share of the weight carried in the keel — a rough guide to stiffness, though how deep that weight sits matters as much.
- not published: ballast
How it is worked out
ballast ÷ displacement × 100
Comfort ratio
Ted Brewer's measure of how gently a boat moves in a seaway. Higher means a slower, easier motion.
- 21.2· Coastal
How it is worked out
displacement (lb) ÷ (0.65 × (0.7 × LWL + 0.3 × LOA) × beam^1.333), lengths in ft
Capsize screening
A guide from the inquiry after the 1979 Fastnet race: below 2 was taken as suited to ocean passages. It ignores hull shape and where the ballast sits.
- 2.07· 2 and above
How it is worked out
beam (ft) ÷ (displacement as ft³ of seawater)^⅓
Hull speed
Roughly the speed a displacement hull reaches before it has to climb its own bow wave.
- 9.4 kn
How it is worked out
1.34 × √(waterline length in ft), in knots
Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.
Dimensions
- LOA
- 51.8 ft (15.8 m)
- Hull length
- —
- LWL
- 48.7 ft (14.84 m)
- Beam
- 15.3 ft (4.65 m)
- Draft (min)
- 9.2 ft (2.8 m)
- Draft (max)
- —
- Air draft
- —
- Displacement
- 25,794 lb (11,700 kg)
- Ballast
- —
- Cabins
- —
- Heads
- —
- Berths
- —
Sail Plan
- Main sail
- 980 ft² (91 m²)
- Jib
- —
- Genoa
- —
- Sail area
- 1,787 ft² (166 m²)
- Downwind sail area
- 3,229 ft² (300 m²)
- Rig type
- —
Engine and Tanks
- Engine
- —
- Engine count
- —
- Engine manufacturer
- —
- Propulsion type
- —
- Fuel capacity
- —
- Fresh water capacity
- —
- Black water capacity
- —
Construction
- Mast material
- —
- Hull material
- —
- Deck material
- —
- Keel type
- —
- Rudder type
- —
- Steering wheels
- —
Builder's Own Figures
- Jib
- 75 m²
- Sail area basis
- main 91 + jib 75 m² as printed
- Displacement basis
- lightship (11,7 t (a vuoto)* * 100 kg in più dovuti a: serbatoi maggior)
Figures read fromiceyachts.it/ice-52-st/· datiread 9/18/2026
Layouts & Drawings

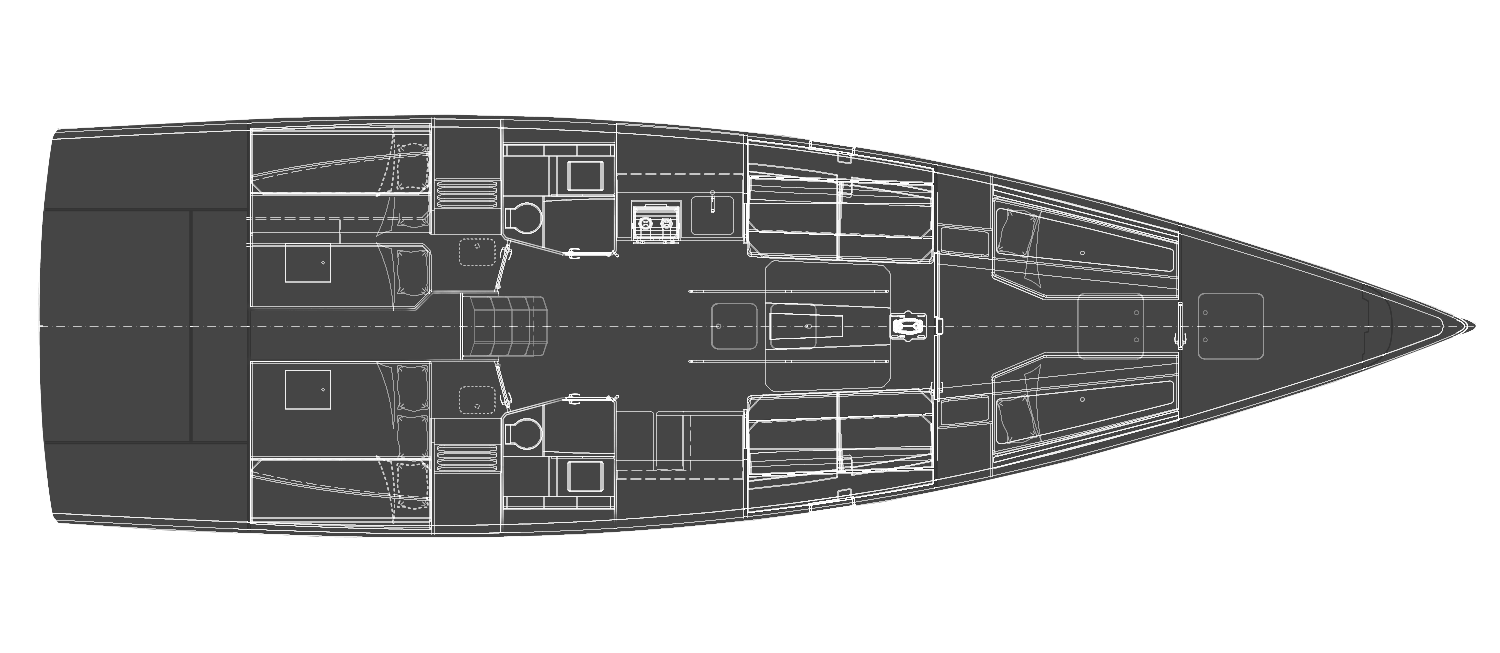

1 drawing from the builder's page: general arrangement, sail plan, profile.
ICE-52ST-Layout — ICE Yachts
About ICE Yachts
Semi-custom
Italian builder of carbon-epoxy performance cruisers from Salvirola near Cremona — fourteen Felci-designed monohulls from the 15.8-metre ICE 52 to the 24-metre ICE 80, plus the ICE Cat sixty four and seventytwo catamarans by Micheletti+Partners, all infused in carbon and glass with carbon rigs.
