CNB 62

Name: CNB 62
Brand: CNB Yacht Builders

In production

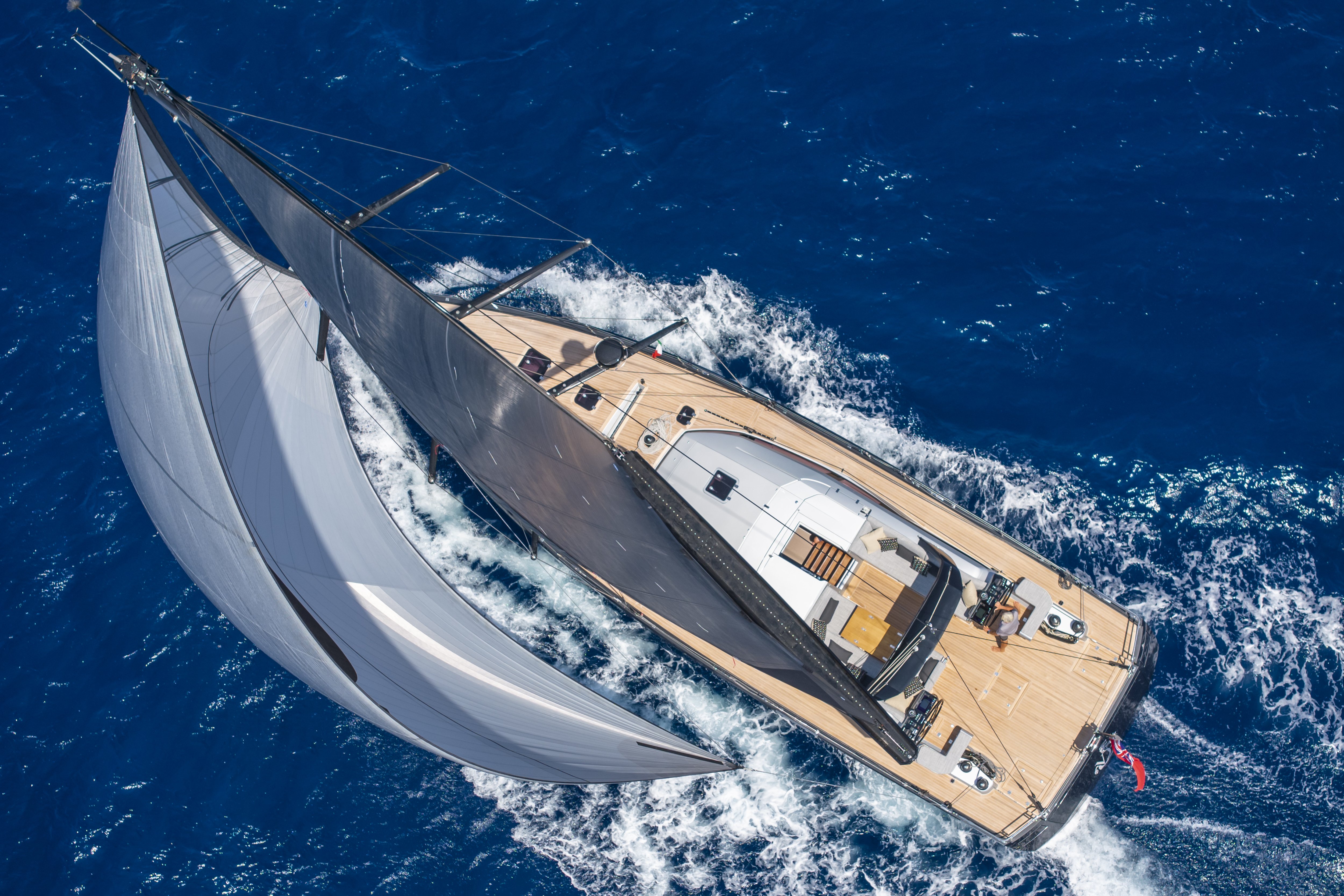

1 / 10

CNB Yacht Builders

Design

Naval architect: Philippe Briand
Interior designer: Cabinet Piaton Yacht Design

Summary

Sailing MonohullSail

Length overall: 63.9 ft
Beam: 17.5 ft
Draft: 8–9.7 ft
Air draft: —
Displacement: —

* A standard reference image, not the actual boat — shown to help visualise this model's published dimensions.

Best Suited For

Liveaboard
From the published figures: LOA 19.48 m · 3 cabins · fresh water 800 L

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Sail area / displacement

How much sail the boat carries for its weight — its power in light air.

not published: displacement

How it is worked out

sail area (ft²) ÷ (displacement as ft³ of seawater)^⅔

Displacement / length

How heavy the boat is for its waterline length. Lower is lighter and quicker; higher is steadier and roomier.

not published: displacement

How it is worked out

displacement (long tons) ÷ (0.01 × waterline length in ft)³

Ballast ratio

The share of the weight carried in the keel — a rough guide to stiffness, though how deep that weight sits matters as much.

not published: ballast, displacement

How it is worked out

ballast ÷ displacement × 100

Comfort ratio

Ted Brewer's measure of how gently a boat moves in a seaway. Higher means a slower, easier motion.

not published: displacement

How it is worked out

displacement (lb) ÷ (0.65 × (0.7 × LWL + 0.3 × LOA) × beam^1.333), lengths in ft

Capsize screening

A guide from the inquiry after the 1979 Fastnet race: below 2 was taken as suited to ocean passages. It ignores hull shape and where the ballast sits.

not published: displacement

How it is worked out

beam (ft) ÷ (displacement as ft³ of seawater)^⅓

Hull speed

Roughly the speed a displacement hull reaches before it has to climb its own bow wave.

10.2 kn

How it is worked out

1.34 × √(waterline length in ft), in knots

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Fuel and water on one scale: a tank twice the height holds twice as much.

Fuel264 gal
Water211 gal

Show the builders' own words

A figure marked with a quote mark was read from the builder's page. Open it for the exact line, the page and the date.

Dimensions

LOA: 63.9 ft (19.48 m)
Hull length: —
LWL: 58 ft (17.68 m)
Beam: 17.5 ft (5.33 m)
Draft (min): 8 ft (2.45 m)
Draft (max): 9.7 ft (2.95 m)
Air draft: —
Displacement: —
Ballast: —
Cabins: 3
Heads: —
Berths: —

Sail Plan

Main sail: 1,098 ft² (102 m²)
Jib: —
Genoa: 1,012 ft² (94 m²)
Sail area: —
Downwind sail area: 3,444 ft² (320 m²)
Rig type: —

Engine and Tanks

Engine: —
Engine count: —
Engine manufacturer: —
Propulsion type: —
Fuel capacity: 264 gal (1,000 L)
Fresh water capacity: 211 gal (800 L)
Black water capacity: —

Construction

Mast material: —
Hull material: —
Deck material: —
Keel type: —
Rudder type: —
Steering wheels: —

Builder's Own Figures

Furling genoa (108%): 94 m2
J: 6.92 m
I: 25.34 m
Staysail: 44 m2
E: 7.50 m
P: 24.20 m

Figures read fromthe builder's page

About CNB Yacht Builders

Semi-custom

French builder of custom and semi-custom sailing yachts, founded in Bordeaux in 1987, formerly part of Beneteau Group and now owned by Solaris.
