CNB 88

Name: CNB 88
Brand: CNB Yacht Builders

In production

1 / 10

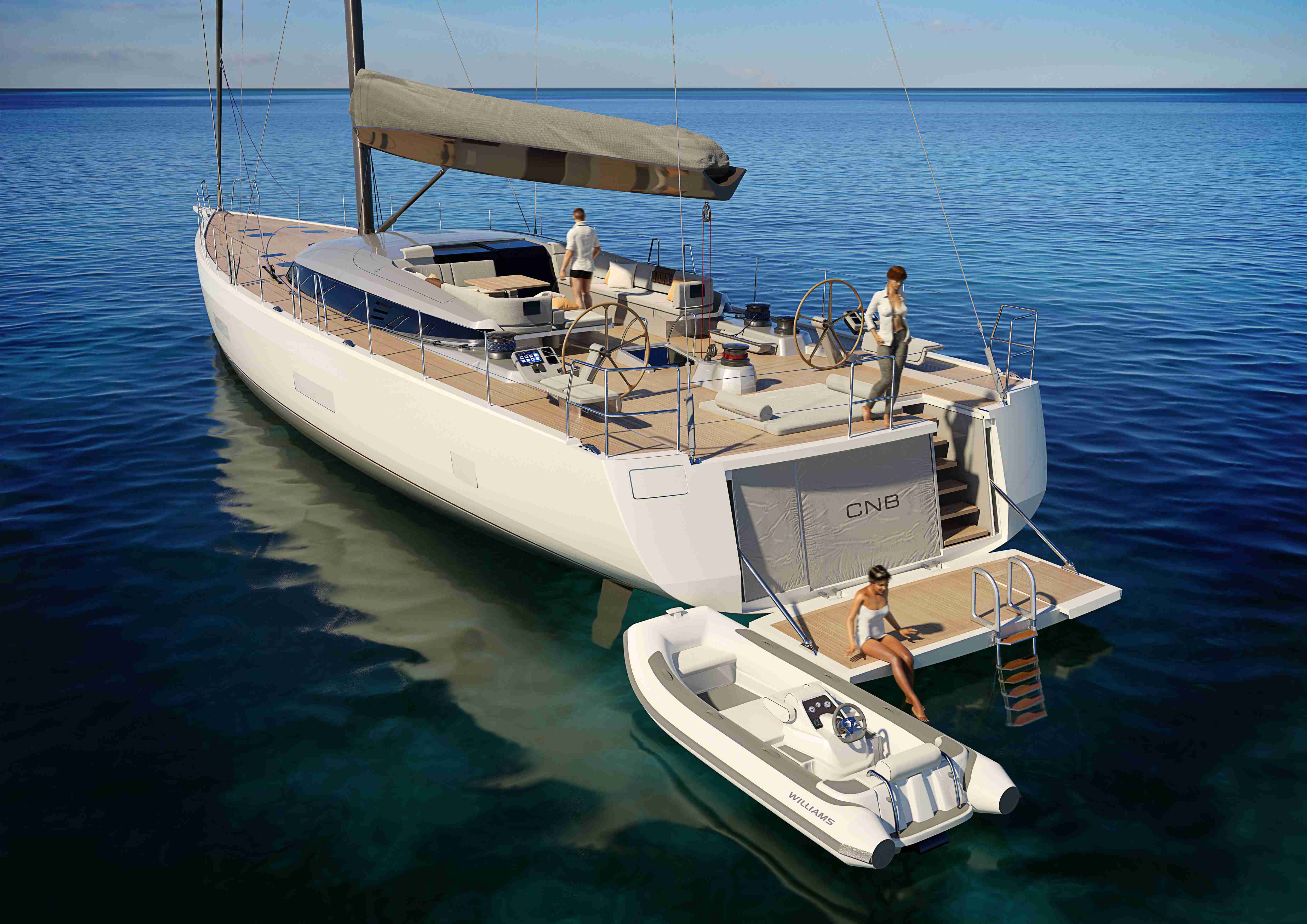

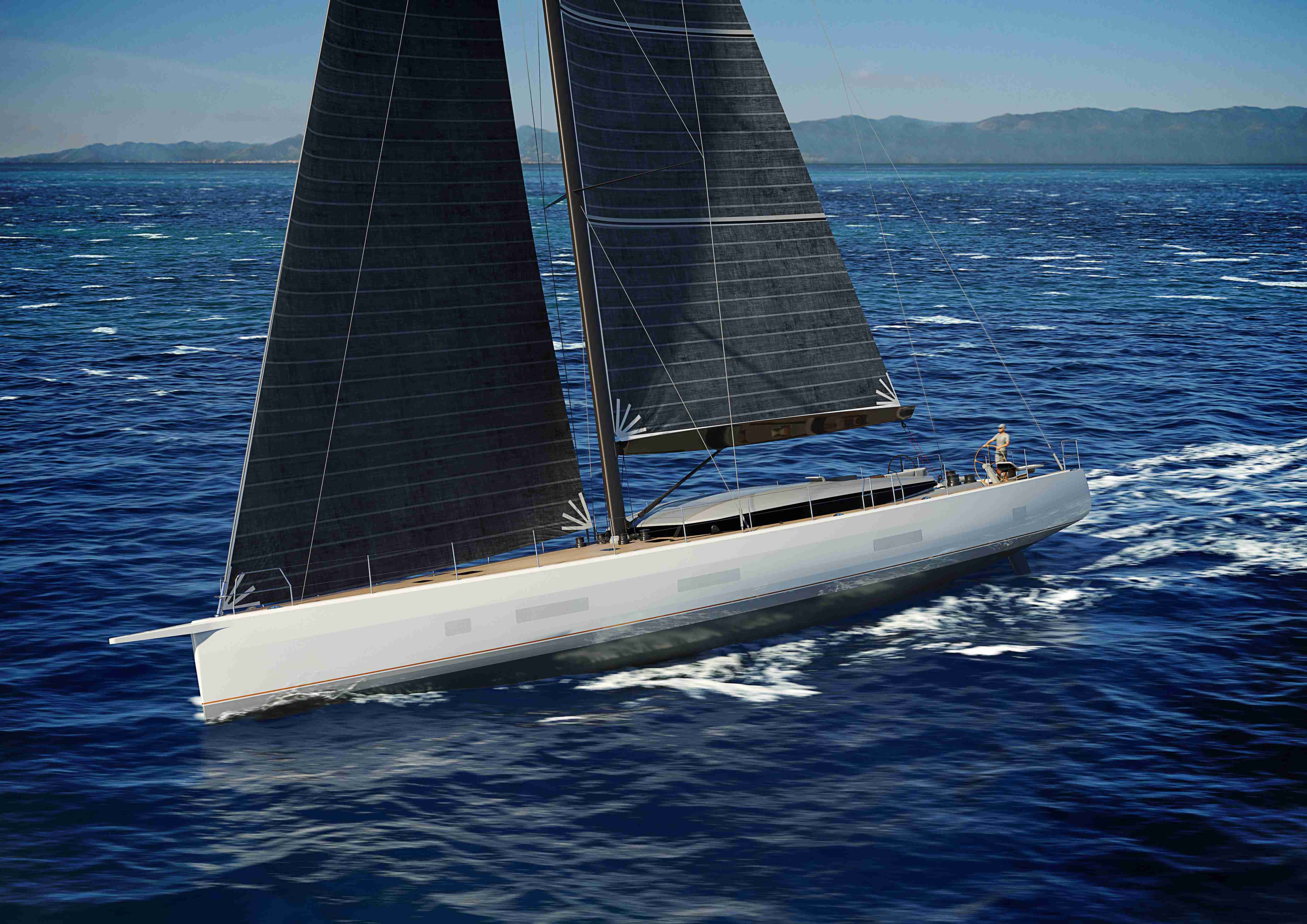

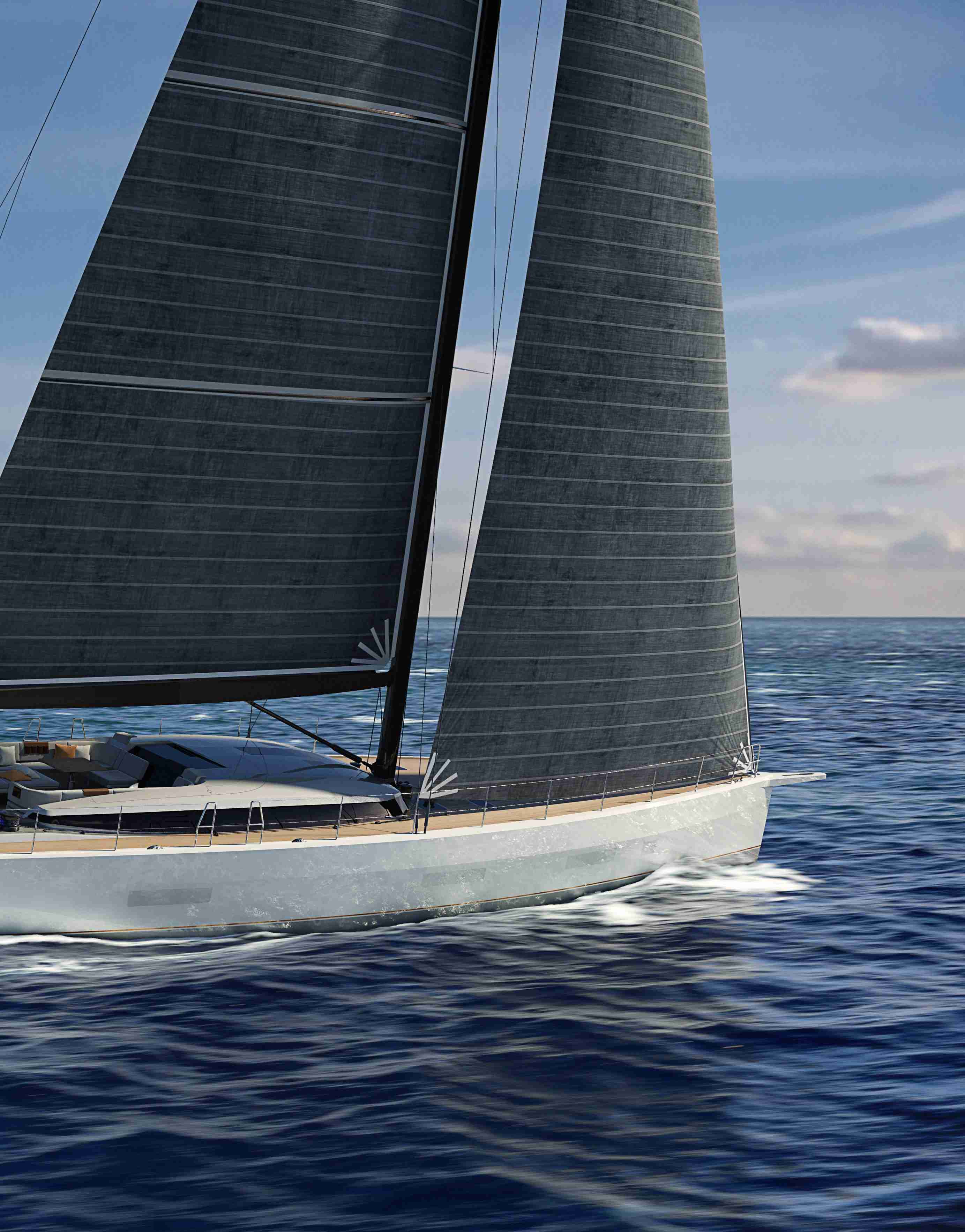

CNB 88 sailing — CNB Yacht Builders

Design

Naval architect: Philippe Briand

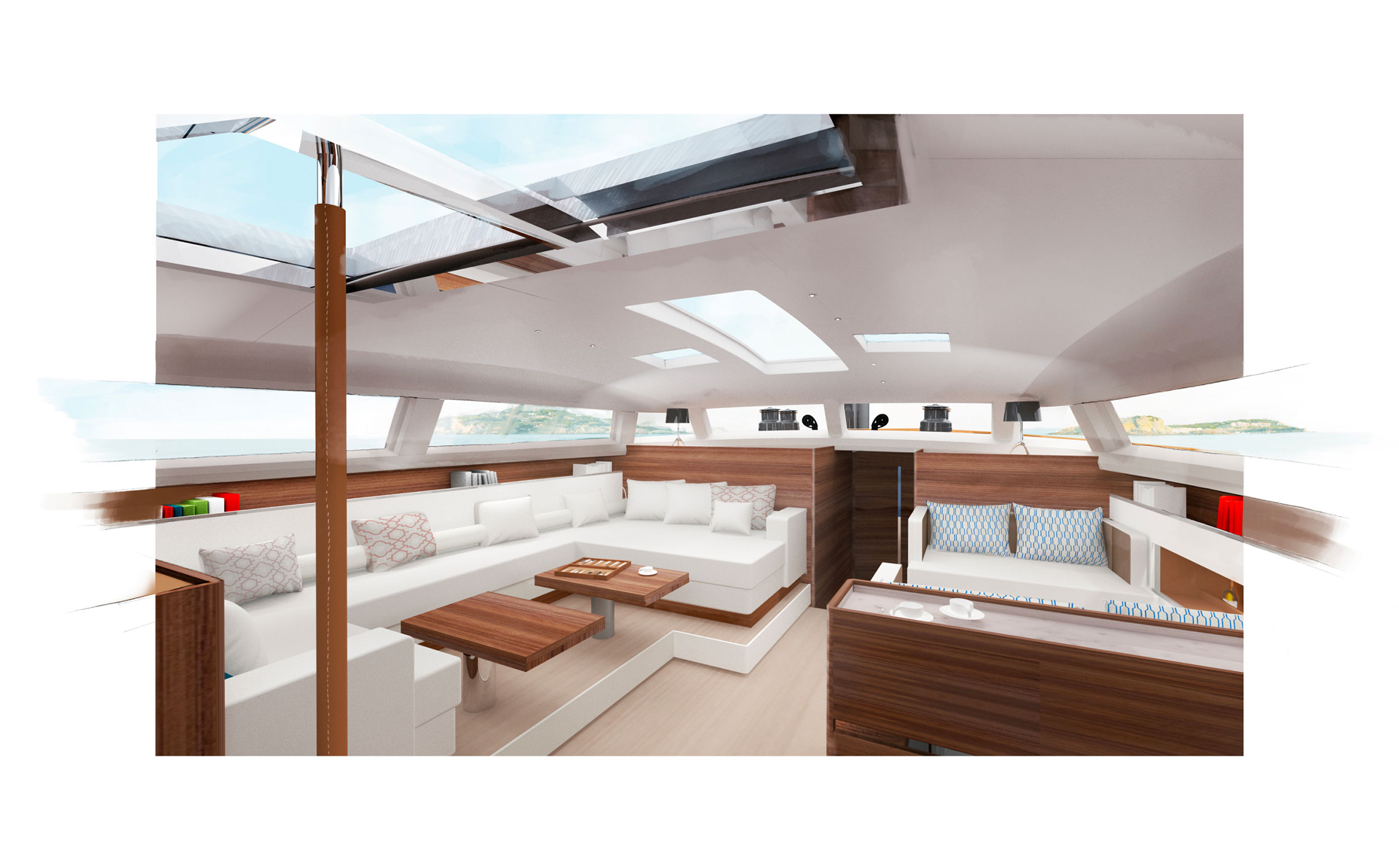

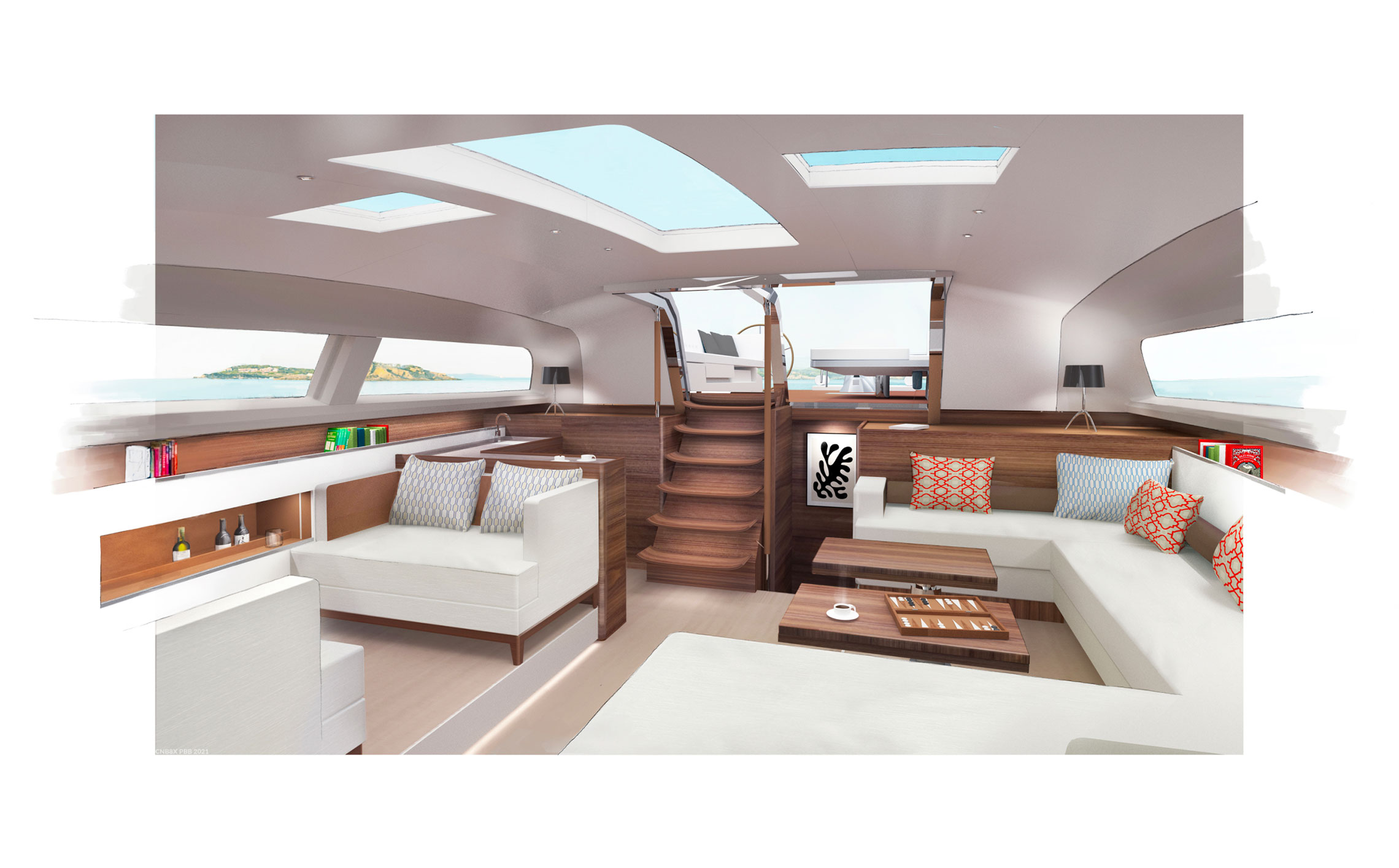

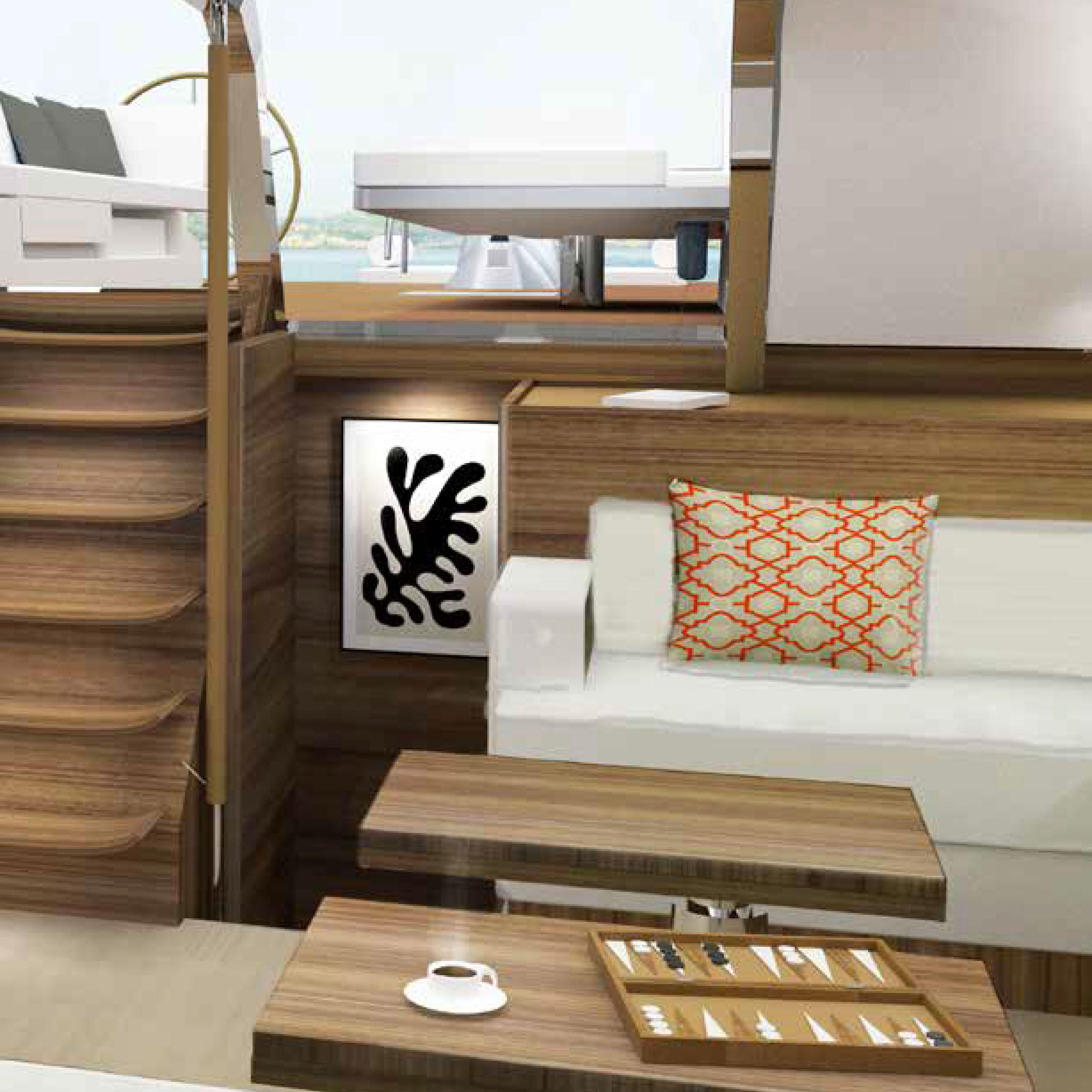

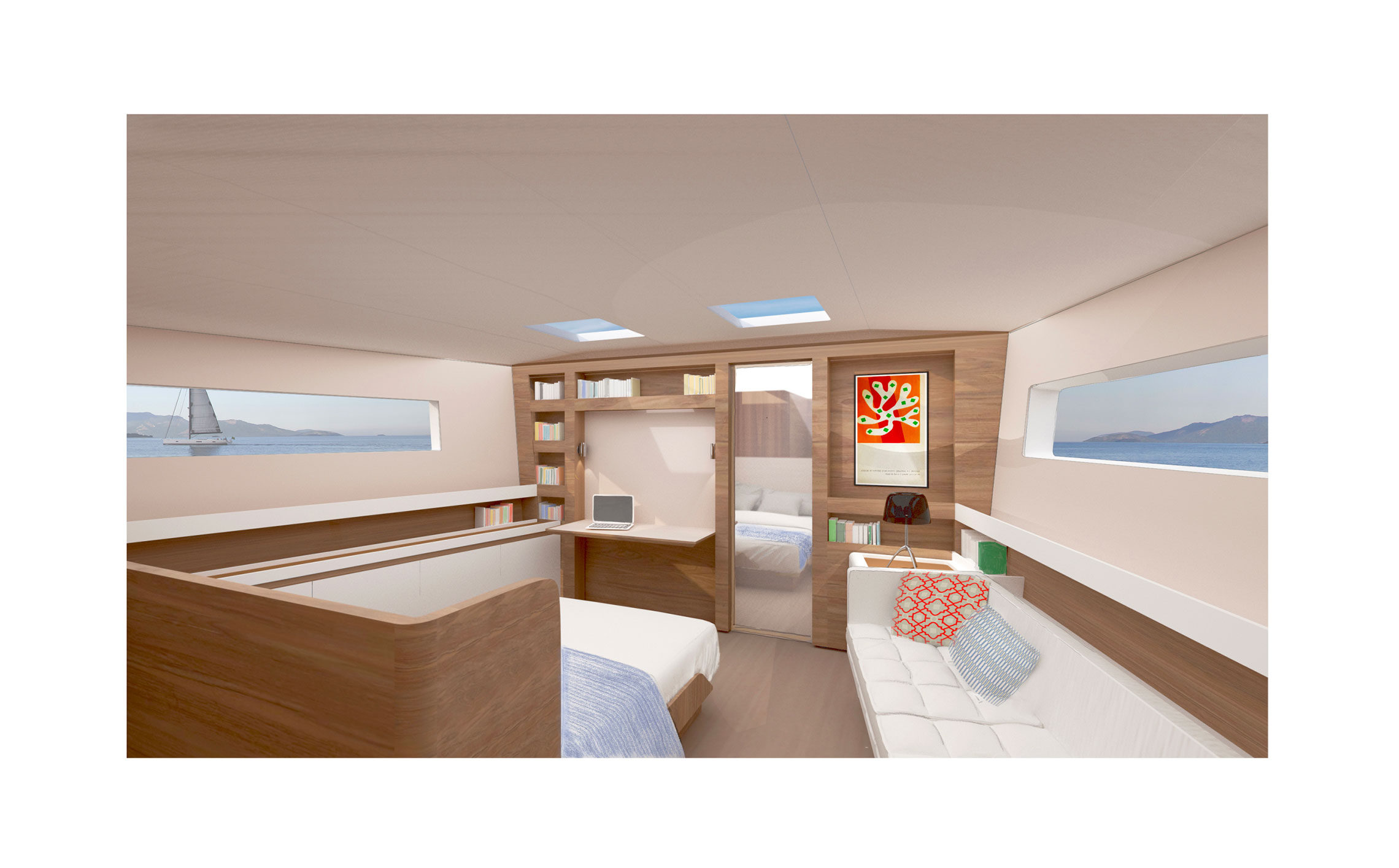

Interior designer: Piaton Yacht Design

Summary

Sailing MonohullSail

Length overall: 92.8 ft
Beam: 22.1 ft
Draft: 12.3 ft
Air draft: 124.5 ft
Displacement: 127,868 lb
Cabins: 4

* A standard reference image, not the actual boat — shown to help visualise this model's published dimensions.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Sail area / displacement

How much sail the boat carries for its weight — its power in light air.

27.2· Racing

How it is worked out

sail area (ft²) ÷ (displacement as ft³ of seawater)^⅔

mainsail + genoa, added up

Displacement / length

How heavy the boat is for its waterline length. Lower is lighter and quicker; higher is steadier and roomier.

107· Light

How it is worked out

displacement (long tons) ÷ (0.01 × waterline length in ft)³

Ballast ratio

The share of the weight carried in the keel — a rough guide to stiffness, though how deep that weight sits matters as much.

28· Low

How it is worked out

ballast ÷ displacement × 100

Comfort ratio

Ted Brewer's measure of how gently a boat moves in a seaway. Higher means a slower, easier motion.

37.4· Moderate offshore

How it is worked out

displacement (lb) ÷ (0.65 × (0.7 × LWL + 0.3 × LOA) × beam^1.333), lengths in ft

Capsize screening

A guide from the inquiry after the 1979 Fastnet race: below 2 was taken as suited to ocean passages. It ignores hull shape and where the ballast sits.

1.76· Below 2

How it is worked out

beam (ft) ÷ (displacement as ft³ of seawater)^⅓

Hull speed

Roughly the speed a displacement hull reaches before it has to climb its own bow wave.

12.1 kn

How it is worked out

1.34 × √(waterline length in ft), in knots

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Fuel and water on one scale: a tank twice the height holds twice as much.

Fuel793 gal
Water476 gal

Show the builders' own words

A figure marked with a quote mark was read from the builder's page. Open it for the exact line, the page and the date.

Dimensions

LOA: 92.8 ft (28.3 m)
Hull length: 87.9 ft (26.8 m)
LWL: 81 ft (24.7 m)
Beam: 22.1 ft (6.75 m)
Draft (min): 12.3 ft (3.75 m)
Draft (max): —
Air draft: 124.5 ft (37.95 m)
Displacement: 127,868 lb (58,000 kg)
Ballast: 35,715 lb (16,200 kg)
Cabins: 4
Heads: —
Berths: —

Sail Plan

Main sail: 2,293 ft² (213 m²)
Jib: —
Genoa: 2,024 ft² (188 m²)
Sail area: —
Downwind sail area: 6,351 ft² (590 m²)
Rig type: —

Engine and Tanks

Engine: 225 hp (Volvo)
Engine count: 1
Engine manufacturer: Volvo
Propulsion type: shaft drive
Fuel capacity: 793 gal (3,000 L)
Fresh water capacity: 476 gal (1,800 L)
Black water capacity: —

Construction

Mast material: —
Hull material: —
Deck material: —
Keel type: —
Rudder type: —
Steering wheels: —

Builder's Own Figures

P: 32.56 m
Load line length: 23.99 m
J: 10.70 m
I: 33.00 m
Code 0 area: 280 m2
Length with bowsprit: 28.30 m
E: 11.50 m
Gennaker or Code 5 area: 490 m2
Staysail area: 111 m2

Figures read fromthe builder's page

About CNB Yacht Builders

Semi-custom

French builder of custom and semi-custom sailing yachts, founded in Bordeaux in 1987, formerly part of Beneteau Group and now owned by Solaris.

Visit brand page

The CNB Yacht Builders Range

Every model CNB Yacht Builders publishes, by length — where this one sits in the range.

Include 1 discontinued

CNB 88· this model92.8 ft
CNB 7878.5 ft
CNB 6872.8 ft
CNB 6263.9 ft
