Sail area / displacement
How much sail the boat carries for its weight — its power in light air.
- 23.4· Performance
How it is worked out
sail area (ft²) ÷ (displacement as ft³ of seawater)^⅔
mainsail + genoa, added up
1 / 10

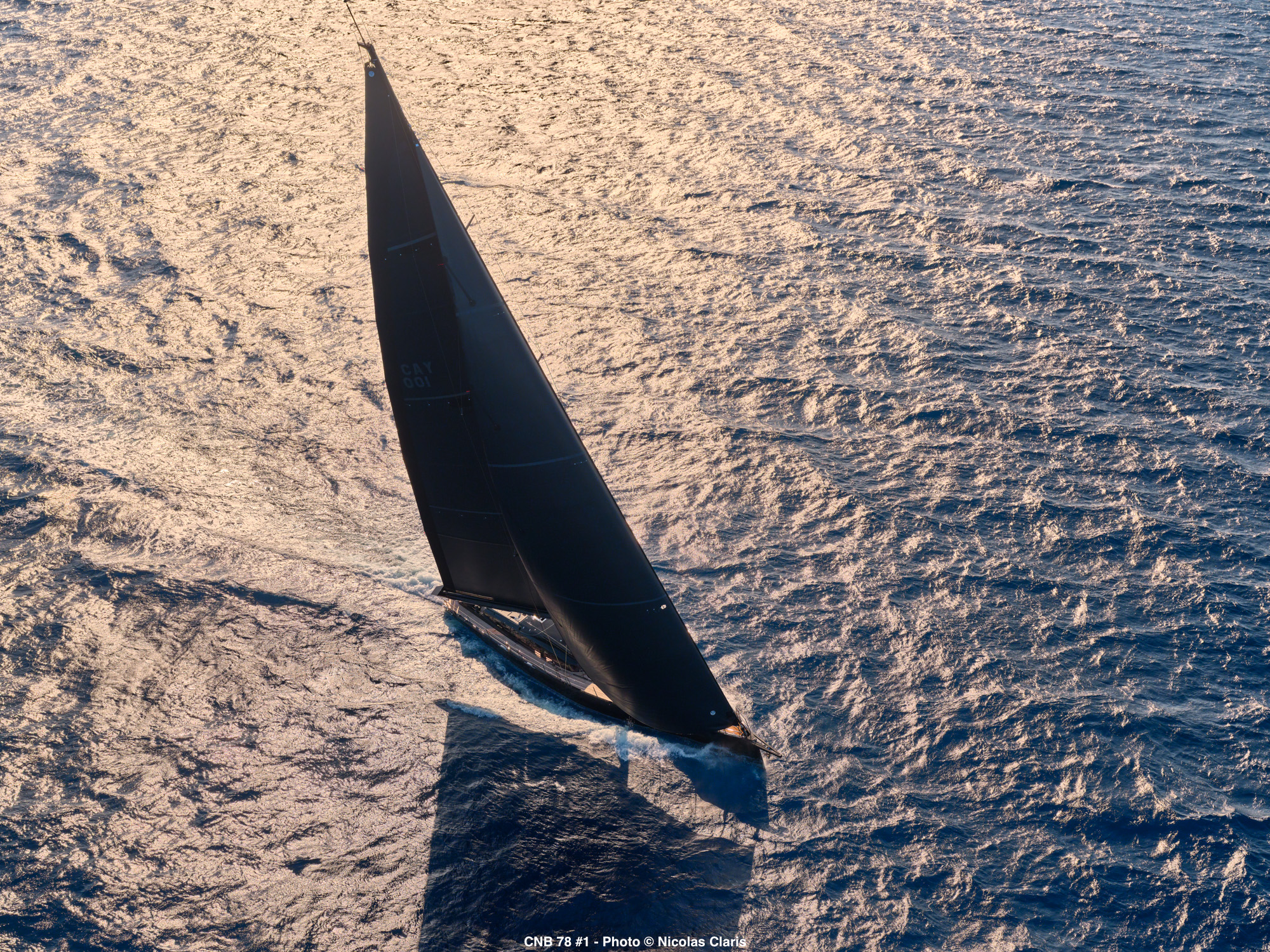

Aerial view of the CNB 78 under sail — CNB Yacht Builders
Design
- Naval architect
- Philippe Briand
- Interior designer
- Piaton Yacht Design
Summary
Sailing MonohullSail
- Length overall
- 78.5 ft
- Beam
- 20 ft
- Draft
- 11.5 ft
- Air draft
- 111.5 ft
- Displacement
- 105,601 lb
- Cabins
- 4
* A standard reference image, not the actual boat — shown to help visualise this model's published dimensions.
Best Suited For
- Liveaboard
From the published figures: LOA 23.93 m · 4 cabins · fresh water 1500 L
Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.
Sailing Ratios
Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.
Displacement / length
How heavy the boat is for its waterline length. Lower is lighter and quicker; higher is steadier and roomier.
- 122· Light
How it is worked out
displacement (long tons) ÷ (0.01 × waterline length in ft)³
Ballast ratio
The share of the weight carried in the keel — a rough guide to stiffness, though how deep that weight sits matters as much.
- 26· Low
How it is worked out
ballast ÷ displacement × 100
Comfort ratio
Ted Brewer's measure of how gently a boat moves in a seaway. Higher means a slower, easier motion.
- 40.2· Heavy offshore
How it is worked out
displacement (lb) ÷ (0.65 × (0.7 × LWL + 0.3 × LOA) × beam^1.333), lengths in ft
Capsize screening
A guide from the inquiry after the 1979 Fastnet race: below 2 was taken as suited to ocean passages. It ignores hull shape and where the ballast sits.
- 1.69· Below 2
How it is worked out
beam (ft) ÷ (displacement as ft³ of seawater)^⅓
Hull speed
Roughly the speed a displacement hull reaches before it has to climb its own bow wave.
- 11.4 kn
How it is worked out
1.34 × √(waterline length in ft), in knots
Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.
Tanks
What the builder publishes about how fast, how strong and how much the boat carries.
Fuel and water on one scale: a tank twice the height holds twice as much.
- Fuel660 galWater396 gal
A figure marked with a quote mark was read from the builder's page. Open it for the exact line, the page and the date.
Dimensions
- LOA
- 78.5 ft (23.93 m)
- Hull length
- 75.6 ft (23.05 m)
- LWL
- 72.8 ft (22.2 m)
- Beam
- 20 ft (6.1 m)
- Draft (min)
- 11.5 ft (3.5 m)
- Draft (max)
- —
- Air draft
- 111.5 ft (34 m)
- Displacement
- 105,601 lb (47,900 kg)
- Ballast
- 27,778 lb (12,600 kg)
- Cabins
- 4
- Heads
- —
- Berths
- —
Sail Plan
- Main sail
- 1,722 ft² (160 m²)
- Jib
- —
- Genoa
- 1,550 ft² (144 m²)
- Sail area
- —
- Downwind sail area
- 5,059 ft² (470 m²)
- Rig type
- —
Engine and Tanks
- Engine
- 175 hp (Volvo)
- Engine count
- 1
- Engine manufacturer
- Volvo
- Propulsion type
- —
- Fuel capacity
- 660 gal (2,500 L)
- Fresh water capacity
- 396 gal (1,500 L)
- Black water capacity
- —
Construction
- Mast material
- —
- Hull material
- —
- Deck material
- —
- Keel type
- —
- Rudder type
- —
- Steering wheels
- —
Builder's Own Figures
- I
- 30.00 m
- Length with bowsprit
- 24.85 m
- E
- 9.60 m
- Gennaker or Code 5
- 405 m2
- Staysail area
- 79 m2
- P
- 29.00 m
- Code 0
- 235 m2
- J
- 9.06 m
Figures read fromthe builder's page
