X5 Plus

Summary

Best Suited For

• Bluewater Cruising

  From the published figures: CE Category A · LOA 16.63 m · fresh water 860 L

• Liveaboard

  From the published figures: LOA 16.63 m · 4 cabins · 3 heads · fresh water 860 L

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

54.6 ft (16.63 m)

Hull length

50.7 ft (15.44 m)

LWL

—

Beam

26.2 ft (8 m)

Draft (min)

4.4 ft (1.35 m)

Draft (max)

—

Air draft

78.7 ft (24 m)

Displacement

36,376 lb (16,500 kg)

Ballast

—

Cabins

3–4

Heads

3

Berths

—

Sail Plan

Main sail

—

Jib

—

Genoa

—

Sail area

—

Downwind sail area

—

Rig type

—

Engine and Tanks

Engine

80 hp

Engine count

2

Engine manufacturer

—

Propulsion type

—

Fuel capacity

209 gal (790 L)

Fresh water capacity

227 gal (860 L)

Black water capacity

—

Construction

Mast material

—

Hull material

sandwich composite construction using Quadriaxial stitched fabrics, Divinycell composite PVC foam and Epoxy Vinyl Ester resin

Deck material

—

Keel type

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Bridge deck clearance

1000 mm light craft

Layouts

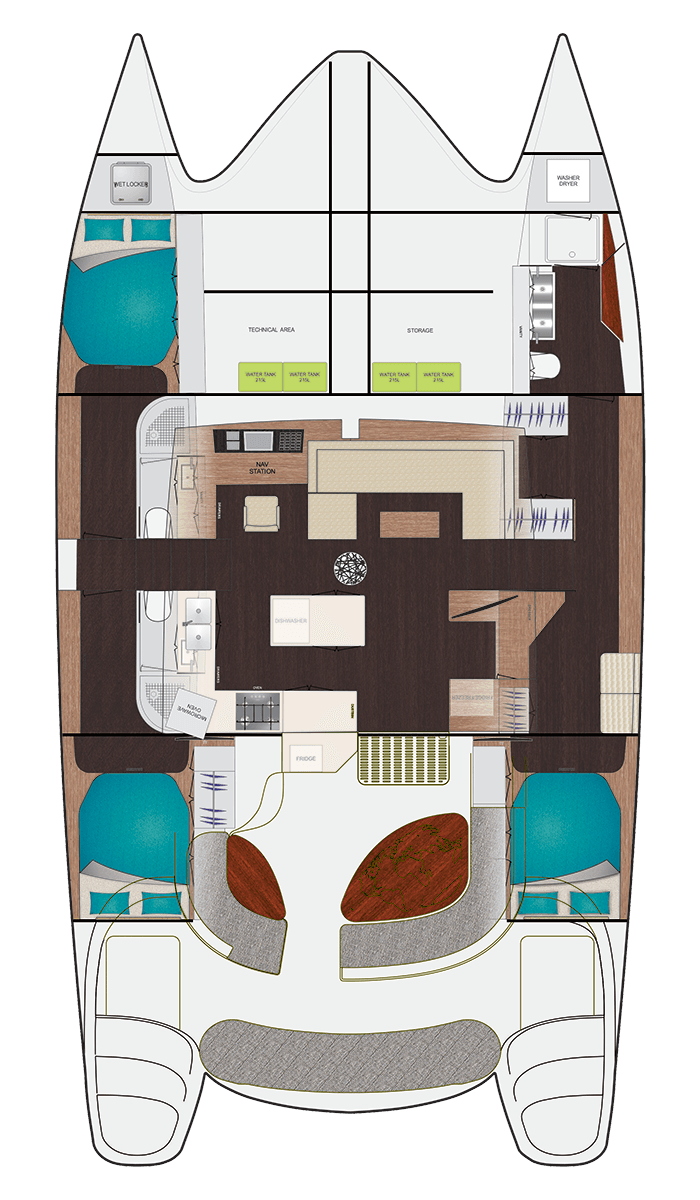

owner version: 3 cabins and 3 en-suite heads; a 4-cabin version is drawn on the layouts page

Sail areas

mainsail 105 m², genoa 65 m², jib 39 m², Code 65 135 m²

Displacement basis

light craft displacement as printed

Status

listed as a retired classic, offered pre-owned

Layouts & Drawings

3 drawings from the builder's page: general arrangement, sail plan, profile.

•

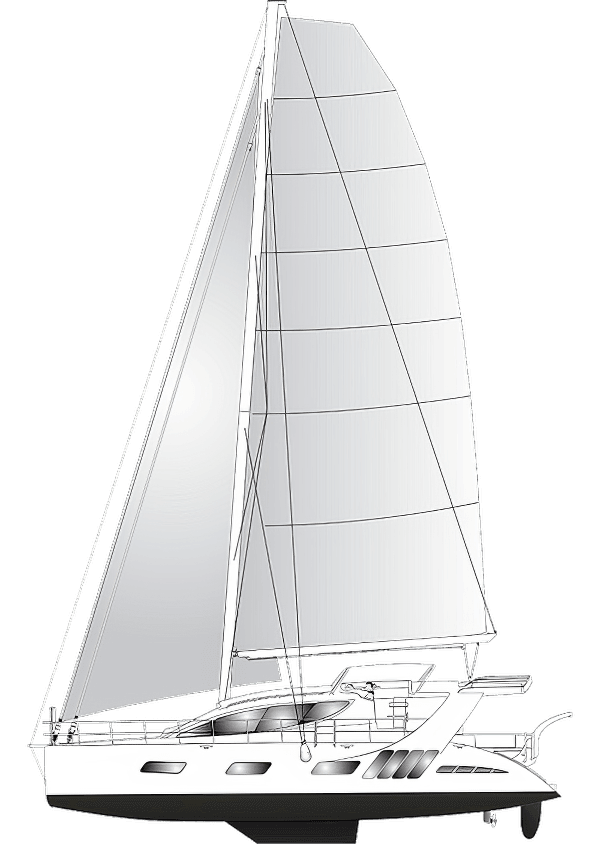

  X5_plus_sail_plan — Xquisite Yachts

•

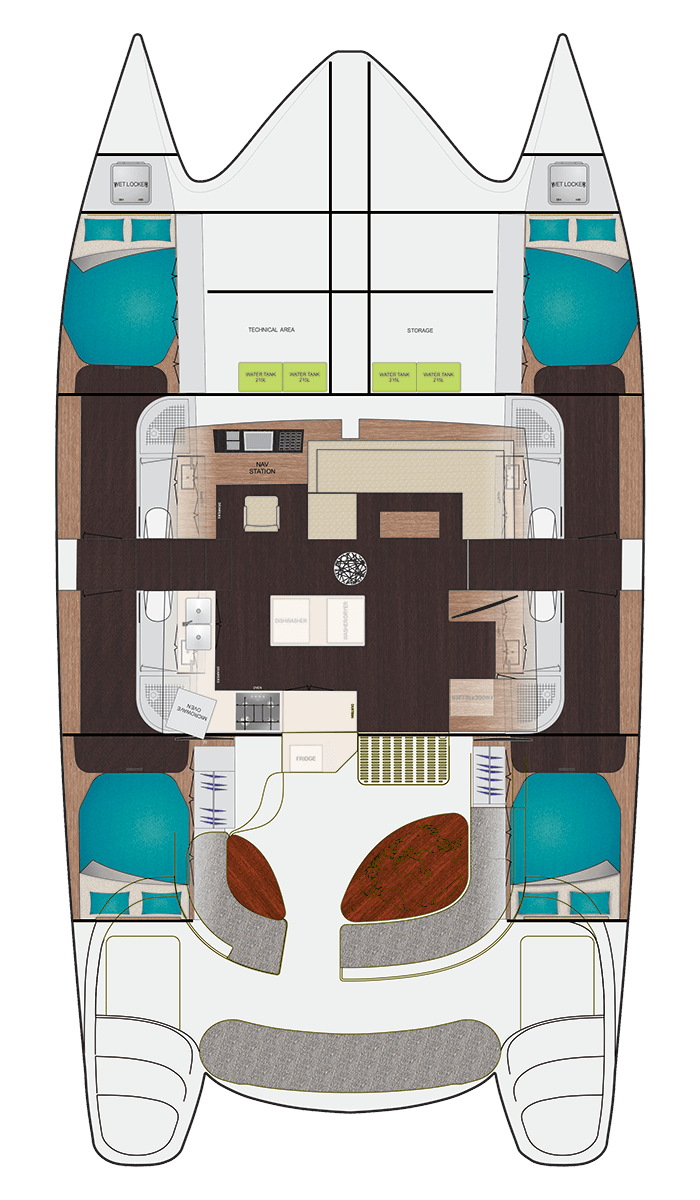

  vertical_X5-3_cabin-version — Xquisite Yachts

•

  vertical_X5-4_cabin-version — Xquisite Yachts

About Xquisite Yachts

Semi-custom

Boutique builder of sailing and power catamarans founded in 2014 — the trailerable 30 SportCat, the hybrid 54 E-Plus and the solar-equipped Sixty Solar Sail and Sixty Solar Power, with the 40 PowerCat and 52 Exploration on order, marketed worldwide under its own name.

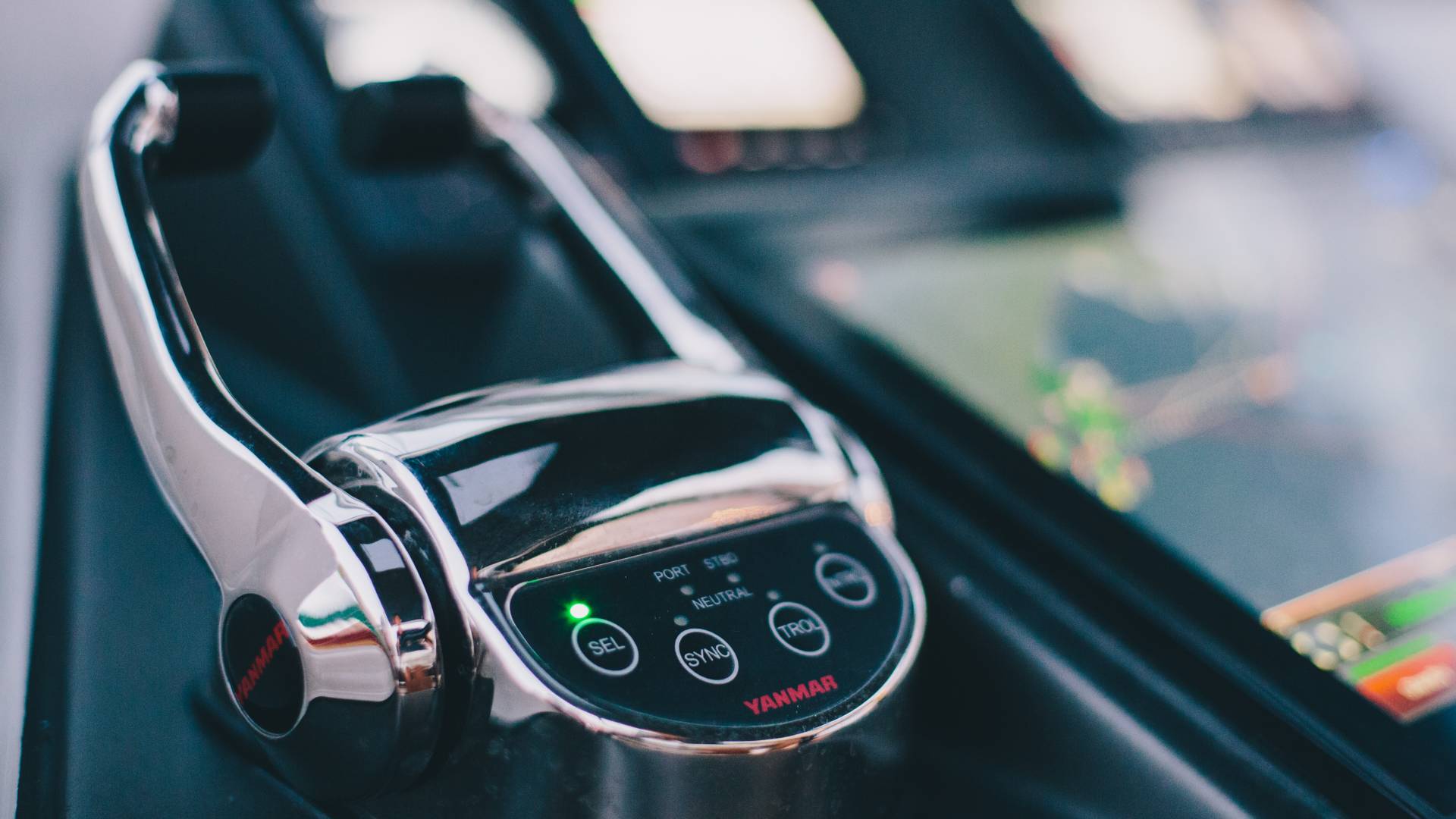

Xquisite Yachts says it was established in 2014 with the purpose of launching a new brand of sailing and power catamarans: the ultimate luxury yacht for cruisers, in which safety and innovative design blend, for adventurers who want to explore the oceans without giving up a comfortable life. Its yachts are built by a team of highly experienced catamaran builders and marketed globally and exclusively under the Xquisite brand. Every boat was meant for comfort and easy sail handling — two headsails, electric winches and davits — with a generator, air-conditioning, watermaker, washing machine and digital switching as standard, light construction in high-density foam core and vacuum-infused epoxy to CE category A, and twin 80 HP Yanmar engines. An in-house design team offers both standard and fully custom versions, with three interior finishes at no extra cost. Calling itself a boutique boatyard, Xquisite builds only a limited number of yachts each year; buyers can take a finished boat from the boat shows — Miami, Annapolis and the International Multihull Boat Show in France — or order one, and its charter division lets them try a boat before they buy.

The Xquisite Yachts Range

Every model Xquisite Yachts publishes, by length — where this one sits in the range.

1. Sixty Solar Sail61.7 ft
2. 54 E-Plus54.6 ft
3. X5 Plus· this modelDiscontinued54.6 ft
4. 30 SportCat30.3 ft
