Lagoon 46 Iconic

Name: Lagoon 46 Iconic
Brand: Lagoon

In production

1 / 8

Lagoon

Design

Designer: Nauta Design

Summary

Sailing CatamaranSailCE A

Length overall: 47.6 ft
Beam: 26.1 ft
Draft: 4.5 ft
Air draft: 76.1 ft
Displacement: 35,935 lb
Sail area (upwind): 1,367 ft²
Cabins: 3–4
Berths: 6–12

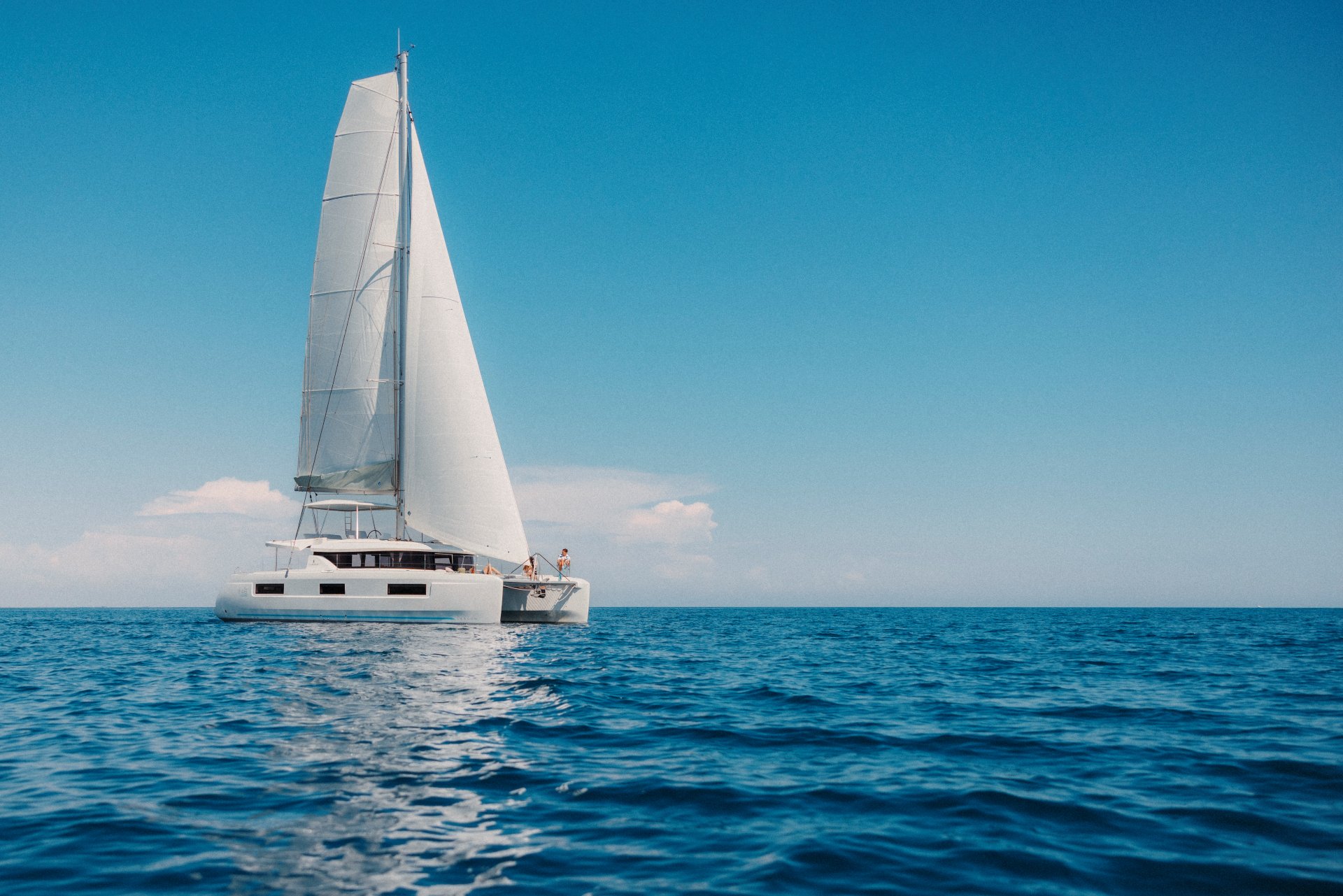

* A standard reference image, not the actual boat — shown to help visualise this model's published dimensions.

Best Suited For

Bluewater Cruising
From the published figures: CE Category A · LOA 14.5 m · fresh water 300 L
Liveaboard
From the published figures: LOA 14.5 m · 4 cabins · fresh water 300 L

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Sail area / displacement

How much sail the boat carries for its weight — its power in light air.

20.1· Performance

How it is worked out

sail area (ft²) ÷ (displacement as ft³ of seawater)^⅔

published upwind sail area

Displacement / length

How heavy the boat is for its waterline length. Lower is lighter and quicker; higher is steadier and roomier.

not published: waterline length

How it is worked out

displacement (long tons) ÷ (0.01 × waterline length in ft)³

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Fuel and water on one scale: a tank twice the height holds twice as much.

Fuel275 gal
Water79 gal
7 gal of water per berth

Design Category

Certified CE design category A (Ocean): the wind and waves the EU Recreational Craft Directive says this boat is designed to take.

D
Sheltered waters
Wind
up to Beaufort 4
Waves
up to 0.3 m
C
Inshore
Wind
up to Beaufort 6
Waves
up to 2 m
B
Offshore
Wind
up to Beaufort 8
Waves
up to 4 m
AThis boat
Ocean
Wind
above Beaufort 8
Waves
above 4 m

Design limits set by the EU Recreational Craft Directive (2013/53/EU), in significant wave height. A category covers the conditions of those below it. It is the limit the boat was designed to, not a promise that it is safe in any conditions within it — that judgement stays with the skipper.

Show the builders' own words

A figure marked with a quote mark was read from the builder's page. Open it for the exact line, the page and the date.

Dimensions

LOA: 47.6 ft (14.5 m)
Hull length: 45.9 ft (13.99 m)
LWL: —
Beam: 26.1 ft (7.96 m)
Draft (min): 4.5 ft (1.37 m)
Draft (max): —
Air draft: 76.1 ft (23.21 m)
Displacement: 35,935 lb (16,300 kg)
Ballast: —

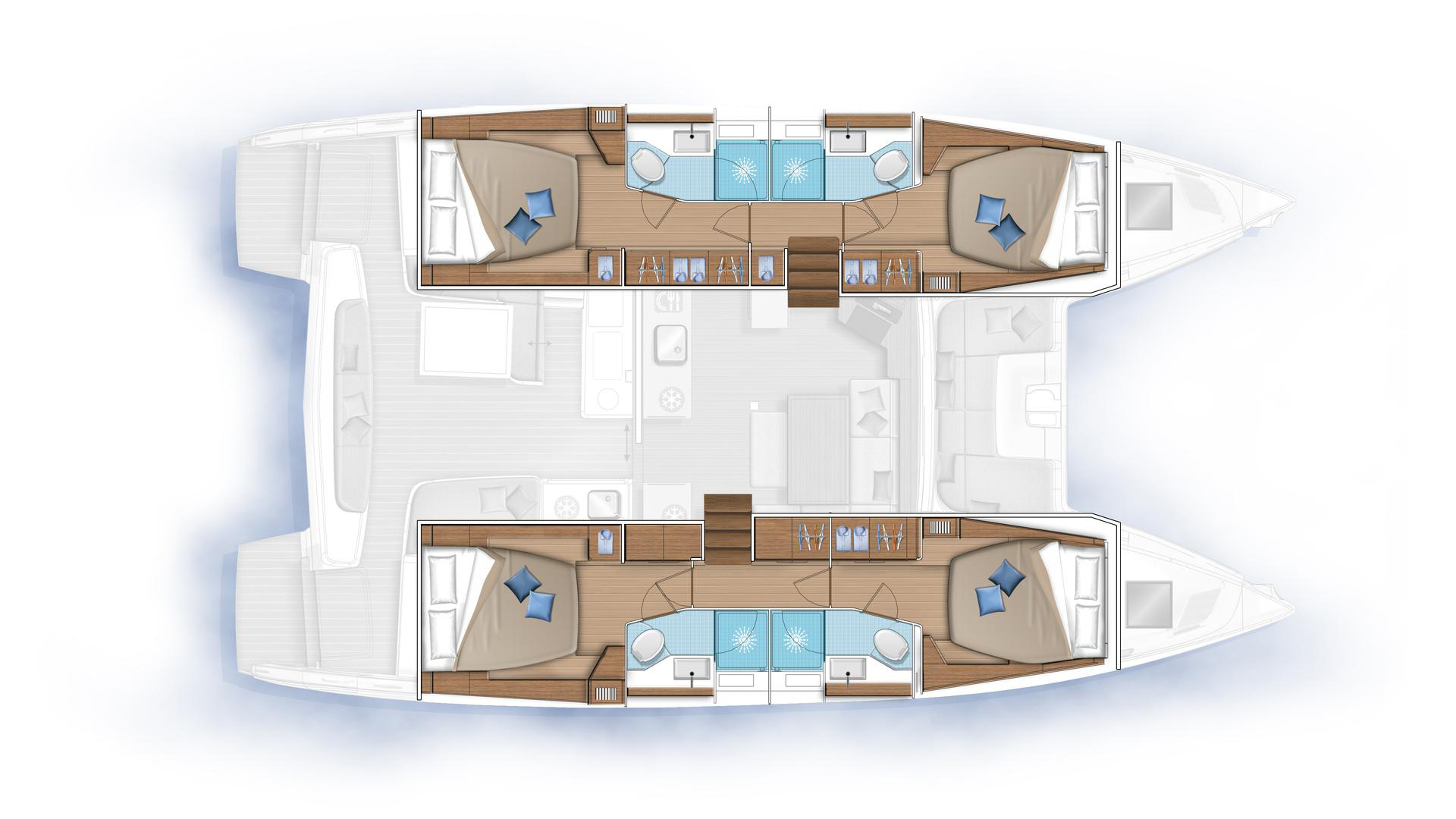

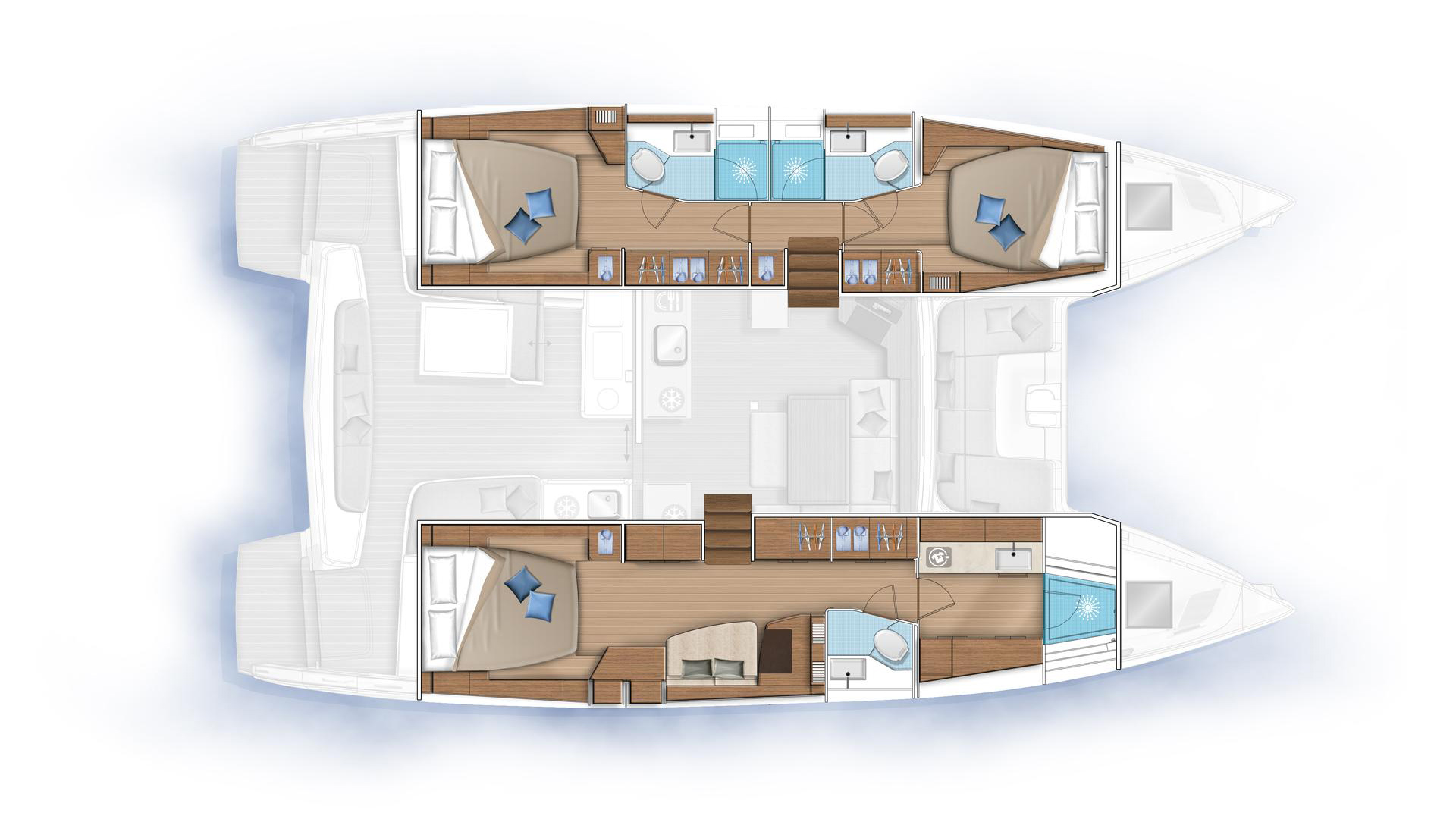

Cabins: 3–4
Heads: —
Berths: 6–12

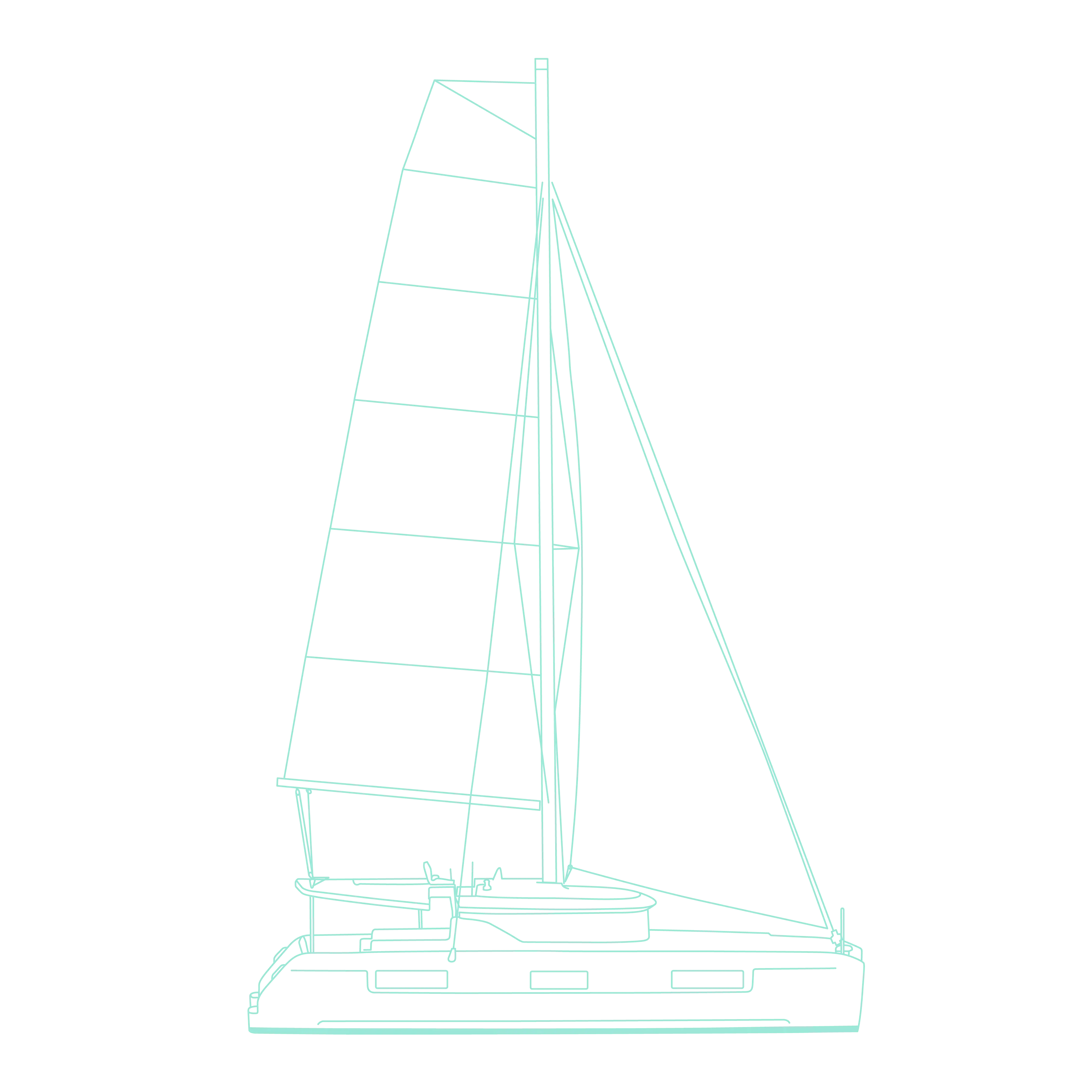

Sail Plan

Main sail: 823 ft² (76.5 m²)
Jib: —
Genoa: —
Sail area: 1,367 ft² (127 m²)
Downwind sail area: —
Rig type: —

Engine and Tanks

Engine: 57 hp (Yanmar)
Engine count: 2
Engine manufacturer: Yanmar
Propulsion type: —
Fuel capacity: 275 gal (1,040 L)
Fresh water capacity: 79 gal (300 L)
Black water capacity: —

Construction

Mast material: —
Hull material: —
Deck material: —
Keel type: —
Rudder type: —
Steering wheels: —

Figures read fromthe builder's page

About Lagoon

Volume production

French builder of cruising catamarans, based in Bordeaux since 1984 and a brand of Beneteau Group.
