Grand Trawler 63

Design

Designer

Nauta Design

Naval architect

MICAD

Interior designer

Nauta Design

Summary

Best Suited For

• Bluewater Cruising

  From the published figures: trawler · range 1000 nm

• Liveaboard

  From the published figures: LOA 18.95 m · 4 cabins · fresh water 840 L

• Coastal Cruising

  From the published figures: CE Category B · LOA 18.95 m

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Price

List price

$2,430,500

As published

US$ 2,430,500

Price basis

—

VAT

Not included

Price as of

—

Dimensions

LOA

62.2 ft (18.95 m)

Hull length

—

LWL

—

Beam

17.9 ft (5.45 m)

Draft (min)

4.6 ft (1.4 m)

Draft (max)

4.6 ft (1.4 m)

Air draft

24.1 ft (7.34 m)

Displacement

62,832 lb (28,500 kg)

Ballast

—

Cabins

3–4

Heads

—

Berths

—

Performance

Maximum speed

—

Cruising speed

9 kn

Range

1000 nm

Guests

—

Crew

—

Engine and Tanks

Engine

730 hp (MAN)

Engine count

2

Engine manufacturer

MAN

Propulsion type

shaft drive

Fuel capacity

1,022 gal (3,870 L)

Fresh water capacity

222 gal (840 L)

Black water capacity

—

Construction

Hull material

—

Deck material

—

Rudder type

—

Steering wheels

—

Layouts & Drawings

2 drawings from the builder's page: general arrangement, sail plan, profile.

•

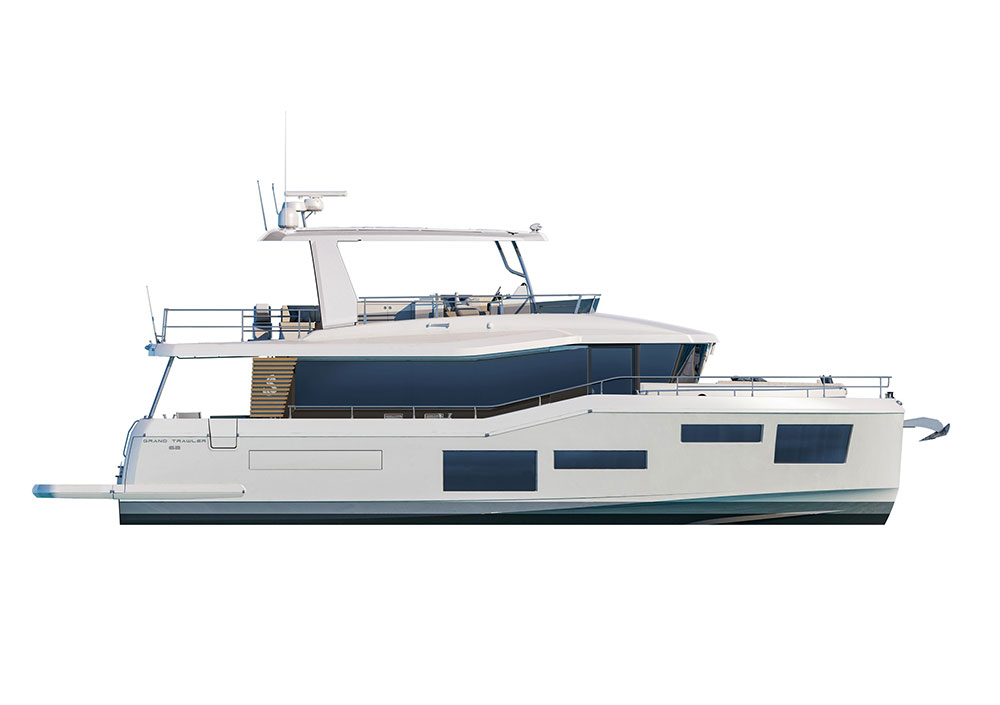

  Profilee grand trawler 63 — Beneteau

•

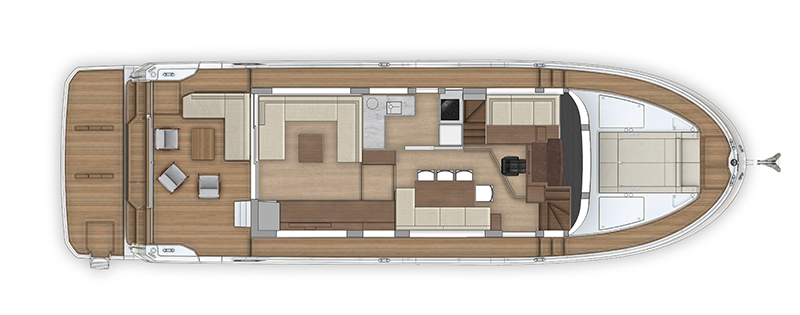

  Grandtrawler maindeck layout — Beneteau

Brochure

About Beneteau

Volume production

French yacht builder founded in 1884, among the world's largest producers of sailing and motor yachts.

Benjamin Bénéteau, born at Saint-Gilles into a large family of little means and a ship's boy at twelve, created his boatyard on the Quai des Greniers in 1884 and in 1909 designed the region's first engine-powered fishing boat. After the Great War the yard restarted in 1928 under his son André, aged 21; it prospered again after the Second World War, and in 1963 André's children, André and Annette, built polyester dinghies for the sardine boats -- the material that changed everything. At their first Paris Boat Show in January 1965 three dealers signed up within hours, in 1972 the family built its first plant designed for semi-industrial production, exports followed in the 1970s with a subsidiary in Annapolis in 1976, and in 1985, besides the new factory at Challans, Beneteau opened its first production site abroad at Marion, South Carolina. The Oceanis range was born from the Idylle boats developed with The Moorings -- Philippe Briand's Oceanis 350 and 430 were an immediate success and the range now counts eight generations -- the First was revived with Philippe Starck's First 35 S5 of 1987, and in 1989 the Figaro one-design chosen for the Figaro race began the Figaro era.

The Beneteau Range

Every model Beneteau publishes, by length — where this one sits in the range.

1. Grand Trawler 63· this model62.2 ft
2. Swift Trawler 5456.2 ft
3. Gran Turismo 5052.3 ft
4. Swift Trawler 4848.4 ft
5. Swift Trawler 43 Fly43.1 ft
6. Swift Trawler 43 Sedan43.1 ft
7. Antares 12 Coupe42.6 ft
8. Antares 12 Fly42.6 ft
9. Gran Turismo 40 Coupe41.1 ft
