Magellano 60

Design

Designer

Ken Freivokh

Naval architect

Profjord & Azimut R&D Dept.

Interior designer

Azimut Yachts

Summary

Best Suited For

• Bluewater Cruising

  From the published figures: explorer · range 464 nm

• Liveaboard

  From the published figures: LOA 18.47 m · 3 cabins · 3 heads · fresh water 740 L

• Coastal Cruising

  From the published figures: CE Category B · LOA 18.47 m

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

60.6 ft (18.47 m)

Hull length

—

LWL

—

Beam

16.9 ft (5.15 m)

Draft (min)

4.5 ft (1.37 m)

Draft (max)

4.5 ft (1.37 m)

Air draft

—

Displacement

76,985 lb (34,920 kg)

Ballast

—

Cabins

3

Heads

3

Berths

6

Performance

Maximum speed

26 kn

Cruising speed

18 kn

Range

464 nm

Guests

—

Crew

1

Engine and Tanks

Engine

730 hp (MAN)

Engine count

2

Engine manufacturer

MAN

Propulsion type

shaft-line

Fuel capacity

964 gal (3,650 L)

Fresh water capacity

195 gal (740 L)

Black water capacity

—

Construction

Hull material

GRP

Deck material

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

FAST CRUISE

22 kn: 10,1 l/nm, RANGE: 326 nm

Engines

2 x MAN i6 730 hp

Displacement basis

at full load, as printed (t -> kg)

Draft basis

incl. props at full load, as printed

Layouts & Drawings

3 drawings from the builder's page: general arrangement, sail plan, profile.

•

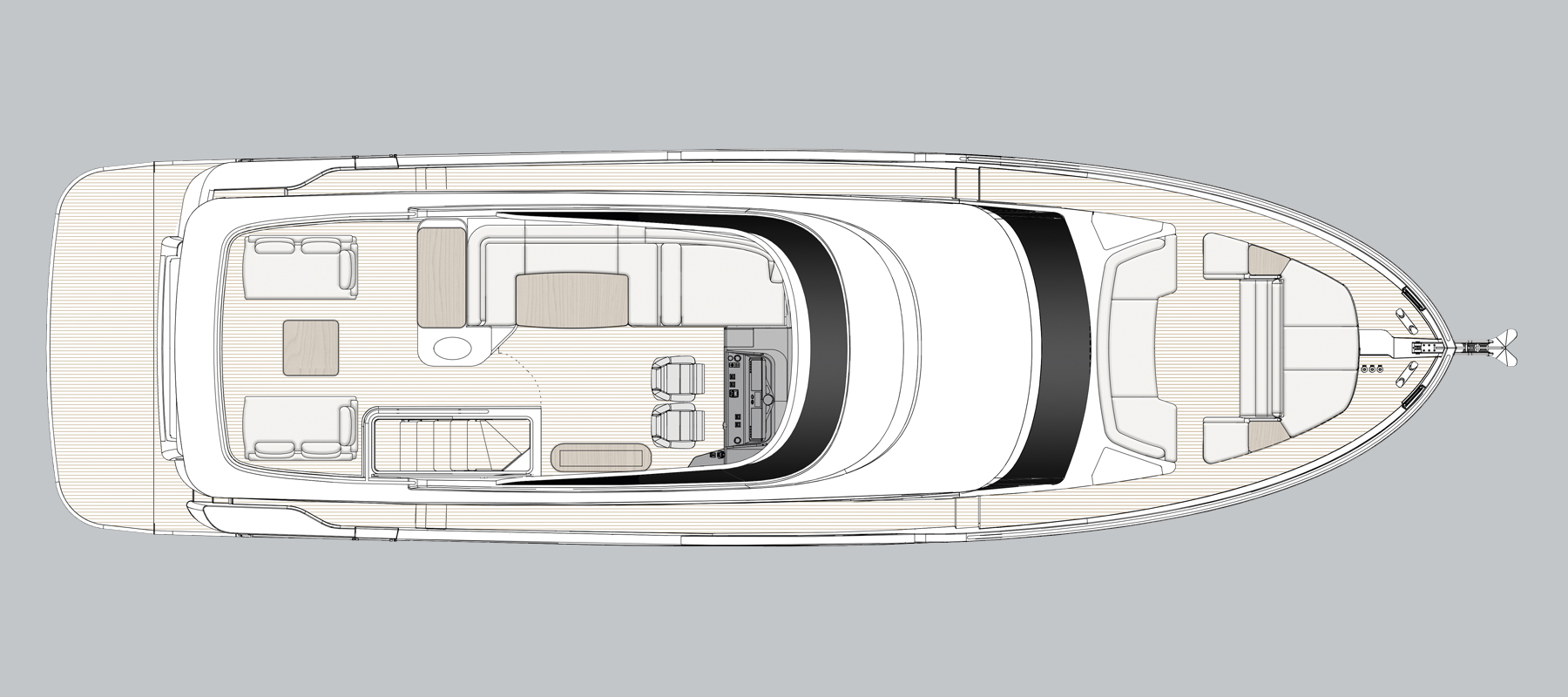

  Magellano60 upper deck — Azimut

•

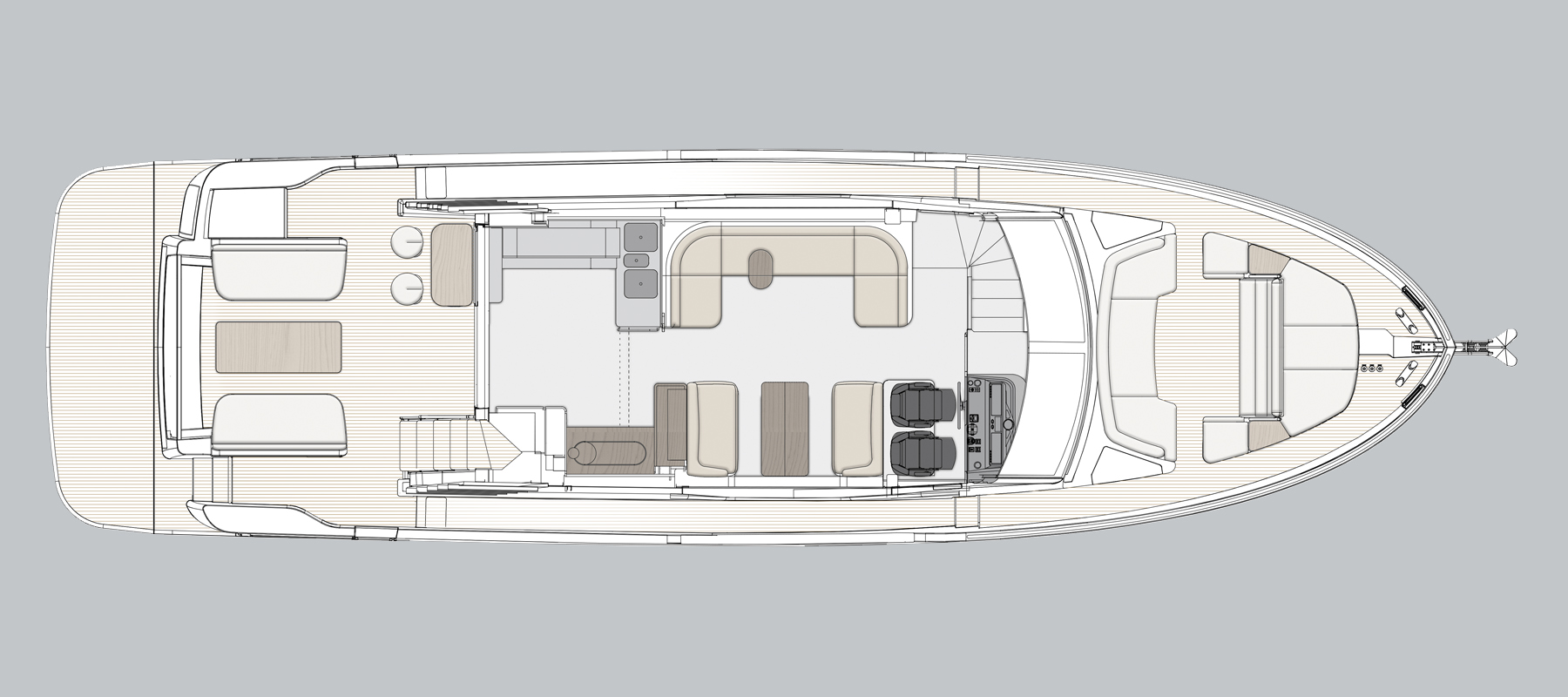

  Magellano60 main deck — Azimut

•

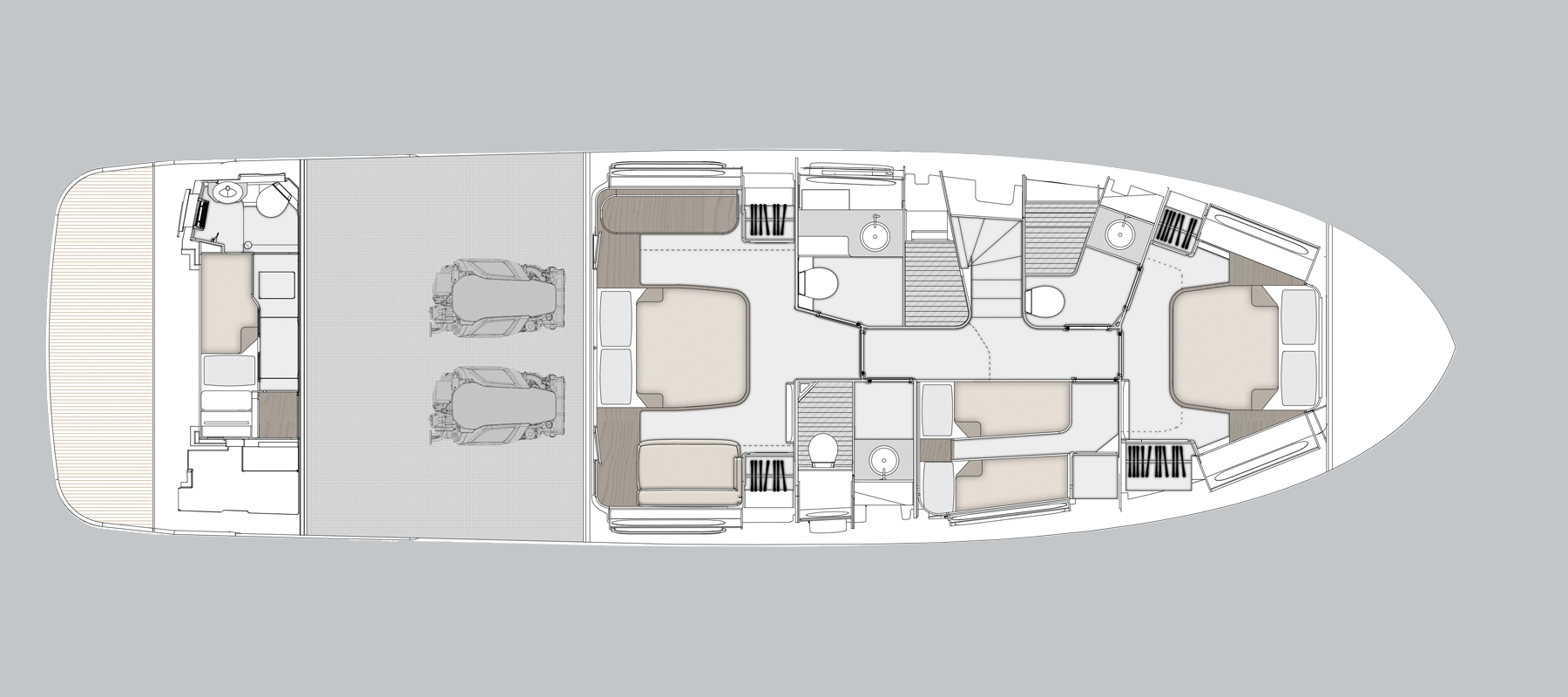

  Magellano60 lower deck — Azimut

About Azimut

Premium production

Italian builder of luxury motor yachts, founded in Avigliana in 1969 and part of the Azimut|Benetti Group.

Paolo Vitelli began chartering sailing yachts in 1969, the company was established in 1973, and in 1975 Azimut moved from distribution to creation with the AZ 43' Bali, built with Amerglass to a design by Bernard Olesinski and Terry Disdale -- one of the largest fibreglass yachts of its time and the first to carry the name. John Bennett's AZ 32' Targa of 1977, with its raised helm and opening sunroof, was an international success; Azimut acquired the Benetti shipyard in 1985, and in 1988 the Pininfarina-designed Atlantic Challenger, with four CRM engines of 7,400 hp in all, attempted the Blue Riband transatlantic record under Cesare Fiorio. Pininfarina reimagined the Azimut 65 in 1991 ('not available in red'), the 68 Plus of 1999 brought curvilinear glazing to yachting, the 50 of 2002 looked ahead in form and function, the 68S of 2003 was the first 'open yacht' on the sport-yacht market with its square hull windows, and the Magellano 74 of 2009 was the world's first crossover yacht. The Magellano 50 followed in 2013, the 55S introduced triple Volvo IPS in 2014, the 72 of 2015 was the first Carbon-Tech Generation yacht, Verve 40 opened the walkaround segment in 2016, the S7 and S10 renewed the S Series in 2017 and 2018, the Grande Trideck of 2021 added a 'three decks plus one' configuration, the Seadeck 6 of 2024 set out a more conscious relationship with the sea, and the Grande 44M, presented at Palm Beach in 2024, is the largest yacht the shipyard has ever built.

The Azimut Range

Every model Azimut publishes, by length — where this one sits in the range.

1. Fly 7070.4 ft
2. Fly 6868.8 ft
3. Magellano 6666.1 ft
4. Fly 6263.1 ft
5. Magellano 60· this model60.6 ft
6. S659.1 ft
7. Seadeck 656.6 ft
8. Fly 5355.1 ft
9. Atlantis 5153.1 ft
