Fly 70

Design

Designer

Alberto Mancini

Naval architect

P.L. Ausonio Naval Architecture & Azimut R&D Dept.

Summary

Best Suited For

• Liveaboard

  From the published figures: LOA 21.47 m · 4 cabins · 3 heads · fresh water 1000 L

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

70.4 ft (21.47 m)

Hull length

—

LWL

—

Beam

17.9 ft (5.46 m)

Draft (min)

—

Draft (max)

5.1 ft (1.56 m)

Air draft

—

Displacement

98,877 lb (44,850 kg)

Ballast

—

Cabins

4

Heads

3

Berths

8

Performance

Maximum speed

31 kn

Cruising speed

25 kn

Range

—

Guests

—

Crew

—

Engine and Tanks

Engine

1000 hp (Volvo Penta)

Engine count

2

Engine manufacturer

Volvo Penta

Propulsion type

IPS pods

Fuel capacity

1,030 gal (3,900 L)

Fresh water capacity

264 gal (1,000 L)

Black water capacity

—

Construction

Hull material

GRP + Carbon Fibre

Deck material

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Interior designer

Fabio Fantolino

Keel

Planing, deadrise 16° aft and 17° amidship

Maximum speed

up to 31 kn (test load)

Cruising speed

up to 25 kn (performance test mass)

Engines

2 x Volvo Penta IPS 1350 (1000 HP)

Crew

1 cabin, 2 berths, 1 head

Draft basis

incl. props at full load, as printed

Engine power basis

per engine as printed

Displacement basis

at full load, as printed (44.85 t)

LOA basis

incl. pulpit, as printed

Tank basis

UNI ISO 8666

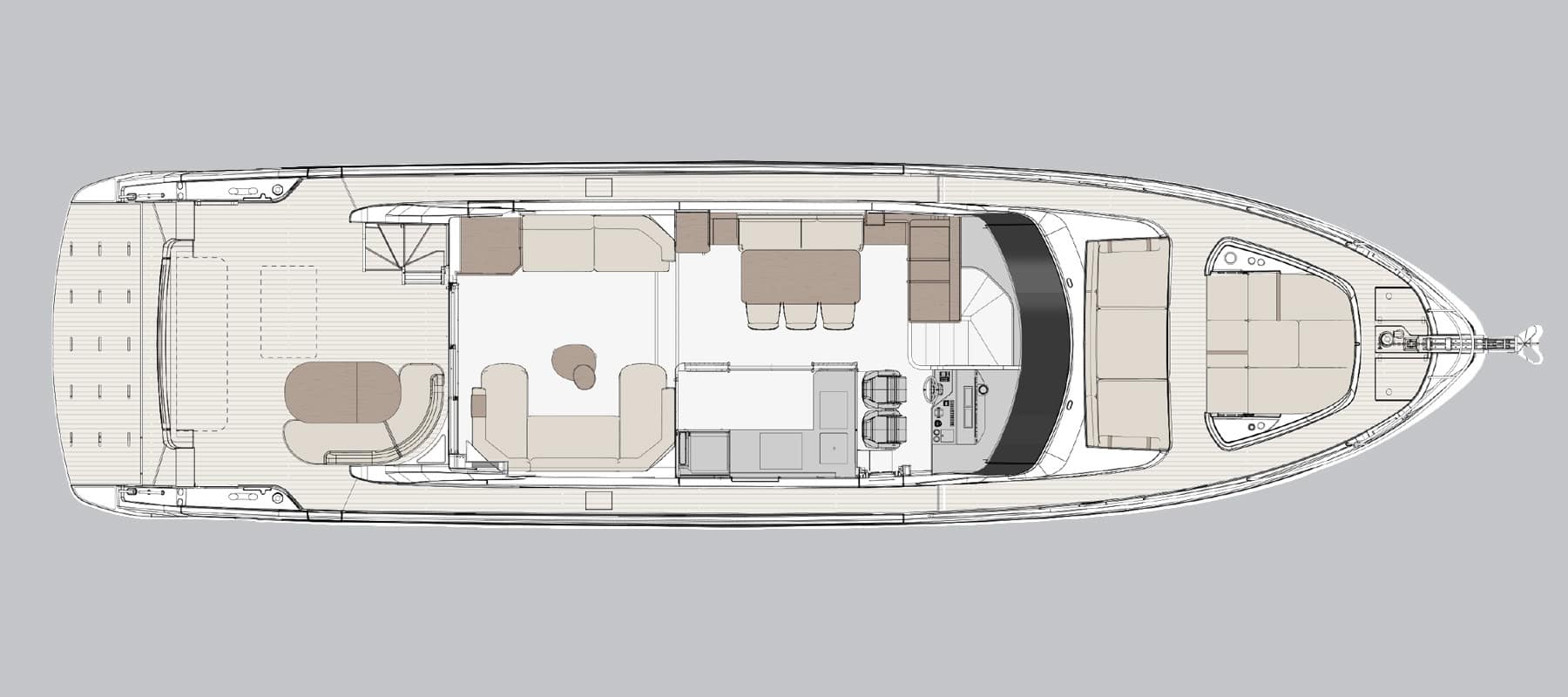

Layouts & Drawings

4 drawings from the builder's page: general arrangement, sail plan, profile.

•

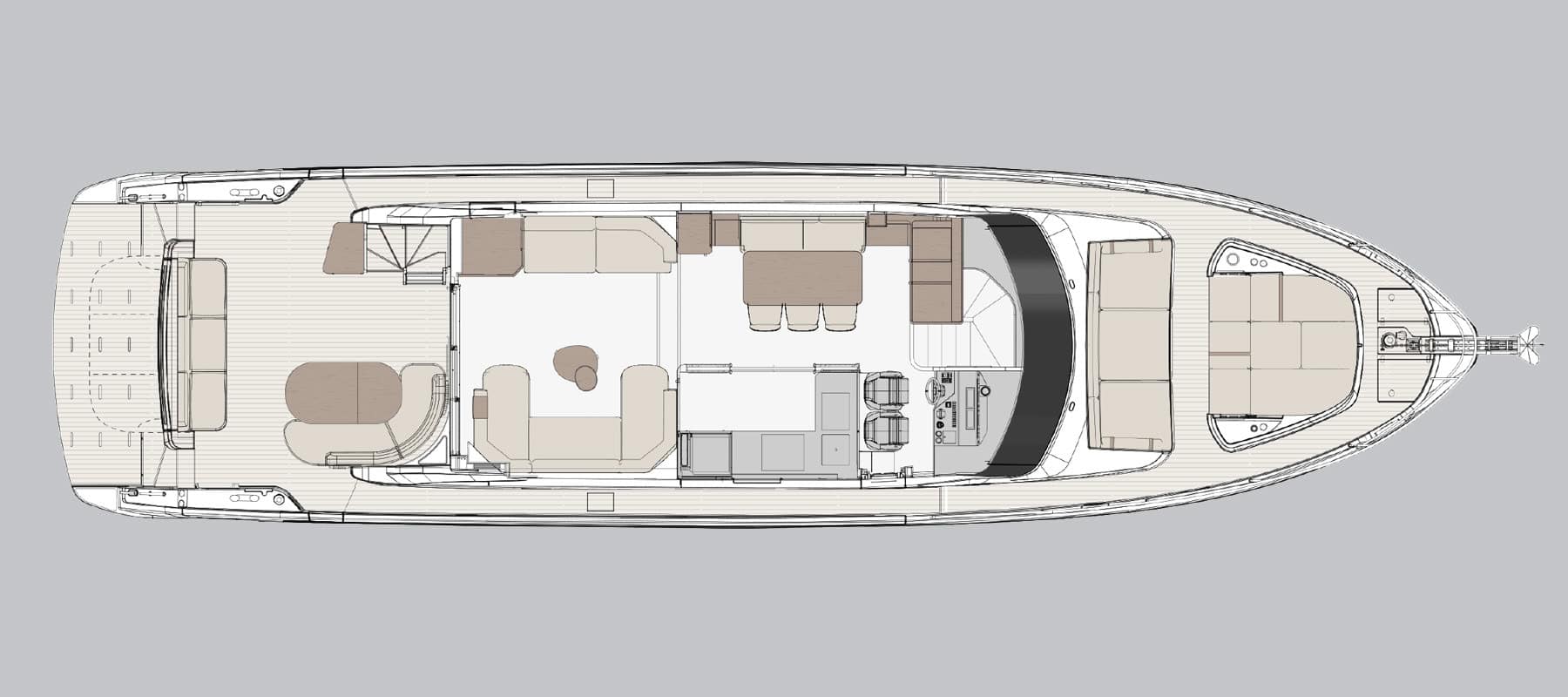

  FLY70-GA1 — Azimut

•

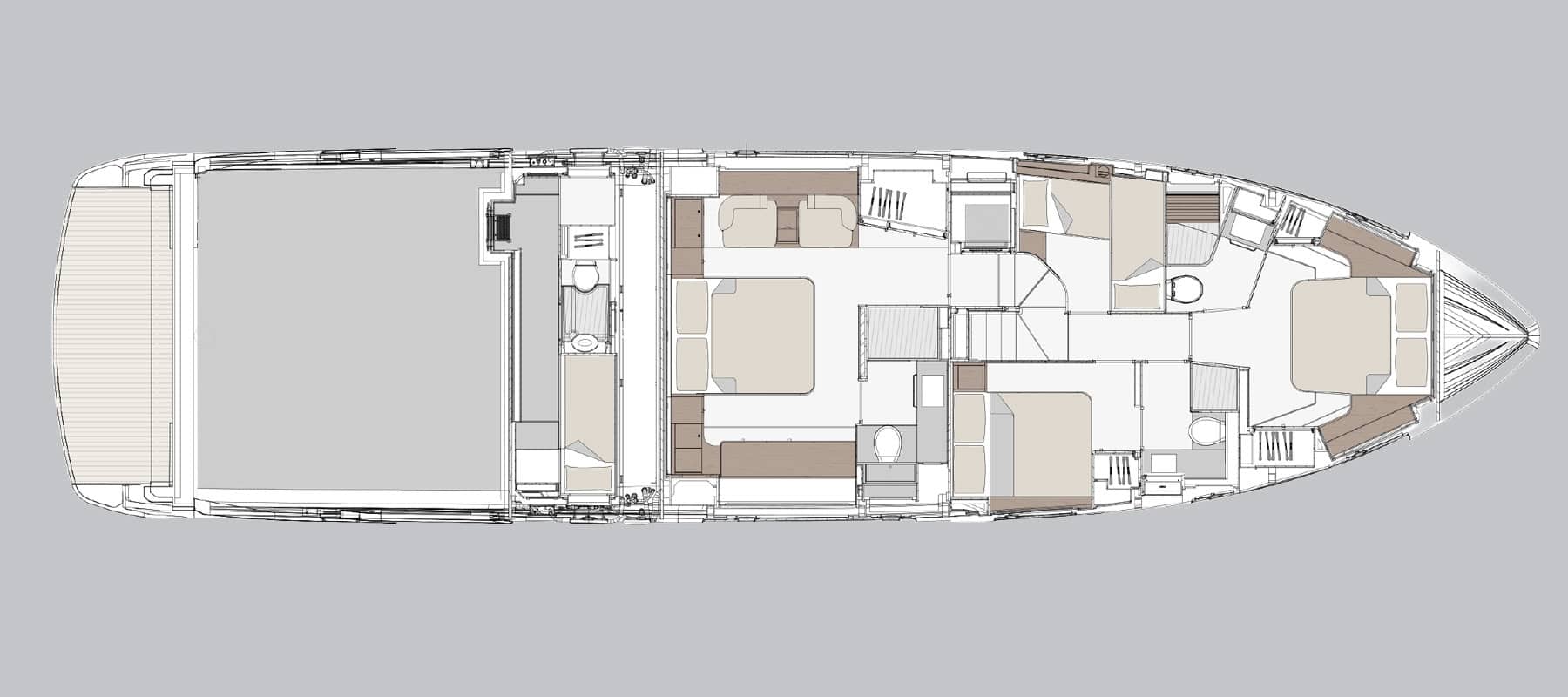

  FLY70-GA2 — Azimut

•

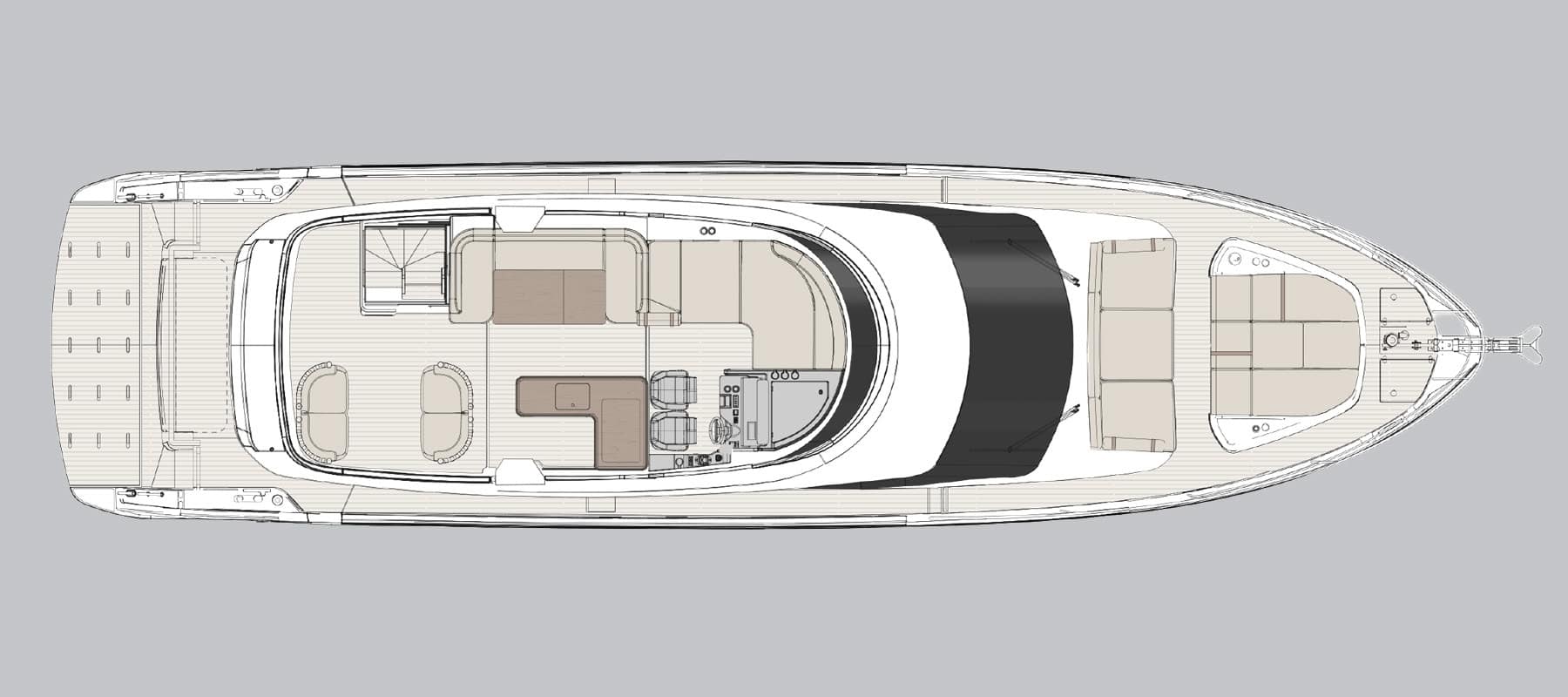

  FLY70-GA3 — Azimut

•

  FLY70-GA4 — Azimut

About Azimut

Premium production

Italian builder of luxury motor yachts, founded in Avigliana in 1969 and part of the Azimut|Benetti Group.

Paolo Vitelli began chartering sailing yachts in 1969, the company was established in 1973, and in 1975 Azimut moved from distribution to creation with the AZ 43' Bali, built with Amerglass to a design by Bernard Olesinski and Terry Disdale -- one of the largest fibreglass yachts of its time and the first to carry the name. John Bennett's AZ 32' Targa of 1977, with its raised helm and opening sunroof, was an international success; Azimut acquired the Benetti shipyard in 1985, and in 1988 the Pininfarina-designed Atlantic Challenger, with four CRM engines of 7,400 hp in all, attempted the Blue Riband transatlantic record under Cesare Fiorio. Pininfarina reimagined the Azimut 65 in 1991 ('not available in red'), the 68 Plus of 1999 brought curvilinear glazing to yachting, the 50 of 2002 looked ahead in form and function, the 68S of 2003 was the first 'open yacht' on the sport-yacht market with its square hull windows, and the Magellano 74 of 2009 was the world's first crossover yacht. The Magellano 50 followed in 2013, the 55S introduced triple Volvo IPS in 2014, the 72 of 2015 was the first Carbon-Tech Generation yacht, Verve 40 opened the walkaround segment in 2016, the S7 and S10 renewed the S Series in 2017 and 2018, the Grande Trideck of 2021 added a 'three decks plus one' configuration, the Seadeck 6 of 2024 set out a more conscious relationship with the sea, and the Grande 44M, presented at Palm Beach in 2024, is the largest yacht the shipyard has ever built.

The Azimut Range

Every model Azimut publishes, by length — where this one sits in the range.

1. Fly 7877.6 ft
2. Fly 7274.4 ft
3. Seadeck 771.2 ft
4. S771.1 ft
5. Fly 70· this model70.4 ft
6. Fly 6868.8 ft
7. Magellano 6666.1 ft
8. Fly 6263.1 ft
9. Magellano 6060.6 ft
