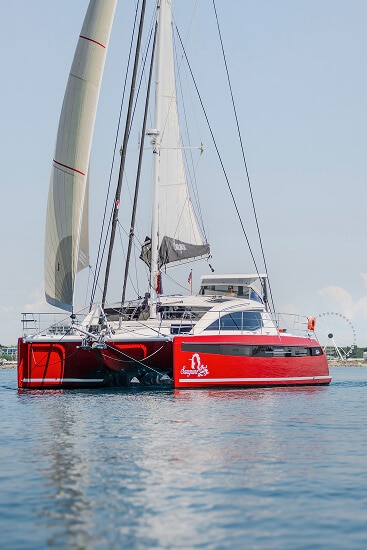

Signature 510

Design

Designer

Darnet Design

Naval architect

Cabinet Marc Lombard

Summary

Best Suited For

• Bluewater Cruising

  From the published figures: CE Category A · LOA 15.24 m · fresh water 600 L

• Liveaboard

  From the published figures: LOA 15.24 m · 4 cabins · fresh water 600 L

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

50 ft (15.24 m)

Hull length

—

LWL

48 ft (14.63 m)

Beam

26.2 ft (7.98 m)

Draft (min)

5.2 ft (1.57 m)

Draft (max)

—

Air draft

69.6 ft (21.21 m)

Displacement

37,479 lb (17,000 kg)

Ballast

—

Cabins

3–4

Heads

—

Berths

—

Sail Plan

Main sail

947 ft² (88 m²)

Jib

—

Genoa

614 ft² (57 m²)

Sail area

—

Downwind sail area

1,292 ft² (120 m²)

Rig type

—

Engine and Tanks

Engine

80 hp

Engine count

2

Engine manufacturer

—

Propulsion type

—

Fuel capacity

211 gal (800 L)

Fresh water capacity

159 gal (600 L)

Black water capacity

—

Construction

Mast material

—

Hull material

—

Deck material

—

Keel type

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Staysail

20 m2

Total sail area

165 m2

Displacement full load

25 t

Black water

2 x 106 L

Films of this model from the builder's official YouTube channel (Privilège Marine). They are the builder's own; the figures above are the reference.

•

  Building FRAIHEET - The Signature 510 #46

  Privilège Marine · 6/12/2026

Videos whose title names the Signature 510, from the channel the builder's site links; last checked 9/30/2026. Playing one loads YouTube's player, which may set cookies.

About Privilège Marine

Semi-custom

French builder of ocean-going sailing catamarans, based in Les Sables d'Olonne since 1985.

Privilège Marine has been building ocean-going catamarans for more than forty years from its yard at Les Sables d'Olonne, on the French Atlantic coast -- a town shaped by maritime culture and offshore racing. The yachts are meant to cross oceans with confidence and to last, and innovation is admitted only where it serves reliability and long-term performance rather than novelty. No two are alike, which follows from how they are made: each project starts as a conversation about a way of sailing and a rhythm of life aboard, and the layout, circulation, materials and technical configuration are settled from there.

The Privilège Marine Range

Every model Privilège Marine publishes, by length — where this one sits in the range.

1. Signature 60064.6 ft
2. Signature 65064.3 ft
3. Signature 58062.7 ft
4. Signature 510· this model50 ft
