30 SportCat

Summary

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Dimensions

LOA

30.3 ft (9.25 m)

Hull length

—

LWL

29.4 ft (8.95 m)

Beam

16.9 ft (5.15 m)

Draft (min)

2.5 ft (0.75 m)

Draft (max)

2.9 ft (0.872 m)

Air draft

—

Displacement

1,874 lb (850 kg)

Ballast

—

Cabins

—

Heads

—

Berths

—

Sail Plan

Main sail

—

Jib

—

Genoa

—

Sail area

—

Downwind sail area

—

Rig type

—

Engine and Tanks

Engine

10 hp

Engine count

—

Engine manufacturer

—

Propulsion type

outboard

Fuel capacity

—

Fresh water capacity

—

Black water capacity

—

Construction

Mast material

—

Hull material

E-glass and vinyl ester composite with carbon reinforcement, infused

Deck material

—

Keel type

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Sail areas

mainsail 29 m², self-tacking jib 14 m², gennaker 37 m²

Mast height

13.20 m

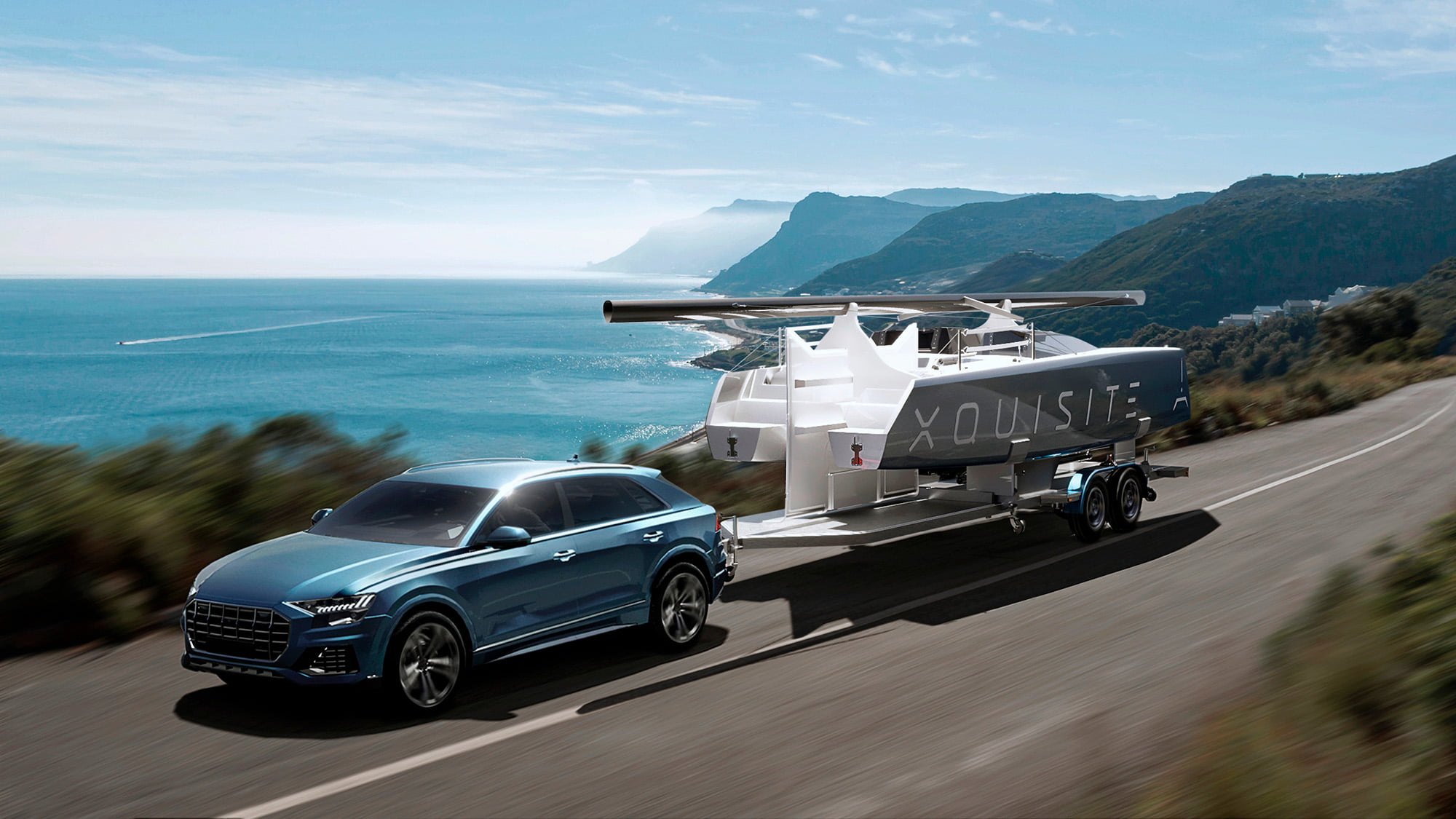

Trailer

trailer-transportable; trailer optional

Engine

outboard 10 HP (electric optional)

Draft

0.75 m on the mini keels (daggerboards optional); 0.872 m including the outboard

Beam CL-CL

4.1 m

Displacement basis

light displacement as printed (850 kg); full displacement 1450 kg

About Xquisite Yachts

Semi-custom

Boutique builder of sailing and power catamarans founded in 2014 — the trailerable 30 SportCat, the hybrid 54 E-Plus and the solar-equipped Sixty Solar Sail and Sixty Solar Power, with the 40 PowerCat and 52 Exploration on order, marketed worldwide under its own name.

Xquisite Yachts says it was established in 2014 with the purpose of launching a new brand of sailing and power catamarans: the ultimate luxury yacht for cruisers, in which safety and innovative design blend, for adventurers who want to explore the oceans without giving up a comfortable life. Its yachts are built by a team of highly experienced catamaran builders and marketed globally and exclusively under the Xquisite brand. Every boat was meant for comfort and easy sail handling — two headsails, electric winches and davits — with a generator, air-conditioning, watermaker, washing machine and digital switching as standard, light construction in high-density foam core and vacuum-infused epoxy to CE category A, and twin 80 HP Yanmar engines. An in-house design team offers both standard and fully custom versions, with three interior finishes at no extra cost. Calling itself a boutique boatyard, Xquisite builds only a limited number of yachts each year; buyers can take a finished boat from the boat shows — Miami, Annapolis and the International Multihull Boat Show in France — or order one, and its charter division lets them try a boat before they buy.

The Xquisite Yachts Range

Every model Xquisite Yachts publishes, by length — where this one sits in the range.

1. Sixty Solar Sail61.7 ft
2. 54 E-Plus54.6 ft
3. 30 SportCat· this model30.3 ft
