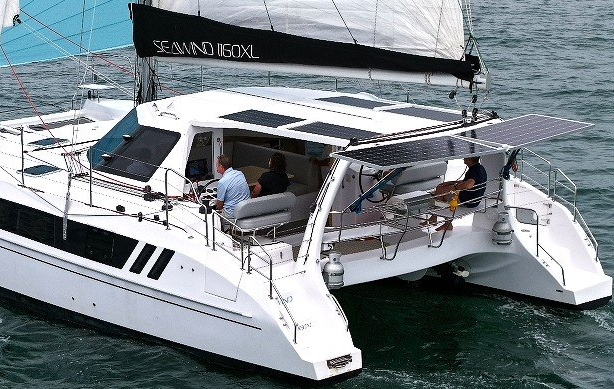

Seawind 1160XL

Design

Naval architect

Stuart Bloomfield

Summary

Best Suited For

• Bluewater Cruising

  From the published figures: CE Category A · LOA 11.83 m · fresh water 700 L

• Short-Handed

  From the published figures: LOA 11.83 m · upwind 87 m²

• Liveaboard

  From the published figures: LOA 11.83 m · 3 cabins · fresh water 700 L

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

38.8 ft (11.83 m)

Hull length

—

LWL

—

Beam

21.7 ft (6.6 m)

Draft (min)

4.2 ft (1.29 m)

Draft (max)

—

Air draft

59.7 ft (18.2 m)

Displacement

17,196 lb (7,800 kg)

Ballast

—

Cabins

3

Heads

—

Berths

—

Sail Plan

Main sail

646 ft² (60 m²)

Jib

291 ft² (27 m²)

Genoa

—

Sail area

936 ft² (87 m²)

Downwind sail area

1,119 ft² (104 m²)

Rig type

—

Engine and Tanks

Engine

25 hp (Yamaha)

Engine count

2

Engine manufacturer

Yamaha

Propulsion type

outboard

Fuel capacity

71 gal (269 L)

Fresh water capacity

185 gal (700 L)

Black water capacity

—

Construction

Mast material

—

Hull material

fiberglass (vinylester/PVC foam core)

Deck material

—

Keel type

—

Rudder type

—

Steering wheels

2

Builder's Own Figures

Screecher

64 sq m

Headroom

1.96 m

About Seawind Catamarans

Premium production

Australian builder of bluewater cruising catamarans, founded in Sydney in 1982, now manufacturing in Vietnam and Turkey.

Seawind was established in Sydney in 1982, building the four-to-five-metre off-the-beach Maricat, which became the most popular Australian-built catamaran with over 3,000 made. The 24-foot Seawind 24 of 1987 became a world benchmark for small cruising cats with over 350 built and exported from America to Japan; the 28-foot Seawind 850 of 1991 opened the way to larger cruising designs, and the 33-foot Seawind 1000 of 1994 was named Australian Sailboat of the Year, the first catamaran ever so honoured. The 1050 Resort and 1200 flagships came in 1998, the Venturer power cats in 2000, and the Seawind 1160 with its tri-fold door in 2004, winning the Australian industry's best non-trailerable sailboat award in 2005 and two categories of the US Boat of the Year in 2006. In 2010 Seawind acquired the trimaran builder Corsair Marine, moved key Australian staff to Vietnam in 2011 to set up production there, and by 2012 had relocated the 1000XL2, 1160 and 1250 to the Corsair factory; the 1160 Lite followed in 2014, and in 2015 the 52-foot 1600, the 1260, the 1190 Sport and the 1160 Resort were announced -- the 1190 Sport winning its first offshore regatta and Cruising World's Boat of the Year in 2016.

The Seawind Catamarans Range

Every model Seawind Catamarans publishes, by length — where this one sits in the range.

1. Seawind 160052.8 ft
2. Seawind 137044.9 ft
3. Seawind 127042.1 ft
4. Seawind 117039 ft
5. Seawind 1160XL· this model38.8 ft
6. Seawind 1160 Resort38.1 ft
