Seawind 1170

Summary

Best Suited For

• Bluewater Cruising

  From the published figures: CE Category A · LOA 11.9 m · fresh water 300 L

• Short-Handed

  From the published figures: LOA 11.9 m · mainsail 59 m²

• Liveaboard

  From the published figures: LOA 11.9 m · 3 cabins · fresh water 300 L

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

39 ft (11.9 m)

Hull length

—

LWL

—

Beam

21.3 ft (6.5 m)

Draft (min)

3.9 ft (1.2 m)

Draft (max)

—

Air draft

61.7 ft (18.8 m)

Displacement

20,283 lb (9,200 kg)

Ballast

—

Cabins

3

Heads

—

Berths

—

Sail Plan

Main sail

635 ft² (59 m²)

Jib

327 ft² (30.4 m²)

Genoa

—

Sail area

—

Downwind sail area

1,195 ft² (111 m²)

Rig type

—

Engine and Tanks

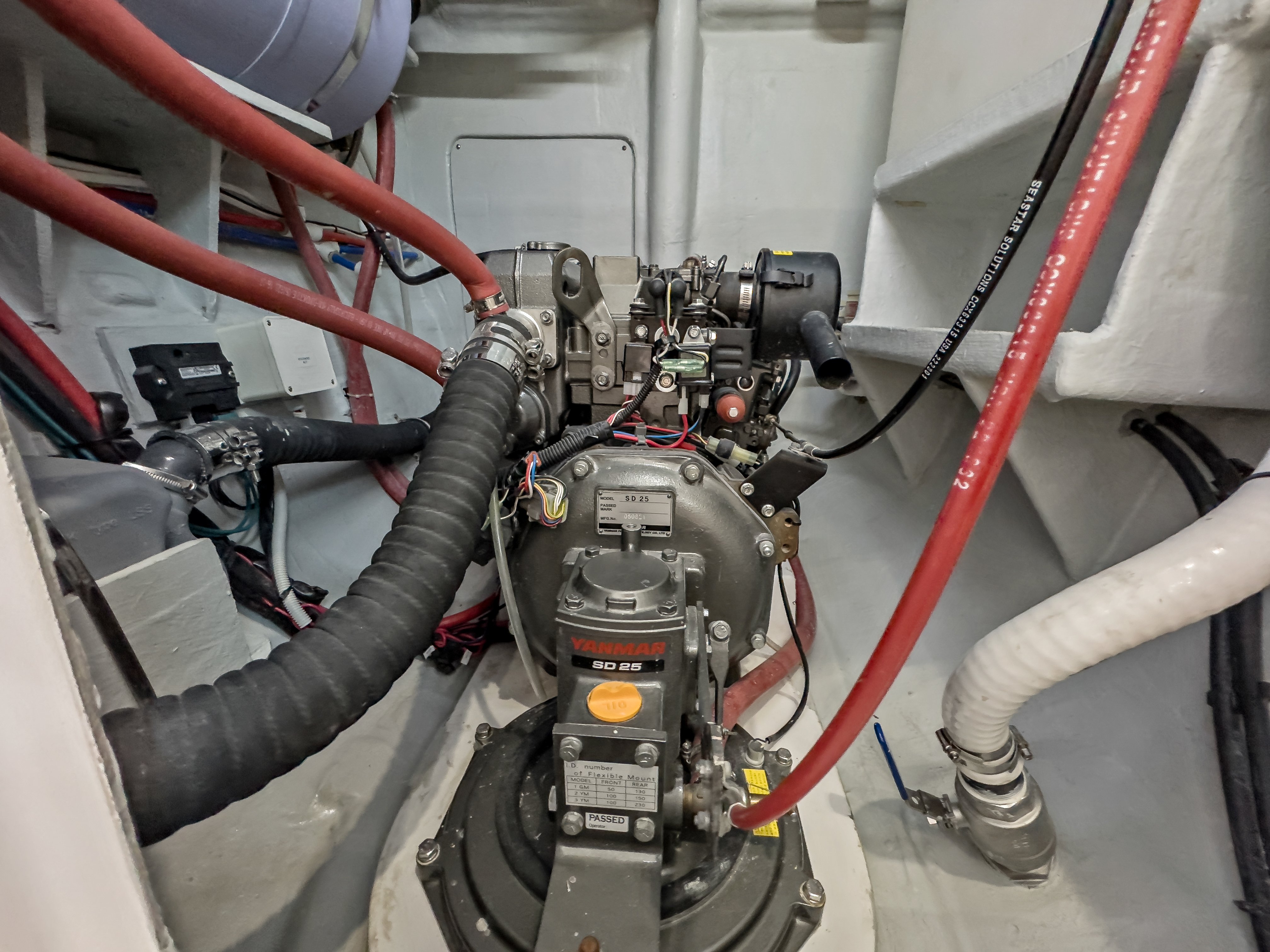

Engine

29 hp (Yanmar)

Engine count

2

Engine manufacturer

Yanmar

Propulsion type

saildrive

Fuel capacity

95 gal (360 L)

Fresh water capacity

79 gal (300 L)

Black water capacity

—

Construction

Mast material

—

Hull material

carbon-reinforced foam core

Deck material

—

Keel type

stub keels

Rudder type

—

Steering wheels

2

Builder's Own Figures

Fuel total (2 tanks)

520 L

Underwing Clearance

0.7 m

Water tank

500 L

Headroom

2 m

Screecher

66 sq m

About Seawind Catamarans

Premium production

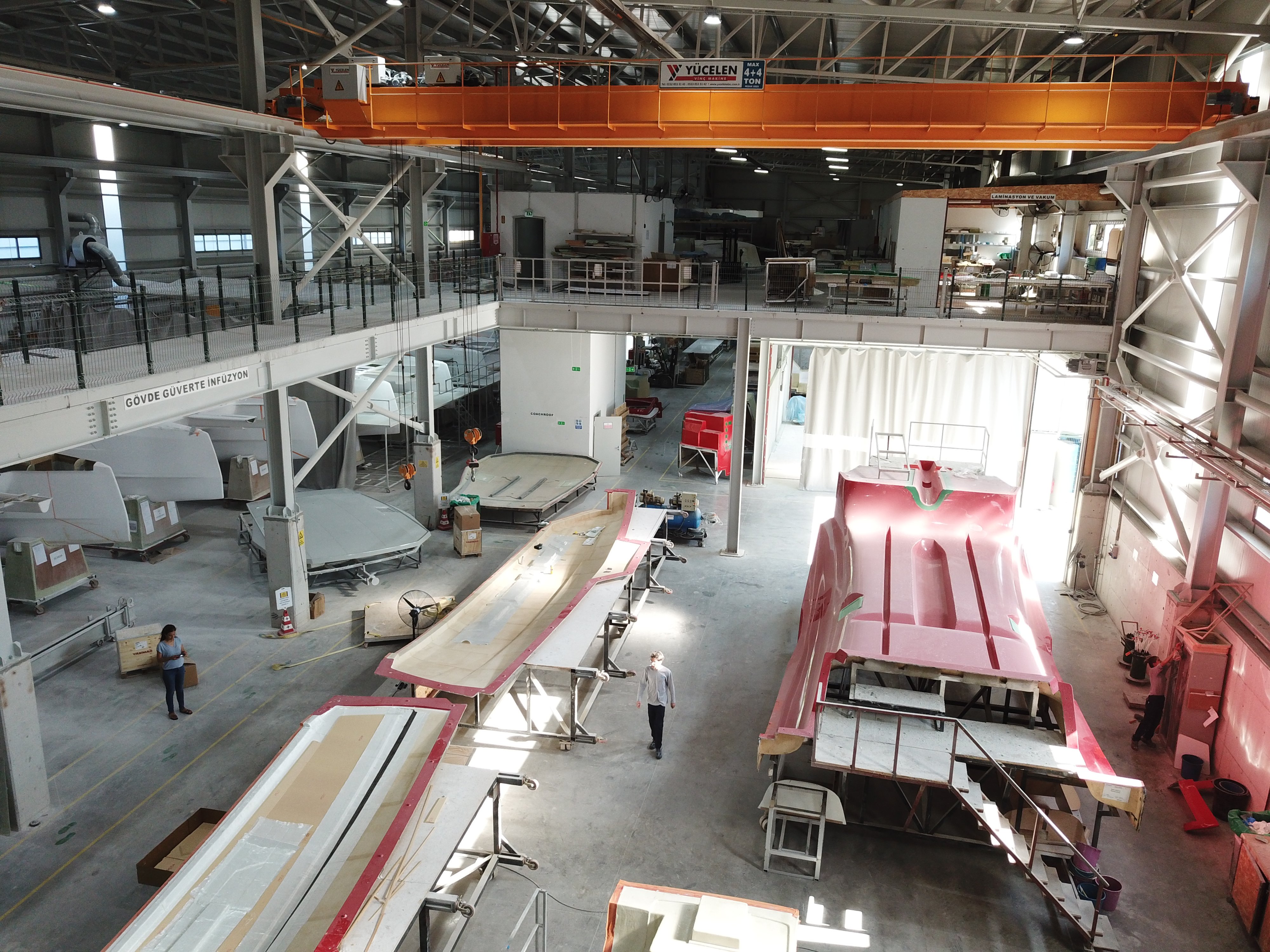

Australian builder of bluewater cruising catamarans, founded in Sydney in 1982, now manufacturing in Vietnam and Turkey.

Seawind was established in Sydney in 1982, building the four-to-five-metre off-the-beach Maricat, which became the most popular Australian-built catamaran with over 3,000 made. The 24-foot Seawind 24 of 1987 became a world benchmark for small cruising cats with over 350 built and exported from America to Japan; the 28-foot Seawind 850 of 1991 opened the way to larger cruising designs, and the 33-foot Seawind 1000 of 1994 was named Australian Sailboat of the Year, the first catamaran ever so honoured. The 1050 Resort and 1200 flagships came in 1998, the Venturer power cats in 2000, and the Seawind 1160 with its tri-fold door in 2004, winning the Australian industry's best non-trailerable sailboat award in 2005 and two categories of the US Boat of the Year in 2006. In 2010 Seawind acquired the trimaran builder Corsair Marine, moved key Australian staff to Vietnam in 2011 to set up production there, and by 2012 had relocated the 1000XL2, 1160 and 1250 to the Corsair factory; the 1160 Lite followed in 2014, and in 2015 the 52-foot 1600, the 1260, the 1190 Sport and the 1160 Resort were announced -- the 1190 Sport winning its first offshore regatta and Cruising World's Boat of the Year in 2016.

The Seawind Catamarans Range

Every model Seawind Catamarans publishes, by length — where this one sits in the range.

1. Seawind 160052.8 ft
2. Seawind 137044.9 ft
3. Seawind 127042.1 ft
4. Seawind 1170· this model39 ft
5. Seawind 1160XL38.8 ft
6. Seawind 1160 Resort38.1 ft
