ICE Cat 61

Design

Naval architect

Enrico Contreas – Luigi Cirillo

Summary

Best Suited For

• Bluewater Cruising

  From the published figures: CE Category A · LOA 18.6 m · fresh water 770 L

• Performance Cruising

  From the published figures: SA/D 31.7 (upwind 177 m², displacement 13500 kg) · 5 cabins

• Liveaboard

  From the published figures: LOA 18.6 m · 5 cabins · fresh water 770 L

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

61 ft (18.6 m)

Hull length

—

LWL

61 ft (18.6 m)

Beam

26.9 ft (8.2 m)

Draft (min)

3.3 ft (1 m)

Draft (max)

8.2 ft (2.5 m)

Air draft

—

Displacement

29,762 lb (13,500 kg)

Ballast

—

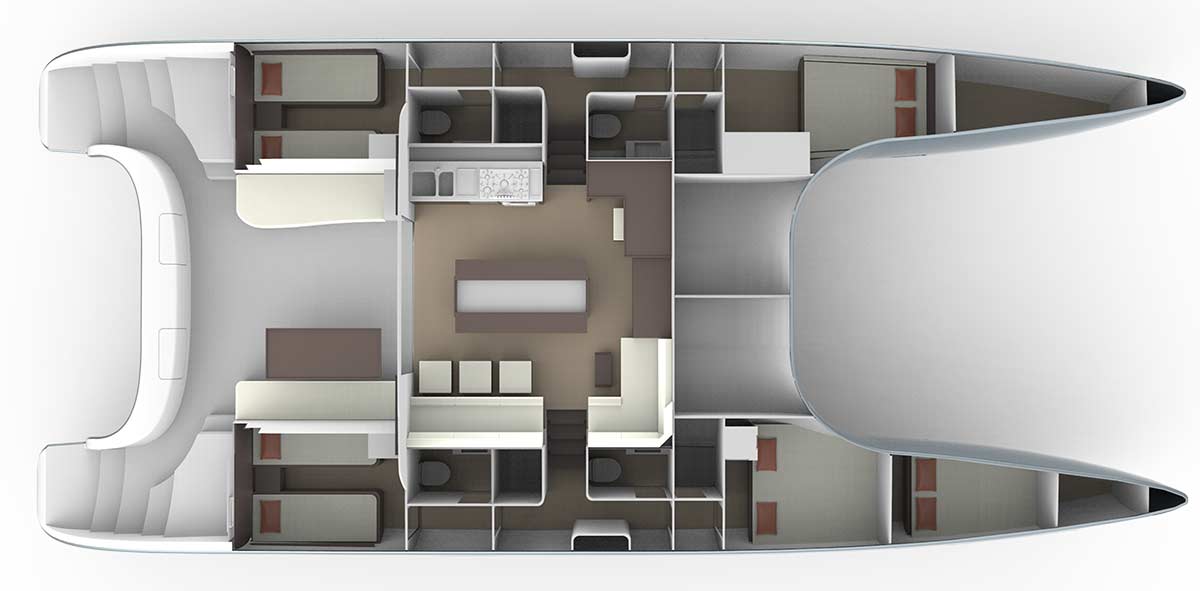

Cabins

3–5

Heads

—

Berths

—

Sail Plan

Main sail

1,270 ft² (118 m²)

Jib

—

Genoa

—

Sail area

1,905 ft² (177 m²)

Downwind sail area

—

Rig type

—

Engine and Tanks

Engine

55 hp

Engine count

2

Engine manufacturer

—

Propulsion type

—

Fuel capacity

203 gal (770 L)

Fresh water capacity

203 gal (770 L)

Black water capacity

—

Construction

Mast material

—

Hull material

—

Deck material

—

Keel type

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Construction

Infusione con resina epossidica – Full carbon

Engine

2 x 55 HP “S” Drive

Jib

59 m²

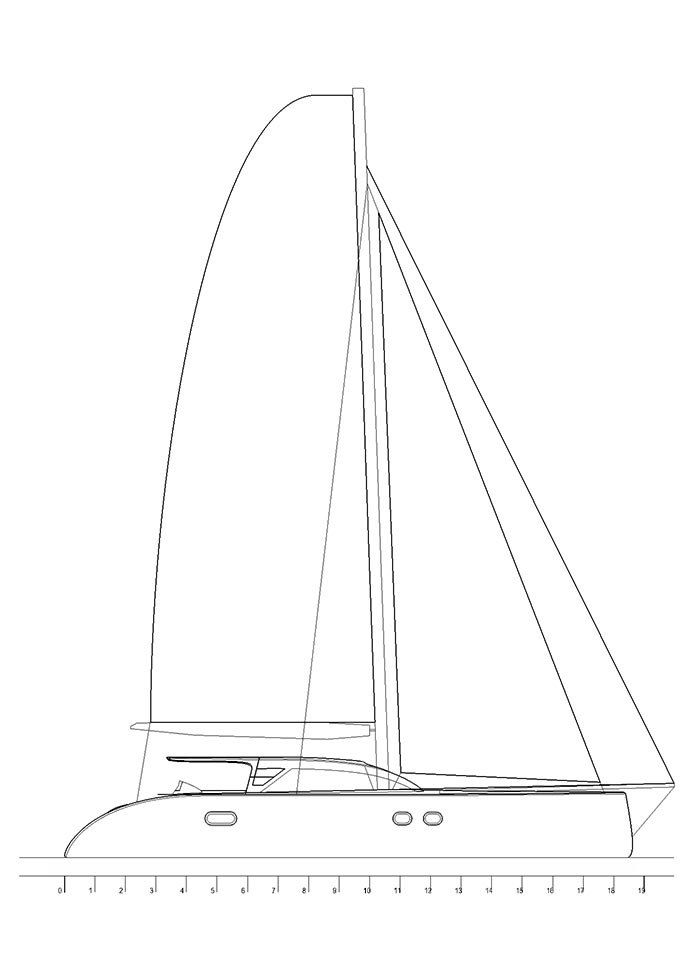

Rig P/E/J

P 22,55 m, E 7,35 m, J 6,53 m

Status

listed under the site's Masterpieces (past models); production years not printed

Engine power basis

hp per engine as printed (2 x)

Draft as printed

derive su 1,00 m derive giu 2,50 m

Displacement basis

as printed (13,500 kg)

Sail area basis

main 118 + jib 59 m² as printed

Certification as printed

(A) alto mare, insommergibile

About ICE Yachts

Semi-custom

Italian builder of carbon-epoxy performance cruisers from Salvirola near Cremona — fourteen Felci-designed monohulls from the 15.8-metre ICE 52 to the 24-metre ICE 80, plus the ICE Cat sixty four and seventytwo catamarans by Micheletti+Partners, all infused in carbon and glass with carbon rigs.

The ICE Yachts Range

Every model ICE Yachts publishes, by length — where this one sits in the range.

1. ICE 66 RS65.3 ft
2. ICE 64 Explorer64.6 ft
3. ICE Cat sixty four64 ft
4. ICE 62 (2014)Discontinued61.8 ft
5. ICE Cat 61· this modelDiscontinued61 ft
6. ICE 5660 ft
7. ICE 60Discontinued59 ft
8. ICE 60 Grand ComfortDiscontinued59 ft
9. ICE 60 RSDiscontinued59 ft
