Hallberg-Rassy P-28

Design

Designer

Harry Hallberg

Summary

Best Suited For

• Short-Handed

  From the published figures: LOA 9.04 m · upwind 34.5 m²

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

29.7 ft (9.04 m)

Hull length

—

LWL

21.5 ft (6.55 m)

Beam

7.7 ft (2.35 m)

Draft (min)

4.2 ft (1.28 m)

Draft (max)

4.2 ft (1.28 m)

Air draft

—

Displacement

6,834 lb (3,100 kg)

Ballast

2,866 lb (1,300 kg)

Cabins

1

Heads

—

Berths

—

Sail Plan

Main sail

—

Jib

—

Genoa

—

Sail area

371 ft² (34.5 m²)

Downwind sail area

—

Rig type

—

Engine and Tanks

Engine

10 hp

Engine count

1

Engine manufacturer

—

Propulsion type

shaft drive

Fuel capacity

11 gal (40 L)

Fresh water capacity

17 gal (65 L)

Black water capacity

—

Construction

Mast material

—

Hull material

—

Deck material

—

Keel type

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Hull length hull #1-499

8.61 m

Hull length hull #500-536

9.04 m

Engine shaft

25 mm

Sail area basis

sail area with jib as printed

Layouts & Drawings

3 drawings from the builder's page: general arrangement, sail plan, profile.

•

  P28 sail plan old version — Hallberg-Rassy

•

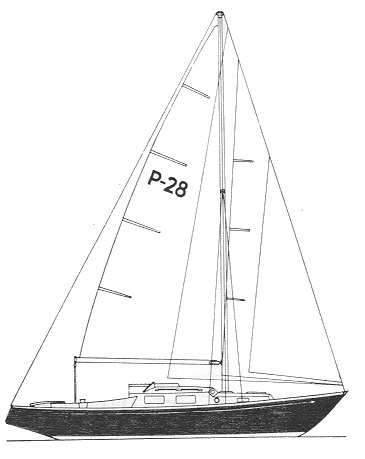

  P28 sail plan — Hallberg-Rassy

•

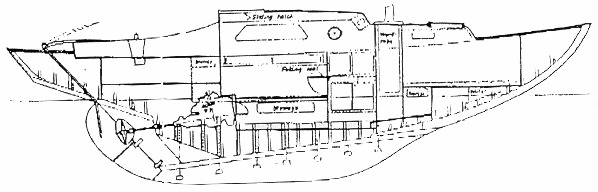

  P28 side view mk1 — Hallberg-Rassy

About Hallberg-Rassy

Premium production

Swedish builder of bluewater cruising sailboats, based in Ellös and formed in 1972, when the Rassy yard took over that of Harry Hallberg (founded in 1943), and still 100% family-owned.

Hallberg-Rassy began as two yards. Harry Hallberg opened his own wooden-boat yard at Kungsviken on the island of Orust in 1943, built the Folkboat and the Kungskryssaren in series, and in 1963 was among the first to build sailing boats in GRP in series -- his P-28, most of its first hundred sold to the USA, was the yard's early export success. Christoph Rassy arrived from Bavaria in 1960, bought the old Hallberg yard at Kungsviken when Hallberg moved to Ellös in the mid-1960s, and in 1966 launched the Rasmus 35, a pioneering long-distance cruiser with a centre cockpit behind a windshield -- the arrangement the yard has kept ever since. When Harry Hallberg retired in 1972 the Rassy yard bought the Ellös premises and the two names merged into Hallberg-Rassy; the first new design under that name, the Monsun 31, became the bestseller with 904 built by 1982. Germán Frers has drawn every model since 1988. The yard is still in Ellös and still family-owned.

The Hallberg-Rassy Range

Every model Hallberg-Rassy publishes, by length — where this one sits in the range.

1. Hallberg-Rassy 310Discontinued30.9 ft
2. Hallberg-Rassy 312Discontinued30.9 ft
3. Hallberg-Rassy 94 KutterDiscontinued30.8 ft
4. Hallberg-Rassy Monsun 31Discontinued30.7 ft
5. Hallberg-Rassy P-28· this modelDiscontinued29.7 ft
6. Hallberg-Rassy 29Discontinued29.2 ft
7. Hallberg-Rassy 26Discontinued26.1 ft
8. Hallberg-Rassy Misil IDiscontinued24.1 ft
9. Hallberg-Rassy Misil IIDiscontinued24.1 ft
