Tartan 34

Summary

Best Suited For

• Short-Handed

  From the published figures: LOA 10.21 m · upwind 55.8 m²

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

33.5 ft (10.21 m)

Hull length

—

LWL

29.2 ft (8.89 m)

Beam

10.9 ft (3.33 m)

Draft (min)

6 ft (1.83 m)

Draft (max)

—

Air draft

52.2 ft (15.9 m)

Displacement

8,999 lb (4,082 kg)

Ballast

3,351 lb (1,520 kg)

Cabins

1

Heads

1

Berths

4

Sail Plan

Main sail

—

Jib

—

Genoa

—

Sail area

601 ft² (55.8 m²)

Downwind sail area

845 ft² (78.5 m²)

Rig type

—

Engine and Tanks

Engine

20 hp

Engine count

1

Engine manufacturer

—

Propulsion type

saildrive

Fuel capacity

25 gal (95 L)

Fresh water capacity

40 gal (151 L)

Black water capacity

—

Construction

Mast material

—

Hull material

—

Deck material

—

Keel type

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Ballast (Beavertail)

3,550 lb

Displacement (Beavertail)

9,200 lb

Draft (Beavertail)

4 ft 6 in

Auxiliary

20 hp diesel saildrive

Downwind sail area basis

main & reacher as printed

Unit basis

converted from the page's feet-inches, pounds, US gallons and square feet (the site prints no metric figures)

Cabins as printed

1 (open)

Keel basis

stored draft, displacement and ballast are the 'Deep Fin' keel

Upwind sail area basis

main & self-tacking jib as printed

Layouts & Drawings

3 drawings from the builder's page: general arrangement, sail plan, profile.

•

  335Drawing_SailPlan — Tartan Yachts

•

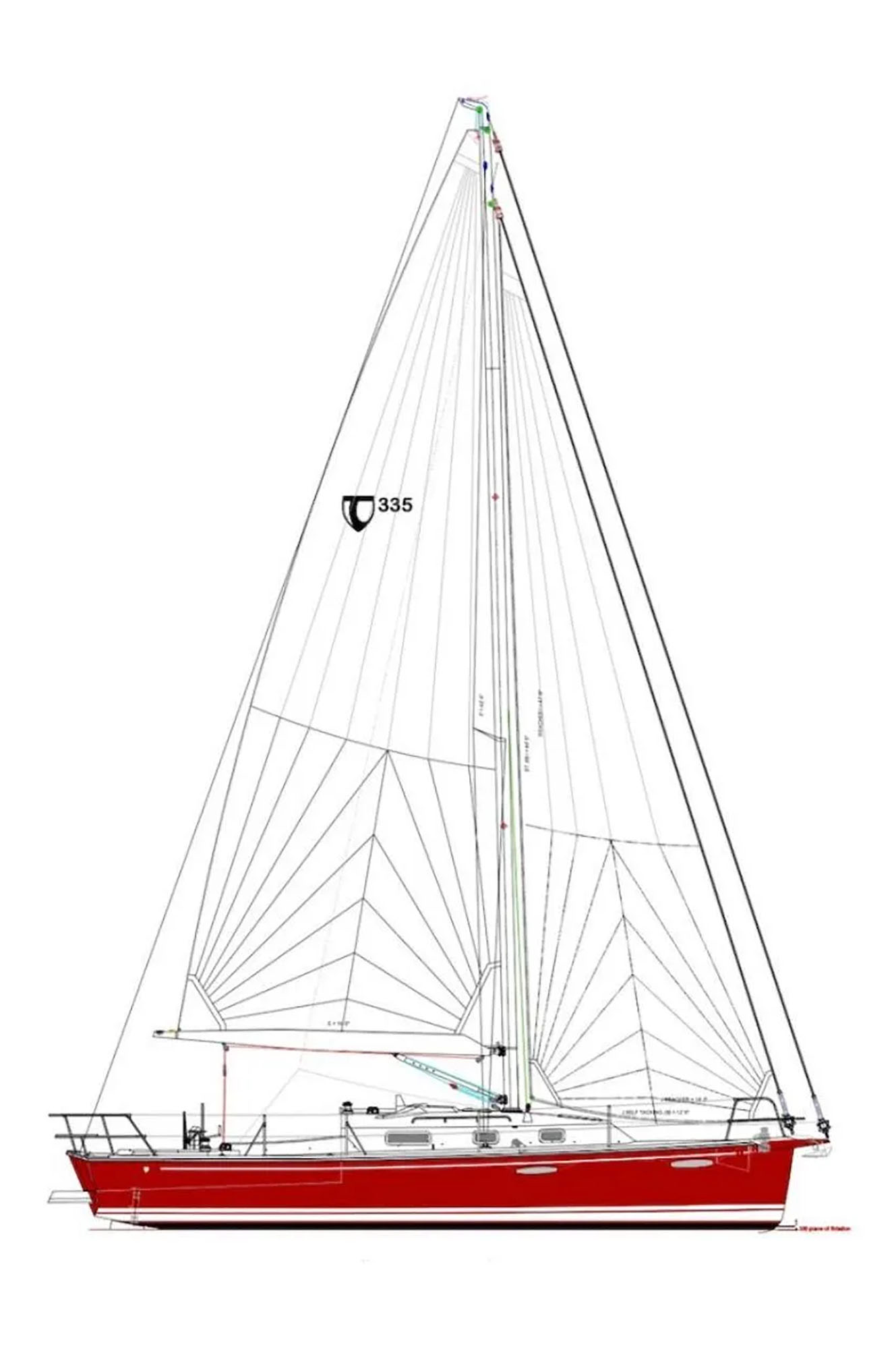

  335Drawing_SailPlanRed — Tartan Yachts

•

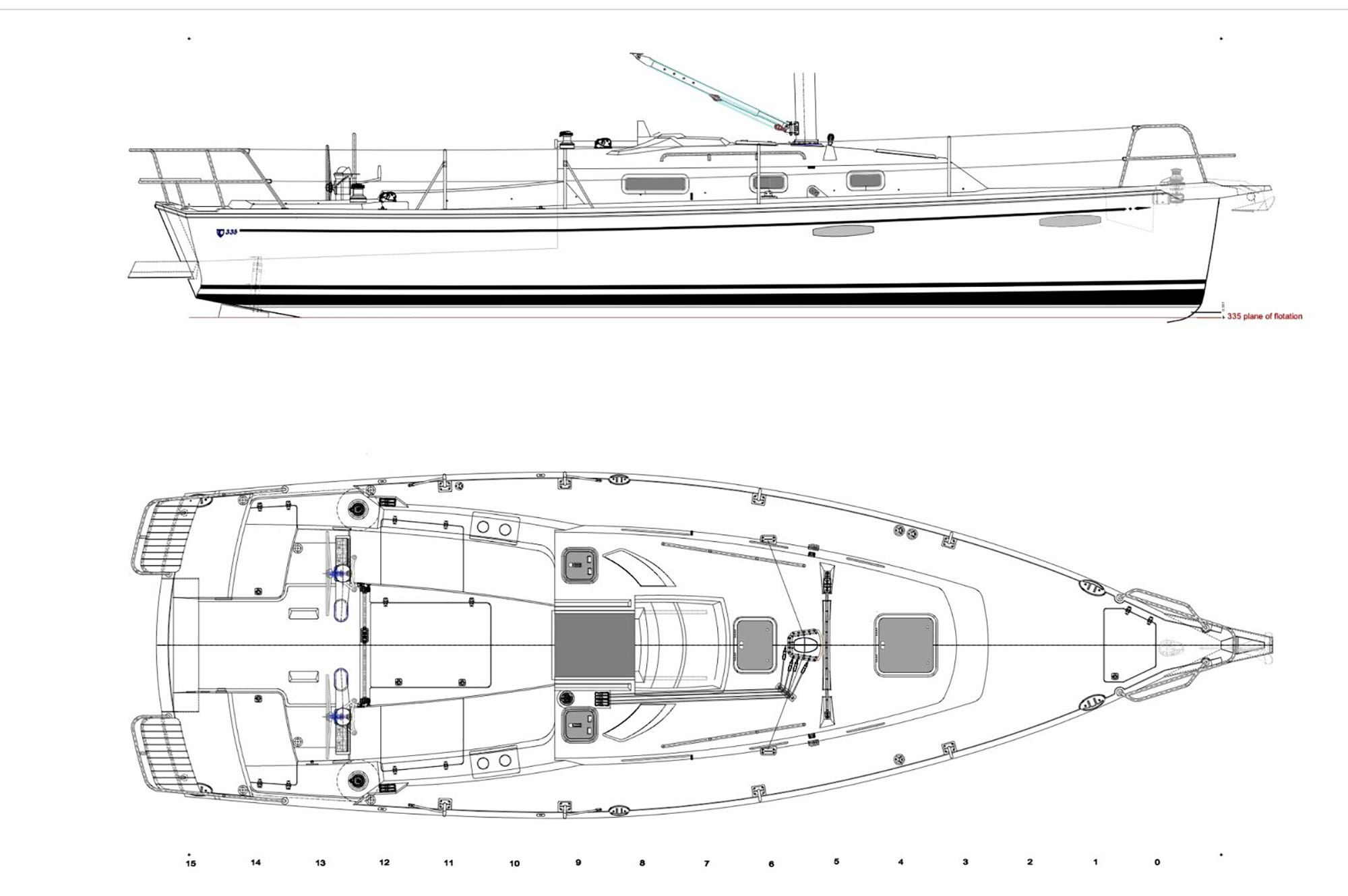

  335Drawing_Deck — Tartan Yachts

About Tartan Yachts

Semi-custom

American builder of performance cruising sailboats from Painesville, Ohio — six vacuum-infused models from the all-new Tartan 27 to the 16.3-metre Tartan 53, all with self-tacking jibs, carbon rigs and a choice of deep-fin, Beavertail or keel-centreboard underbodies, built in low volume by Ohio craftsmen.

The Tartan Yachts Range

Every model Tartan Yachts publishes, by length — where this one sits in the range.

1. Tartan 5353.5 ft
2. Tartan 4545.5 ft
3. Tartan 4039.5 ft
4. Tartan 3736.5 ft
5. Tartan 34· this model33.5 ft
6. Tartan 2727.8 ft
