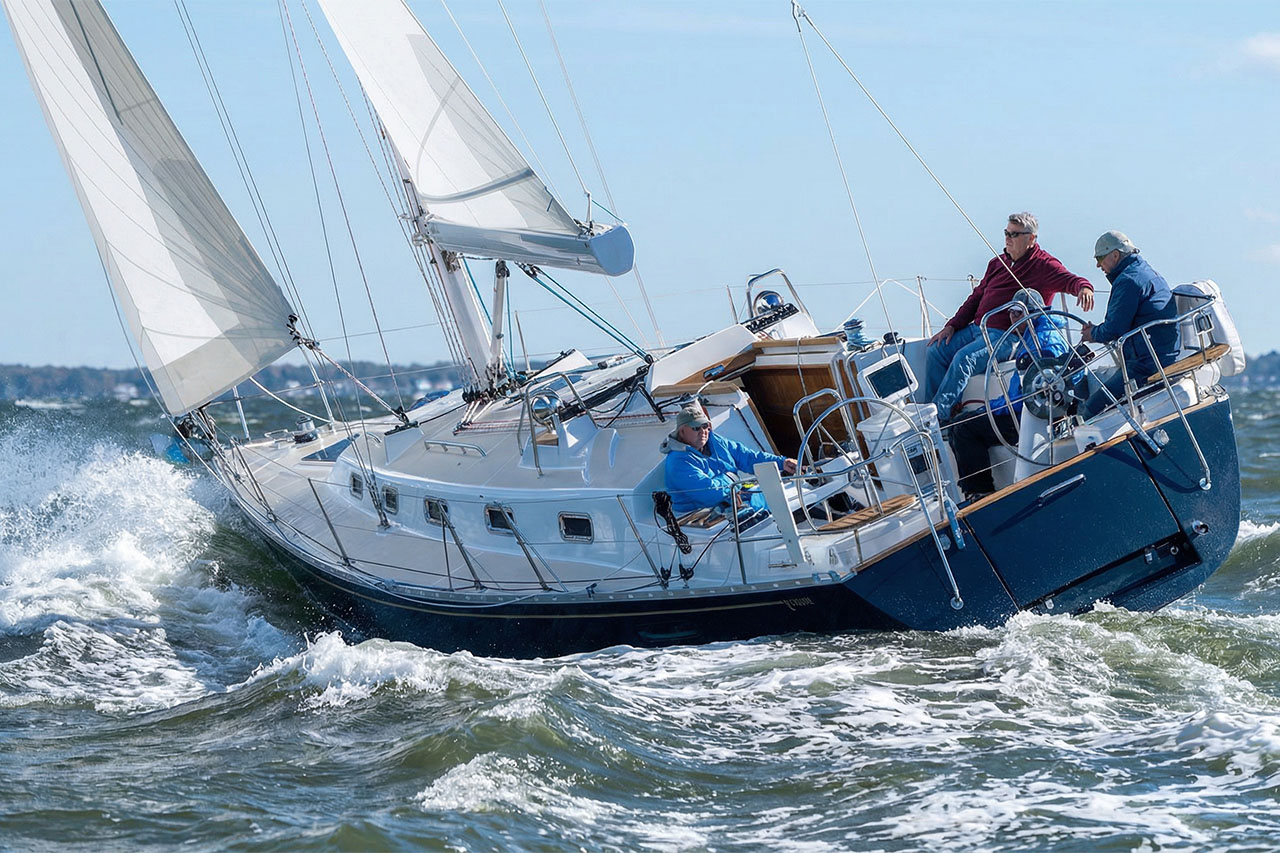

Tartan 37

Summary

Best Suited For

• Short-Handed

  From the published figures: LOA 11.13 m · upwind 59.8 m²

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

36.5 ft (11.13 m)

Hull length

—

LWL

31.1 ft (9.47 m)

Beam

12 ft (3.66 m)

Draft (min)

6.5 ft (1.98 m)

Draft (max)

—

Air draft

55 ft (16.76 m)

Displacement

12,875 lb (5,840 kg)

Ballast

4,251 lb (1,928 kg)

Cabins

2

Heads

1

Berths

6

Sail Plan

Main sail

—

Jib

—

Genoa

—

Sail area

644 ft² (59.8 m²)

Downwind sail area

892 ft² (82.9 m²)

Rig type

—

Engine and Tanks

Engine

30 hp

Engine count

1

Engine manufacturer

—

Propulsion type

saildrive

Fuel capacity

35 gal (132 L)

Fresh water capacity

60 gal (227 L)

Black water capacity

—

Construction

Mast material

—

Hull material

—

Deck material

—

Keel type

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Displacement (Beavertail)

13,375 lb

Ballast (Beavertail)

4,750 lb

Draft (Beavertail)

4 ft 11 in

Auxiliary

30 hp diesel saildrive

Draft (Keel/ Centerboard)

3 ft 11 in

Displacement (Keel/ Centerboard)

13,625 lb

Ballast (Keel/ Centerboard)

5,000 lb

Upwind sail area basis

main & self-tacking jib as printed

Unit basis

converted from the page's feet-inches, pounds, US gallons and square feet (the site prints no metric figures)

Keel basis

stored draft, displacement and ballast are the 'Deep Fin' keel

Cabins as printed

2

Downwind sail area basis

main & reacher as printed

Layouts & Drawings

1 drawing from the builder's page: general arrangement, sail plan, profile.

•

  365SAIL-PLAN — Tartan Yachts

About Tartan Yachts

Semi-custom

American builder of performance cruising sailboats from Painesville, Ohio — six vacuum-infused models from the all-new Tartan 27 to the 16.3-metre Tartan 53, all with self-tacking jibs, carbon rigs and a choice of deep-fin, Beavertail or keel-centreboard underbodies, built in low volume by Ohio craftsmen.

The Tartan Yachts Range

Every model Tartan Yachts publishes, by length — where this one sits in the range.

1. Tartan 5353.5 ft
2. Tartan 4545.5 ft
3. Tartan 4039.5 ft
4. Tartan 37· this model36.5 ft
5. Tartan 3433.5 ft
6. Tartan 2727.8 ft
