Hallberg-Rassy 26

Design

Designer

Olle Enderlein

Summary

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

—

Hull length

26.1 ft (7.95 m)

LWL

22 ft (6.7 m)

Beam

8.8 ft (2.68 m)

Draft (min)

4.6 ft (1.4 m)

Draft (max)

4.6 ft (1.4 m)

Air draft

39.4 ft (12 m)

Displacement

5,512 lb (2,500 kg)

Ballast

2,425 lb (1,100 kg)

Cabins

1

Heads

—

Berths

4

Sail Plan

Main sail

—

Jib

344 ft² (32 m²)

Genoa

400 ft² (37.2 m²)

Sail area

344 ft² (32 m²)

Downwind sail area

—

Rig type

—

Engine and Tanks

Engine

7.5 hp (Volvo Penta)

Engine count

1

Engine manufacturer

Volvo Penta

Propulsion type

—

Fuel capacity

11 gal (40 L)

Fresh water capacity

17 gal (65 L)

Black water capacity

—

Construction

Mast material

—

Hull material

—

Deck material

—

Keel type

Steel encapsulated in deep GRP bilge

Rudder type

—

Steering wheels

—

Builder's Own Figures

Headroom saloon

1.78 m

Sail area basis

sail area with jib as printed; with genoa 37.2 m2

Layouts & Drawings

1 drawing from the builder's page: general arrangement, sail plan, profile.

•

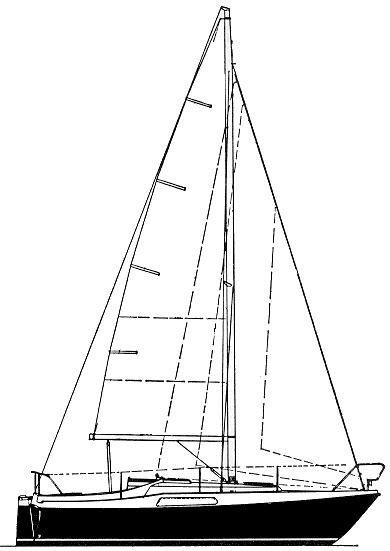

  Hr26 sail plan — Hallberg-Rassy

Brochure

About Hallberg-Rassy

Premium production

Swedish builder of bluewater cruising sailboats, based in Ellös and formed in 1972, when the Rassy yard took over that of Harry Hallberg (founded in 1943), and still 100% family-owned.

Hallberg-Rassy began as two yards. Harry Hallberg opened his own wooden-boat yard at Kungsviken on the island of Orust in 1943, built the Folkboat and the Kungskryssaren in series, and in 1963 was among the first to build sailing boats in GRP in series -- his P-28, most of its first hundred sold to the USA, was the yard's early export success. Christoph Rassy arrived from Bavaria in 1960, bought the old Hallberg yard at Kungsviken when Hallberg moved to Ellös in the mid-1960s, and in 1966 launched the Rasmus 35, a pioneering long-distance cruiser with a centre cockpit behind a windshield -- the arrangement the yard has kept ever since. When Harry Hallberg retired in 1972 the Rassy yard bought the Ellös premises and the two names merged into Hallberg-Rassy; the first new design under that name, the Monsun 31, became the bestseller with 904 built by 1982. Germán Frers has drawn every model since 1988. The yard is still in Ellös and still family-owned.

The Hallberg-Rassy Range

Every model Hallberg-Rassy publishes, by length — where this one sits in the range.

1. Hallberg-Rassy 310Discontinued30.9 ft
2. Hallberg-Rassy 312Discontinued30.9 ft
3. Hallberg-Rassy 94 KutterDiscontinued30.8 ft
4. Hallberg-Rassy Monsun 31Discontinued30.7 ft
5. Hallberg-Rassy P-28Discontinued29.7 ft
6. Hallberg-Rassy 29Discontinued29.2 ft
7. Hallberg-Rassy 26· this modelDiscontinued26.1 ft
8. Hallberg-Rassy Misil IDiscontinued24.1 ft
9. Hallberg-Rassy Misil IIDiscontinued24.1 ft
