Hallberg-Rassy Misil I

Name: Hallberg-Rassy Misil I
Brand: Hallberg-Rassy

1964–1972

Discontinued

1 / 5

Hallberg-Rassy

Design

Designer: Olle Enderlein

Summary

Sailing MonohullSail

Hull length: 24.1 ft
Beam: 7.5 ft
Draft: 3.9 ft
Displacement: 3,858 lb
Sail area (upwind): 307 ft²
Cabins: 1

* A standard reference image, not the actual boat — shown to help visualise this model's published dimensions.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Sail area / displacement

How much sail the boat carries for its weight — its power in light air.

20.0· Performance

How it is worked out

sail area (ft²) ÷ (displacement as ft³ of seawater)^⅔

published upwind sail area

Displacement / length

How heavy the boat is for its waterline length. Lower is lighter and quicker; higher is steadier and roomier.

220· Moderate

How it is worked out

displacement (long tons) ÷ (0.01 × waterline length in ft)³

Ballast ratio

The share of the weight carried in the keel — a rough guide to stiffness, though how deep that weight sits matters as much.

43· High

How it is worked out

ballast ÷ displacement × 100

Comfort ratio

Ted Brewer's measure of how gently a boat moves in a seaway. Higher means a slower, easier motion.

19.0· Light

How it is worked out

displacement (lb) ÷ (0.65 × (0.7 × LWL + 0.3 × LOA) × beam^1.333), lengths in ft

Capsize screening

A guide from the inquiry after the 1979 Fastnet race: below 2 was taken as suited to ocean passages. It ignores hull shape and where the ballast sits.

1.92· Below 2

How it is worked out

beam (ft) ÷ (displacement as ft³ of seawater)^⅓

Hull speed

Roughly the speed a displacement hull reaches before it has to climb its own bow wave.

6.0 kn

How it is worked out

1.34 × √(waterline length in ft), in knots

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Show the builders' own words

A figure marked with a quote mark was read from the builder's page. Open it for the exact line, the page and the date.

Dimensions

LOA: —
Hull length: 24.1 ft (7.35 m)
LWL: 19.8 ft (6.05 m)
Beam: 7.5 ft (2.3 m)
Draft (min): 3.9 ft (1.2 m)
Draft (max): 3.9 ft (1.2 m)
Air draft: —
Displacement: 3,858 lb (1,750 kg)
Ballast: 1,653 lb (750 kg)
Cabins: 1
Heads: —
Berths: —

Sail Plan

Main sail: 119 ft² (11.05 m²)
Jib: 226 ft² (21 m²)
Genoa: 188 ft² (17.5 m²)
Sail area: 307 ft² (28.55 m²)
Downwind sail area: —
Rig type: —

Engine and Tanks

Engine: —
Engine count: —
Engine manufacturer: —
Propulsion type: Outboard
Fuel capacity: —
Fresh water capacity: —
Black water capacity: —

Construction

Mast material: —
Hull material: —
Deck material: —
Keel type: —
Rudder type: —
Steering wheels: —

Builder's Own Figures

Years built: 1964-1972
Boats built: 120
Sail area basis: sail area with jib as printed; with genoa 28.55 m2

Figures read fromwww.hallberg-rassy.com/yachts/previous-models/hallberg-rassy-misil-i· Technical dataread 9/20/2026

Layouts & Drawings

2 drawings from the builder's page: general arrangement, sail plan, profile.

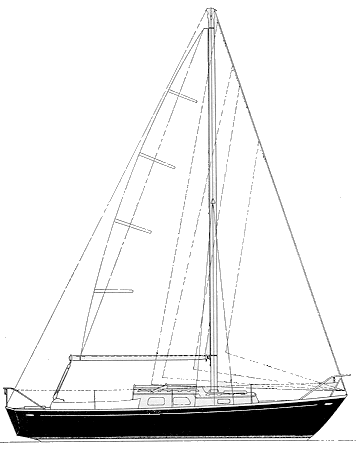

Misil i sail plan — Hallberg-Rassy

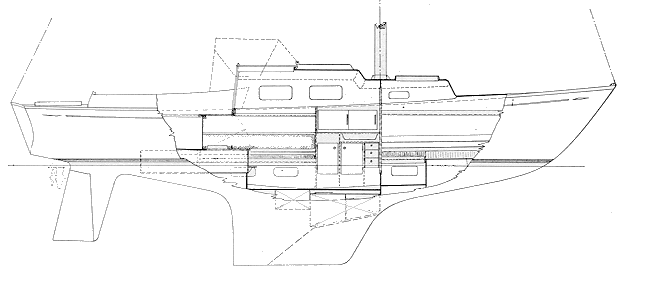

Misil i side view — Hallberg-Rassy

Brochure

Download the official Hallberg-Rassy Misil I brochure (PDF)

About Hallberg-Rassy

Premium production

Swedish builder of bluewater cruising sailboats, based in Ellös and formed in 1972, when the Rassy yard took over that of Harry Hallberg (founded in 1943), and still 100% family-owned.

Hallberg-Rassy began as two yards. Harry Hallberg opened his own wooden-boat yard at Kungsviken on the island of Orust in 1943, built the Folkboat and the Kungskryssaren in series, and in 1963 was among the first to build sailing boats in GRP in series -- his P-28, most of its first hundred sold to the USA, was the yard's early export success. Christoph Rassy arrived from Bavaria in 1960, bought the old Hallberg yard at Kungsviken when Hallberg moved to Ellös in the mid-1960s, and in 1966 launched the Rasmus 35, a pioneering long-distance cruiser with a centre cockpit behind a windshield -- the arrangement the yard has kept ever since. When Harry Hallberg retired in 1972 the Rassy yard bought the Ellös premises and the two names merged into Hallberg-Rassy; the first new design under that name, the Monsun 31, became the bestseller with 904 built by 1982. Germán Frers has drawn every model since 1988. The yard is still in Ellös and still family-owned.

Visit brand page
