Sail area / displacement
How much sail the boat carries for its weight — its power in light air.
- 26.2· Racing
How it is worked out
sail area (ft²) ÷ (displacement as ft³ of seawater)^⅔
published upwind sail area
1 / 2

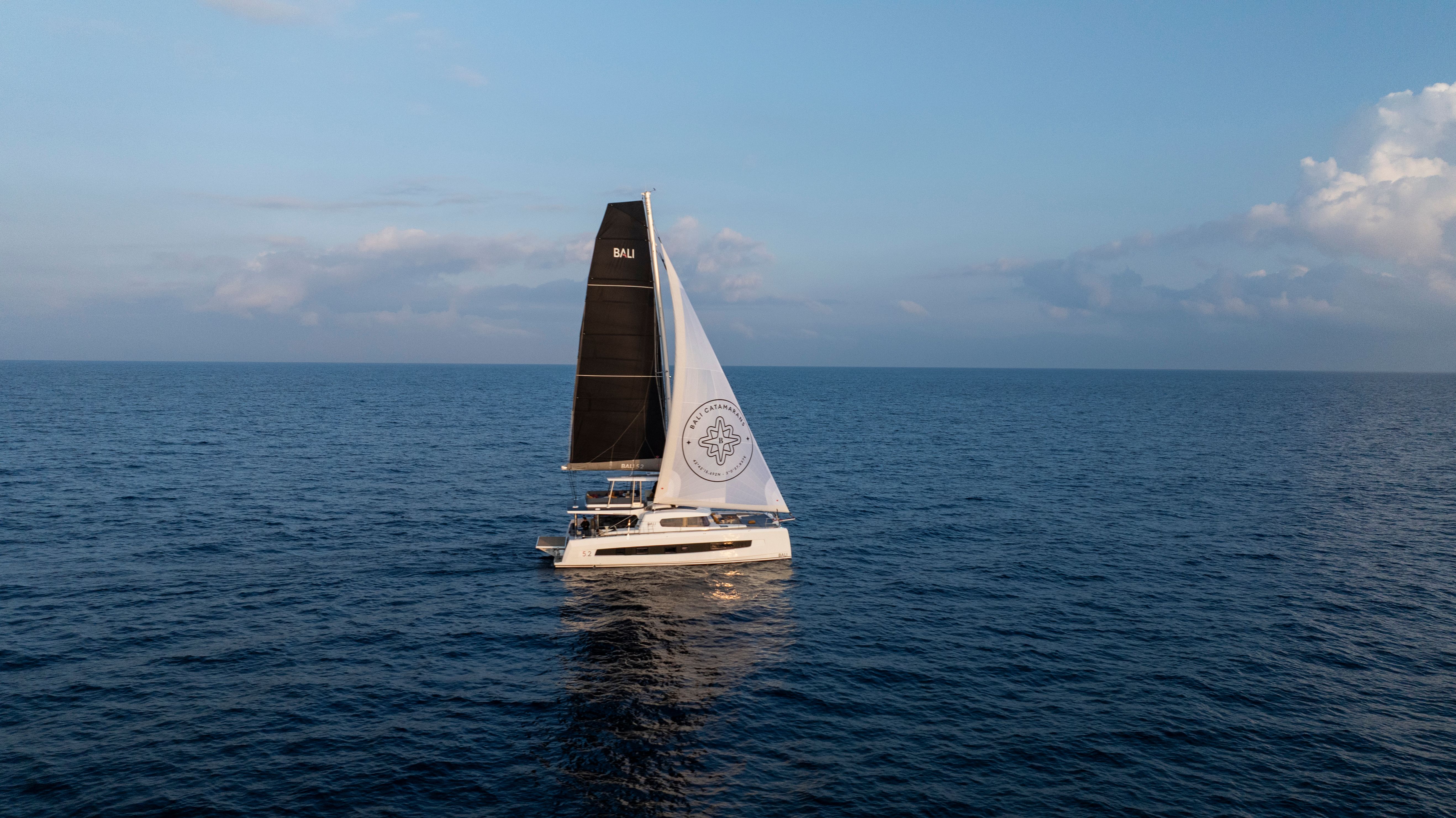

bali 52 pieds sailing in the mediteranean sea — Bali
Design
- Naval architect
- Xavier Faÿ
- Interior designer
- PIATON BERCO
Summary
- Length overall
- 53.8 ft
- Beam
- 26.8 ft
- Draft
- 4.6 ft
- Displacement
- 47,179 lb
- Sail area (upwind)
- 2,142 ft²
- Cabins
- 3–6
* A standard reference image, not the actual boat — shown to help visualise this model's published dimensions.
Best Suited For
- Bluewater Cruising
From the published figures: CE Category A · LOA 16.41 m
- Performance Cruising
From the published figures: SA/D 26.2 (upwind 199 m², displacement 21400 kg) · 6 cabins
- Liveaboard
From the published figures: LOA 16.41 m · 6 cabins
Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.
Sailing Ratios
Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.
Displacement / length
How heavy the boat is for its waterline length. Lower is lighter and quicker; higher is steadier and roomier.
- 166· Light
How it is worked out
displacement (long tons) ÷ (0.01 × waterline length in ft)³
Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.
Design Category
Certified CE design category A (Ocean): the wind and waves the EU Recreational Craft Directive says this boat is designed to take.
- D
Sheltered waters
- Wind
- up to Beaufort 4
- Waves
- up to 0.3 m
- C
Inshore
- Wind
- up to Beaufort 6
- Waves
- up to 2 m
- B
Offshore
- Wind
- up to Beaufort 8
- Waves
- up to 4 m
- AThis boat
Ocean
- Wind
- above Beaufort 8
- Waves
- above 4 m
Design limits set by the EU Recreational Craft Directive (2013/53/EU), in significant wave height. A category covers the conditions of those below it. It is the limit the boat was designed to, not a promise that it is safe in any conditions within it — that judgement stays with the skipper.
A figure marked with a quote mark was read from the builder's page. Open it for the exact line, the page and the date.
Dimensions
- LOA
- 53.8 ft (16.41 m)
- Hull length
- 50.6 ft (15.42 m)
- LWL
- 50.3 ft (15.32 m)
- Beam
- 26.8 ft (8.16 m)
- Draft (min)
- 4.6 ft (1.4 m)
- Draft (max)
- 4.6 ft (1.4 m)
- Air draft
- —
- Displacement
- 47,179 lb (21,400 kg)
- Ballast
- —
- Cabins
- 3–6
- Heads
- —
- Berths
- —
Sail Plan
- Main sail
- —
- Jib
- —
- Genoa
- —
- Sail area
- 2,142 ft² (199 m²)
- Downwind sail area
- —
- Rig type
- —
Engine and Tanks
- Engine
- —
- Engine count
- —
- Engine manufacturer
- —
- Propulsion type
- —
- Fuel capacity
- —
- Fresh water capacity
- —
- Black water capacity
- —
Construction
- Mast material
- —
- Hull material
- —
- Deck material
- —
- Keel type
- —
- Rudder type
- —
- Steering wheels
- —
Builder's Own Figures
- Displacement at maximum load
- 67.72 lbs
- Surface utilisable
- 115.4 m²
- Déplacement en charge maxi
- 30.7 t
- Surface de voile standard
- 146 m²
- CE persons
- category A 14; category B 16; category C 24; category D 40 (certified persons, not guests)
- Sail area basis
- maximum upwind sail area 2141 sq ft -> 198.9 m2; standard sail area 1571 sq ft
- Unit basis
- the page prints imperial units; converted (ft/in -> m, lbs -> kg, sq ft -> m2)
- Displacement basis
- empty weight 47.27 lbs as printed -> 21 kg
Figures read fromwww.bali-catamarans.com/fr/catamarans/bali-5-2· Dimensionsread 9/20/2026
