Sail area / displacement
How much sail the boat carries for its weight — its power in light air.
- 24.3· Racing
How it is worked out
sail area (ft²) ÷ (displacement as ft³ of seawater)^⅔
published upwind sail area
1 / 2

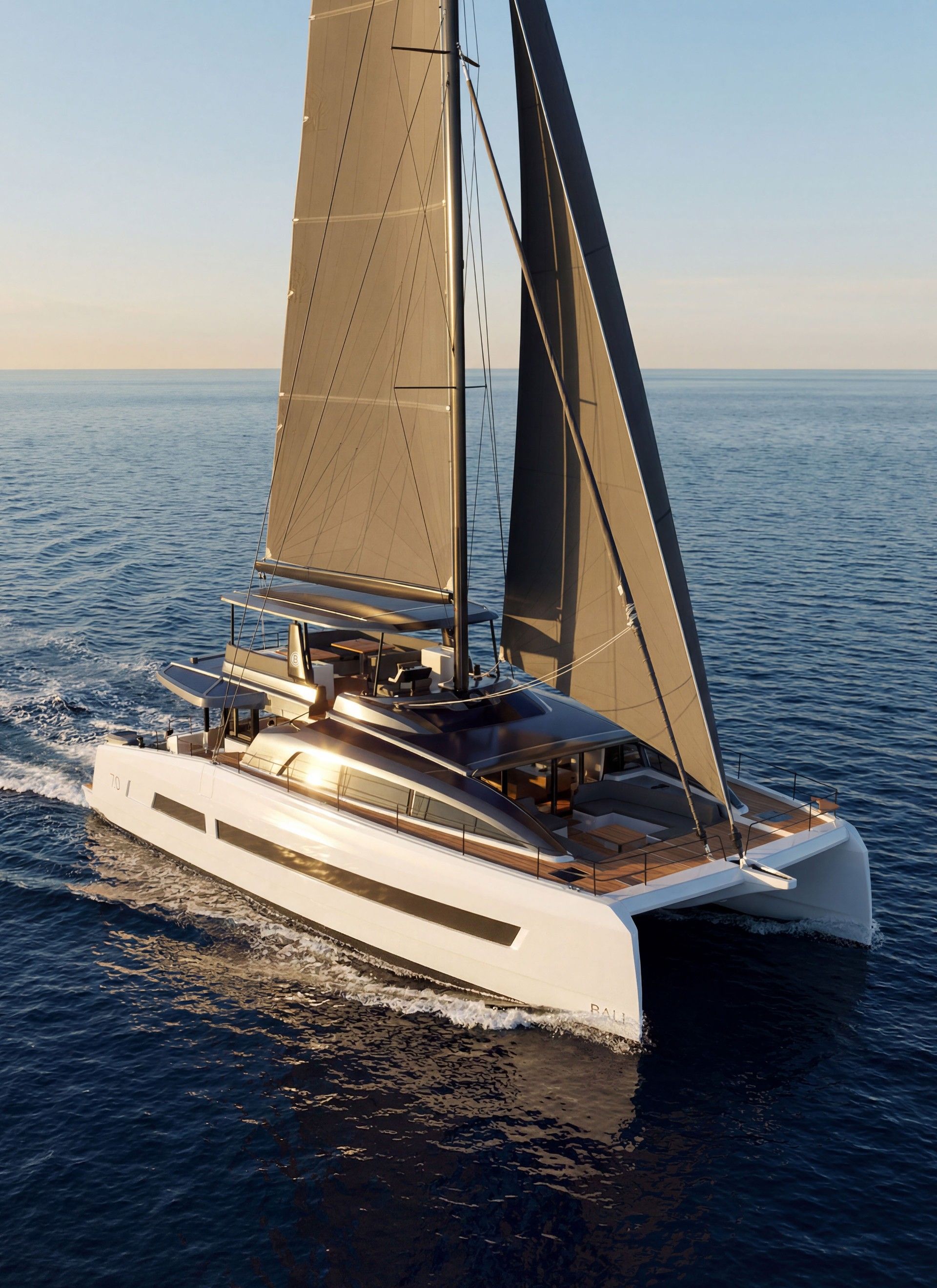

Catamaran Bali 7.0 en navigation sous voile, yacht catamaran de luxe performant — Bali
Design
- Naval architect
- Xavier Faÿ
- Interior designer
- PIATON BERCO
Summary
Sailing CatamaranSail
- Length overall
- 73.9 ft
- Beam
- 33.9 ft
- Draft
- 6.1 ft
- Displacement
- 88,185 lb
- Sail area (upwind)
- 3,014 ft²
* A standard reference image, not the actual boat — shown to help visualise this model's published dimensions.
Sailing Ratios
Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.
Displacement / length
How heavy the boat is for its waterline length. Lower is lighter and quicker; higher is steadier and roomier.
- not published: waterline length
How it is worked out
displacement (long tons) ÷ (0.01 × waterline length in ft)³
Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.
A figure marked with a quote mark was read from the builder's page. Open it for the exact line, the page and the date.
Dimensions
- LOA
- 73.9 ft (22.53 m)
- Hull length
- 71.6 ft (21.83 m)
- LWL
- —
- Beam
- 33.9 ft (10.32 m)
- Draft (min)
- 6.1 ft (1.85 m)
- Draft (max)
- 6.1 ft (1.85 m)
- Air draft
- —
- Displacement
- 88,185 lb (40,000 kg)
- Ballast
- —
- Cabins
- —
- Heads
- —
- Berths
- —
Sail Plan
- Main sail
- —
- Jib
- —
- Genoa
- —
- Sail area
- 3,014 ft² (280 m²)
- Downwind sail area
- —
- Rig type
- —
Engine and Tanks
- Engine
- —
- Engine count
- —
- Engine manufacturer
- —
- Propulsion type
- —
- Fuel capacity
- —
- Fresh water capacity
- —
- Black water capacity
- —
Construction
- Mast material
- —
- Hull material
- —
- Deck material
- —
- Keel type
- —
- Rudder type
- —
- Steering wheels
- —
Builder's Own Figures
- Déplacement en charge maxi
- 50 t
- Displacement at maximum load
- 110.23 lbs
- Surface utilisable
- 230 m²
- Displacement basis
- empty weight 88.19 lbs as printed -> 40 kg
- Unit basis
- the page prints imperial units; converted (ft/in -> m, lbs -> kg, sq ft -> m2)
Figures read fromwww.bali-catamarans.com/fr/catamarans/bali-7-0· Dimensionsread 9/20/2026
About Bali
Volume production
French catamaran brand founded in 2014 by Olivier Poncin, designed by Catana Group's Research and Innovation department, known for its opening bow door concept.
Visit brand pageThe Bali Range
Every model Bali publishes, by length — where this one sits in the range.
