Sail area / displacement
How much sail the boat carries for its weight — its power in light air.
- 19.0· Cruiser
How it is worked out
sail area (ft²) ÷ (displacement as ft³ of seawater)^⅔
published upwind sail area
1 / 10

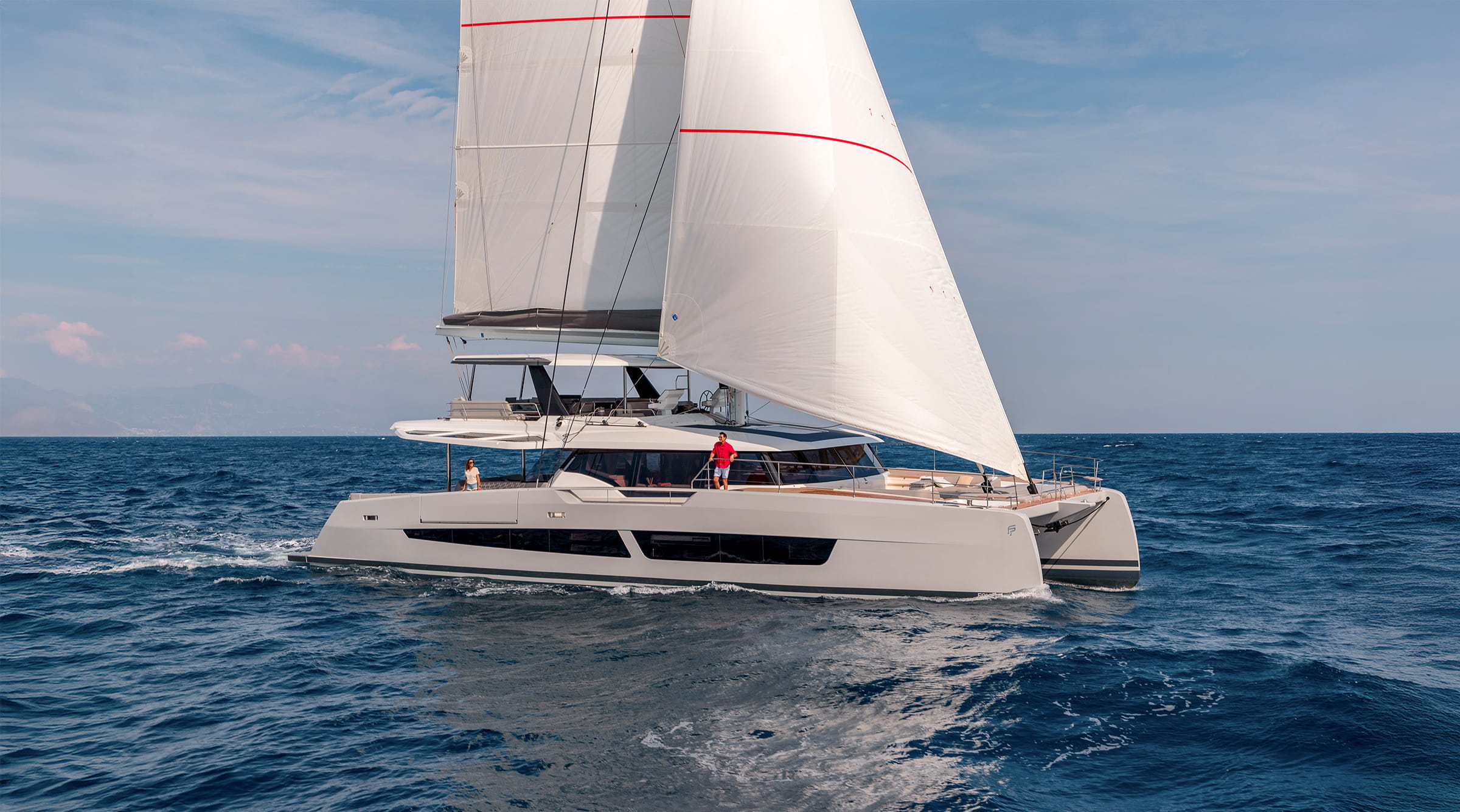

01_FPY80S_Header — Fountaine Pajot
Summary
Sailing CatamaranSail
- Length overall
- 78.7 ft
- Beam
- 36.4 ft
- Draft
- 6.5 ft
- Displacement
- 171,299 lb
- Sail area (upwind)
- 3,660 ft²
- Cabins
- 4
- Berths
- 8–12
* A standard reference image, not the actual boat — shown to help visualise this model's published dimensions.
Sailing Ratios
Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.
Displacement / length
How heavy the boat is for its waterline length. Lower is lighter and quicker; higher is steadier and roomier.
- not published: waterline length
How it is worked out
displacement (long tons) ÷ (0.01 × waterline length in ft)³
Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.
Tanks
What the builder publishes about how fast, how strong and how much the boat carries.
Fuel and water on one scale: a tank twice the height holds twice as much.
- Fuel634 galWater423 gal
35 gal of water per berth
A figure marked with a quote mark was read from the builder's page. Open it for the exact line, the page and the date.
Dimensions
- LOA
- 78.7 ft (23.99 m)
- Hull length
- 78.7 ft (23.99 m)
- LWL
- —
- Beam
- 36.4 ft (11.09 m)
- Draft (min)
- 6.5 ft (1.99 m)
- Draft (max)
- —
- Air draft
- —
- Displacement
- 171,299 lb (77,700 kg)
- Ballast
- —
- Cabins
- 4
- Heads
- 7–8
- Berths
- 8–12
Sail Plan
- Main sail
- —
- Jib
- —
- Genoa
- —
- Sail area
- 3,660 ft² (340 m²)
- Downwind sail area
- 3,229 ft² (300 m²)
- Rig type
- —
Engine and Tanks
- Engine
- 270–380 hp
- Engine count
- 2
- Engine manufacturer
- —
- Propulsion type
- —
- Fuel capacity
- 634 gal (2,400 L)
- Fresh water capacity
- 423 gal (1,600 L)
- Black water capacity
- —
Construction
- Mast material
- —
- Hull material
- —
- Deck material
- —
- Keel type
- —
- Rudder type
- —
- Steering wheels
- —
Builder's Own Figures
- Living area Owner's cabin
- 33 m2
- Number of Pax Cat D
- 30
- Number of Pax Cat B
- 16
- Fly living area
- 40 m2
- Living space Forward cockpit area/sunpad
- 38 m2
- Main deck area
- 123 m2
- Former name
- Thira 80 — the model's own page is titled FPY 80S; the builder's sailing-catamaran listing and the group's 2025 report still use Thira 80
