FPY 59S

Summary

Best Suited For

• Liveaboard

  From the published figures: LOA 18.78 m · 6 cabins · 6 heads · fresh water 1150 L

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

61.6 ft (18.78 m)

Hull length

61.6 ft (18.78 m)

LWL

—

Beam

31 ft (9.46 m)

Draft (min)

5.4 ft (1.65 m)

Draft (max)

—

Air draft

—

Displacement

62,170 lb (28,200 kg)

Ballast

—

Cabins

3–6

Heads

3–6

Berths

8–12

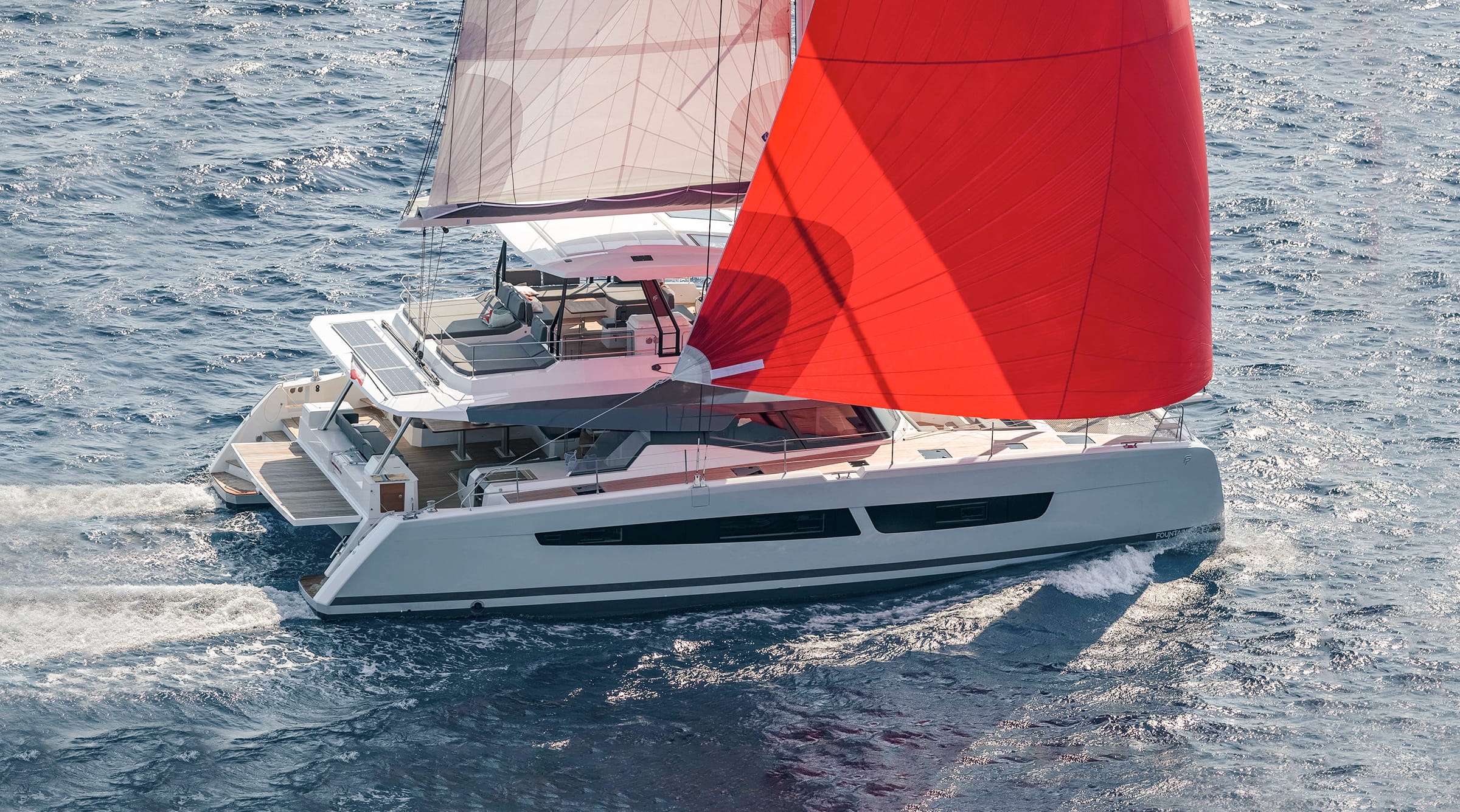

Sail Plan

Main sail

—

Jib

—

Genoa

—

Sail area

2,196 ft² (204 m²)

Downwind sail area

1,830 ft² (170 m²)

Rig type

—

Engine and Tanks

Engine

110–150 hp

Engine count

2

Engine manufacturer

—

Propulsion type

Direct Shaft

Fuel capacity

317 gal (1,200 L)

Fresh water capacity

304 gal (1,150 L)

Black water capacity

—

Construction

Mast material

—

Hull material

—

Deck material

—

Keel type

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

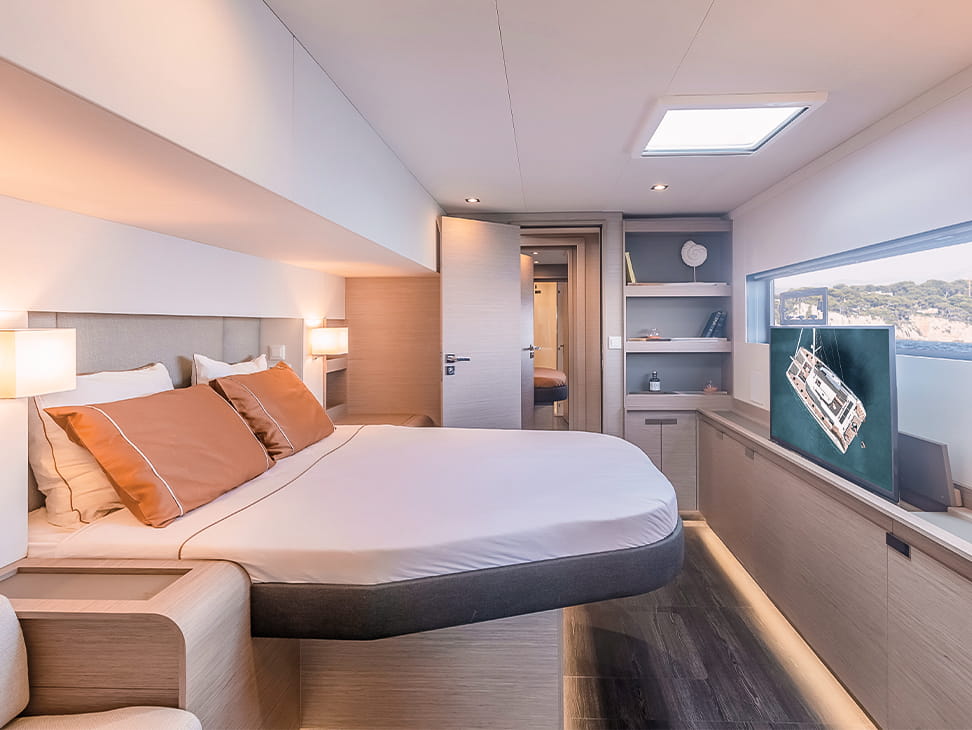

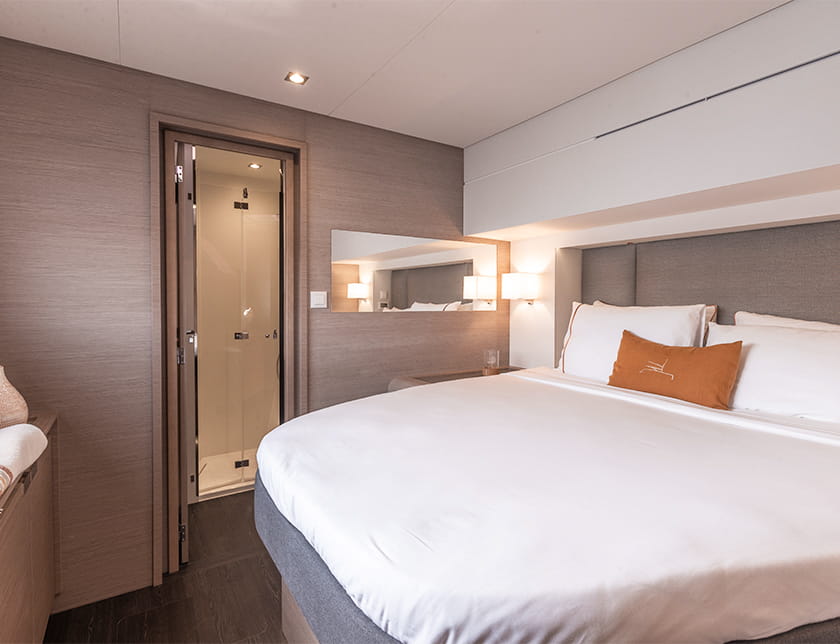

Living area Owner's cabin

17 m2

Overall length (text)

61.6 feet ("With an overall length of 61.6 feet", page text read before the page moved to the bot-refusing yachts site), equal to the hull length 18.78 m

Number of Pax Cat D

15

Fly living area

29.4 m2

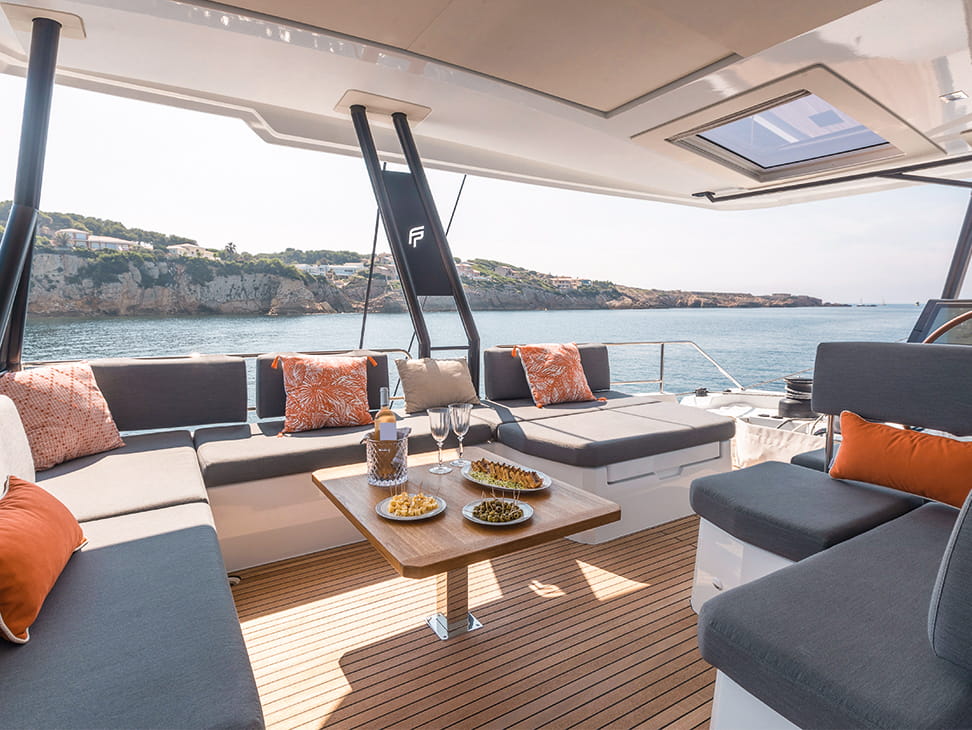

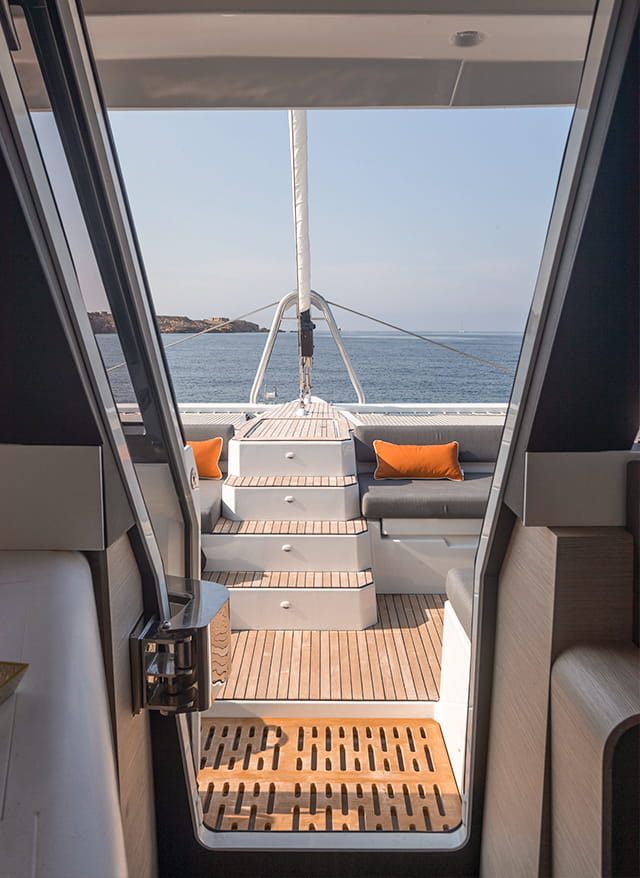

Living space Forward cockpit area/sunpad

9 m2

Main deck area

59 m2

Former name

Samana 59 — the model's own page is titled FPY 59S; the builder's sailing-catamaran listing still uses Samana 59

Brochure

About Fountaine Pajot

Volume production

French builder of luxury sailing and power catamarans, founded in 1976 near La Rochelle and now part of a group that also owns Dufour Yachts.

Fountaine Pajot marks fifty years in 2026, and the way it has chosen to mark them says something about the yard: rather than write the anniversary itself, it asked owners for their photographs, their videos and their memories aboard, to be gathered into a book on the brand's fifty-year history and sent to all of them. The year is given over to open days at La Rochelle, where the yard is, and to owners' evenings at the boat shows.

The Fountaine Pajot Range

Every model Fountaine Pajot publishes, by length — where this one sits in the range.

1. FPY 120S116.5 ft
2. FPY 80S78.7 ft
3. FPY 70S72.2 ft
4. FPY 59S· this model61.6 ft
5. FP5556.9 ft
6. FP5152.2 ft
7. FP4847.3 ft
8. FP4443.5 ft
9. FP4139.7 ft
