Sail area / displacement
How much sail the boat carries for its weight — its power in light air.
- 22.7· Performance
How it is worked out
sail area (ft²) ÷ (displacement as ft³ of seawater)^⅔
published upwind sail area
1 / 10

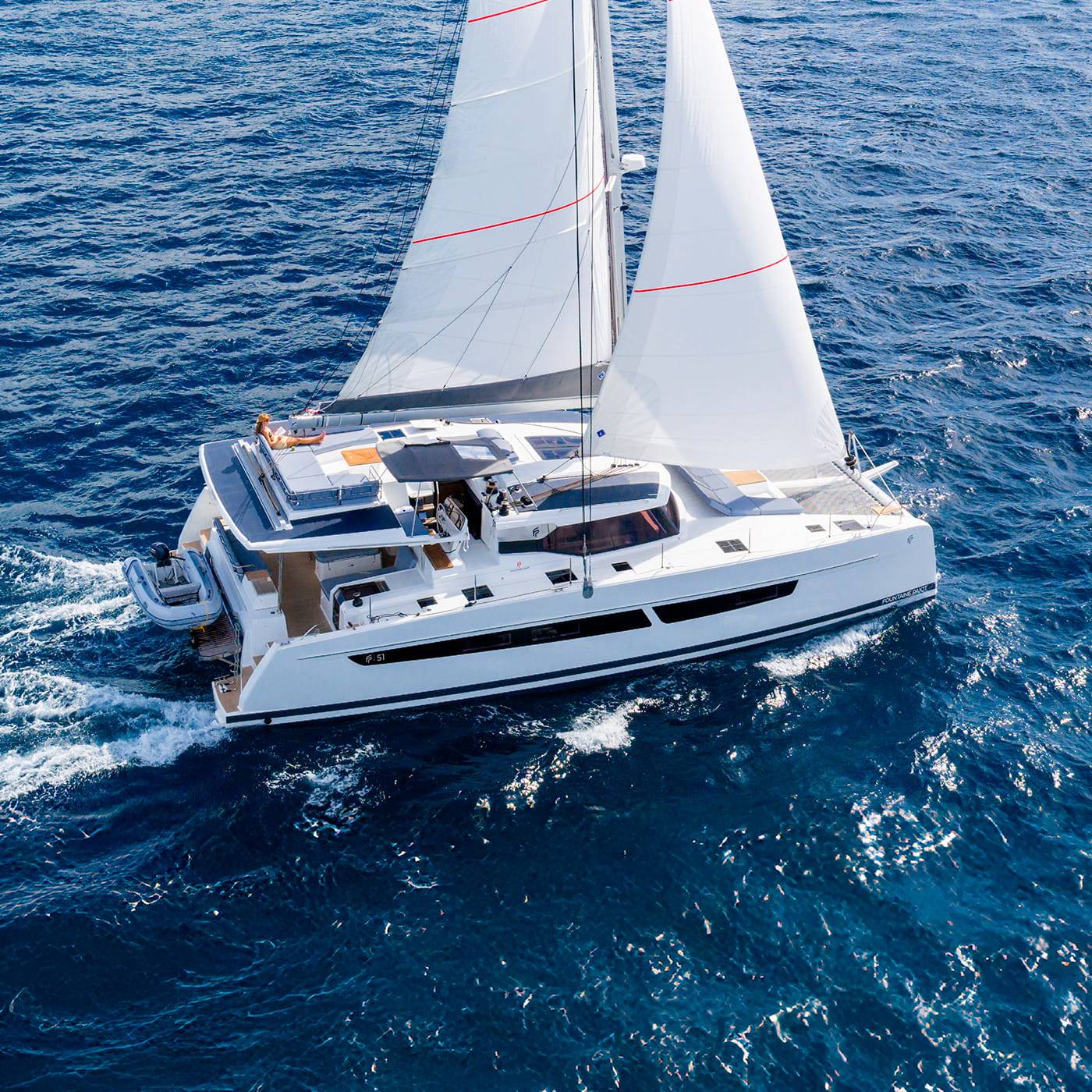

Fountaine-Pajot-Sailing-Catamarans-FP51-Header — Fountaine Pajot
Summary
Sailing CatamaranSail
- Hull length
- 52.2 ft
- Beam
- 26.5 ft
- Draft
- 5.2 ft
- Displacement
- 39,904 lb
- Sail area (upwind)
- 1,658 ft²
- Cabins
- 6
* A standard reference image, not the actual boat — shown to help visualise this model's published dimensions.
Best Suited For
- Liveaboard
From the published figures: hull length 15.91 m · 6 cabins · fresh water 900 L
Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.
Sailing Ratios
Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.
Displacement / length
How heavy the boat is for its waterline length. Lower is lighter and quicker; higher is steadier and roomier.
- not published: waterline length
How it is worked out
displacement (long tons) ÷ (0.01 × waterline length in ft)³
Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.
Tanks
What the builder publishes about how fast, how strong and how much the boat carries.
Fuel and water on one scale: a tank twice the height holds twice as much.
- Fuel238 galWater238 gal
A figure marked with a quote mark was read from the builder's page. Open it for the exact line, the page and the date.
Dimensions
- LOA
- —
- Hull length
- 52.2 ft (15.91 m)
- LWL
- —
- Beam
- 26.5 ft (8.08 m)
- Draft (min)
- 5.2 ft (1.58 m)
- Draft (max)
- 5.2 ft (1.58 m)
- Air draft
- —
- Displacement
- 39,904 lb (18,100 kg)
- Ballast
- —
- Cabins
- 6
- Heads
- —
- Berths
- —
Sail Plan
- Main sail
- 1,023 ft² (95 m²)
- Jib
- —
- Genoa
- 635 ft² (59 m²)
- Sail area
- 1,658 ft² (154 m²)
- Downwind sail area
- 1,292 ft² (120 m²)
- Rig type
- —
Engine and Tanks
- Engine
- 60–75 hp
- Engine count
- 2
- Engine manufacturer
- —
- Propulsion type
- —
- Fuel capacity
- 238 gal (900 L)
- Fresh water capacity
- 238 gal (900 L)
- Black water capacity
- —
Construction
- Mast material
- —
- Hull material
- —
- Deck material
- —
- Keel type
- —
- Rudder type
- —
- Steering wheels
- —
Builder's Own Figures

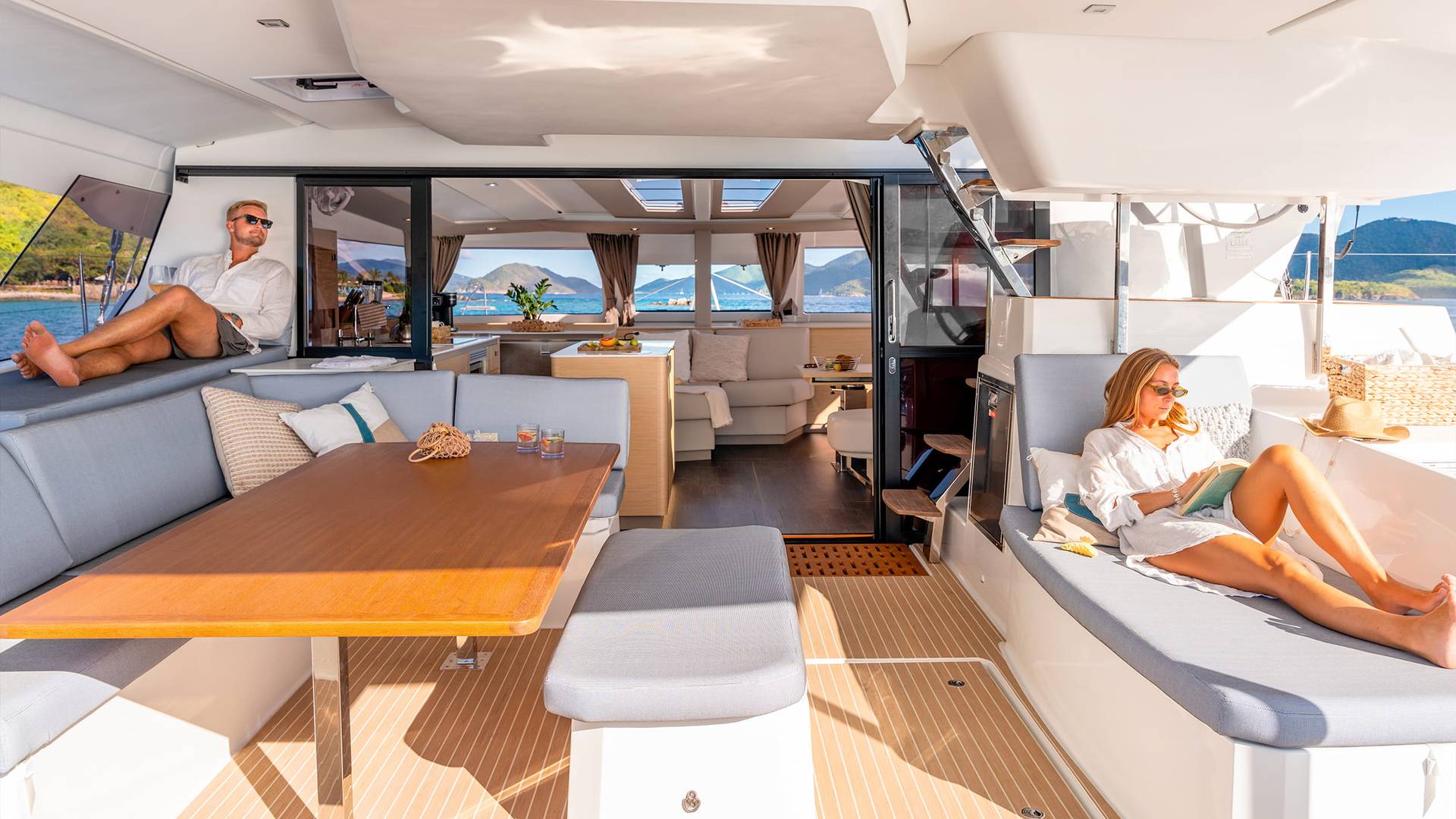

- Cockpit Living Area
- 48 m2
- Living space Forward cockpit area/sunpad
- 8.2 m2
- Living area Owner's cabin
- 17.7 m2
- Number of Pax Cat D
- 30
- Living area Espace Lounge Fly
- 16.2 m2
- Number of Pax Cat A
- 14
