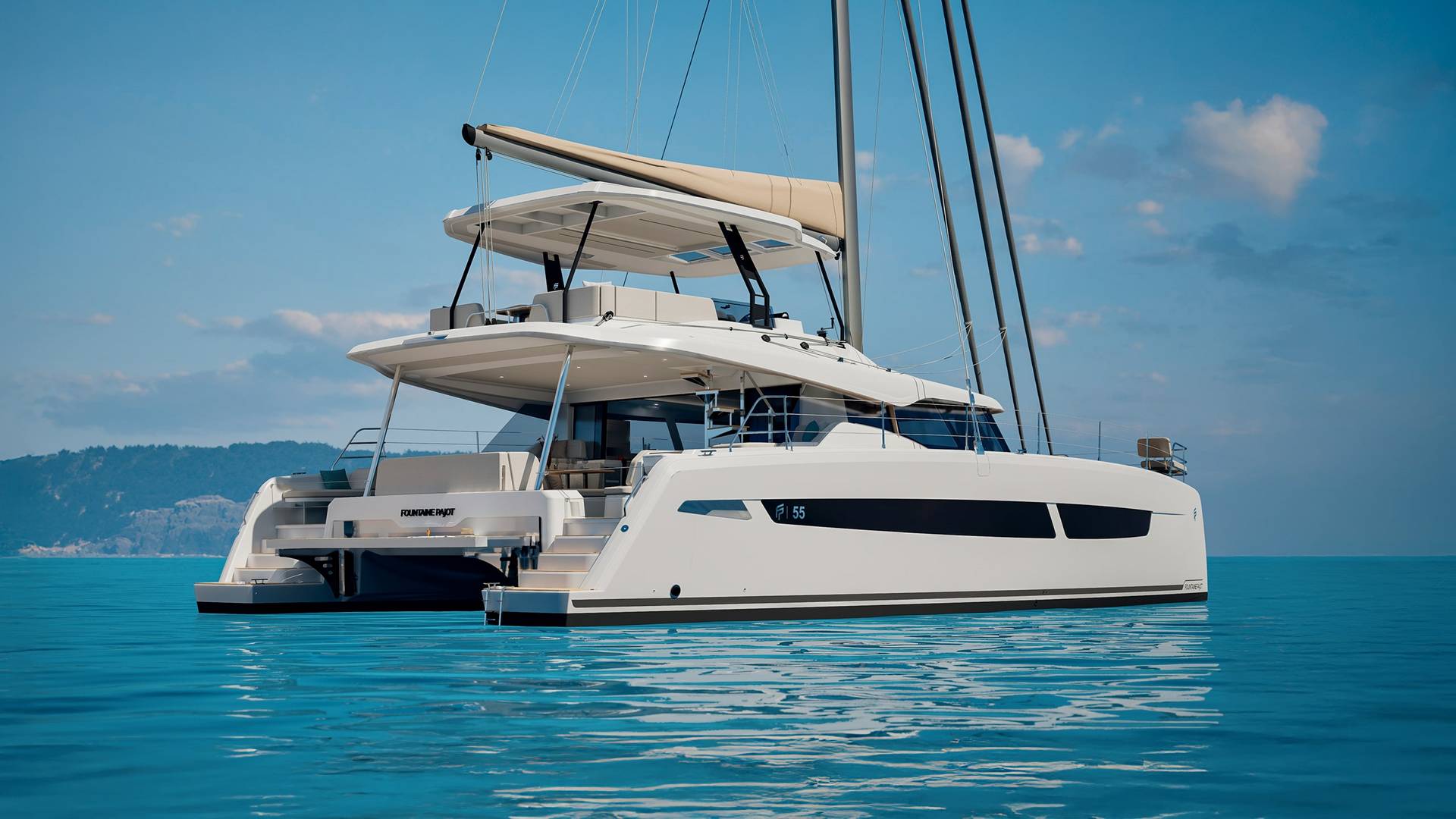

FP55

Summary

Best Suited For

• Liveaboard

  From the published figures: hull length 17.35 m · 6 cabins · 6 heads · fresh water 800 L

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

—

Hull length

56.9 ft (17.35 m)

LWL

—

Beam

28.9 ft (8.8 m)

Draft (min)

6.1 ft (1.85 m)

Draft (max)

—

Air draft

—

Displacement

61,068 lb (27,700 kg)

Ballast

—

Cabins

4–6

Heads

4–6

Berths

8–12

Sail Plan

Main sail

1,184 ft² (110 m²)

Jib

—

Genoa

710 ft² (66 m²)

Sail area

1,894 ft² (176 m²)

Downwind sail area

1,572 ft² (146 m²)

Rig type

—

Engine and Tanks

Engine

80–110 hp

Engine count

2

Engine manufacturer

—

Propulsion type

—

Fuel capacity

322 gal (1,220 L)

Fresh water capacity

211 gal (800 L)

Black water capacity

—

Construction

Mast material

—

Hull material

GRP (resin infusion composite)

Deck material

—

Keel type

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

ODSea+ motorization

2x50 kW

ODSea+ Inverter

1x6 kW

Hull length

17.35 m / 56.92 ft (catamarans-fountaine-pajot.com/en/sailing-catamarans/catamaran-fp55/, re-read 2026-10-07; was stored as 16.98 m)

ODSea+ Generator

1x38 kW

Living area Espace Lounge Fly

22 m2

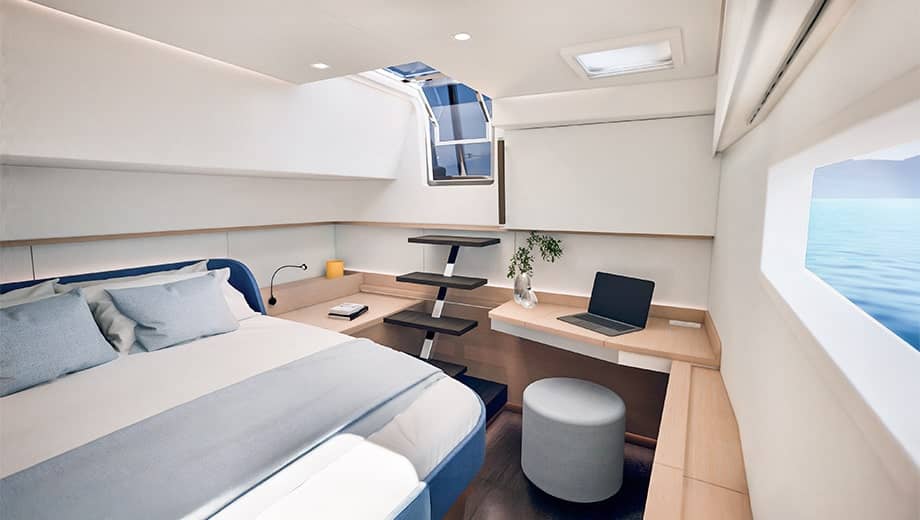

Living area Owner's cabin

18 m2

Number of Pax Cat D

28

ODSea+ Battery Park

38 kWh

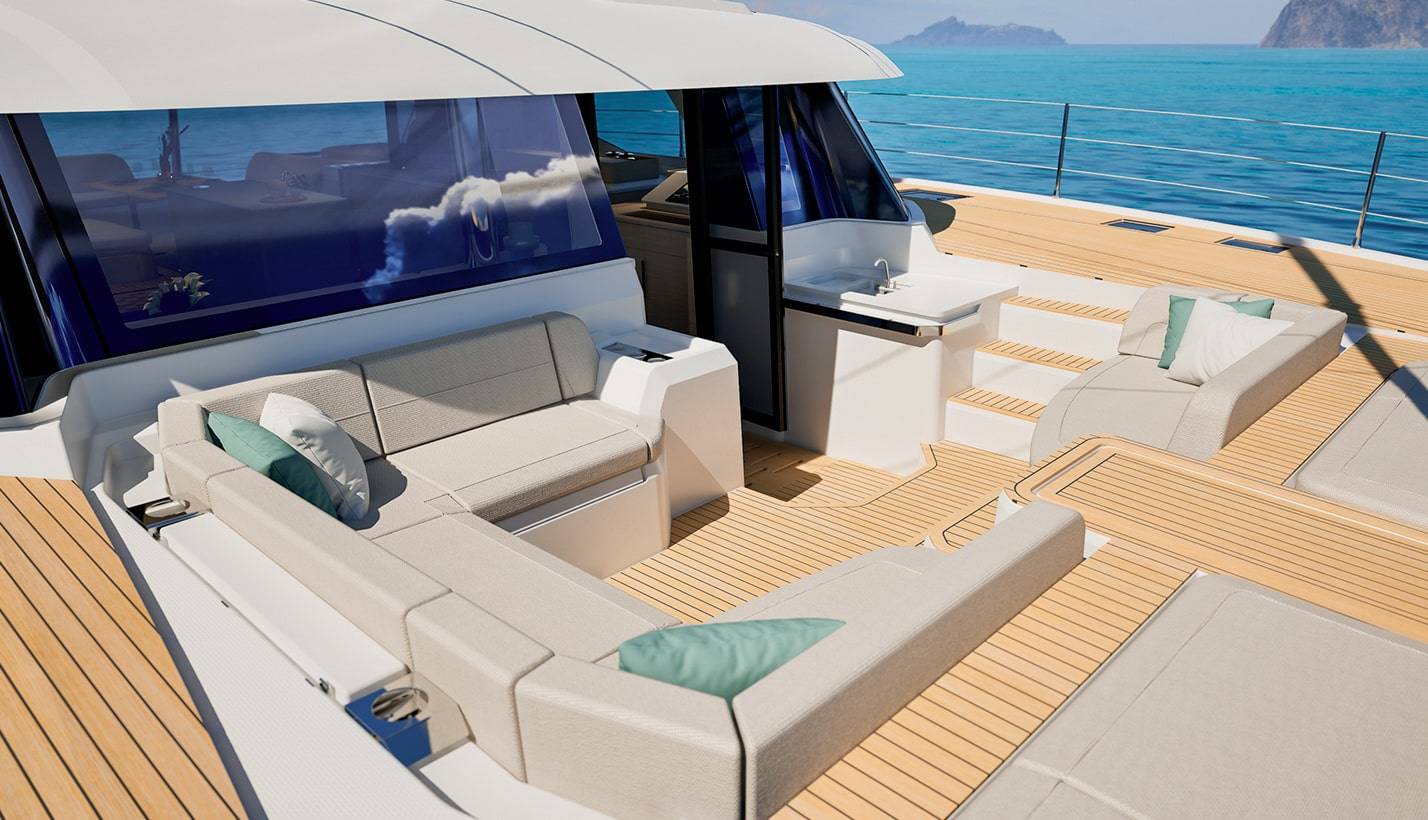

Living space Forward cockpit area/sunpad

23 m2

Number of Pax Cat A

13

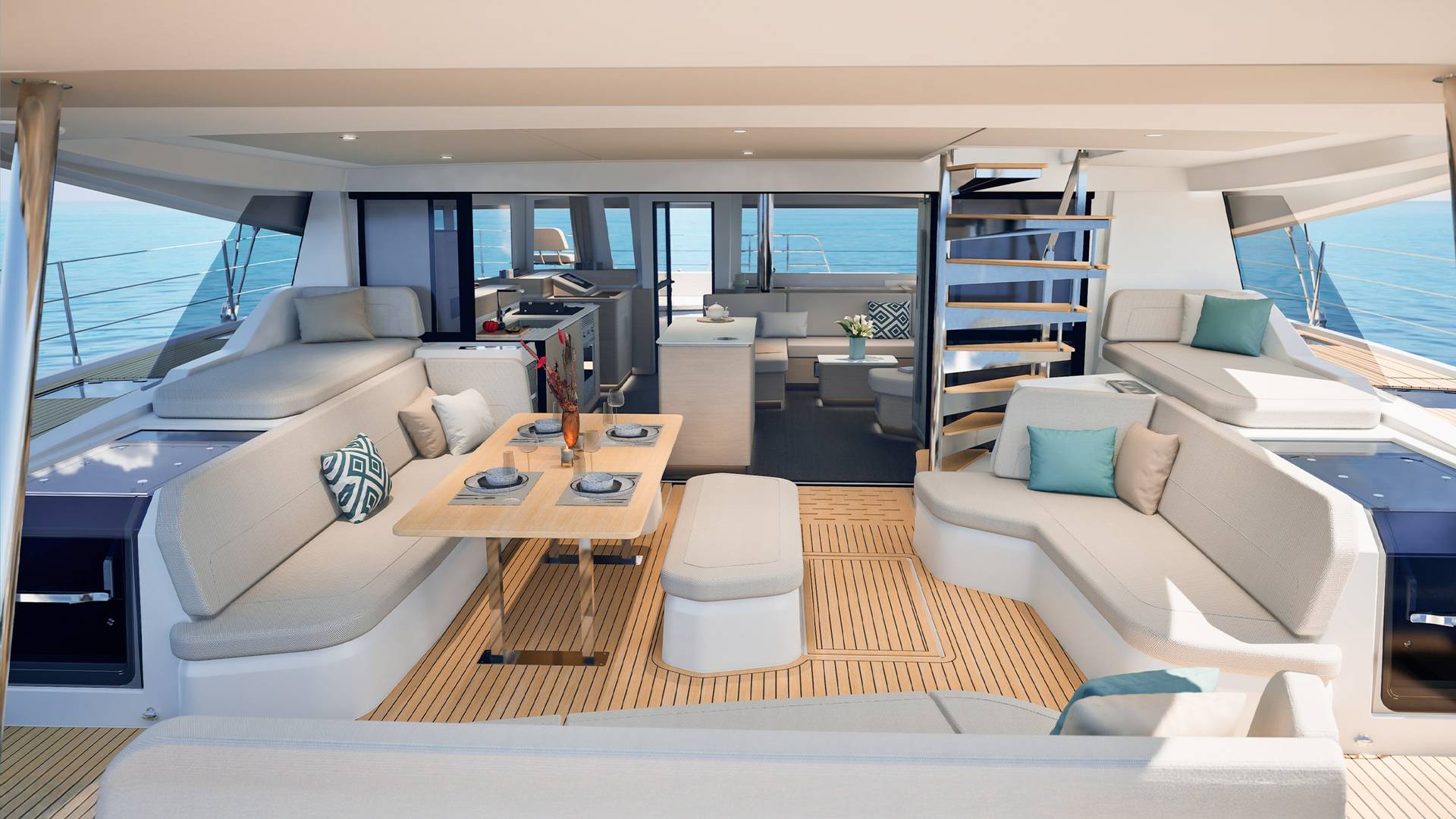

Cockpit Living Area

52 m2

Brochure

Films of this model from the builder's official YouTube channel (Fountaine Pajot). They are the builder's own; the figures above are the reference.

•

  Inside the New FP55: A complete flybridge catamaran analysis #NauticBroadcast

  Fountaine Pajot · 5/21/2026

Videos whose title names the FP55, from the channel the builder's site links; last checked 9/30/2026. Playing one loads YouTube's player, which may set cookies.

About Fountaine Pajot

Volume production

French builder of luxury sailing and power catamarans, founded in 1976 near La Rochelle and now part of a group that also owns Dufour Yachts.

Fountaine Pajot marks fifty years in 2026, and the way it has chosen to mark them says something about the yard: rather than write the anniversary itself, it asked owners for their photographs, their videos and their memories aboard, to be gathered into a book on the brand's fifty-year history and sent to all of them. The year is given over to open days at La Rochelle, where the yard is, and to owners' evenings at the boat shows.

The Fountaine Pajot Range

Every model Fountaine Pajot publishes, by length — where this one sits in the range.

1. FPY 120S116.5 ft
2. FPY 80S78.7 ft
3. FPY 70S72.2 ft
4. FPY 59S61.6 ft
5. FP55· this model56.9 ft
6. FP5152.2 ft
7. FP4847.3 ft
8. FP4443.5 ft
9. FP4139.7 ft
