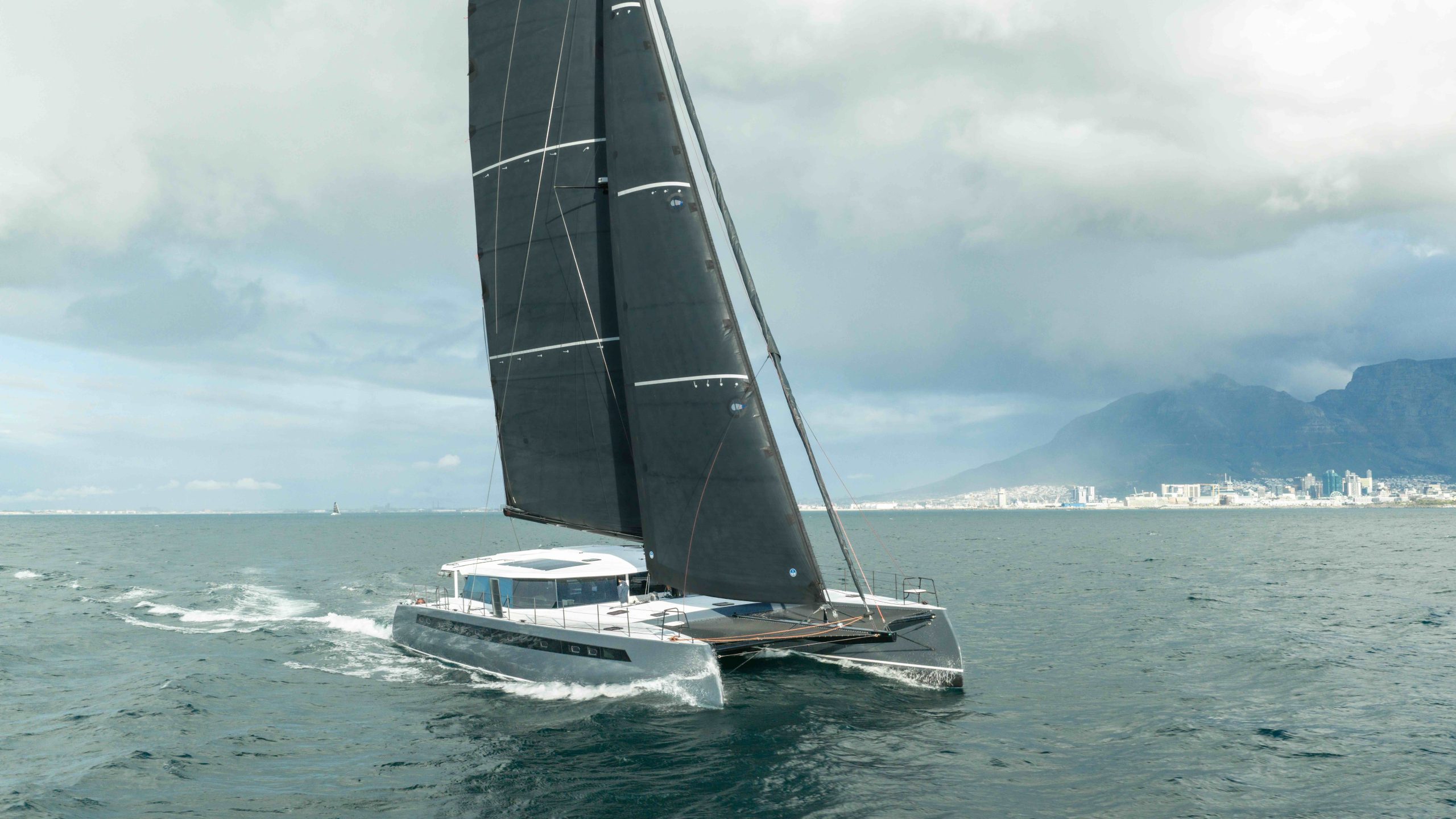

Balance 750

Design

Designer

Phillip Berman & Anton du Toit

Summary

Best Suited For

• Performance Cruising

  From the published figures: SA/D 33.8 (upwind 341.6 m², displacement 33000 kg) · 6 cabins

• Liveaboard

  From the published figures: LOA 23.19 m · 6 cabins · fresh water 1500 L

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

76.1 ft (23.19 m)

Hull length

—

LWL

76 ft (23.18 m)

Beam

37.2 ft (11.34 m)

Draft (min)

6.3 ft (1.92 m)

Draft (max)

12.7 ft (3.86 m)

Air draft

108.3 ft (33 m)

Displacement

72,752 lb (33,000 kg)

Ballast

—

Cabins

3–6

Heads

—

Berths

—

Sail Plan

Main sail

2,465 ft² (229 m²)

Jib

1,082 ft² (100.5 m²)

Genoa

—

Sail area

3,677 ft² (341.6 m²)

Downwind sail area

5,135 ft² (477.1 m²)

Rig type

—

Engine and Tanks

Engine

—

Engine count

—

Engine manufacturer

Yanmar

Propulsion type

saildrive

Fuel capacity

528 gal (2,000 L)

Fresh water capacity

396 gal (1,500 L)

Black water capacity

—

Construction

Mast material

—

Hull material

foam core epoxy, E-glass and carbon composite

Deck material

—

Keel type

daggerboards

Rudder type

—

Steering wheels

—

Builder's Own Figures

Payload Capacity (750 CX)

6000 kg

Black Water Capacity

250 ltrs

Maximum Load Displacement

41500 kg

Bridgedeck Clearance

1.12 m

Davit Load

500 kgs per arm

Payload Capacity (750 Ultra Velo)

7000 kg

Max Weight Tender w/OB

400 kgs

Displacement (Dependent on Model & Fit Out)

33-36 t (Ultra Velo 33-34 t, CX 35-36 t)

Max Length Tender

5.05 m

Brochure

About Balance Catamarans

Semi-custom

American-founded builder of performance sailing catamarans, established in 2013 by Phillip Berman, with boats built by partner yards in Saint Francis and Cape Town, South Africa.

The Balance Catamarans Range

Every model Balance Catamarans publishes, by length — where this one sits in the range.

1. Balance 750· this model76.1 ft
2. Balance 58058.3 ft
3. Balance 54054.5 ft
4. Balance 50250 ft
5. Balance 46446.6 ft
