Grande 26M

Design

Designer

Alberto Mancini

Naval architect

P.L. AUSONIO Naval Architecture & Azimut Yachts R&D Dept.

Interior designer

Achille Salvagni Architetti | Yachtique Interiors

Summary

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

86.5 ft (26.36 m)

Hull length

—

LWL

—

Beam

20.7 ft (6.3 m)

Draft (min)

6.7 ft (2.05 m)

Draft (max)

6.7 ft (2.05 m)

Air draft

—

Displacement

186,070 lb (84,400 kg)

Ballast

—

Cabins

5

Heads

6

Berths

10

Performance

Maximum speed

27 kn

Cruising speed

23 kn

Range

613 nm

Guests

—

Crew

2

Engine and Tanks

Engine

—

Engine count

2

Engine manufacturer

—

Propulsion type

POD drive

Fuel capacity

2,245 gal (8,500 L)

Fresh water capacity

396 gal (1,500 L)

Black water capacity

—

Construction

Hull material

GRP + Carbon Fibre

Deck material

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Fast cruise range

376 nm

Slow cruise speed

13.2 kn

Deadrise amidships

20.4 deg

Slow cruise consumption

12.5 l/nm

Engines

2 x MAN V12 1650 hp + POD Achille Salvagni Interiors 2 x MTU V10 1622hp + POD Yachtique Interiors

Deadrise at transom

13.8 deg

Fast cruise consumption

20.3 l/nm

Fast cruise speed

24 kn

Displacement basis

at full load, as printed (t -> kg)

Draft basis

incl. props at full load, as printed

Layouts & Drawings

2 drawings from the builder's page: general arrangement, sail plan, profile.

•

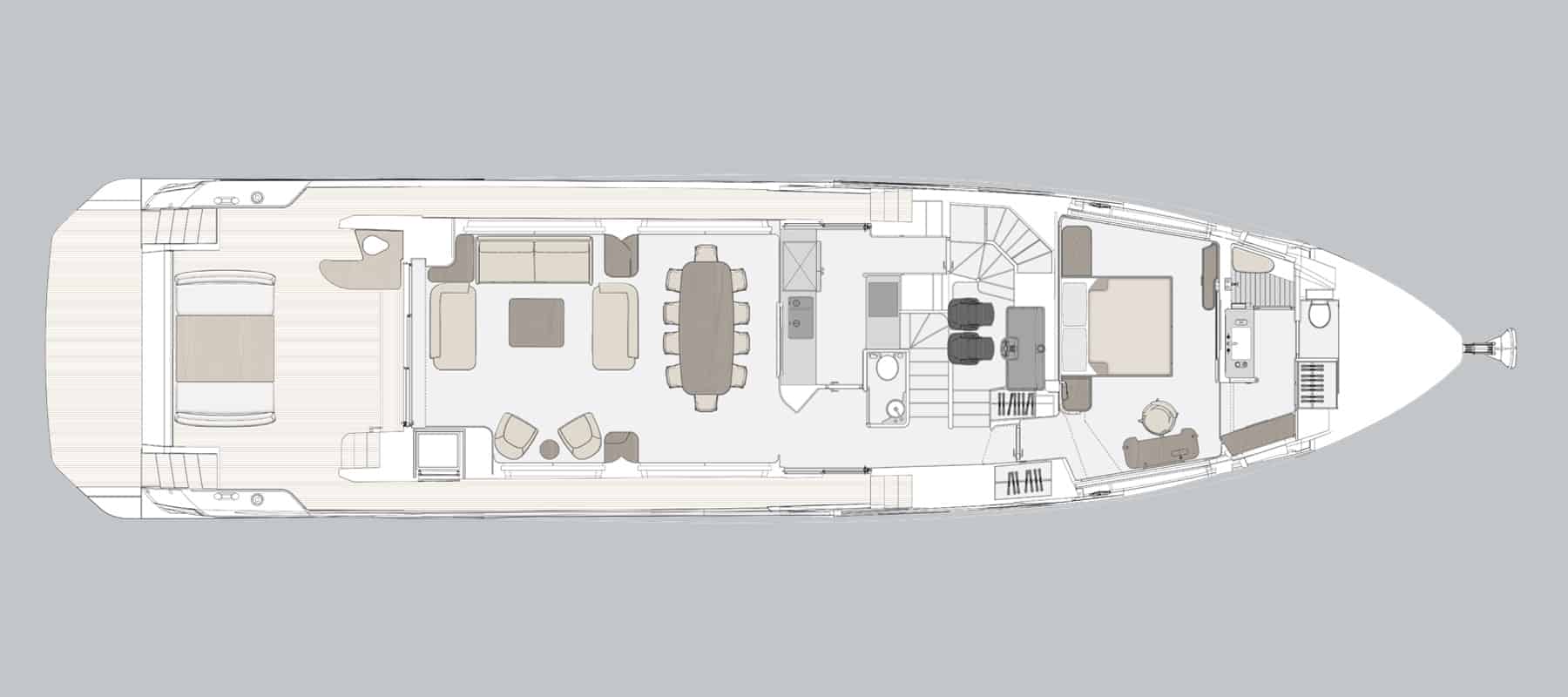

  Grande26m main deck — Azimut

•

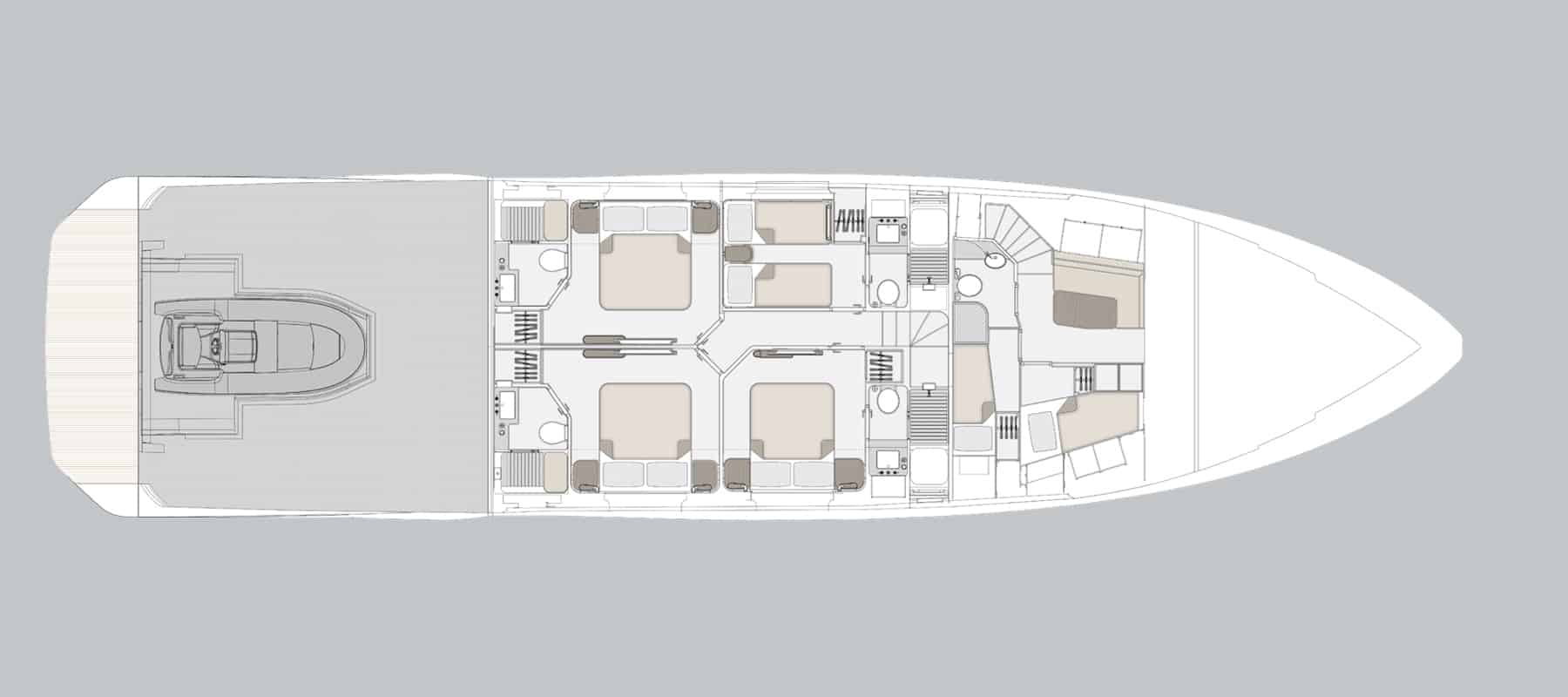

  Grande26m lower deck — Azimut
