40 PowerCat

Design

Designer

Dixon Yacht Design

Summary

Best Suited For

• Coastal Cruising

  From the published figures: CE Category B · LOA 11.75 m

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

38.5 ft (11.75 m)

Hull length

—

LWL

34.8 ft (10.61 m)

Beam

15.9 ft (4.85 m)

Draft (min)

1.7 ft (0.51 m)

Draft (max)

3.1 ft (0.952 m)

Air draft

—

Displacement

19,842 lb (9,000 kg)

Ballast

—

Cabins

—

Heads

—

Berths

—

Performance

Maximum speed

38 kn

Cruising speed

—

Range

—

Guests

—

Crew

—

Engine and Tanks

Engine

300–440 hp

Engine count

2

Engine manufacturer

—

Propulsion type

twin outboards or twin inboards

Fuel capacity

264 gal (1,000 L)

Fresh water capacity

100 gal (380 L)

Black water capacity

40 gal (152 L)

Construction

Hull material

—

Deck material

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Speed

estimate 30-38 kts, as printed

Length overall

11.75 m with inboards, 12.28 m with outboards

Draft

hull 0.51 m; 0.952 m including inboards, 0.872 m including outboards

Engine options

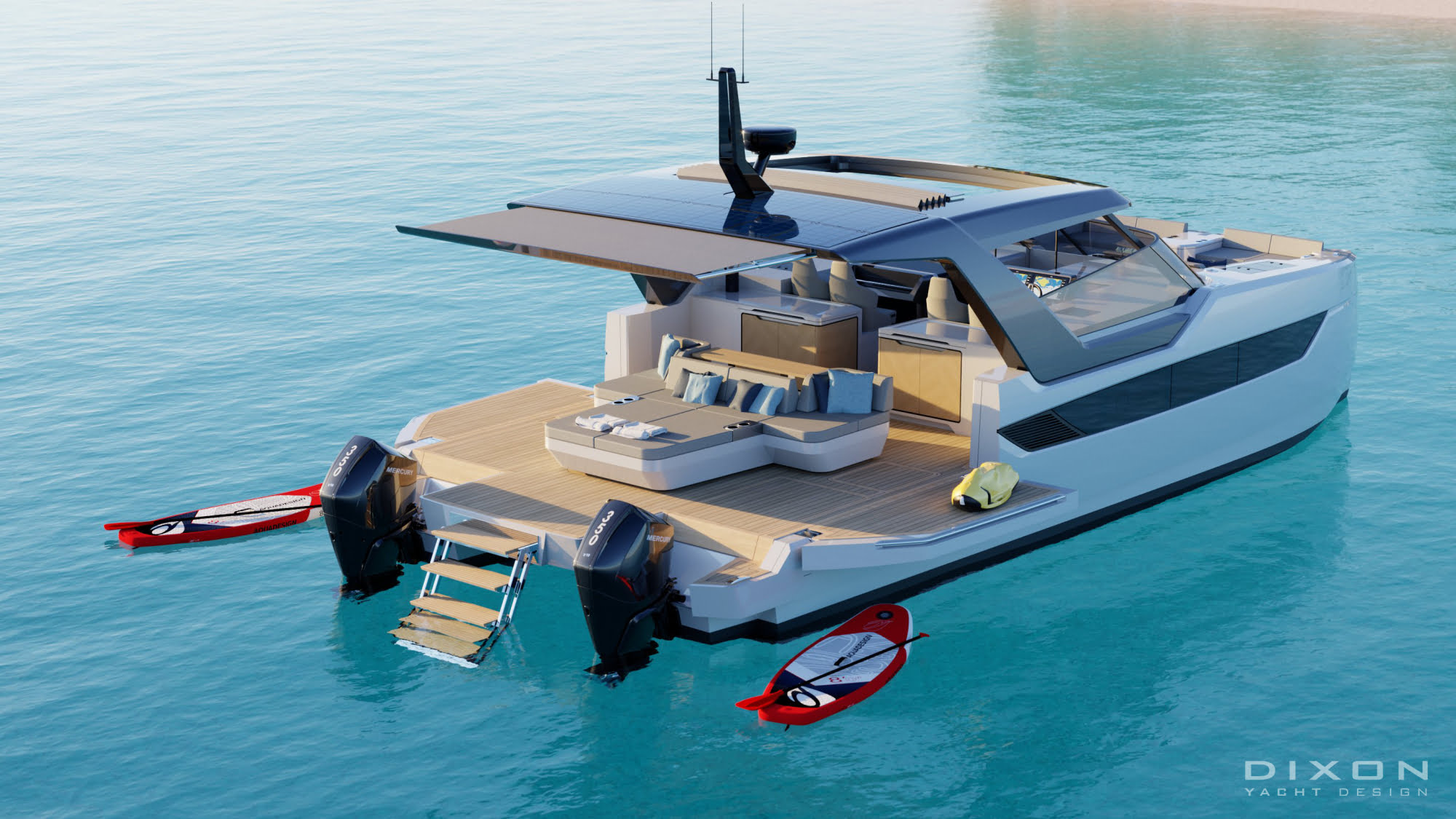

outboard 2x 300-425 HP or inboard 2x 300-440 HP

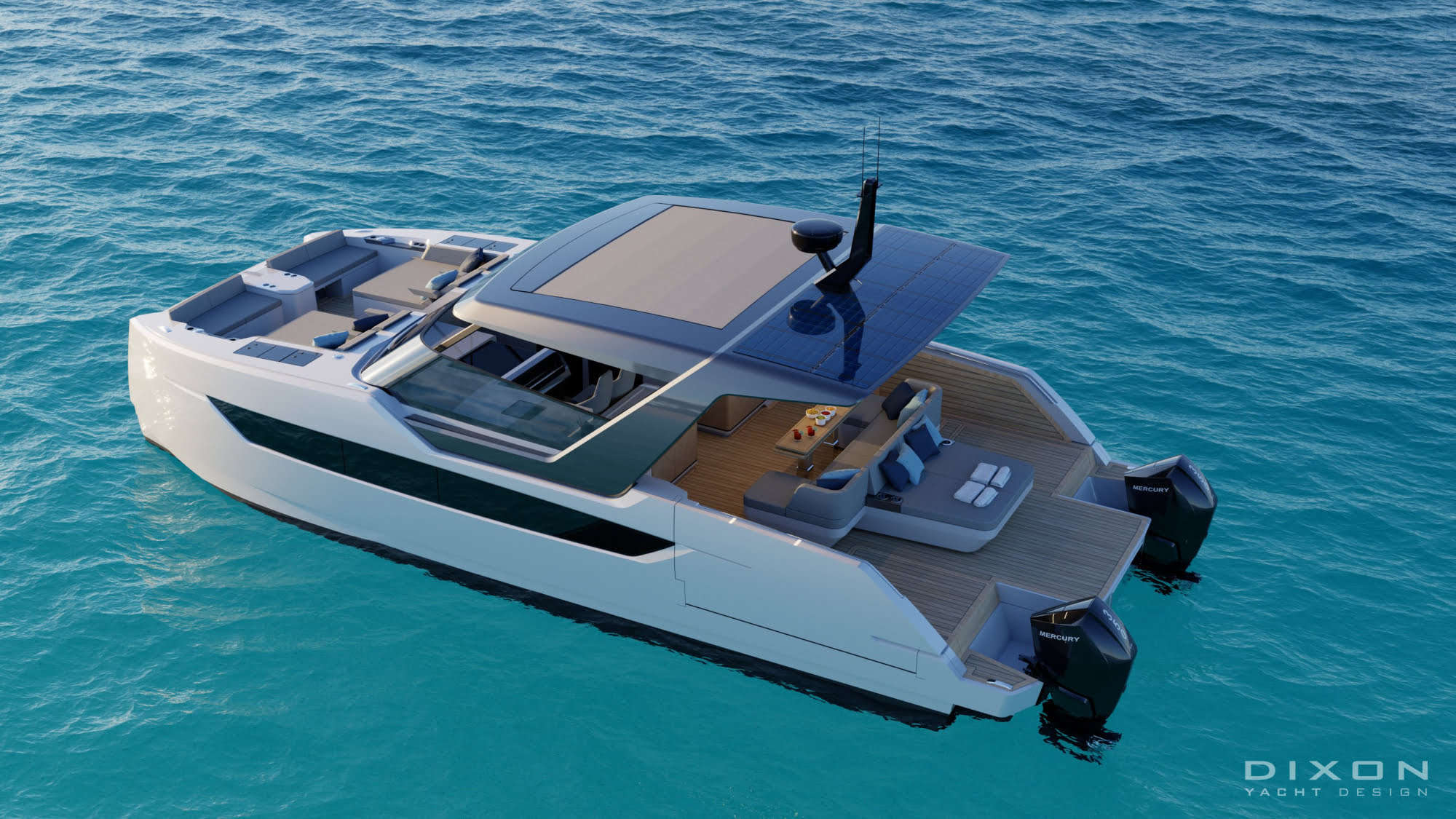

Solar panels

flexible, on the hardtop

Engine power basis

per engine as printed

Displacement basis

lightship, approx., as printed (9 t)

About Xquisite Yachts

Semi-custom

Boutique builder of sailing and power catamarans founded in 2014 — the trailerable 30 SportCat, the hybrid 54 E-Plus and the solar-equipped Sixty Solar Sail and Sixty Solar Power, with the 40 PowerCat and 52 Exploration on order, marketed worldwide under its own name.

Xquisite Yachts says it was established in 2014 with the purpose of launching a new brand of sailing and power catamarans: the ultimate luxury yacht for cruisers, in which safety and innovative design blend, for adventurers who want to explore the oceans without giving up a comfortable life. Its yachts are built by a team of highly experienced catamaran builders and marketed globally and exclusively under the Xquisite brand. Every boat was meant for comfort and easy sail handling — two headsails, electric winches and davits — with a generator, air-conditioning, watermaker, washing machine and digital switching as standard, light construction in high-density foam core and vacuum-infused epoxy to CE category A, and twin 80 HP Yanmar engines. An in-house design team offers both standard and fully custom versions, with three interior finishes at no extra cost. Calling itself a boutique boatyard, Xquisite builds only a limited number of yachts each year; buyers can take a finished boat from the boat shows — Miami, Annapolis and the International Multihull Boat Show in France — or order one, and its charter division lets them try a boat before they buy.

The Xquisite Yachts Range

Every model Xquisite Yachts publishes, by length — where this one sits in the range.

1. Sixty Solar Power62.3 ft
2. 52 Exploration52.7 ft
3. 40 PowerCat· this model38.5 ft
