Pearl 63

Design

Designer

Dixon Yacht Design

Naval architect

Dixon Yacht Design

Interior designer

Kelly Hoppen

Summary

Best Suited For

• Liveaboard

  From the published figures: LOA 18.61 m · 4 cabins · fresh water 800 L

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

61.1 ft (18.61 m)

Hull length

57.3 ft (17.45 m)

LWL

—

Beam

17.2 ft (5.23 m)

Draft (min)

5.2 ft (1.59 m)

Draft (max)

—

Air draft

—

Displacement

92,594 lb (42,000 kg)

Ballast

—

Cabins

4

Heads

—

Berths

8

Performance

Maximum speed

33 kn

Cruising speed

—

Range

260 nm

Guests

—

Crew

1

Engine and Tanks

Engine

—

Engine count

2

Engine manufacturer

Volvo Penta

Propulsion type

Volvo Penta IPS pods

Fuel capacity

700 gal (2,650 L)

Fresh water capacity

211 gal (800 L)

Black water capacity

—

Construction

Hull material

—

Deck material

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Engines

Standard Engines: 2 x VOLVO PENTA IPS 1050; Upgrade Engine: 2 x VOLVO PENTA IPS 1200; Performance Engine: 2 x VOLVO PENTA IPS 1350

Berths

8 + 1 (guests + crew, as printed)

Range

260 nm at cruising speed

Length overall

18.61 m including pulpit, as printed

Cabins

4 x double guest cabins (Features list)

Engine power

the page names IPS units without horsepower

Top speed

up to 33 knots, as printed

Displacement basis

lightship, as printed (42 tonnes)

Layouts & Drawings

4 drawings from the builder's page: general arrangement, sail plan, profile.

•

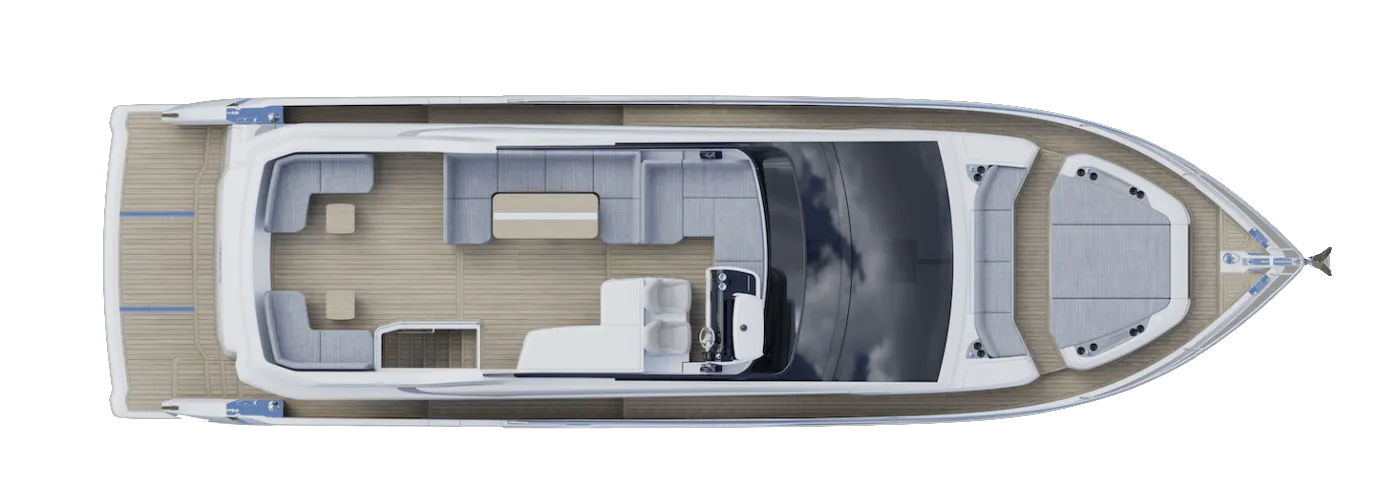

  Flybridge — Pearl Yachts

•

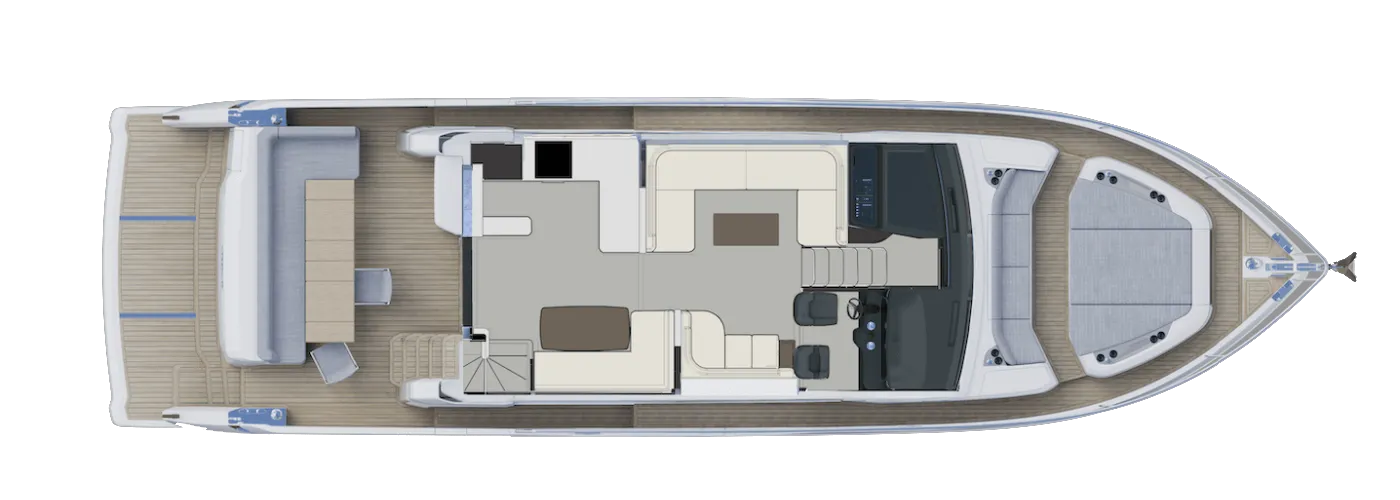

  Main-Deck — Pearl Yachts

•

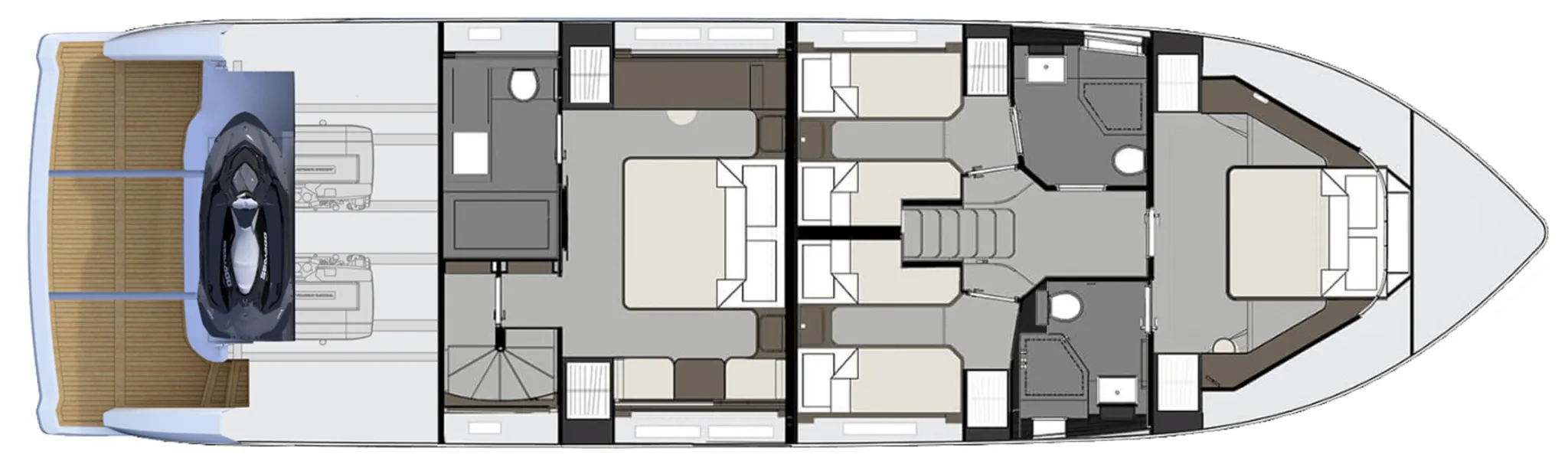

  p63-lower-deck-2048x619 — Pearl Yachts

•

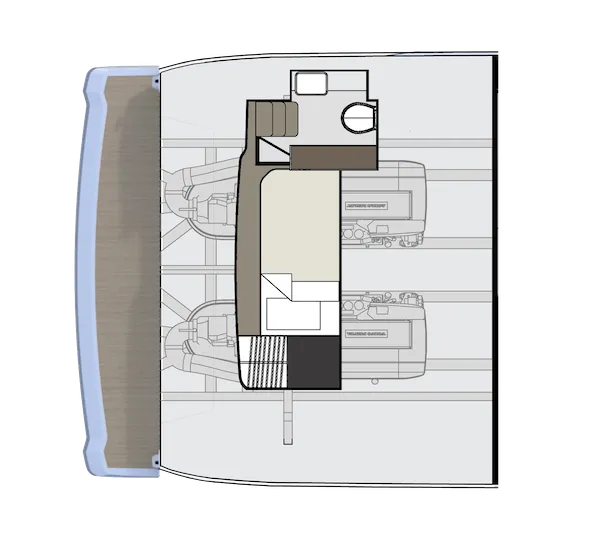

  GA-crew-cabin — Pearl Yachts

About Pearl Yachts

Premium production

British boutique builder of flybridge and raised-pilothouse motor yachts since 1998 — the Pearl 63, 73 and 82 and the 30-metre Pearl 100 Hybrid — with exteriors and naval architecture by Bill Dixon, interiors by Kelly Hoppen CBE and a five-year warranty.

Pearl was first conceived in 1998, when Iain Smallridge, an experienced captain, and John Yarnold, a local businessman, began building 41- and 45-foot aft-cabin yachts in Stratford-upon-Avon, Shakespeare's hometown, setting out to compete with the best yacht builders in the world. In 2003 Margaret and Tony Whittaker, entrepreneurs and yachting enthusiasts, invested in the brand with a vision of sleek, stylish flybridge yachts that would catch the eye of buyers in the Mediterranean and beyond. Paul Hannah was appointed production director and the new range became reality, beginning with the Pearl 55, which premiered at the Southampton Boat Show in 2004, and continuing with the Pearl 60. The exteriors came to be drawn by the naval architect Bill Dixon and the interiors by Kelly Hoppen CBE. Over 25 years, the page says, Pearl has built and delivered more than a hundred yachts and earned a reputation for producing a low volume of high-quality yachts; it is signed by Margaret Whittaker OBE, owner, and Iain Smallridge, managing director of Pearl Yachts Ltd.

The Pearl Yachts Range

Every model Pearl Yachts publishes, by length — where this one sits in the range.

1. Pearl 10096.6 ft
2. Pearl 8283 ft
3. Pearl 7372.1 ft
4. Pearl 63· this model61.1 ft
