wallywind 110

Design

Designer

Wally / Santa Maria Magnolfi

Naval architect

judel/vrolijk & co

Interior designer

Wally / Santa Maria Magnolfi

Summary

Best Suited For

• Performance Cruising

  From the published figures: SA/D 38.1 (upwind 635 m², displacement 69800 kg) · 3 cabins

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

109.6 ft (33.42 m)

Hull length

—

LWL

—

Beam

24.9 ft (7.6 m)

Draft (min)

14.8 ft (4.5 m)

Draft (max)

22.3 ft (6.8 m)

Air draft

—

Displacement

153,882 lb (69,800 kg)

Ballast

—

Cabins

3

Heads

—

Berths

—

Sail Plan

Main sail

—

Jib

—

Genoa

—

Sail area

6,835 ft² (635 m²)

Downwind sail area

13,950 ft² (1,296 m²)

Rig type

Sloop

Engine and Tanks

Engine

355 hp (Cummins)

Engine count

—

Engine manufacturer

Cummins

Propulsion type

—

Fuel capacity

1,189 gal (4,500 L)

Fresh water capacity

—

Black water capacity

—

Construction

Mast material

—

Hull material

—

Deck material

—

Keel type

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Mast and Boom

Hall Spars

Rigging

Future Fibres ECSix

Construction type

Fast Cruising Sloop

Draft

lifting keel 4.50-6.80 m

Classification

RINA

Engine

CUMMINS QSB 6.7 -- HP 355 each as printed; engine count not stated

Engine power basis

per engine as printed

Displacement basis

unladen

Layouts & Drawings

6 drawings from the builder's page: general arrangement, sail plan, profile.

•

  Profile — Ferretti Group (Wally)

•

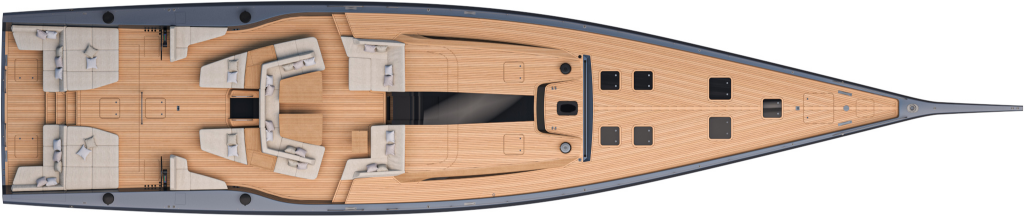

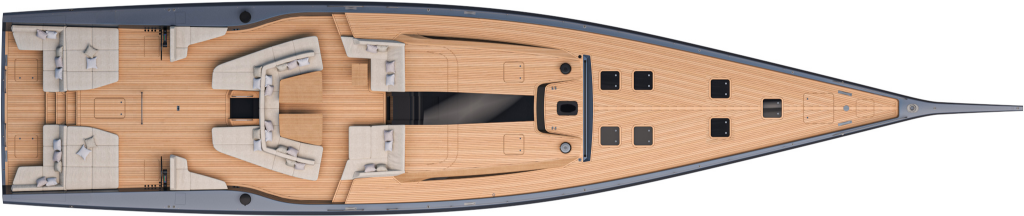

  Main Deck — Ferretti Group (Wally)

•

  Main Deck — Ferretti Group (Wally)

•

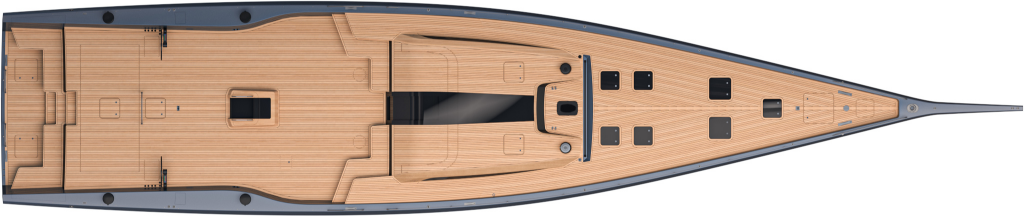

  Main Deck - Performance — Ferretti Group (Wally)

•

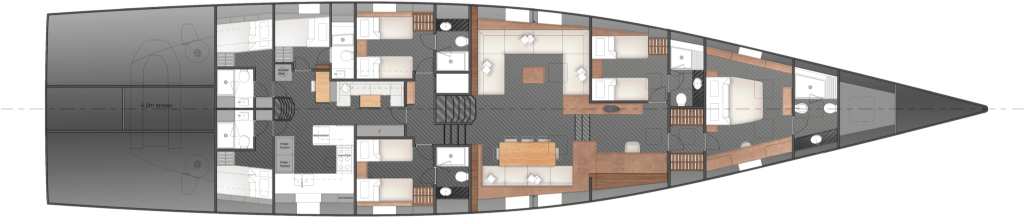

  Lower Deck — Ferretti Group (Wally)

•

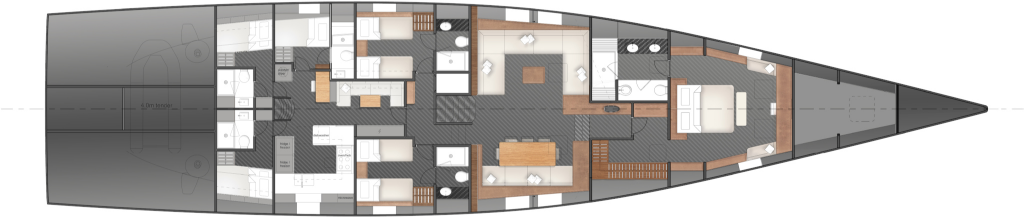

  Lower Deck - 3 cabins — Ferretti Group (Wally)

About Wally

Semi-custom

Luca Bassani's avant-garde marque, founded in 1994 and a Ferretti Group brand — seventeen fleet models from the 12-metre wallynano 37 to the 45.7-metre wallywind 150, spanning the wallytender and wallypower motor boats, the wallywhy yachts, the wallyrocket racers and the wallywind fast-cruising sloops, all in carbon and all built on the rule that there are no rules.

In 1991 the yachtsman Luca Bassani built a family yacht with the performance of a maxi, Wallygator -- carbon construction, a self-tacking jib, swept-back spreaders without running backstays, flush decks, a forward owner's cabin, and what the yard's timeline calls the first carbon mast in the world after the 1992 New Zealand America's Cup boat -- and in 1994 he founded Wally, launching the ketch Nariida, the first all-carbon yacht. Genie of the Lamp of 1995, a 24-metre sloop one person could handle, introduced push-button sail handling and the open deck; Tiketitan of 1998 pioneered the 'Terrace-on-the-sea' beach club and the first canting keel on a big cruiser, Wally B rethought interiors, and the Wally Class of 1999 grew into the largest fleet of racing superyachts. Wally entered power boats with the wallytender in 2001 and the wallypower118 of 2003, with its vertical bow and glass superstructure, which was shown at San Francisco's Museum of Modern Art in 2004, the year Tiketitoo won the Compasso d'Oro; Ryokan 2 won it again in 2008, and wallyace of 2012 moved the brand into displacement motor yachts. In 2019 Wally became a brand of the Ferretti Group, which relaunched the wallytender with the 48, opened the Casa Wally shipyard in Forlì in 2021 for the tender and power lines alongside the wallywhy200, and launched the wallypower58 in 2022.

The Wally Range

Every model Wally publishes, by length — where this one sits in the range.

1. wallywind 150149.9 ft
2. wallywind 130131.2 ft
3. wallywind 110· this model109.6 ft
4. wallyrocket 7170.2 ft
5. wallyrocket 5150.9 ft
6. wallynano 3739.4 ft
