Swan 108

Design

Designer

Micheletti+Partners

Naval architect

Germán Frers

Interior designer

Misa Poggi

Summary

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

117 ft (35.66 m)

Hull length

108.3 ft (33 m)

LWL

100.3 ft (30.56 m)

Beam

24.8 ft (7.55 m)

Draft (min)

11.2 ft (3.4 m)

Draft (max)

17.1 ft (5.2 m)

Air draft

—

Displacement

184,968 lb (83,900 kg)

Ballast

63,052 lb (28,600 kg)

Cabins

4

Heads

—

Berths

—

Sail Plan

Main sail

3,703 ft² (344 m²)

Jib

3,275 ft² (304.3 m²)

Genoa

—

Sail area

—

Downwind sail area

—

Rig type

—

Engine and Tanks

Engine

350 hp

Engine count

—

Engine manufacturer

—

Propulsion type

—

Fuel capacity

1,057 gal (4,000 L)

Fresh water capacity

687 gal (2,600 L)

Black water capacity

—

Construction

Mast material

—

Hull material

—

Deck material

—

Keel type

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

TPS

16.50 m

E

13.96 m

IG

43.30 m

Hot water

200 l

Starting batteries

24V 50Ah/20h

Electronics battery

24V 230Ah/1h

Diesel generator

2 x 230V 26kW 1 phase

Service battery

24V 2070Ah/1h

Grey water

600 l

AdBlue

400 l

P

42.00 m

Shore power

230V 63A + 230V 50A for AC

Black water

600 l

J

12.92 m

Layouts & Drawings

1 drawing from the builder's page: general arrangement, sail plan, profile.

•

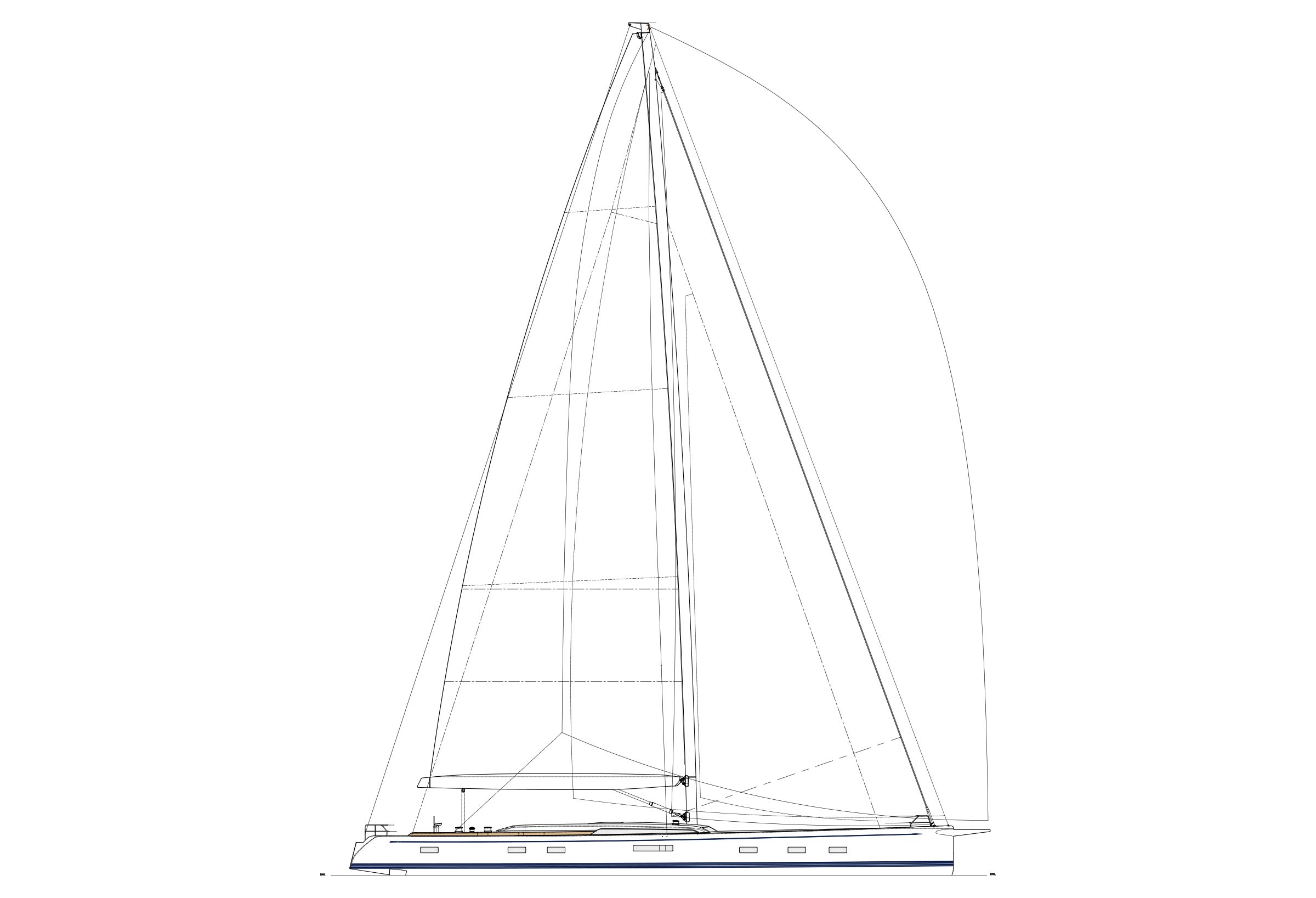

  swan108 sailplan concept standard — Nautor Swan

Brochure

About Nautor Swan

Premium production

Finnish builder of luxury sailing yachts, founded in 1966 in Pietarsaari and known worldwide as Nautor Swan.

Oy Nautor AB was founded in 1966 by Pekka Koskenkylä at Pietarsaari, Finland, on centuries of Finnish boatbuilding and a wish to build high-performance sailing yachts of high quality. The first was the Swan 36, whose glass-reinforced hull came with a number of other innovations: it matched the traditional wooden yacht for performance and safety while steering more steadily, weighing less and offering more room below. Sparkman & Stephens drew roughly the first thousand Swans, the Swan 38 and Swan 47 among them, and the larger, seagoing Swan 55 and Swan 65 followed -- one of them, Sayula II, winning the first Whitbread Round the World Race in 1973-74. Ron Holland designed five yachts between 1978 and 1981, including the Swan 37, 39 and 42, and Germán Frers became the principal designer through the 1980s, later opening the one-design racing division with the Swan 45 in 2001 and the ClubSwan 42 in 2005. More than 2,350 yachts between 28 and 131 feet have been built in six decades. Everything is made at Pietarsaari, where engineering sits beside production, and the range now runs across six lines: Swan, Swan Maxi, ClubSwan, Swan Alloy, SwanScape and the motor yacht division Swan Shadow.

The Nautor Swan Range

Every model Nautor Swan publishes, by length — where this one sits in the range.

1. Swan 128127.9 ft
2. Swan 108· this model117 ft
3. Swan 98101.9 ft
4. Swan 8892.7 ft
5. Swan 8083.8 ft
6. Swan 7377.7 ft
7. Swan 6571.4 ft
8. Swan 5862.7 ft
9. Swan 5558.2 ft
