Sail area / displacement
How much sail the boat carries for its weight — its power in light air.
- not published: displacement
How it is worked out
sail area (ft²) ÷ (displacement as ft³ of seawater)^⅔
1 / 3

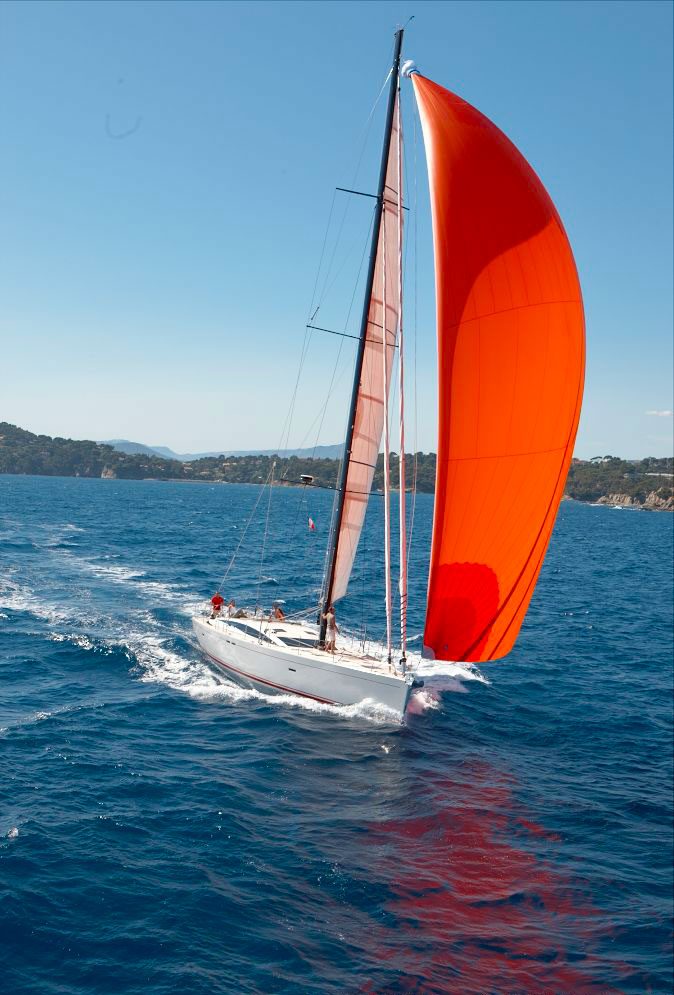

Bordeaux 60 exterior — CNB Yacht Builders
Summary
Sailing MonohullSail
- Length overall
- 61 ft
- Beam
- 17 ft
- Draft
- —
- Air draft
- —
- Displacement
- —
* A standard reference image, not the actual boat — shown to help visualise this model's published dimensions.
Best Suited For
- Liveaboard
From the published figures: LOA 18.6 m · 5 cabins · fresh water 1000 L
Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.
Sailing Ratios
Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.
Displacement / length
How heavy the boat is for its waterline length. Lower is lighter and quicker; higher is steadier and roomier.
- not published: displacement
How it is worked out
displacement (long tons) ÷ (0.01 × waterline length in ft)³
Ballast ratio
The share of the weight carried in the keel — a rough guide to stiffness, though how deep that weight sits matters as much.
- not published: ballast, displacement
How it is worked out
ballast ÷ displacement × 100
Comfort ratio
Ted Brewer's measure of how gently a boat moves in a seaway. Higher means a slower, easier motion.
- not published: displacement
How it is worked out
displacement (lb) ÷ (0.65 × (0.7 × LWL + 0.3 × LOA) × beam^1.333), lengths in ft
Capsize screening
A guide from the inquiry after the 1979 Fastnet race: below 2 was taken as suited to ocean passages. It ignores hull shape and where the ballast sits.
- not published: displacement
How it is worked out
beam (ft) ÷ (displacement as ft³ of seawater)^⅓
Hull speed
Roughly the speed a displacement hull reaches before it has to climb its own bow wave.
- 9.8 kn
How it is worked out
1.34 × √(waterline length in ft), in knots
Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.
Tanks
What the builder publishes about how fast, how strong and how much the boat carries.
Fuel and water on one scale: a tank twice the height holds twice as much.
- Fuel246 galWater264 gal
A figure marked with a quote mark was read from the builder's page. Open it for the exact line, the page and the date.
Dimensions
- LOA
- 61 ft (18.6 m)
- Hull length
- —
- LWL
- 53.4 ft (16.28 m)
- Beam
- 17 ft (5.18 m)
- Draft (min)
- —
- Draft (max)
- —
- Air draft
- —
- Displacement
- —
- Ballast
- —
- Cabins
- 3–5
- Heads
- —
- Berths
- —
Sail Plan
- Main sail
- 1,023 ft² (95 m²)
- Jib
- —
- Genoa
- 915 ft² (85 m²)
- Sail area
- —
- Downwind sail area
- —
- Rig type
- —
Engine and Tanks
- Engine
- —
- Engine count
- —
- Engine manufacturer
- —
- Propulsion type
- —
- Fuel capacity
- 246 gal (930 L)
- Fresh water capacity
- 264 gal (1,000 L)
- Black water capacity
- —
Construction
- Mast material
- —
- Hull material
- —
- Deck material
- —
- Keel type
- —
- Rudder type
- —
- Steering wheels
- —
Builder's Own Figures
- Length overall (with bow roller)
- 18,60 m
- Furling genoa (108 %)
- 85 m2
Figures read fromcnbyachts.com/en/yachts/bordeaux-60/read 9/13/2026
About CNB Yacht Builders
Semi-custom
French builder of custom and semi-custom sailing yachts, founded in Bordeaux in 1987, formerly part of Beneteau Group and now owned by Solaris.
Visit brand pageThe CNB Yacht Builders Range
Every model CNB Yacht Builders publishes, by length — where this one sits in the range.
- CNB 8892.8 ft
- CNB 7878.5 ft
- CNB 6872.8 ft
- CNB 6263.9 ft
- CNB Bordeaux 60· this modelDiscontinued61 ft
