Astondoa 66 Flybridge

Summary

Best Suited For

• Liveaboard

  From the published figures: LOA 20.12 m · 4 cabins · 3 heads · fresh water 1000 L

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

66 ft (20.12 m)

Hull length

—

LWL

—

Beam

17.4 ft (5.3 m)

Draft (min)

—

Draft (max)

5.3 ft (1.61 m)

Air draft

—

Displacement

82,012 lb (37,200 kg)

Ballast

—

Cabins

4

Heads

3

Berths

—

Performance

Maximum speed

31 kn

Cruising speed

24 kn

Range

300 nm

Guests

8

Crew

—

Engine and Tanks

Engine

1200 hp (Volvo Penta)

Engine count

2

Engine manufacturer

Volvo Penta

Propulsion type

IPS pods

Fuel capacity

951 gal (3,600 L)

Fresh water capacity

264 gal (1,000 L)

Black water capacity

—

Construction

Hull material

PRFV / GRP

Deck material

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Hull type

V Shape 15,5º

Full-load displacement

44.400Kg.

Certified by

RINA

Max persons on board (certified)

18

Engines (standard)

2 x Volvo Penta IPS1350 hp

Engines (optional)

2 x MAN V8-1200 1200 hp

Draft basis

maximum draft at full load

Max speed as printed

30/31

Engine power basis

per engine as printed; the standard engine prints no hp (model name or kW only), max from the optional engines

Accommodation as printed

8 + tripulación

Cabins as printed

4 + 3 baños

Displacement basis

lightship ('Peso rosca')

Crew cabins as printed

1 + 1 baño

Cruising speed as printed

24/26

Layouts & Drawings

4 drawings from the builder's page: general arrangement, sail plan, profile.

•

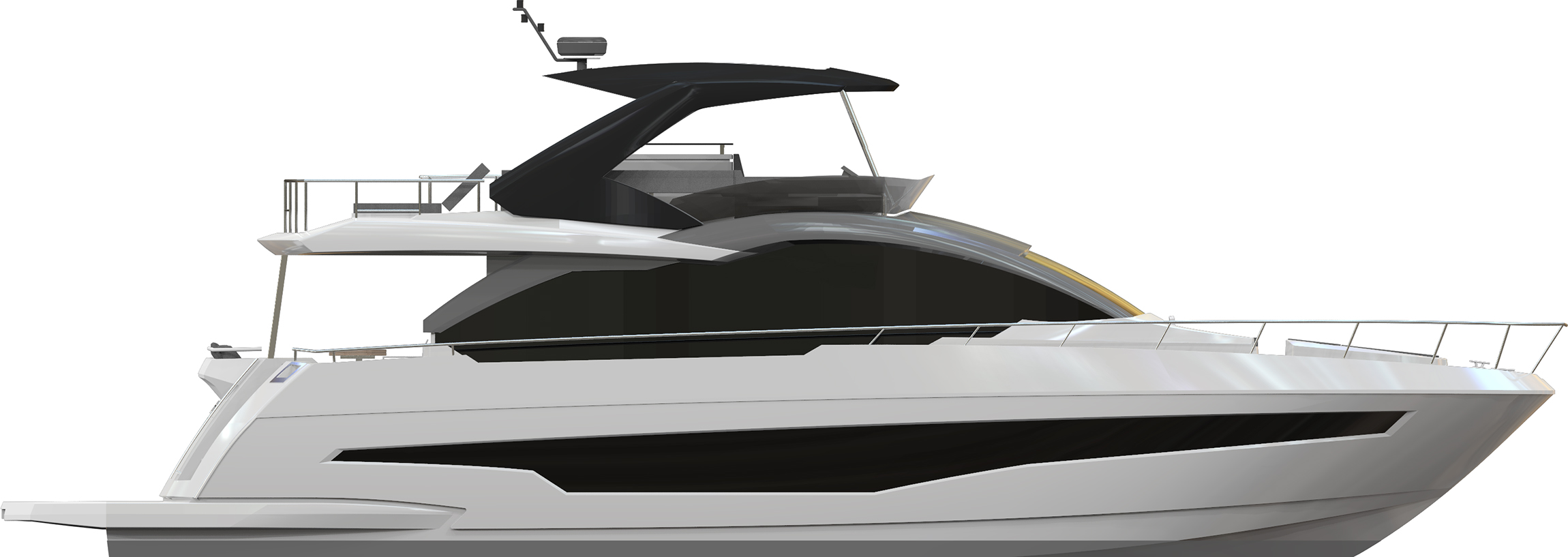

  perfil — Astilleros Astondoa

•

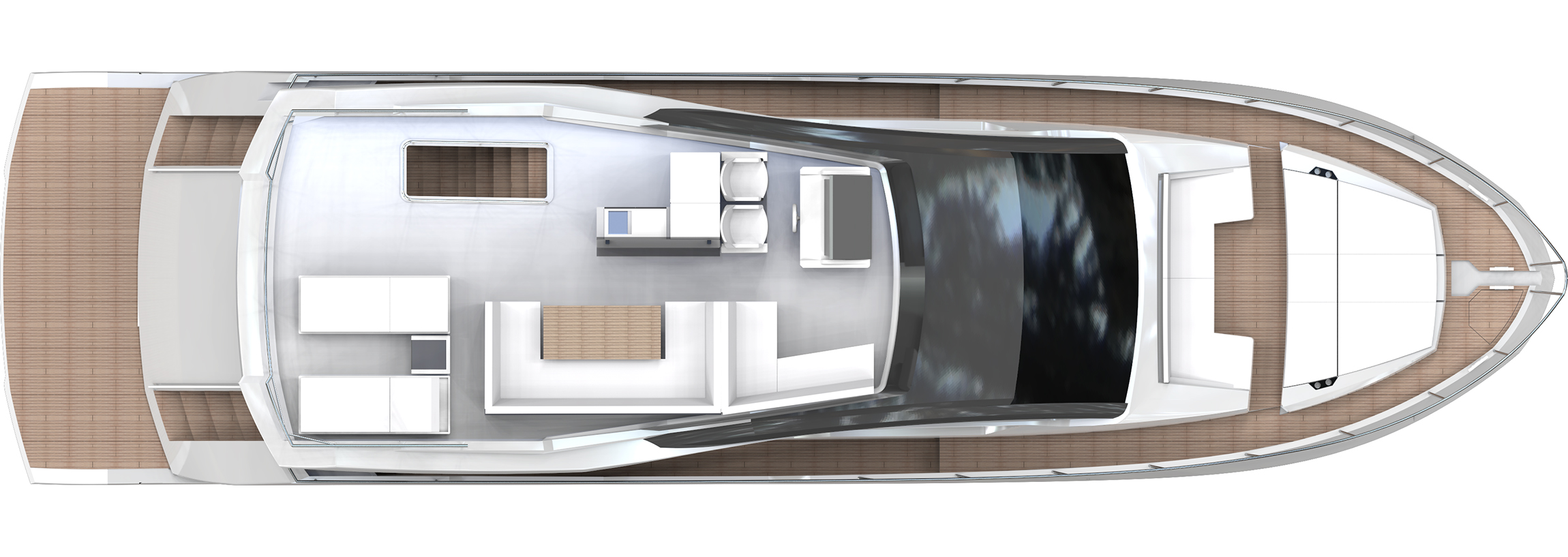

  superior — Astilleros Astondoa

•

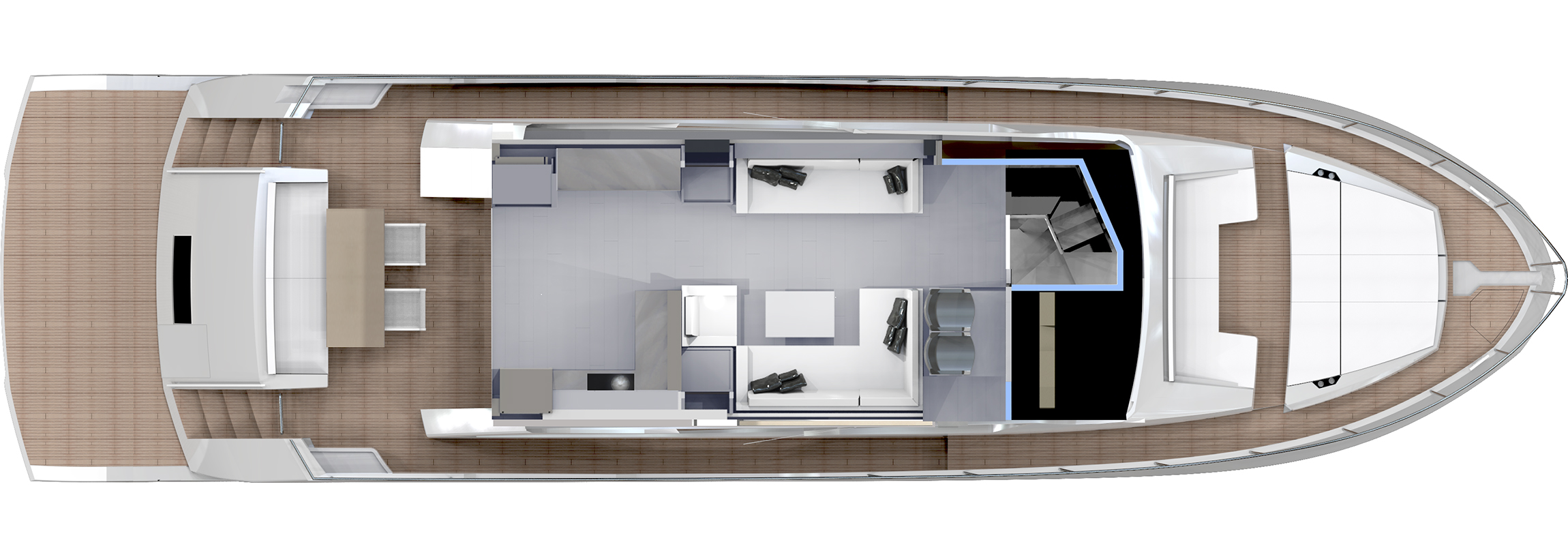

  principal — Astilleros Astondoa

•

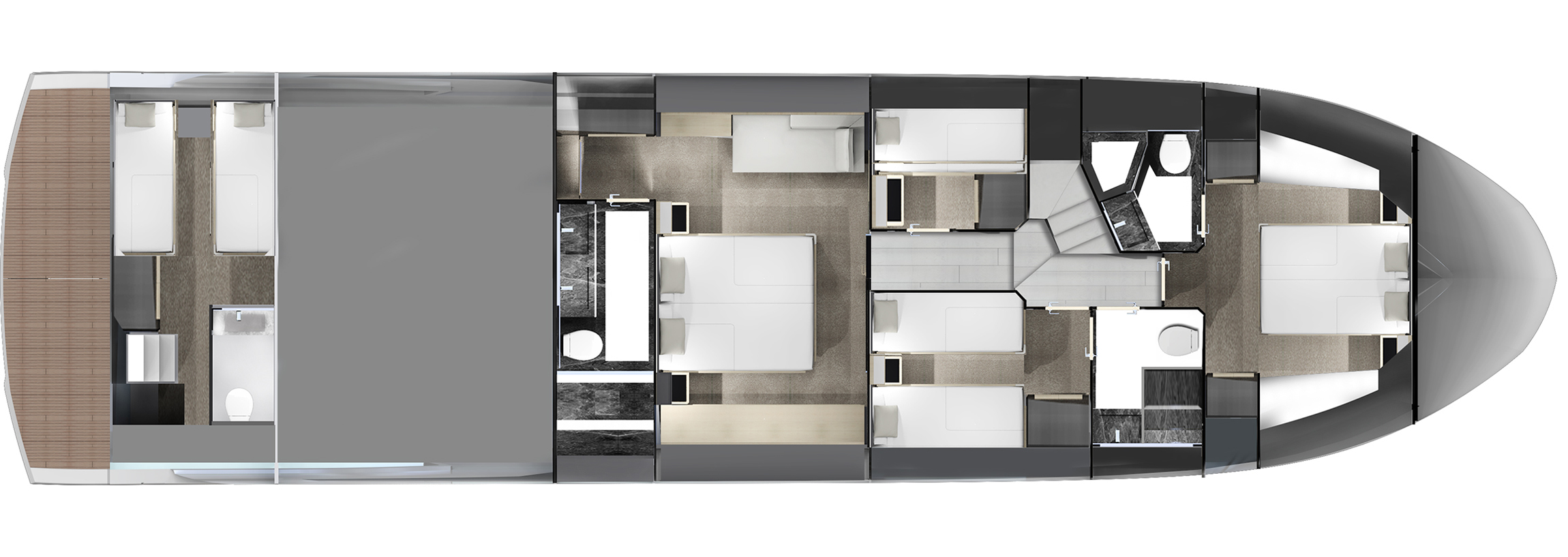

  inferior — Astilleros Astondoa

About Astondoa

Semi-custom

Family-run Spanish shipyard founded in 1916 by the Astondoa brothers at Portugalete and building since the 1980s at Santa Pola near Alicante — twelve semi-custom motor yachts from the 11.6-metre 377 Coupe to the 60-metre 197 Steel, more than 3,000 vessels in four generations.

The yard dates itself to 1916, when the brothers Jesús and José Astondoa Martínez began building rowing boats and traineras in a small carpenter's workshop in Portugalete. Work stopped during the Spanish Civil War, after which the brothers went separate ways and Jesús turned to fishing and recreational boats; his son Jesús Astondoa Santamaría joined in 1944 and took over the yard soon after, its wooden boats and finish earning it a national name. The third generation joined once the company had established itself on Spain's east coast, and in the early 1980s Astondoa left wood for glass-reinforced polyester. By 2006 the group employed more than 500 people and offered what it describes as the widest range built under one brand, from 40-foot open boats to composite yachts over 120 feet and steel-hulled megayachts up to 45 metres. More than 3,000 vessels have been built in the century since, the family still runs the yard, and the main site at Santa Pola near Alicante spans 30,000 square metres and concentrates on yachts above 122 feet.

The Astondoa Range

Every model Astondoa publishes, by length — where this one sits in the range.

1. Astondoa 110 Century108.1 ft
2. Astondoa 100 Century100.1 ft
3. Astondoa As882.1 ft
4. Astondoa Ax880.2 ft
5. Astondoa 66 Flybridge· this model66 ft
6. Astondoa 677 Coupe62.1 ft
7. Astondoa As556.9 ft
8. Astondoa 577 Coupe52.2 ft
9. Astondoa 377 Coupe38.1 ft
