Astondoa Ax8

Summary

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

80.2 ft (24.46 m)

Hull length

—

LWL

—

Beam

20.4 ft (6.22 m)

Draft (min)

—

Draft (max)

5.3 ft (1.62 m)

Air draft

—

Displacement

126,766 lb (57,500 kg)

Ballast

—

Cabins

4

Heads

—

Berths

—

Performance

Maximum speed

23.5 kn

Cruising speed

15 kn

Range

420 nm

Guests

6

Crew

—

Engine and Tanks

Engine

—

Engine count

—

Engine manufacturer

Volvo Penta

Propulsion type

IPS pods

Fuel capacity

1,876 gal (7,100 L)

Fresh water capacity

396 gal (1,500 L)

Black water capacity

—

Construction

Hull material

GRP

Deck material

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Max persons on board (certified)

18

Engines (standard)

Volvo Penta IPS 1350

Certified by

RINA

Hull type

Round Bilge

Full-load displacement

69.000 kg

Cabins as printed

4 + 2

Displacement basis

lightship ('Peso rosca')

Draft basis

maximum draft at full load

Accommodation as printed

6 + 3

Crew cabins as printed

2

Layouts & Drawings

6 drawings from the builder's page: general arrangement, sail plan, profile.

•

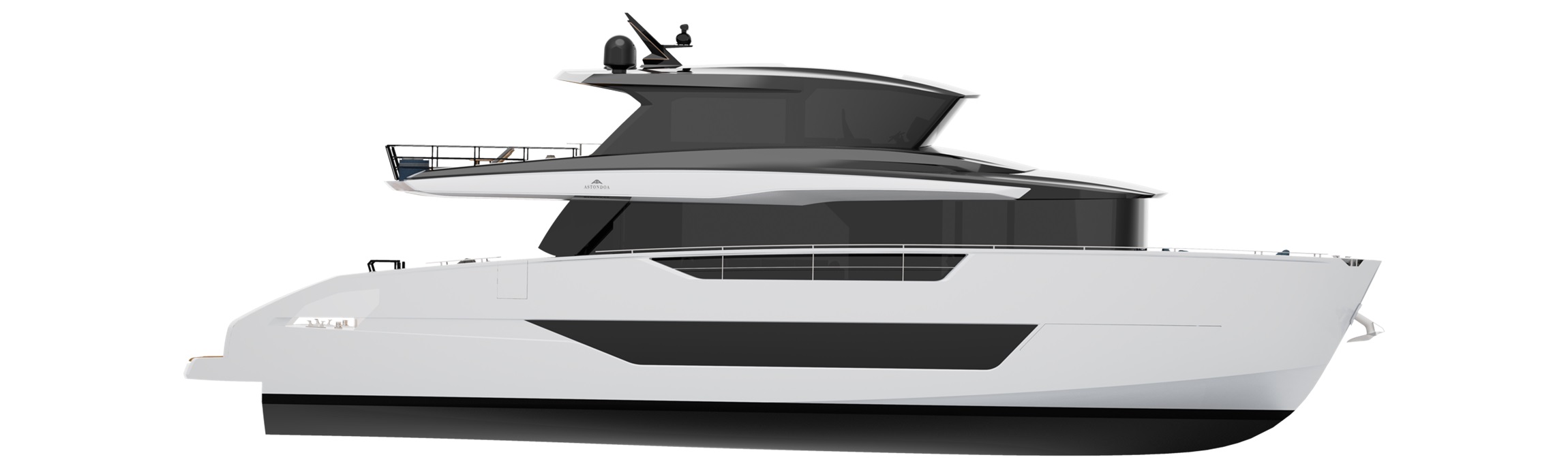

  perfil — Astilleros Astondoa

•

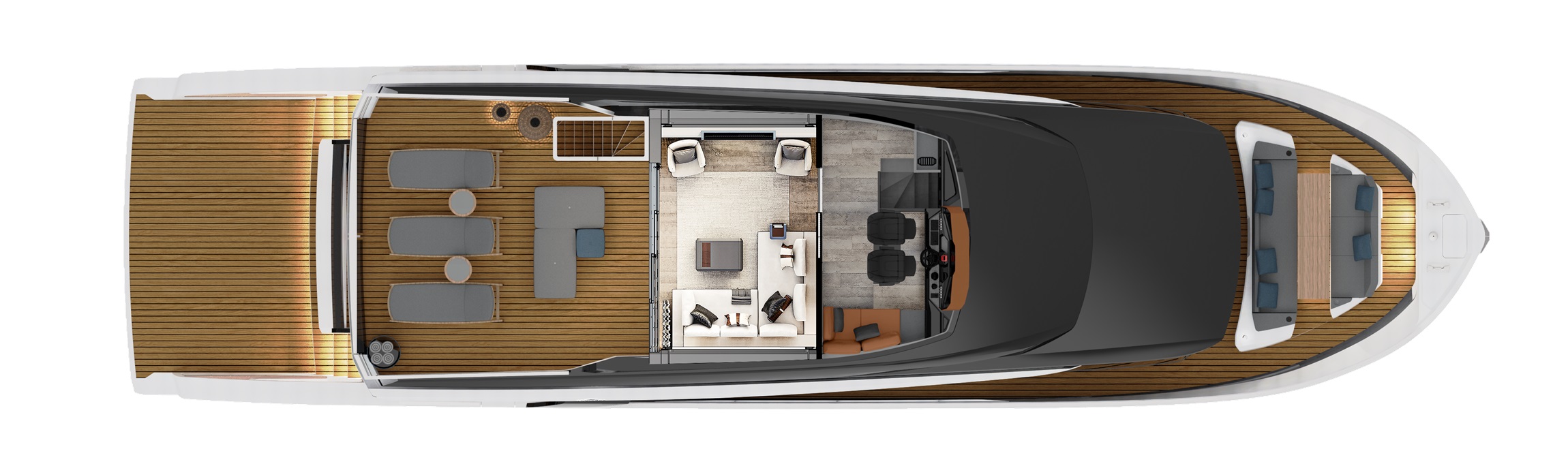

  flybridge — Astilleros Astondoa

•

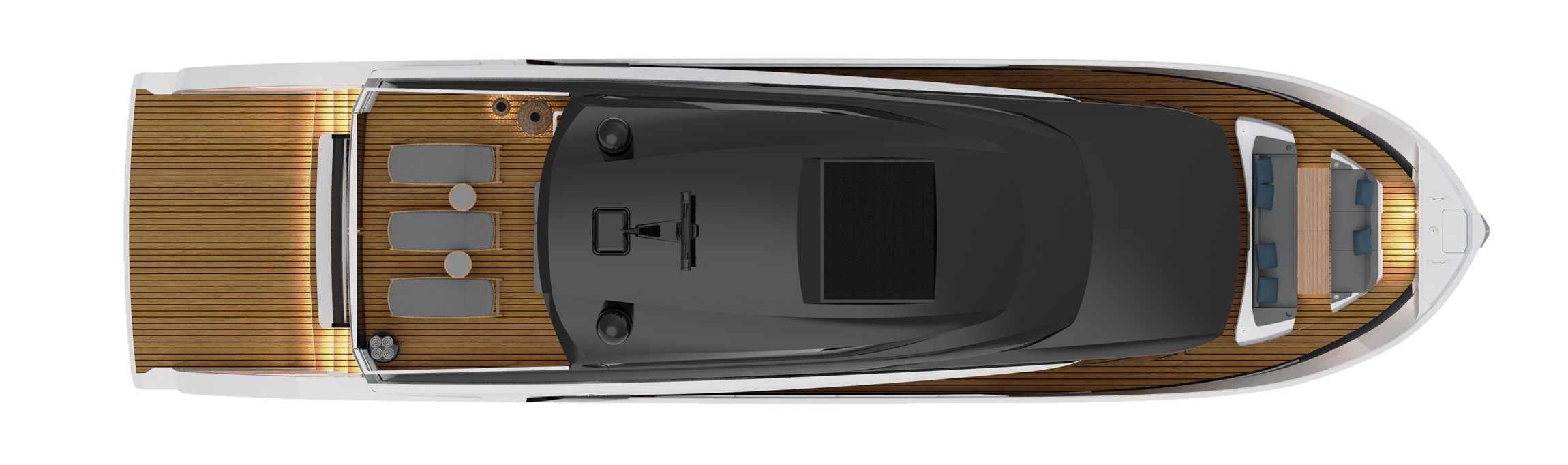

  superior — Astilleros Astondoa

•

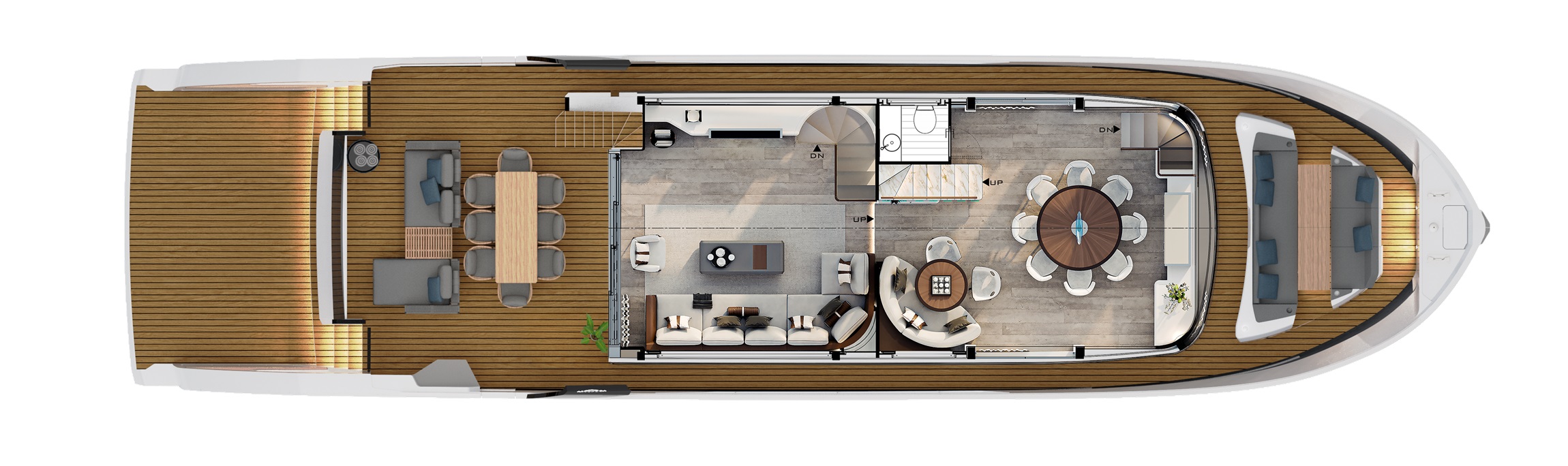

  principal — Astilleros Astondoa

•

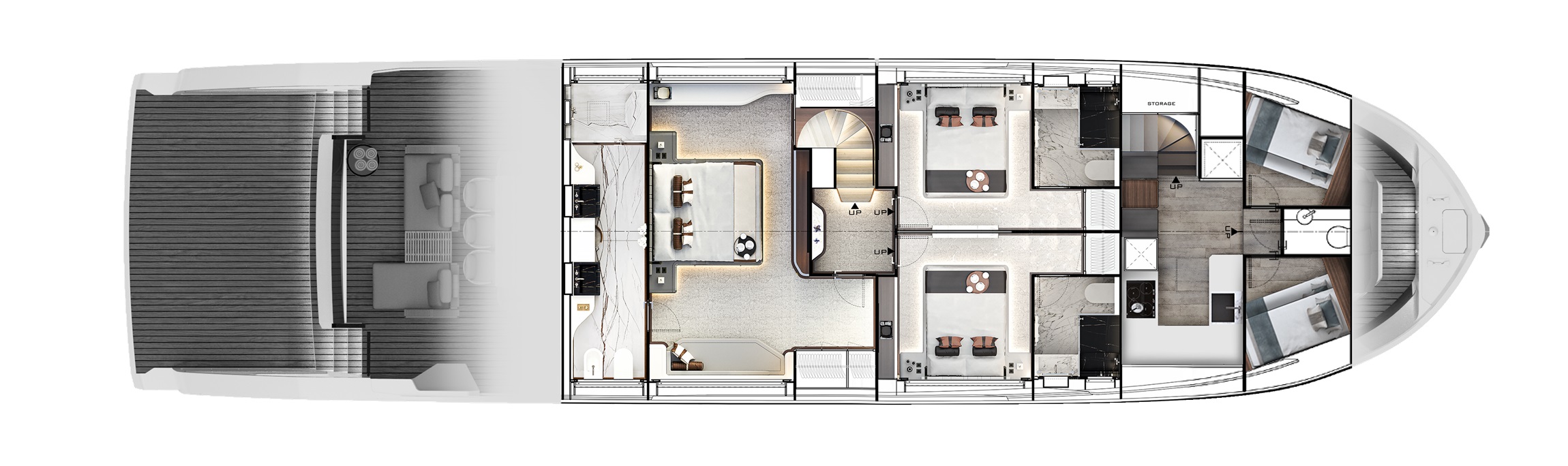

  inferior — Astilleros Astondoa

•

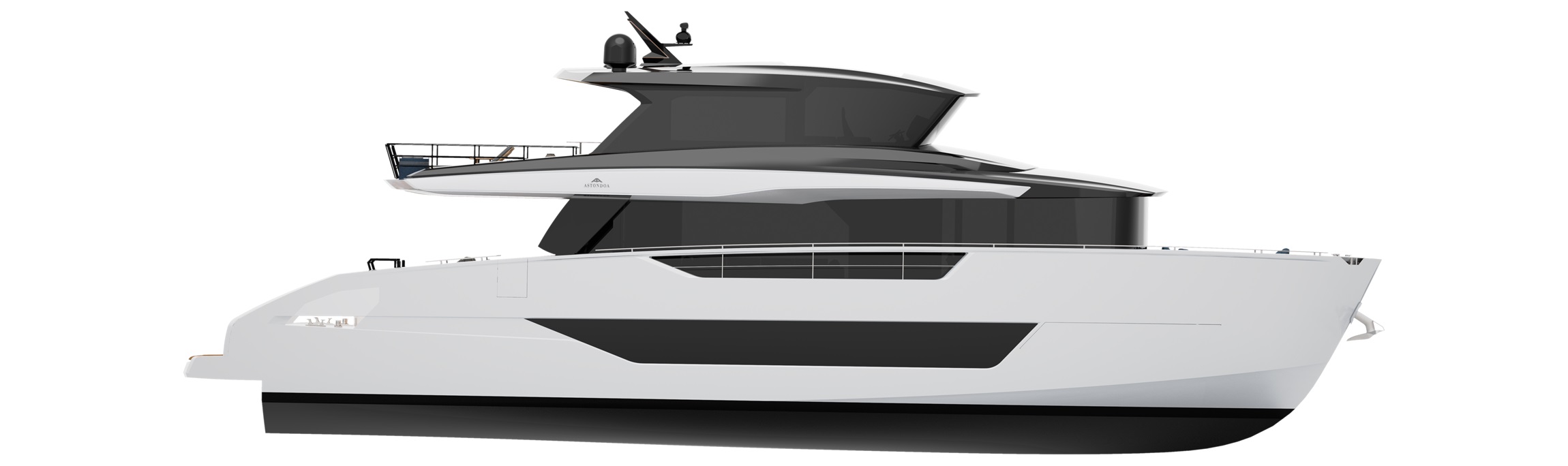

  perfil1 — Astilleros Astondoa

Films of this model from the builder's official YouTube channel (Astondoa). They are the builder's own; the figures above are the reference.

•

  Astondoa Ax8 "Creado para ser vivido"

  Astondoa · 12/3/2023

•

  Astondoa Ax8 "Created to be lived"

  Astondoa · 12/3/2023

Videos whose title names the Astondoa Ax8, from the channel the builder's site links; last checked 9/30/2026. Playing one loads YouTube's player, which may set cookies.

About Astondoa

Semi-custom

Family-run Spanish shipyard founded in 1916 by the Astondoa brothers at Portugalete and building since the 1980s at Santa Pola near Alicante — twelve semi-custom motor yachts from the 11.6-metre 377 Coupe to the 60-metre 197 Steel, more than 3,000 vessels in four generations.

The yard dates itself to 1916, when the brothers Jesús and José Astondoa Martínez began building rowing boats and traineras in a small carpenter's workshop in Portugalete. Work stopped during the Spanish Civil War, after which the brothers went separate ways and Jesús turned to fishing and recreational boats; his son Jesús Astondoa Santamaría joined in 1944 and took over the yard soon after, its wooden boats and finish earning it a national name. The third generation joined once the company had established itself on Spain's east coast, and in the early 1980s Astondoa left wood for glass-reinforced polyester. By 2006 the group employed more than 500 people and offered what it describes as the widest range built under one brand, from 40-foot open boats to composite yachts over 120 feet and steel-hulled megayachts up to 45 metres. More than 3,000 vessels have been built in the century since, the family still runs the yard, and the main site at Santa Pola near Alicante spans 30,000 square metres and concentrates on yachts above 122 feet.

The Astondoa Range

Every model Astondoa publishes, by length — where this one sits in the range.

1. Astondoa 151 Steel149.3 ft
2. Astondoa 110 Century108.1 ft
3. Astondoa 100 Century100.1 ft
4. Astondoa As882.1 ft
5. Astondoa Ax8· this model80.2 ft
6. Astondoa 66 Flybridge66 ft
7. Astondoa 677 Coupe62.1 ft
8. Astondoa As556.9 ft
9. Astondoa 577 Coupe52.2 ft
