Astondoa As5

Summary

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

56.9 ft (17.34 m)

Hull length

—

LWL

—

Beam

16.2 ft (4.94 m)

Draft (min)

—

Draft (max)

4.7 ft (1.43 m)

Air draft

—

Displacement

58,863 lb (26,700 kg)

Ballast

—

Cabins

3

Heads

—

Berths

—

Performance

Maximum speed

32 kn

Cruising speed

—

Range

—

Guests

8

Crew

—

Engine and Tanks

Engine

725–800 hp (Volvo Penta)

Engine count

—

Engine manufacturer

Volvo Penta

Propulsion type

shaft

Fuel capacity

634 gal (2,400 L)

Fresh water capacity

159 gal (600 L)

Black water capacity

—

Construction

Hull material

GRP

Deck material

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Hull type

V shape 15,5º

Full-load displacement

32.400 kg

Max persons on board (certified)

18

Certified by

RINA

Engines (standard)

Volvo Penta D11 725 hp

Engines (optional)

Man i6 800hp Volvo Penta D11 – IPS 950 725 hp

Draft basis

maximum draft at full load

Engine power basis

per engine as printed; min/max across standard and optional engines

Displacement basis

lightship ('Peso rosca')

Crew cabins as printed

1

Cabins as printed

3

Layouts & Drawings

6 drawings from the builder's page: general arrangement, sail plan, profile.

•

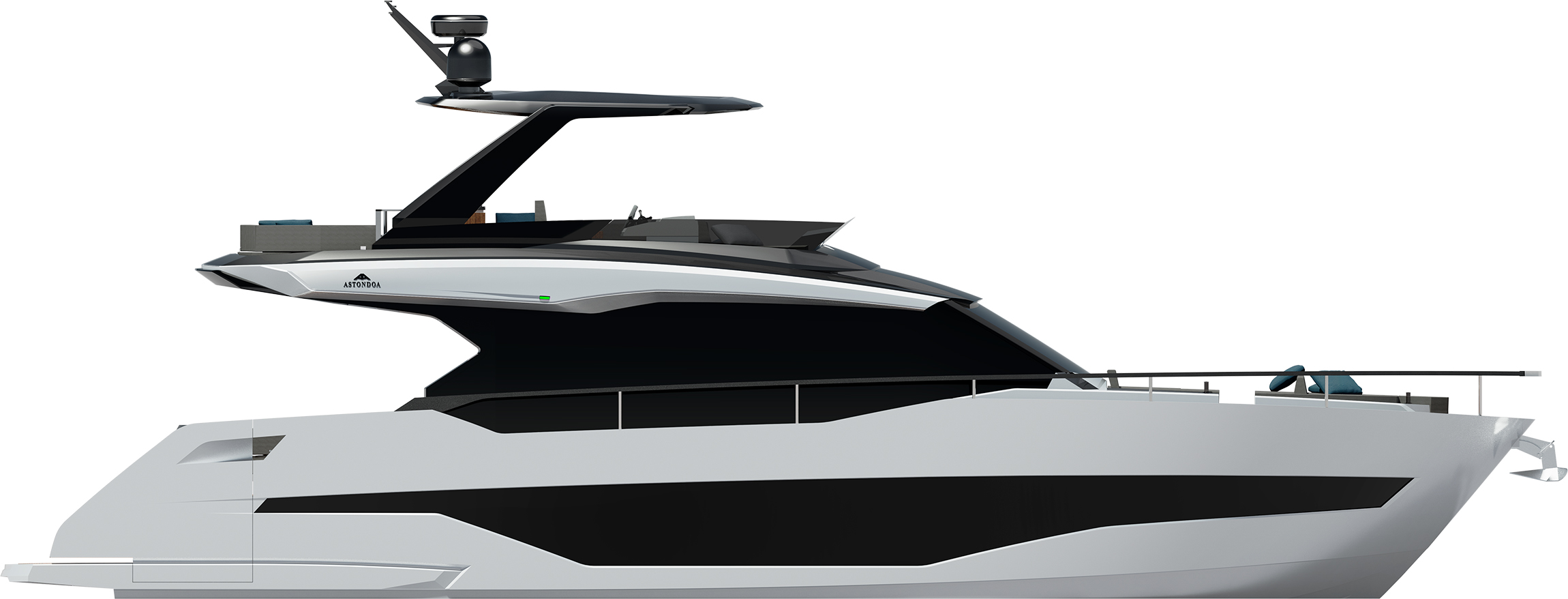

  perfil — Astilleros Astondoa

•

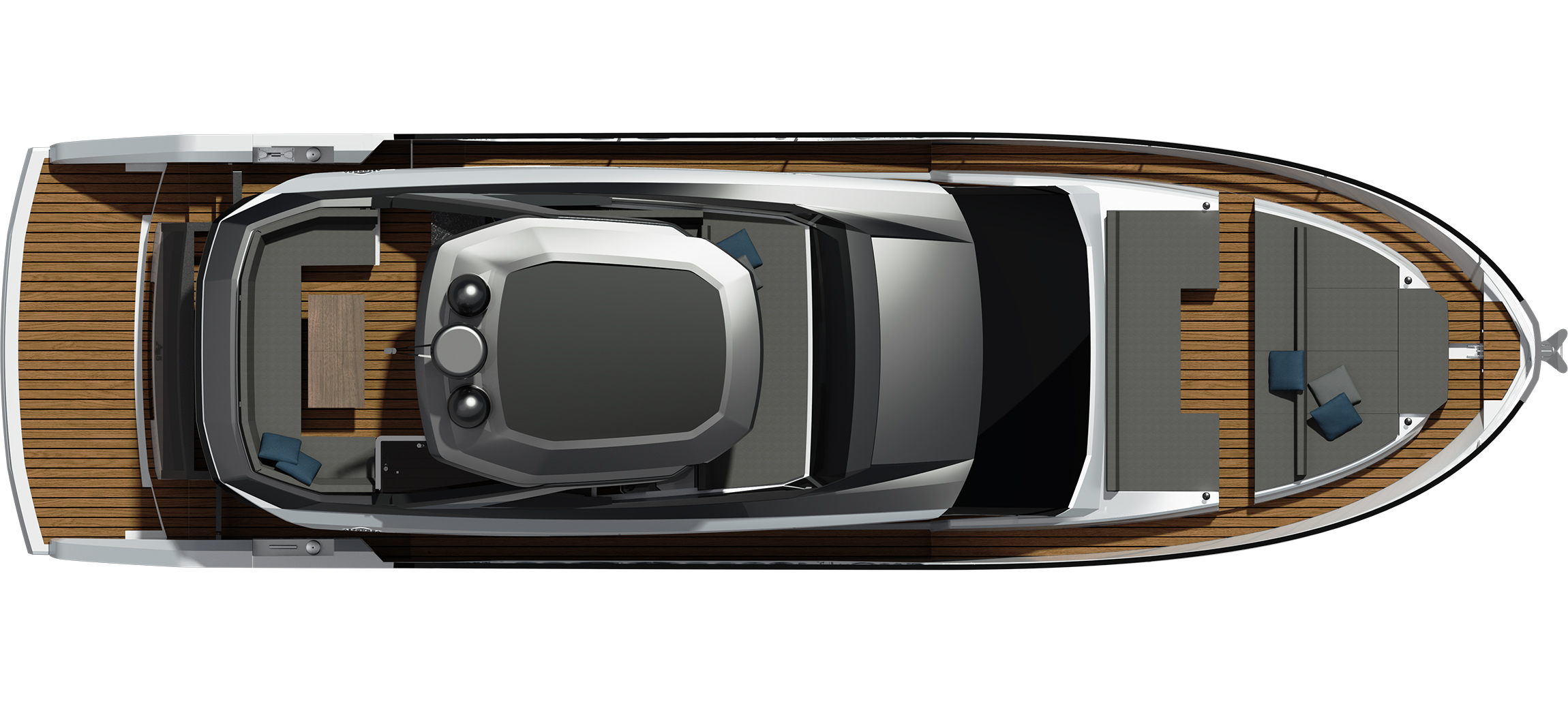

  flybridge — Astilleros Astondoa

•

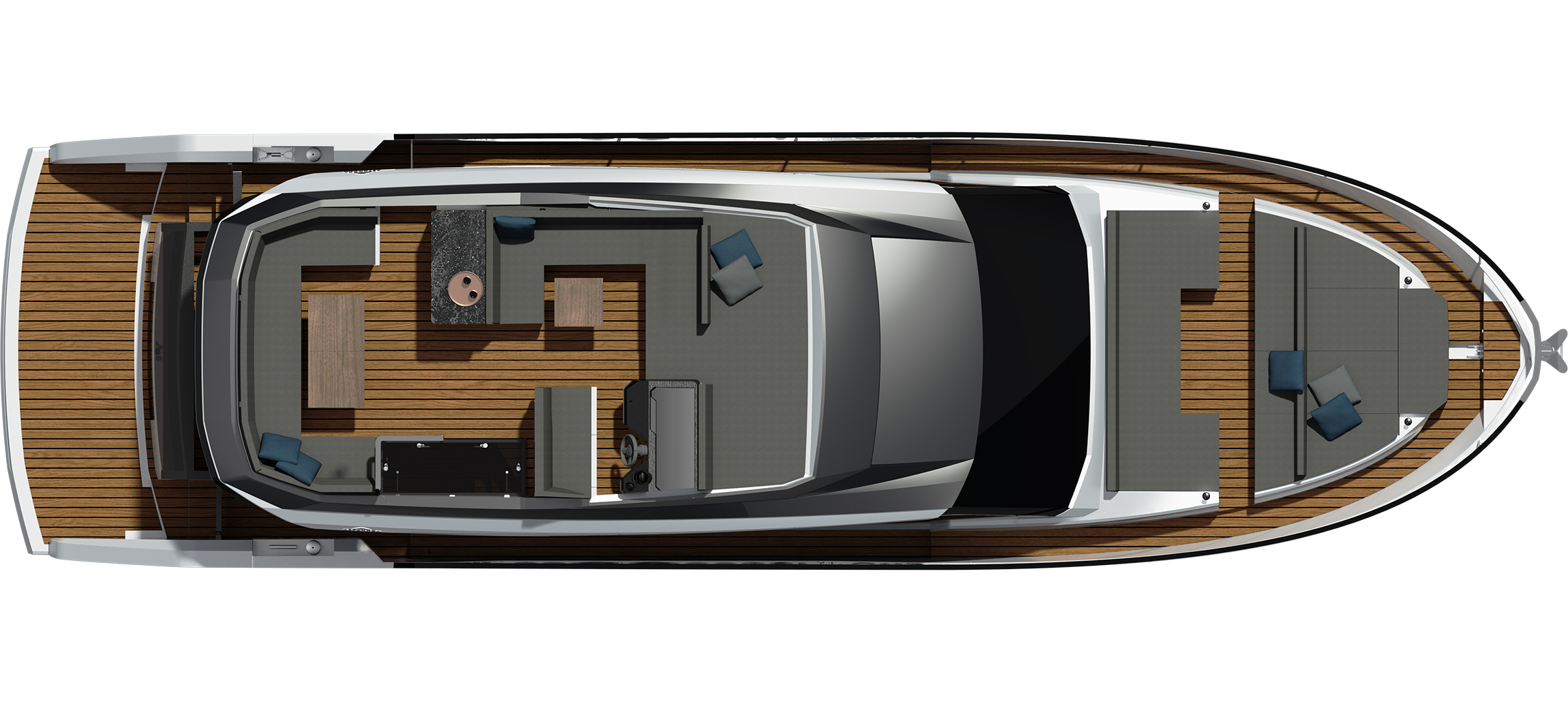

  superior — Astilleros Astondoa

•

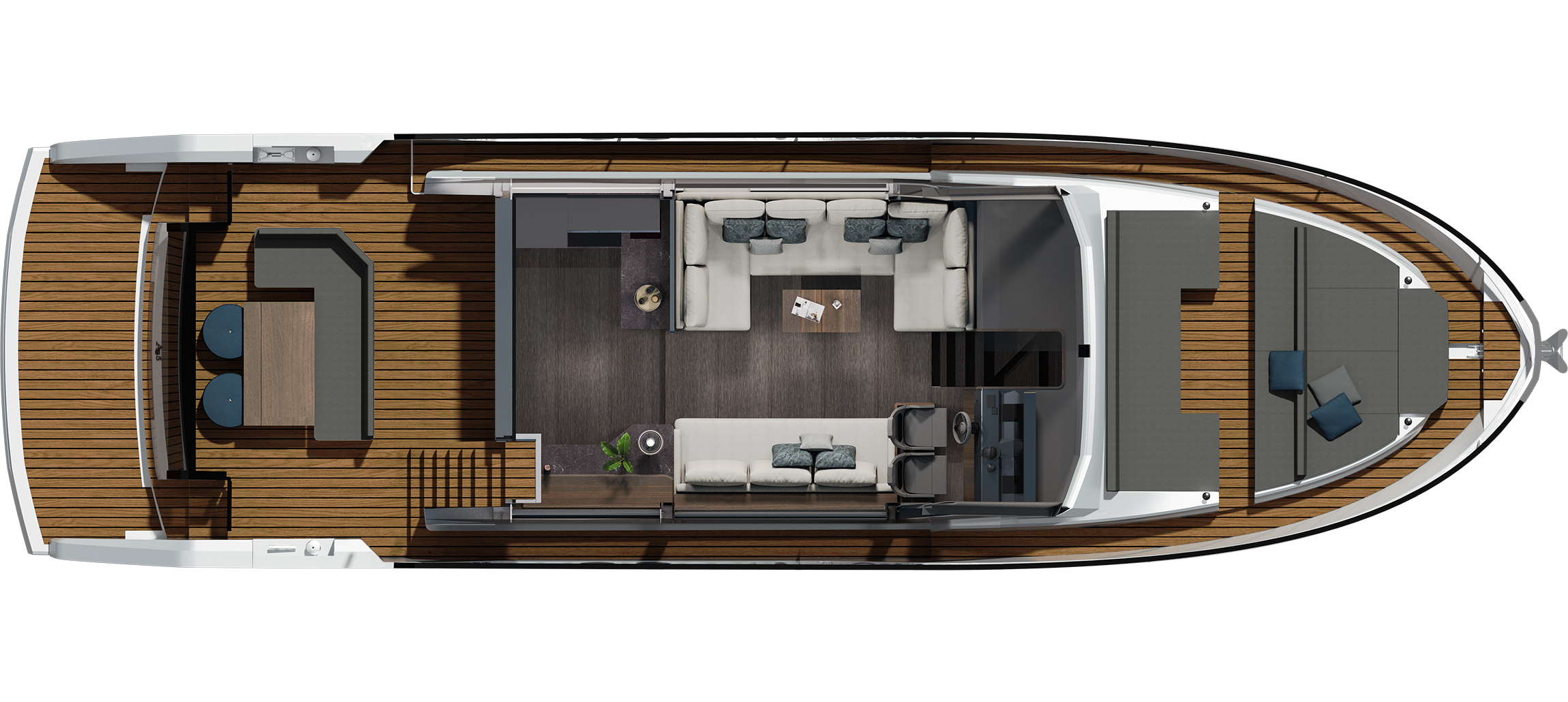

  principal — Astilleros Astondoa

•

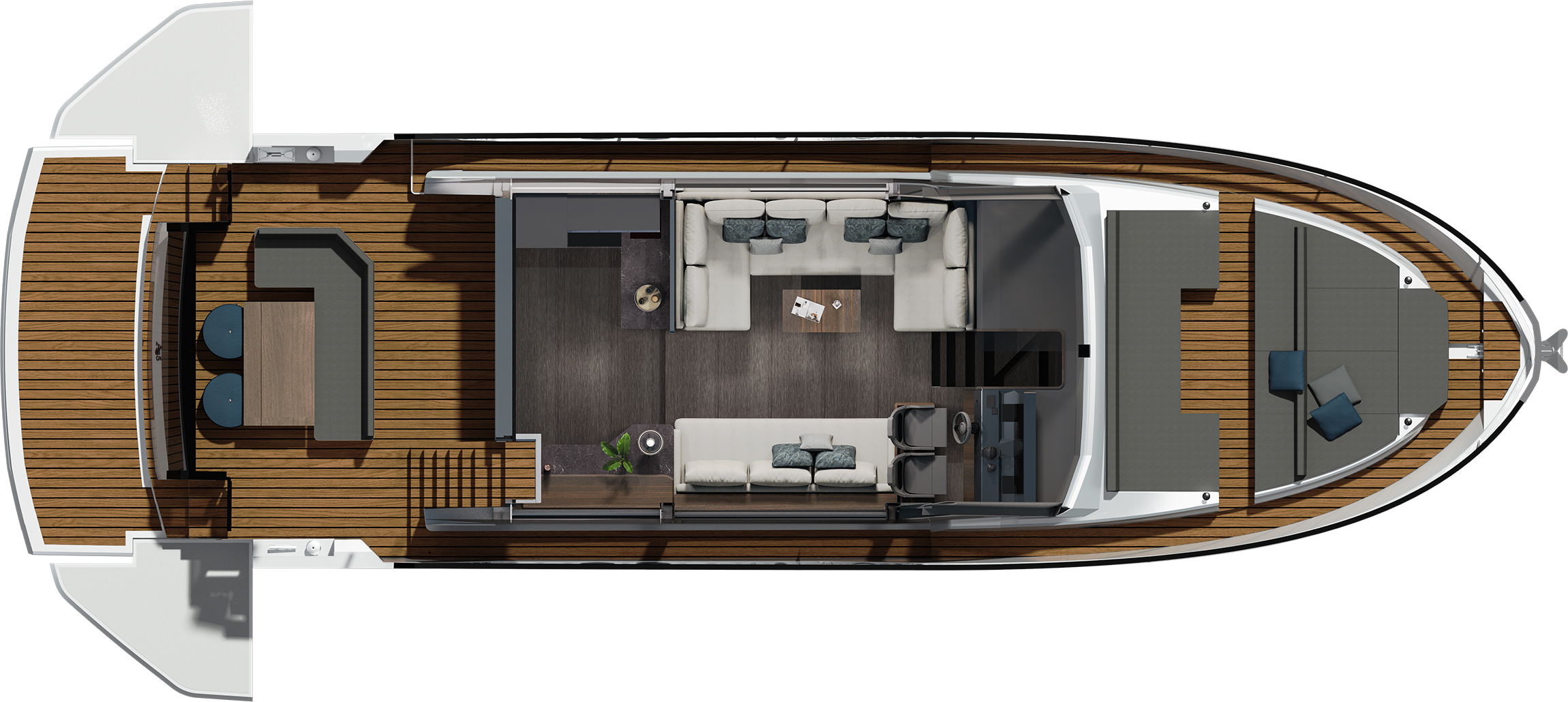

  principal_b — Astilleros Astondoa

•

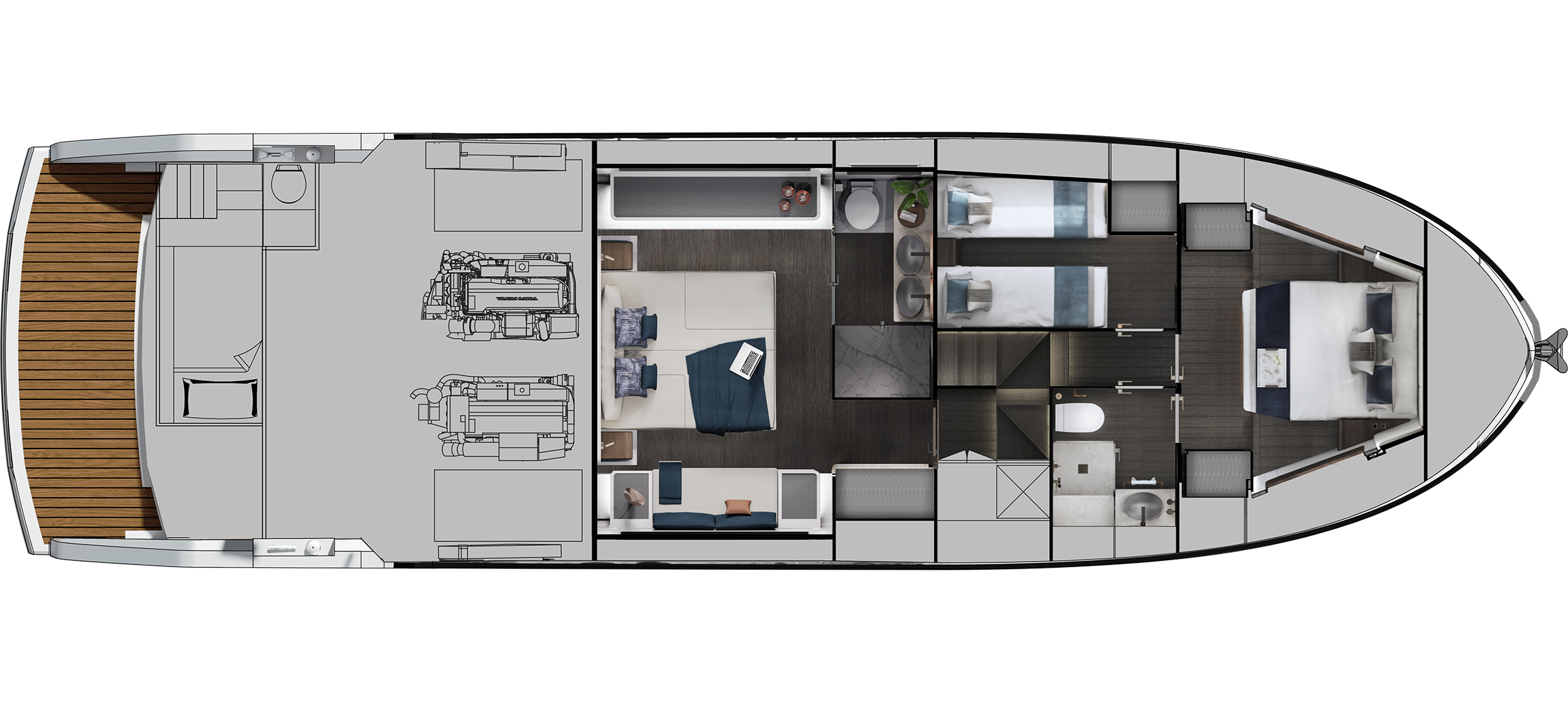

  inferior — Astilleros Astondoa

About Astondoa

Semi-custom

Family-run Spanish shipyard founded in 1916 by the Astondoa brothers at Portugalete and building since the 1980s at Santa Pola near Alicante — twelve semi-custom motor yachts from the 11.6-metre 377 Coupe to the 60-metre 197 Steel, more than 3,000 vessels in four generations.

The yard dates itself to 1916, when the brothers Jesús and José Astondoa Martínez began building rowing boats and traineras in a small carpenter's workshop in Portugalete. Work stopped during the Spanish Civil War, after which the brothers went separate ways and Jesús turned to fishing and recreational boats; his son Jesús Astondoa Santamaría joined in 1944 and took over the yard soon after, its wooden boats and finish earning it a national name. The third generation joined once the company had established itself on Spain's east coast, and in the early 1980s Astondoa left wood for glass-reinforced polyester. By 2006 the group employed more than 500 people and offered what it describes as the widest range built under one brand, from 40-foot open boats to composite yachts over 120 feet and steel-hulled megayachts up to 45 metres. More than 3,000 vessels have been built in the century since, the family still runs the yard, and the main site at Santa Pola near Alicante spans 30,000 square metres and concentrates on yachts above 122 feet.

The Astondoa Range

Every model Astondoa publishes, by length — where this one sits in the range.

1. Astondoa 100 Century100.1 ft
2. Astondoa As882.1 ft
3. Astondoa Ax880.2 ft
4. Astondoa 66 Flybridge66 ft
5. Astondoa 677 Coupe62.1 ft
6. Astondoa As5· this model56.9 ft
7. Astondoa 577 Coupe52.2 ft
8. Astondoa 377 Coupe38.1 ft
9. Astondoa 377 Coupe Outboard38.1 ft
