Bluegame BGX63

Design

Designer

Luca Santella & Zuccon International Project

Naval architect

Louis T. Codega

Summary

Best Suited For

• Liveaboard

  From the published figures: LOA 20 m · 3 cabins · fresh water 700 L

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

65.6 ft (20 m)

Hull length

62.3 ft (18.98 m)

LWL

—

Beam

17.4 ft (5.3 m)

Draft (min)

4.7 ft (1.42 m)

Draft (max)

4.7 ft (1.42 m)

Air draft

—

Displacement

83,776 lb (38,000 kg)

Ballast

—

Cabins

2–3

Heads

—

Berths

4–6

Performance

Maximum speed

30 kn

Cruising speed

26 kn

Range

—

Guests

14

Crew

—

Engine and Tanks

Engine

800–900 hp (Volvo Penta)

Engine count

2

Engine manufacturer

Volvo Penta

Propulsion type

IPS pods

Fuel capacity

793 gal (3,000 L)

Fresh water capacity

185 gal (700 L)

Black water capacity

87 gal (330 L)

Construction

Hull material

—

Deck material

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Engines

2 x Volvo Penta IPS 1050 D13 / 2 x 588 kW / 800 HP STD 2 x Volvo Penta IPS 1200 D13 / 2 x 662 kW / 900 HP OPT

Berths

4 (6 OPT) + 1 (2 OPT)

Max passengers

14

Speeds

+/- 5% (page)

Concept

Luca Santella

Grey water

330 l

Draft basis

full load

Displacement basis

half load, +/- 5%; full load 41,000 kg

Layouts & Drawings

4 drawings from the builder's page: general arrangement, sail plan, profile.

•

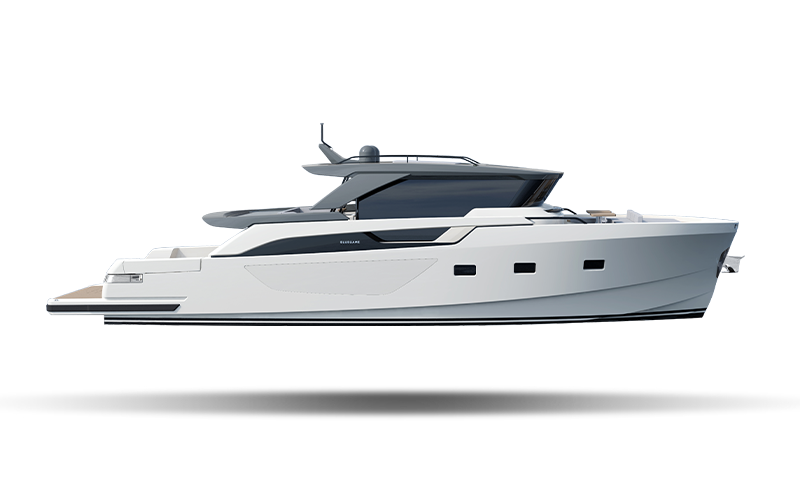

  bluegame-yacht-bgx63-profile — Bluegame (Sanlorenzo S.p.A.)

•

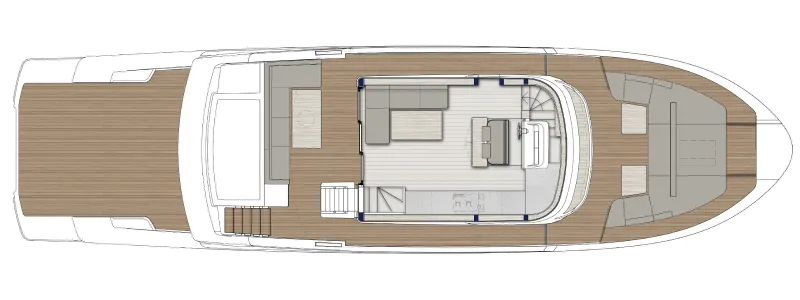

  bluegame-yacht-bgx63-main-deck — Bluegame (Sanlorenzo S.p.A.)

•

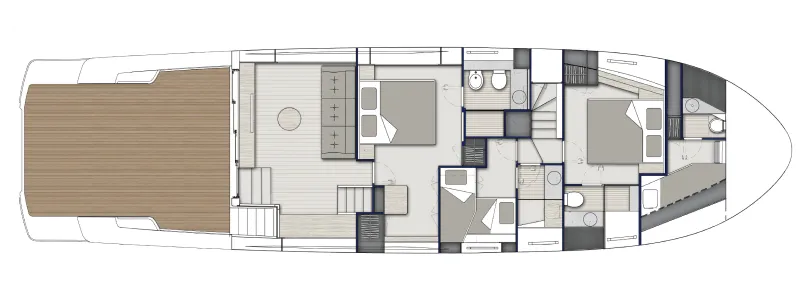

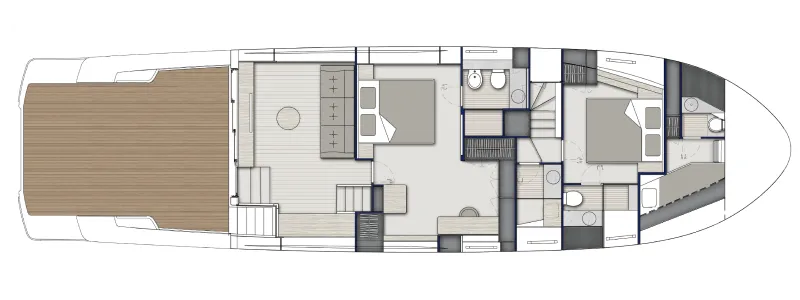

  bluegame-yacht-bgx63-lower-deck-two-cabins-three-bathrooms — Bluegame (Sanlorenzo S.p.A.)

•

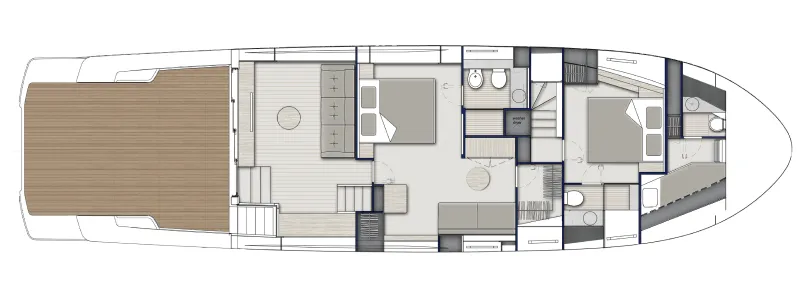

  bluegame-yacht-bgx63-lower-deck-two-cabin-two-bathrooms — Bluegame (Sanlorenzo S.p.A.)

About Bluegame

Semi-custom

Italian builder of unconventional multipurpose motor yachts — the BG walkaround range (42 to 74), BGX crossovers (63 to 83), the BGM75 catamaran and the foil-assisted BGF45 — founded in 2004 by Luca Santella and part of the Sanlorenzo group since 2018.

Bluegame entered yachting in 2004 with unconventional, multipurpose boats that defied categorisation, born from the vision of Luca Santella -- a sailor who competed at the 1988 and 1992 Olympics before turning to yacht design -- who teamed up with the naval architect Lou Codega on hulls built for stability and seaworthiness. In 2018 Bluegame became part of the Sanlorenzo Group, a change of paradigm that opened new horizons while the brand kept its own disruptive character: the BG range of 2018 was the new beginning, the BGX 'sea crossover' followed in 2019, the BGM opened a parallel segment in 2023, and the BGF brought foiling multihulls in 2025.
