Sunreef 80 Next

Design

Designer

Sunreef Yachts

Naval architect

Sunreef Yachts

Summary

Best Suited For

• Bluewater Cruising

  From the published figures: CE Category A · LOA 23.87 m · fresh water 1600 L

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

78.3 ft (23.87 m)

Hull length

—

LWL

—

Beam

37.8 ft (11.53 m)

Draft (min)

—

Draft (max)

—

Air draft

—

Displacement

—

Ballast

—

Cabins

—

Heads

—

Berths

—

Sail Plan

Main sail

2,153 ft² (200 m²)

Jib

—

Genoa

—

Sail area

3,821 ft² (355 m²)

Downwind sail area

—

Rig type

—

Engine and Tanks

Engine

249–280 hp

Engine count

2

Engine manufacturer

—

Propulsion type

—

Fuel capacity

634 gal (2,400 L)

Fresh water capacity

423 gal (1,600 L)

Black water capacity

—

Construction

Mast material

—

Hull material

composite

Deck material

—

Keel type

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Genoa

155 m²

Living space

340 m² / 3659.73 Ft²

Engine power basis

per engine as printed; the smallest and largest option

Design category as printed

A

Engines as printed

2 x 249 HP - 2 x 280 HP

Fuel capacity as printed

2400 l (634.01 US gal) - 6000 l (1585.03 US gal) — standard (smaller) total stored

Sail area basis

mainsail 200 + genoa 155 m² as printed

Layouts & Drawings

4 drawings from the builder's page: general arrangement, sail plan, profile.

•

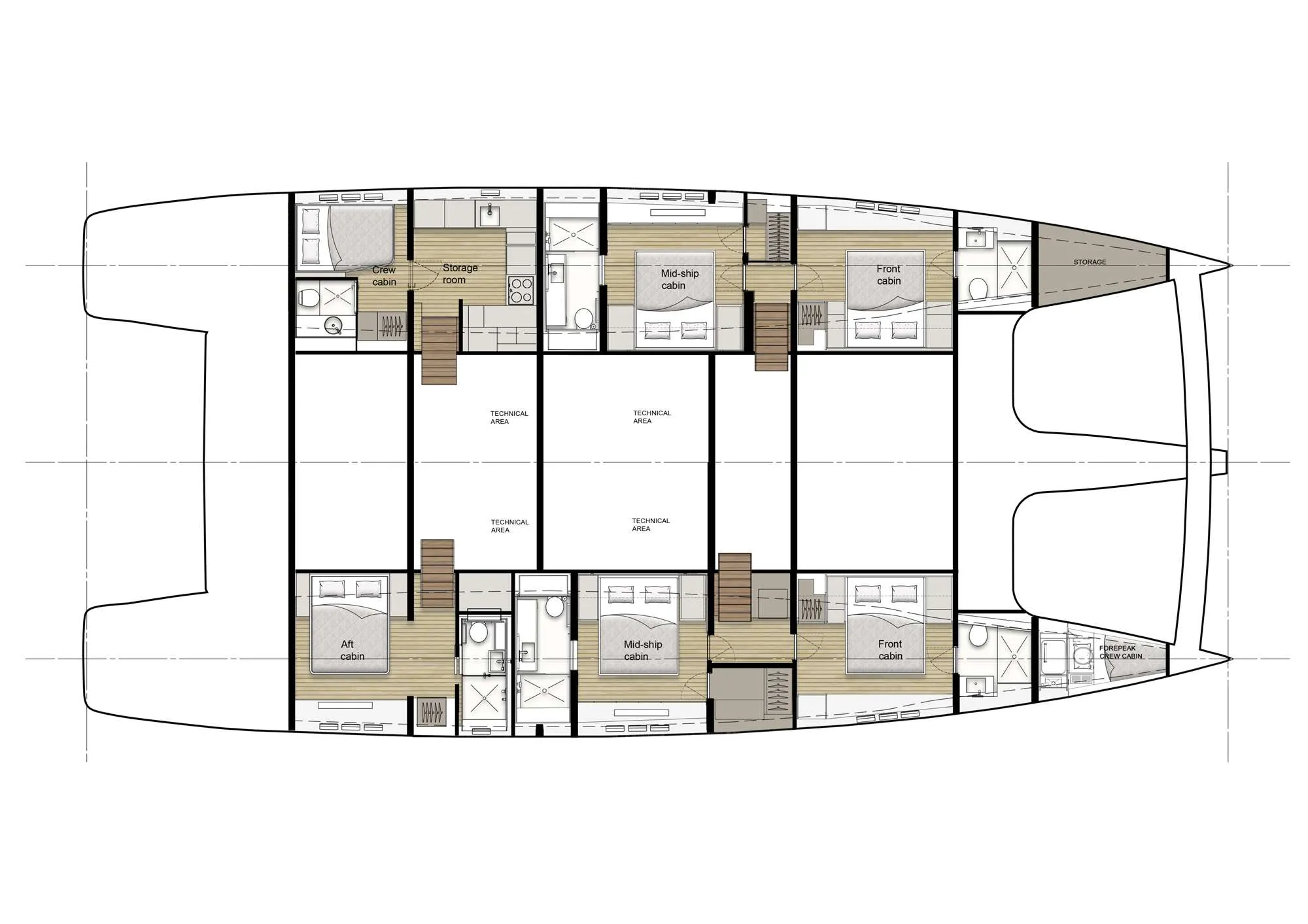

  sunreef-80-layout-10 — Sunreef Yachts

•

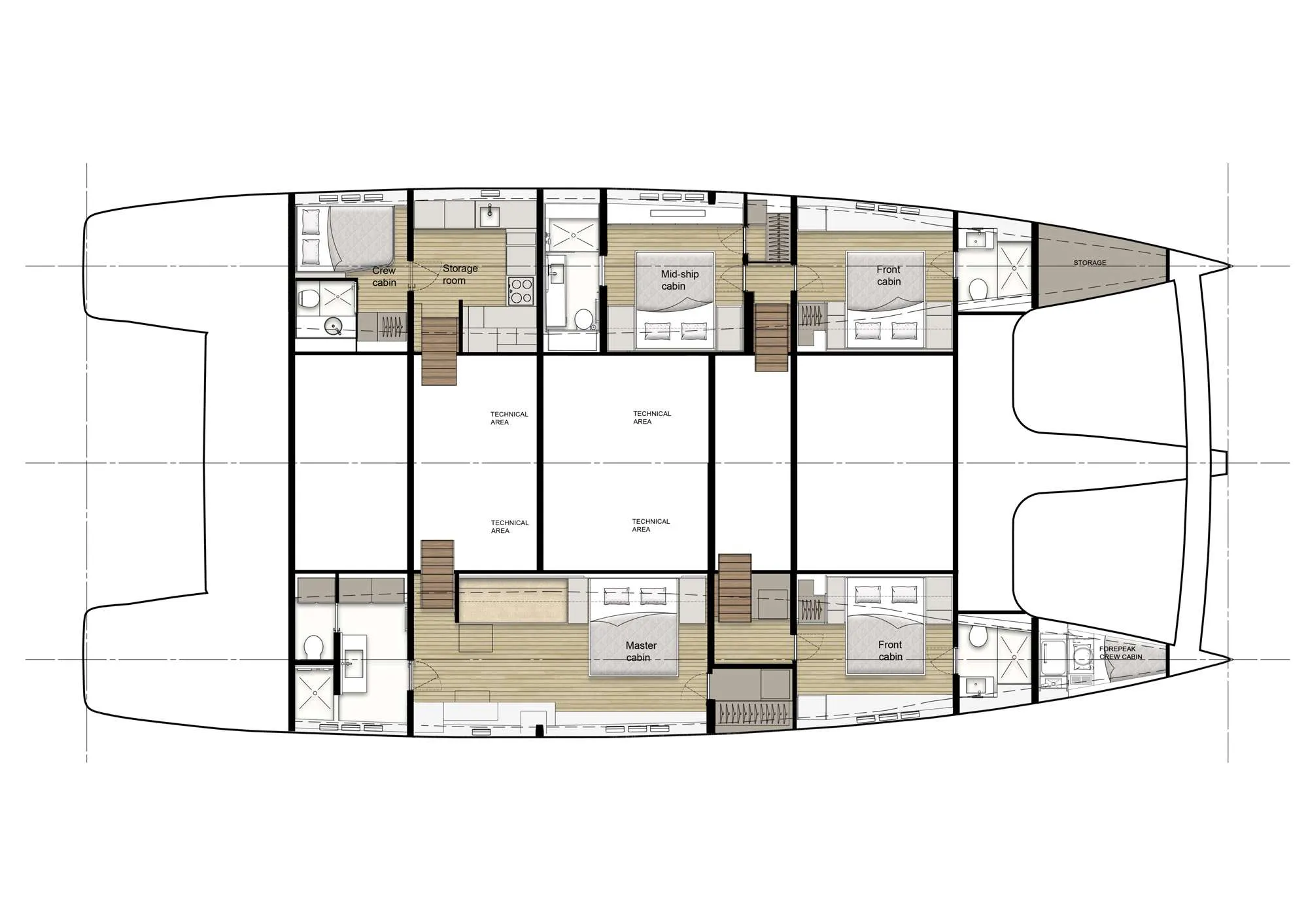

  sunreef-80-layout-09 — Sunreef Yachts

•

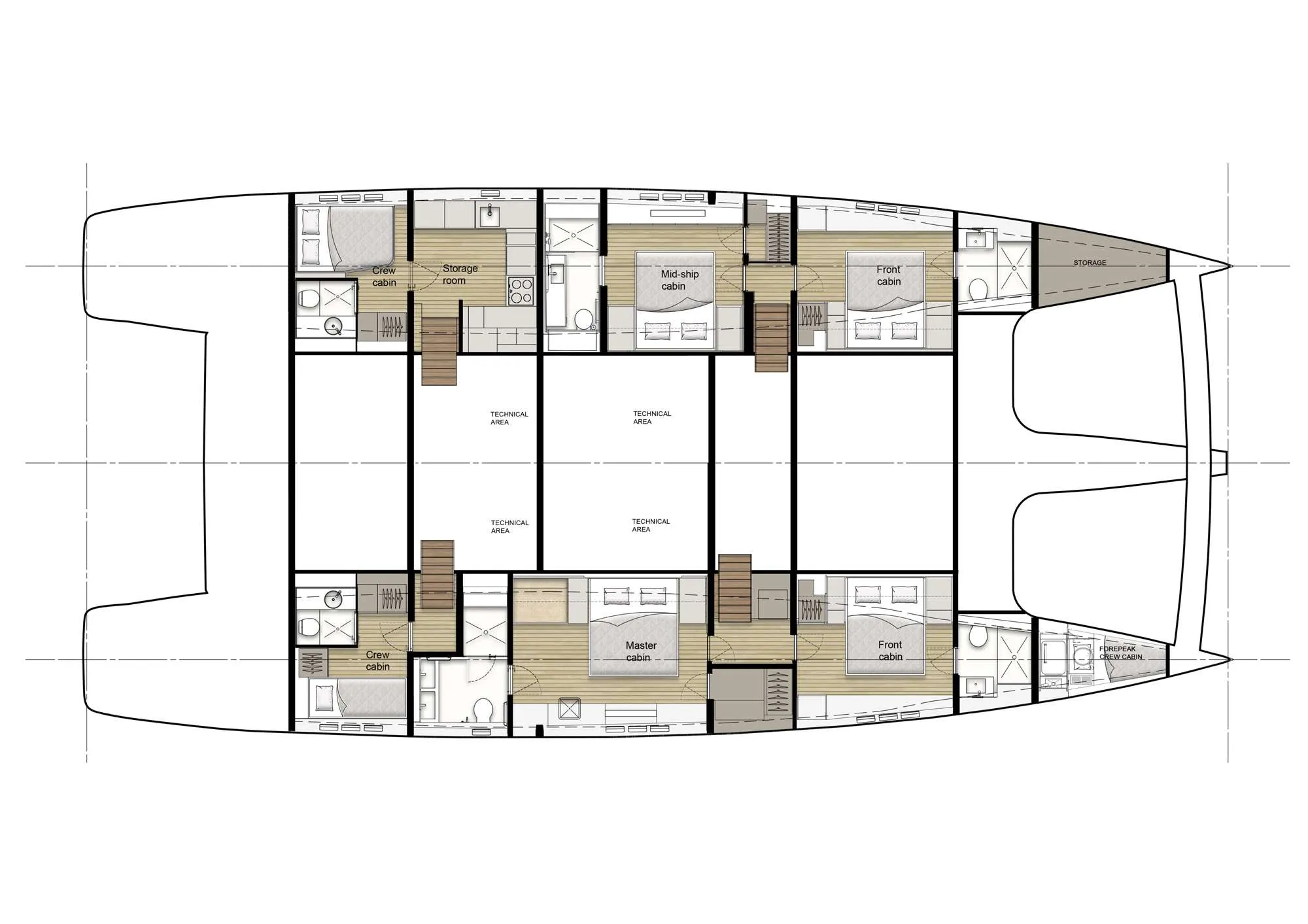

  sunreef-80-layout-08 — Sunreef Yachts

•

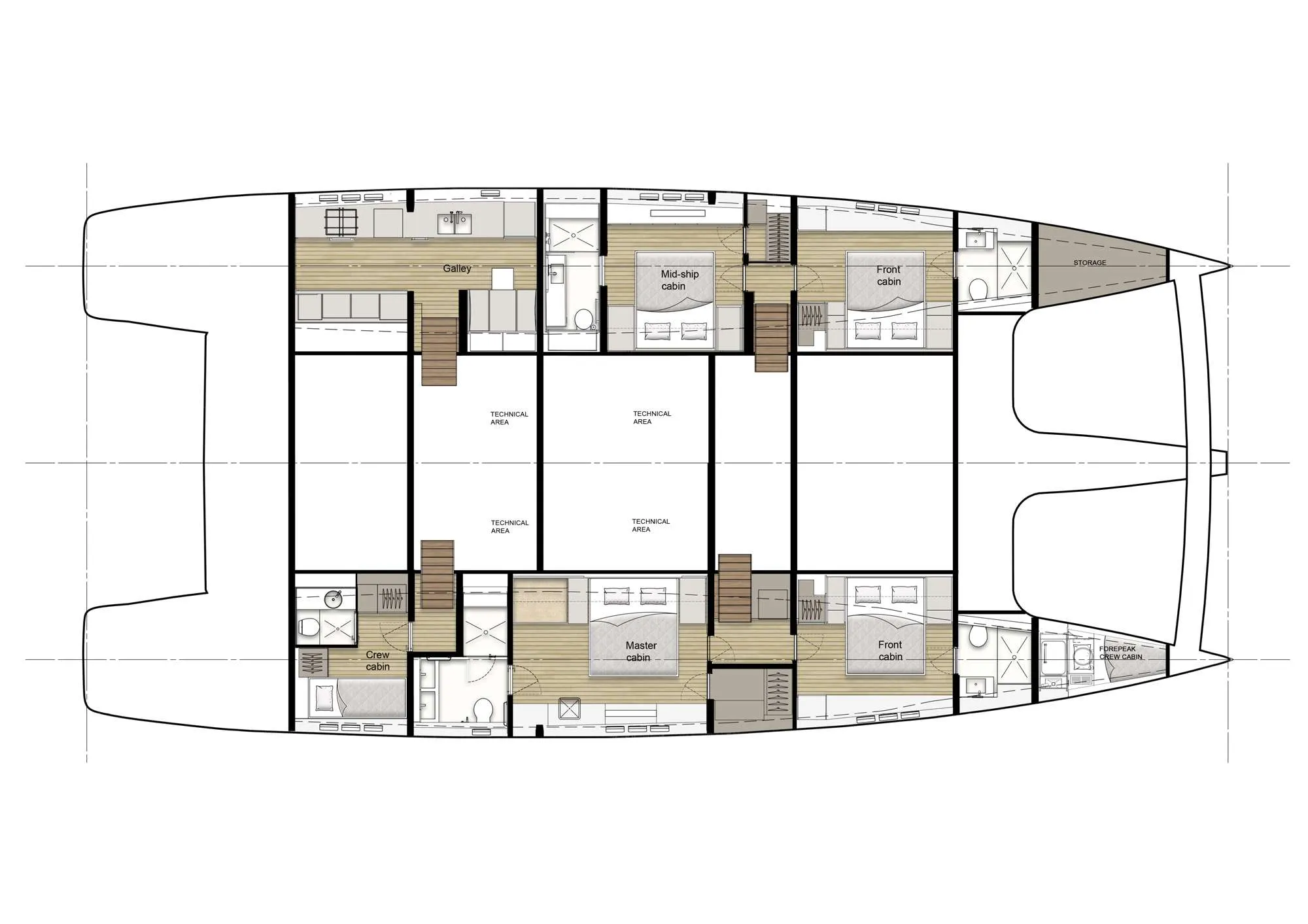

  sunreef-80-layout-07 — Sunreef Yachts

About Sunreef Yachts

Custom

Polish builder of custom luxury catamarans from Gdańsk, founded in 2002 by Francis Lapp — the Sunreef 50 to 100 sailing catamarans, the 60 to 100 Sunreef Power motor catamarans, each in a Classic and a solar-electric Eco version, the Ultima 44 to 88 motor yachts with a BRABUS edition, and superyacht projects up to a 210-foot power trimaran.

Francis Lapp opened a shipyard in Gdańsk, a city with long traditions of naval construction, establishing Sunreef Yachts' production site and office there in 2002. In 2003 the yard launched the Sunreef 74 CHE, the world's first oceangoing luxury catamaran with a flybridge, which changed the philosophy of multihull design; the 70 Sunreef Power JAMBO of 2008, designed with Laurent Bourgnon, was the first double-deck power catamaran with oceanic range, and the Sunreef Ultimate line of high-performance sailing catamarans followed in 2010. Francis Lapp was named Entrepreneur of the Year at the 2013 World Yacht Trophies, the Sunreef Supreme 68 opened the Supreme range in 2016, and the yard marked fifteen years in 2017 as the Sunreef 88 Double Deck and 40 Open Sunreef Power collected Yacht Style awards in 2018 and 2019. In 2022 the Sunreef 80 Eco, the first yacht with Sunreef's solar skin, was launched and won the Gustave Trouvé Award, followed in 2023 by the German Innovation Award and Multihull of the Year.

The Sunreef Yachts Range

Every model Sunreef Yachts publishes, by length — where this one sits in the range.

1. Sunreef 100 Infinity96.5 ft
2. Sunreef 100 Next94 ft
3. Sunreef 80 Next· this model78.3 ft
4. Sunreef 70 Next71 ft
5. Sunreef 60 Next60.4 ft
6. Sunreef 5049.9 ft
