SUNBEAM 29.1 GT

Name: SUNBEAM 29.1 GT
Brand: Sunbeam Yachts

In production

1 / 10

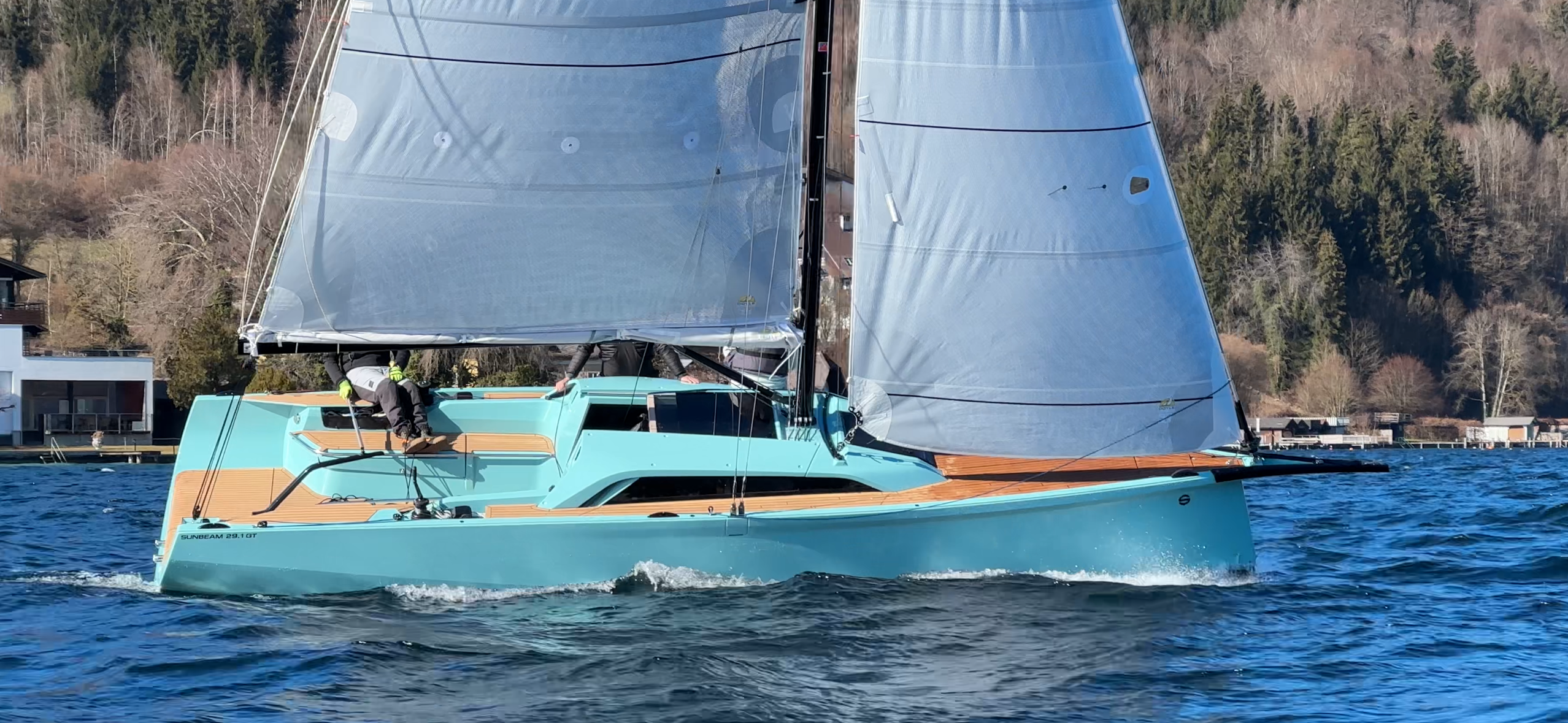

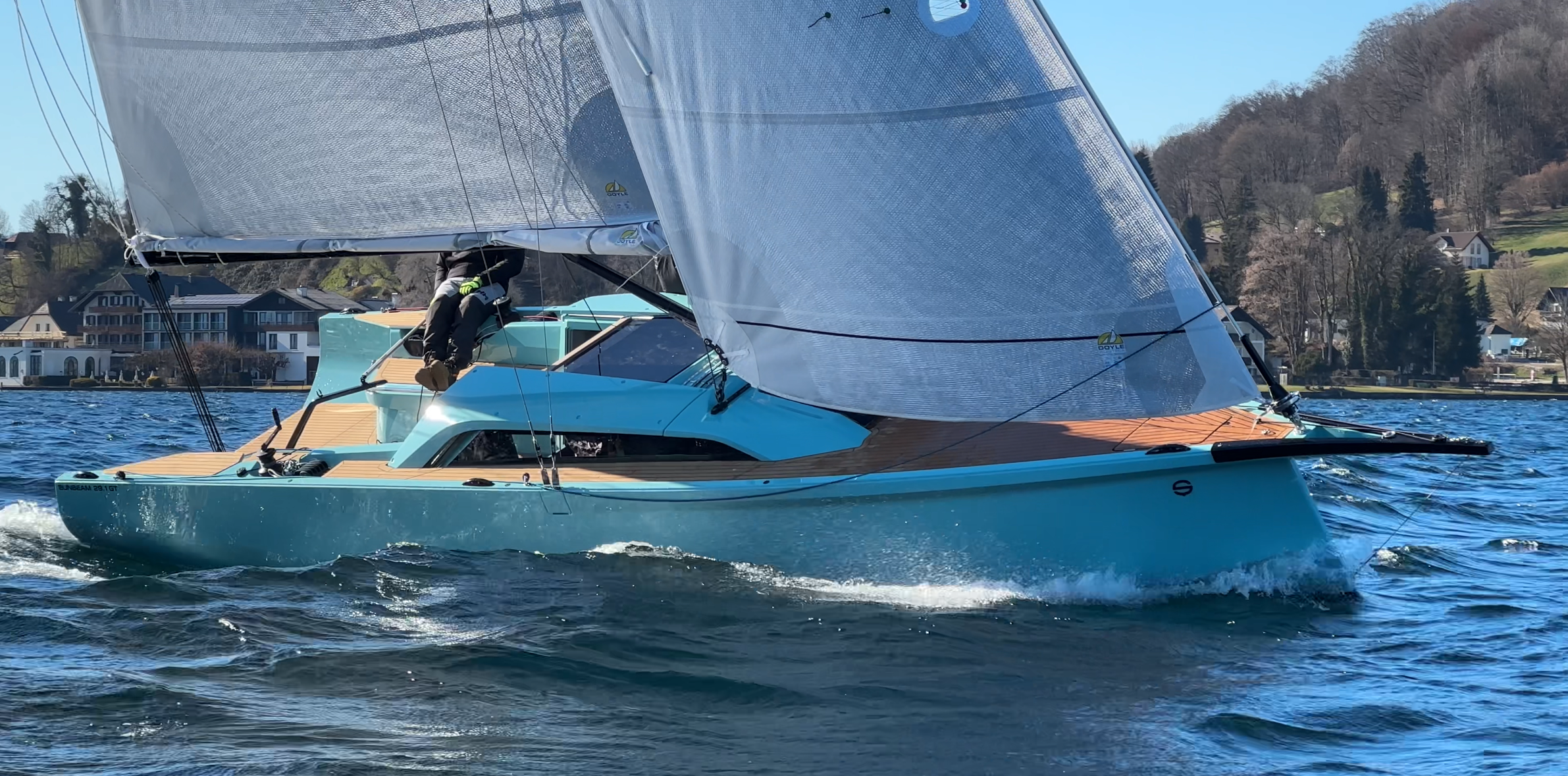

IMG_5880 — Sunbeam Yachts

Summary

Sailing MonohullSail

Length overall: 29.5 ft
Beam: 8.1 ft
Draft: 5.7 ft
Displacement: 4,189 lb
Sail area (upwind): 506 ft²

* A standard reference image, not the actual boat — shown to help visualise this model's published dimensions.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Sail area / displacement

How much sail the boat carries for its weight — its power in light air.

31.2· Racing

How it is worked out

sail area (ft²) ÷ (displacement as ft³ of seawater)^⅔

published upwind sail area

Displacement / length

How heavy the boat is for its waterline length. Lower is lighter and quicker; higher is steadier and roomier.

107· Light

How it is worked out

displacement (long tons) ÷ (0.01 × waterline length in ft)³

Ballast ratio

The share of the weight carried in the keel — a rough guide to stiffness, though how deep that weight sits matters as much.

not published: ballast

How it is worked out

ballast ÷ displacement × 100

Comfort ratio

Ted Brewer's measure of how gently a boat moves in a seaway. Higher means a slower, easier motion.

14.6· Light

How it is worked out

displacement (lb) ÷ (0.65 × (0.7 × LWL + 0.3 × LOA) × beam^1.333), lengths in ft

Capsize screening

A guide from the inquiry after the 1979 Fastnet race: below 2 was taken as suited to ocean passages. It ignores hull shape and where the ballast sits.

2.02· 2 and above

How it is worked out

beam (ft) ÷ (displacement as ft³ of seawater)^⅓

Hull speed

Roughly the speed a displacement hull reaches before it has to climb its own bow wave.

6.8 kn

How it is worked out

1.34 × √(waterline length in ft), in knots

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Dimensions

LOA: 29.5 ft (8.99 m)
Hull length: 29.5 ft (8.99 m)
LWL: 25.9 ft (7.9 m)
Beam: 8.1 ft (2.48 m)
Draft (min): 5.7 ft (1.75 m)
Draft (max): —
Air draft: —
Displacement: 4,189 lb (1,900 kg)
Ballast: —
Cabins: —
Heads: —
Berths: —

Sail Plan

Main sail: 323 ft² (30 m²)
Jib: —
Genoa: —
Sail area: 506 ft² (47 m²)
Downwind sail area: —
Rig type: —

Engine and Tanks

Engine: —
Engine count: 1
Engine manufacturer: —
Propulsion type: electric pod
Fuel capacity: —
Fresh water capacity: —
Black water capacity: —

Construction

Mast material: —
Hull material: —
Deck material: —
Keel type: —
Rudder type: —
Steering wheels: —

Builder's Own Figures

Upwind sail area: the page's 'max. sail area (high tech) batten'
Gennaker: 60 m²
Ballast: 39 % of displacement (percentage only; no kg printed)
Motor: 1.6 kW electric (kW as printed; no hp)
Displacement basis: not stated ('values may differ if optional accessories are selected')

Figures read fromsunbeam-yachts.com/en/yachts/sunbeam-29-1-gt/· technical Detailsread 9/14/2026

Videos

External content

Films of this model from the builder's official YouTube channel (SUNBEAM Yachts). They are the builder's own; the figures above are the reference.

SUNBEAM INSIGHTS II - alles über die SUNBEAM 29.1 GT
SUNBEAM Yachts · 4/12/2025
The new SUNBEAM 29.1 GT
SUNBEAM Yachts · 4/1/2025

Shorts

The new SUNBEAM 29.1 GT

Videos whose title names the SUNBEAM 29.1 GT, from the channel the builder's site links; last checked 9/30/2026. Playing one loads YouTube's player, which may set cookies.

About Sunbeam Yachts

Premium production

Austrian family yard building sailing yachts since 1950 — today the SUNBEAM 22.1, 28.1, 29.1, 29.1 GT and 32.1, from 6.85 to 9.98 metres — run by the third generation of the Schöchl family and moving in 2026 from Mattsee to a new shipyard at Munderfing.

Sunbeam Yachts has been developing and building sailing yachts in Austria for more than seventy-five years, from its yard at Mattsee. It took the European Yacht of the Year award twice, in 2008 and in 2019. Part of what the yard aims at is reachability on land as well as water: the Sunbeam 22.1, 28.1, 29.1 and 29.1 GT are each under 2.5 metres in beam and under 3.5 tonnes, and so can be trailed behind a suitable vehicle without a special permit.
