SUNBEAM 32.1

Summary

Best Suited For

• Short-Handed

  From the published figures: LOA 9.98 m · upwind 60 m²

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Dimensions

LOA

32.7 ft (9.98 m)

Hull length

32.5 ft (9.9 m)

LWL

29 ft (8.85 m)

Beam

9.8 ft (2.98 m)

Draft (min)

5.9 ft (1.8 m)

Draft (max)

—

Air draft

—

Displacement

9,149 lb (4,150 kg)

Ballast

—

Cabins

—

Heads

—

Berths

—

Sail Plan

Main sail

388 ft² (36 m²)

Jib

—

Genoa

—

Sail area

646 ft² (60 m²)

Downwind sail area

—

Rig type

—

Engine and Tanks

Engine

—

Engine count

—

Engine manufacturer

—

Propulsion type

—

Fuel capacity

—

Fresh water capacity

—

Black water capacity

—

Construction

Mast material

—

Hull material

—

Deck material

—

Keel type

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Ballast

30 % of displacement (percentage only; no kg printed)

Upwind sail area

the page's 'max. sail area (high tech) batten'

Displacement basis

not stated ('values may differ if optional accessories are selected')

Layouts & Drawings

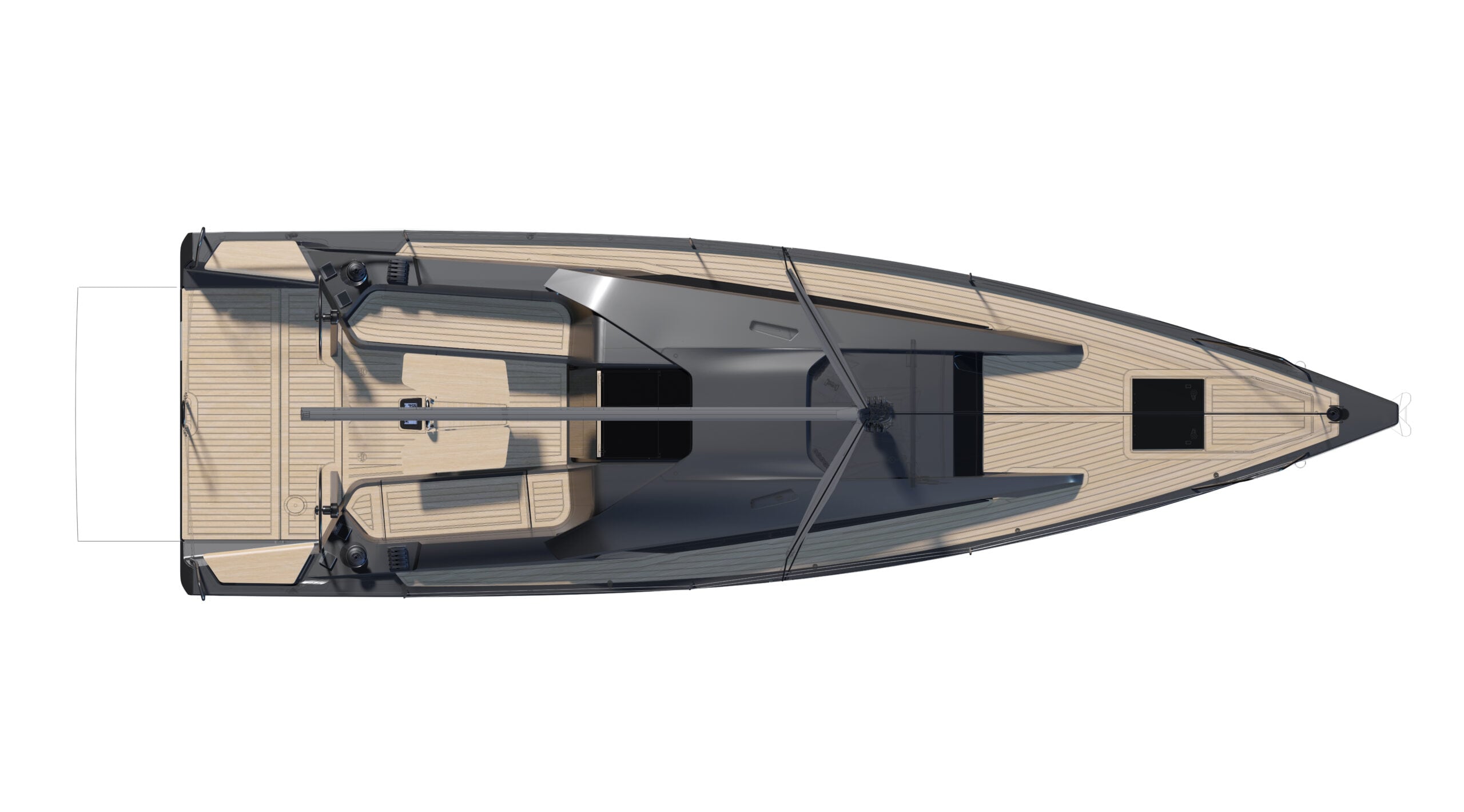

2 drawings from the builder's page: general arrangement, sail plan, profile.

•

  SB_321_deckplan_alle — Sunbeam Yachts

•

  SB_321_deckplan_top — Sunbeam Yachts

About Sunbeam Yachts

Premium production

Austrian family yard building sailing yachts since 1950 — today the SUNBEAM 22.1, 28.1, 29.1, 29.1 GT and 32.1, from 6.85 to 9.98 metres — run by the third generation of the Schöchl family and moving in 2026 from Mattsee to a new shipyard at Munderfing.

Sunbeam Yachts has been developing and building sailing yachts in Austria for more than seventy-five years, from its yard at Mattsee. It took the European Yacht of the Year award twice, in 2008 and in 2019. Part of what the yard aims at is reachability on land as well as water: the Sunbeam 22.1, 28.1, 29.1 and 29.1 GT are each under 2.5 metres in beam and under 3.5 tonnes, and so can be trailed behind a suitable vehicle without a special permit.

The Sunbeam Yachts Range

Every model Sunbeam Yachts publishes, by length — where this one sits in the range.

1. SUNBEAM 32.1· this model32.7 ft
2. SUNBEAM 29.129.5 ft
3. SUNBEAM 29.1 GT29.5 ft
4. SUNBEAM 22.122.5 ft
